PROMAX U Track Roll Forming Machine for Drywall Systems

The PROMAX U track roll forming machine is designed to manufacture U-shaped metal tracks used in drywall partition systems and lightweight interior framing. Through a continuous cold roll forming process, the machine gradually shapes metal coil into the required U track profile according to the customer's drawing and technical specifications.

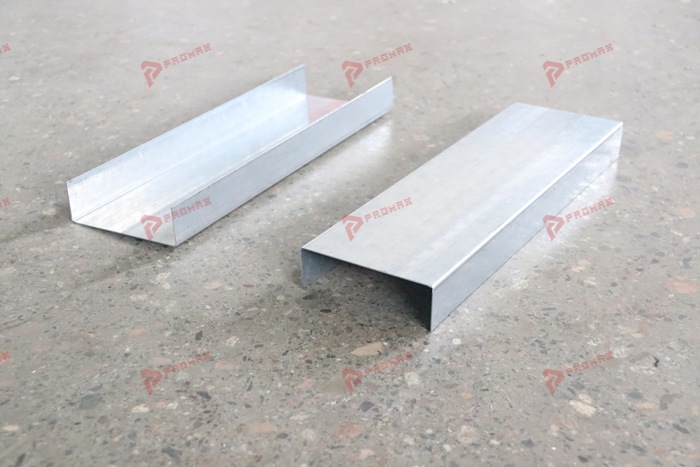

U tracks are commonly used as horizontal tracks in compatible metal stud and track framing systems. They work together with matching C-shaped studs to create frameworks for interior partition walls and other building applications. For manufacturers supplying construction materials, a dedicated U track making machine can support consistent production of metal framing components for contractors, distributors, and building material suppliers.

The machine configuration can be evaluated according to the required track dimensions, raw material, thickness range, cutting length, and punching requirements. Providing a profile drawing helps establish the appropriate roll tooling and production arrangement.

Applications of U Track Profiles

U-shaped metal tracks are important components in various lightweight metal framing systems. Depending on the profile design and project specifications, their applications may include:

• Drywall partitions: Horizontal tracks used with compatible C-shaped metal studs.
• Interior wall framing: Metal track components for residential and commercial partition systems.
• Lightweight steel framing: U-shaped channels for suitable non-load-bearing framing applications.
• Construction material production: Metal tracks manufactured for building material distributors and contractors.

The finished track must be compatible with the corresponding stud profile and the intended installation system. Dimensions, material thickness, and other requirements should be confirmed against the customer's technical drawing and applicable building standards.

How the U Track Roll Forming Machine Works

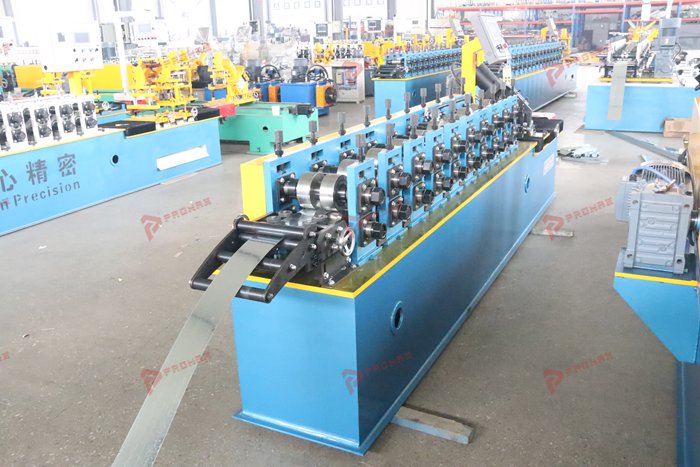

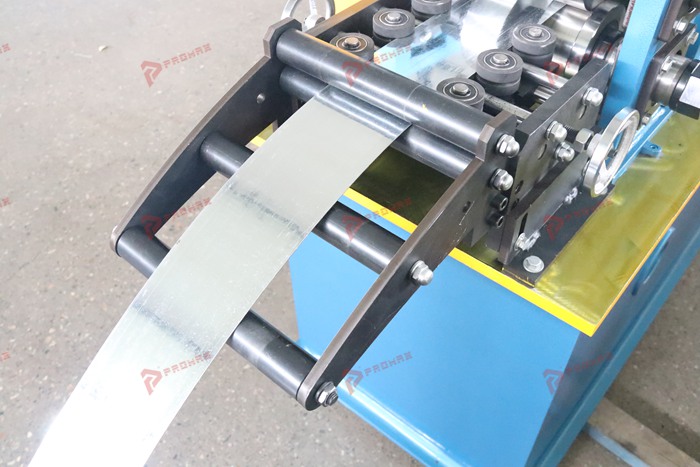

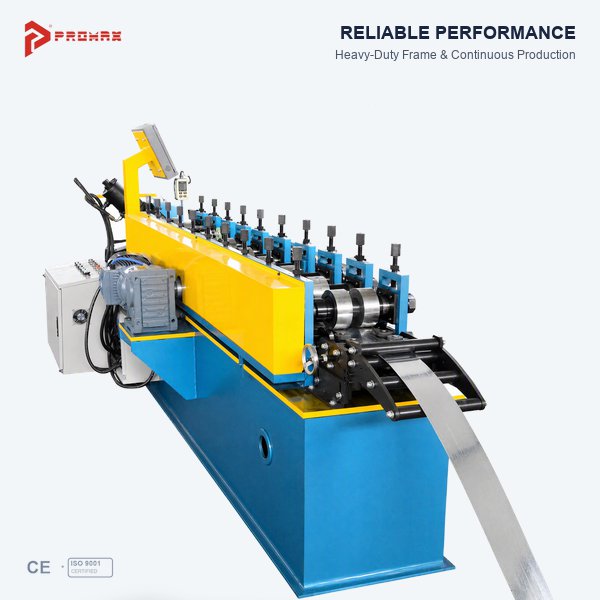

A typical U track production line feeds metal strip through a series of roll forming stations. Each station progressively bends the strip until it reaches the specified U-shaped cross-section. A cutting system then separates the formed track into the required lengths according to the machine configuration.

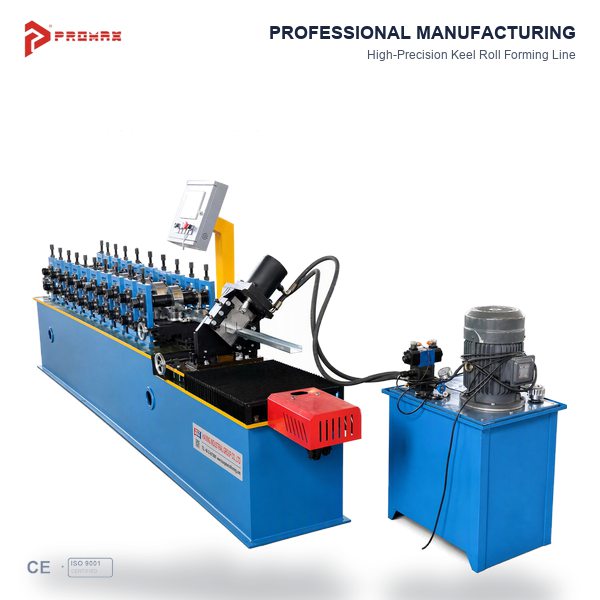

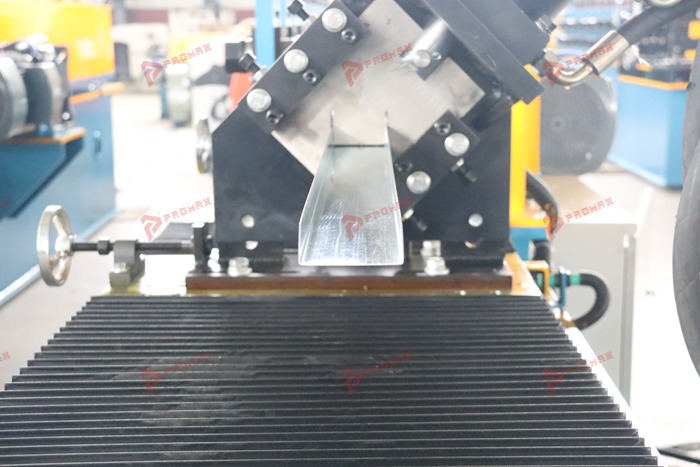

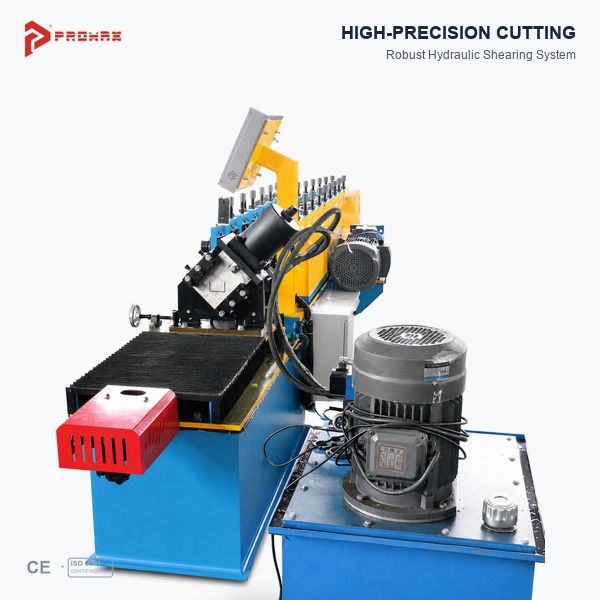

Depending on the production requirements, the line may include material feeding and guiding equipment, forming rollers, a cutting unit, and an electrical control system. If the track requires fixing holes, service openings, or other features, punching functions can be evaluated based on the profile drawing.

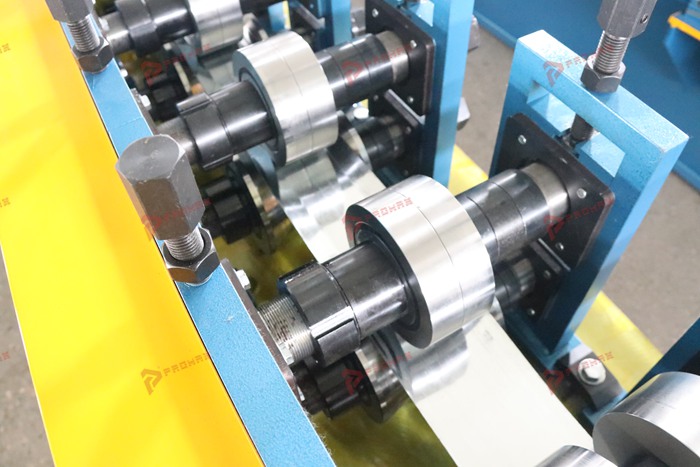

Correct tooling design is essential for forming the web and sidewalls to the required dimensions. The forming process and machine configuration should be matched to the material specifications and finished profile requirements.

How to Choose a Drywall Track Machine

When selecting a drywall track machine, manufacturers should consider the exact profile geometry and production requirements. Different U tracks may have different web widths, sidewall heights, flange shapes, and thickness specifications. These variations can affect the roll tooling, forming stations, and cutting arrangement.

• Track dimensions: Provide the complete cross-sectional drawing with all important measurements.
• Matching stud profile: Confirm the dimensions of the C stud that will be used with the U track.
• Material specifications: Identify the steel grade, coil width, and material thickness.
• Cutting length: Specify the required finished track lengths and cutting method.
• Punching requirements: Indicate whether holes, slots, or other features are needed.
• Production targets: Explain the expected output and preferred operating method.

These details help determine a suitable machine configuration and reduce the risk of selecting equipment that does not match the required finished profile.

PROMAX U Track Manufacturing Solutions

PROMAX provides roll forming equipment solutions for manufacturers of drywall profiles and lightweight metal framing components. Each project can be assessed according to the profile drawing, raw material specifications, finished product dimensions, and production requirements.

For a new U track production line, customers can submit their track drawing and material details for technical review. The proposed machine configuration can then be discussed in relation to tooling design, cutting requirements, punching options, and the intended production range.

Machine speed, material thickness range, automation level, and compatibility with multiple profile sizes depend on the final design. These details should be confirmed in the technical proposal to ensure that the machine meets the customer's actual manufacturing requirements.

Request a Quote for a U Track Making Machine

Looking for a U track roll forming machine for your drywall profile manufacturing business? Contact PROMAX to discuss your product specifications and production plans.

To help us evaluate your project, please provide the U track drawing, matching C stud dimensions if available, material type, thickness range, required cutting length, punching details, and expected production output. Photos or samples of your finished track can also help clarify the required profile.

Contact PROMAX today to discuss a U track roll forming solution tailored to your production requirements.
