3-in-1 Reversible Light Gauge Steel Framing Machine

3-in-1 Reversible Light Gauge Steel Framing Machine

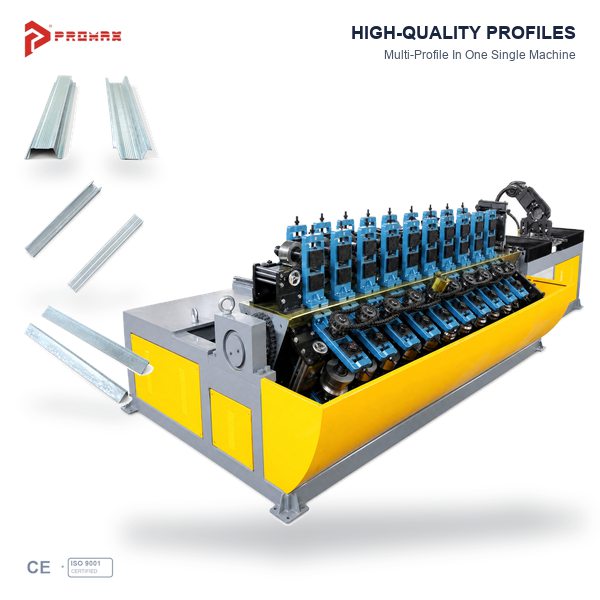

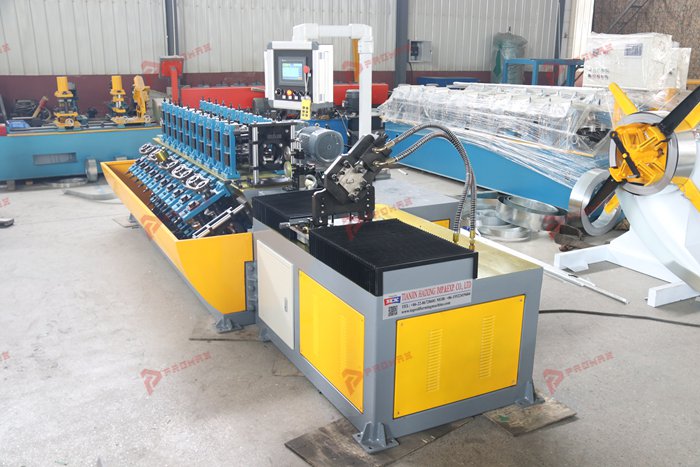

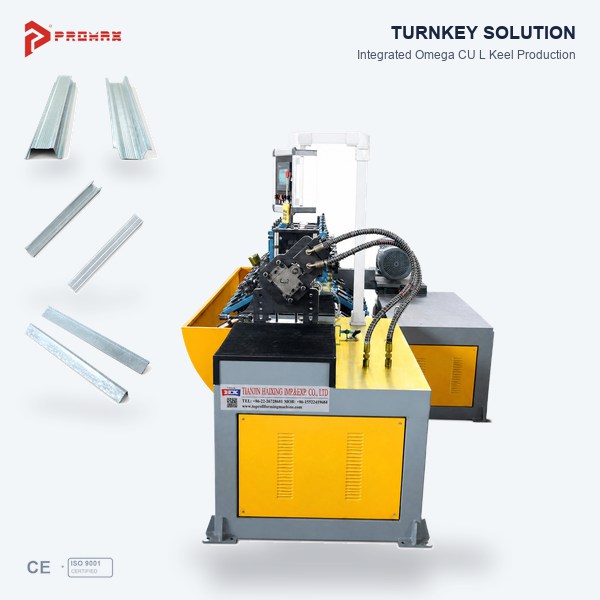

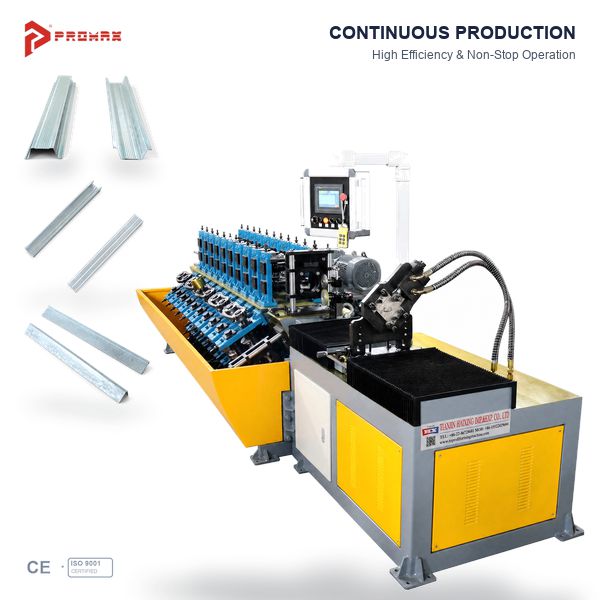

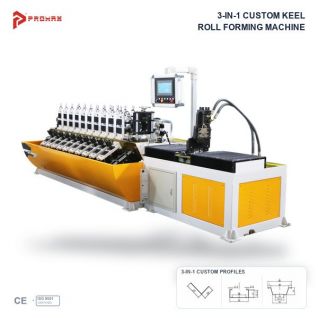

The PROMAX 3-in-1 reversible light gauge steel framing machine is designed for manufacturers seeking a flexible solution for producing metal framing profiles. Its three-in-one concept is intended to accommodate multiple profile production requirements within one machine solution, subject to the actual tooling design and machine configuration.

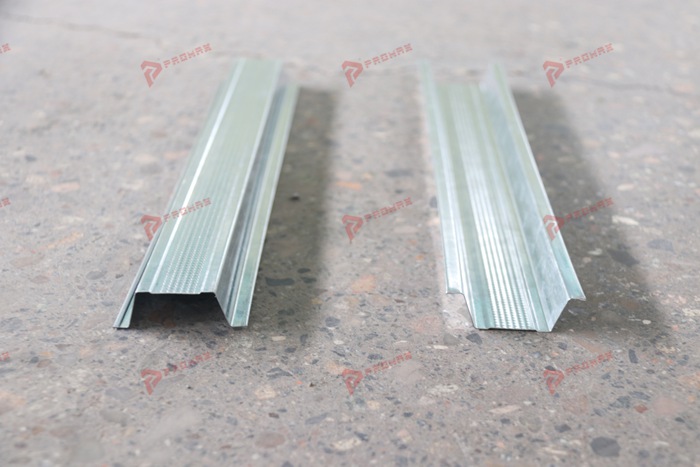

Light gauge steel profiles are widely used in drywall partition systems, interior ceilings, and lightweight construction applications. Selecting suitable roll forming equipment requires careful consideration of profile dimensions, material specifications, tooling arrangements, and production objectives. PROMAX can discuss a suitable configuration based on your drawings and manufacturing requirements.

Multi-Profile Production for Light Steel Framing

Manufacturers often need to supply different metal profiles for construction projects and building-material markets. A three-in-one roll forming machine can be considered when several compatible profile types are required within the same production setup.

The profiles supported by the machine depend on its forming structure, roller tooling, adjustment arrangements, and design specifications. Before purchasing, confirm which three profiles can be produced and whether changing between them requires manual adjustment, tooling replacement, machine reversal, or another procedure.

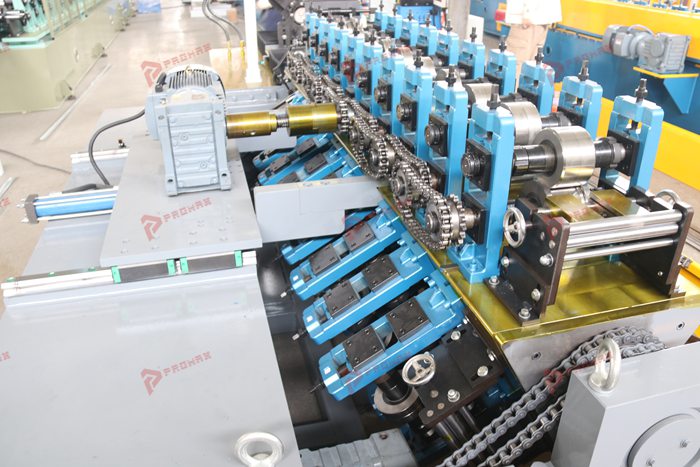

Reversible Machine Design

The reversible configuration is an important consideration for manufacturers evaluating this type of equipment. Its actual working principle, profile conversion procedure, and operating method should be confirmed against the machine design and technical documentation.

For factories producing different framing components, understanding how the machine accommodates each profile helps with production planning and equipment selection. Buyers should review the required profile drawings, material thickness, coil specifications, finished lengths, and any additional processing requirements before finalizing the order.

Cold Roll Forming Process

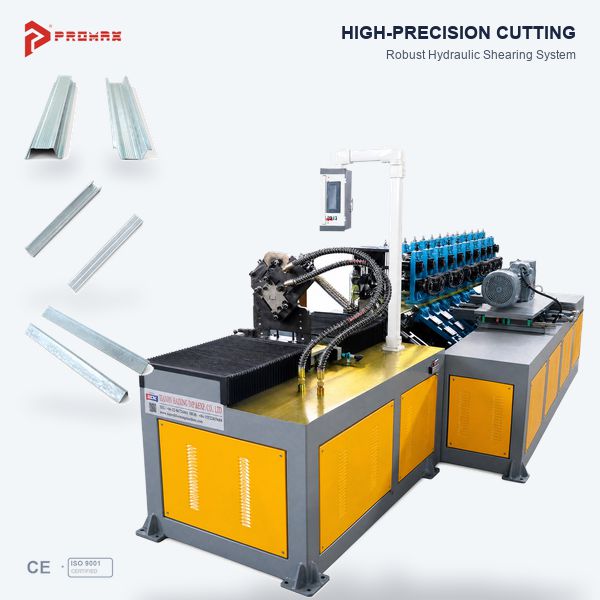

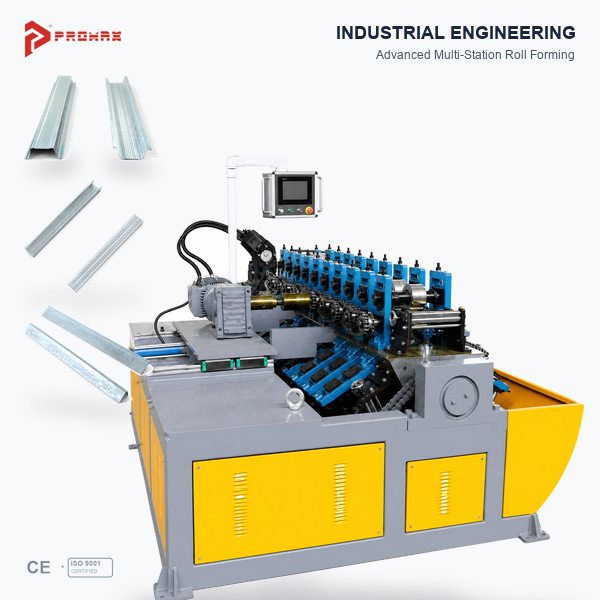

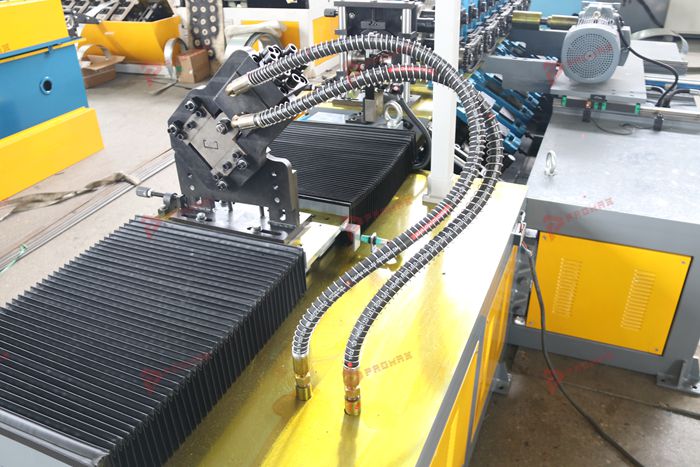

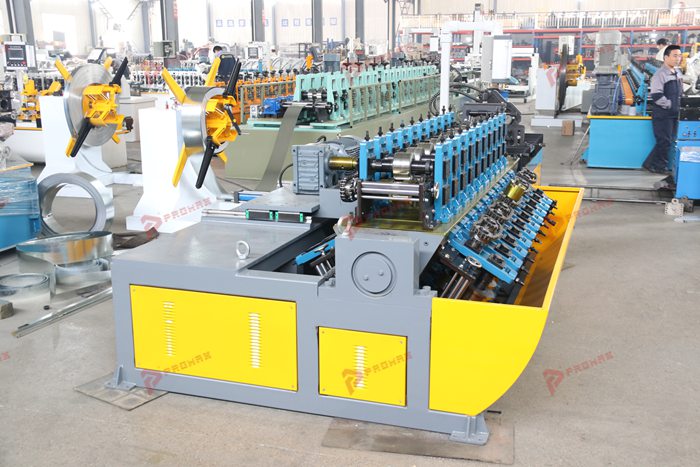

In a typical cold roll forming process, steel strip is fed into the machine and guided through a series of forming stations. Each station gradually bends the material until it reaches the specified cross-sectional shape. Depending on the selected configuration, the production line may also include punching, cutting, and other supporting operations.

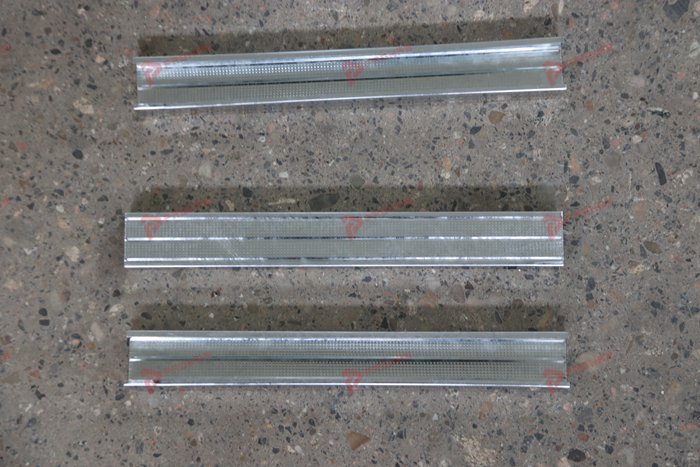

The finished profiles should be checked against the approved technical drawings. Important inspection points may include profile dimensions, straightness, surface condition, and consistency between production batches. Appropriate tooling design, material selection, and machine adjustment contribute to reliable production results.

Customized Configuration for Your Profiles

Different markets and construction systems use different framing profile specifications. Before selecting a 3-in-1 light gauge steel framing machine, manufacturers should confirm the following requirements:

• Profile types: Identify the three intended profiles and provide a cross-sectional drawing for each.
• Profile dimensions: Specify web width, flange dimensions, profile height, lips, and other relevant features.
• Raw material: Confirm steel grade, coil width, material thickness, and material properties.
• Reversible function: Clarify the required machine reversal or profile conversion method.
• Punching and cutting: Provide hole positions, slot dimensions, and required finished lengths, where applicable.
• Production requirements: Define the intended product range, expected output, and operating schedule.

Providing complete profile drawings and material specifications helps determine whether the proposed machine configuration matches your manufacturing needs.

Applications in Lightweight Construction

Depending on the profiles supported by the machine, the finished products may be used in compatible drywall partition systems, suspended ceiling assemblies, interior framing, and lightweight steel construction. The suitability of each profile depends on its design, installation method, corresponding components, and applicable building requirements.

For manufacturers supplying contractors, construction-material distributors, or framing-system suppliers, product compatibility is essential. Confirming profile dimensions and intended applications before production helps ensure that the finished components match the requirements of the target market.

Why Consider PROMAX Roll Forming Equipment?

PROMAX provides roll forming equipment solutions for manufacturers of lightweight steel framing and metal construction profiles. We work with customers to review profile drawings, raw material requirements, production objectives, and machine configuration options.

When comparing a reversible multi-profile roll forming machine, consider the number of supported profiles, tooling compatibility, conversion procedure, cutting arrangements, optional punching functions, control requirements, and technical support. The final specification should be confirmed against the actual machine design and production requirements.

Request a Quote for a 3-in-1 Framing Machine

Are you looking for a machine to manufacture multiple light gauge steel framing profiles? Contact PROMAX with drawings of the three required profiles, material specifications, punching requirements, finished lengths, and target production output.

Our team can review your requirements and discuss a suitable 3-in-1 reversible light gauge steel framing machine configuration for your factory. Contact us to request a quotation and further technical information.
