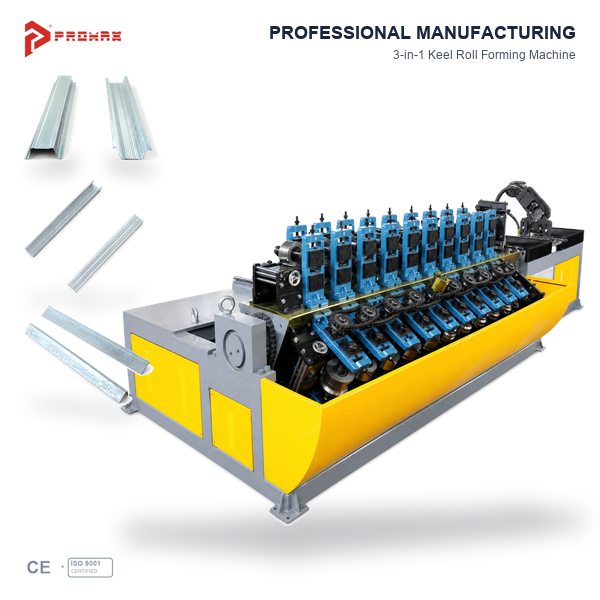

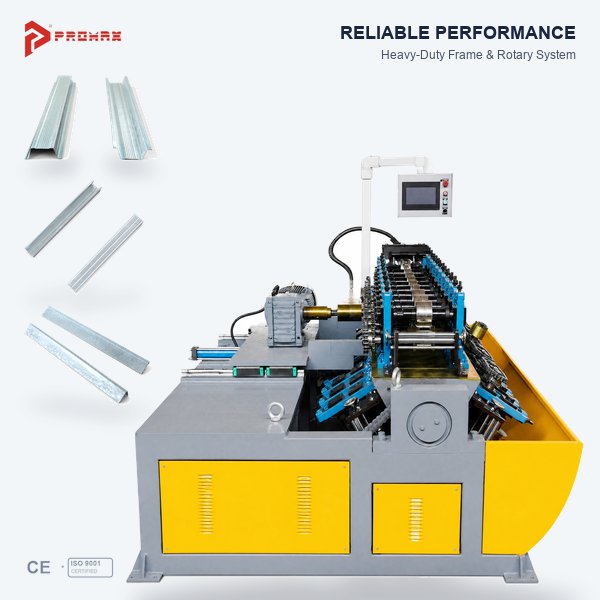

3-in-1 Reversible Keel Roll Forming Machine

3-in-1 Reversible Keel Roll Forming Machine for Metal Framing

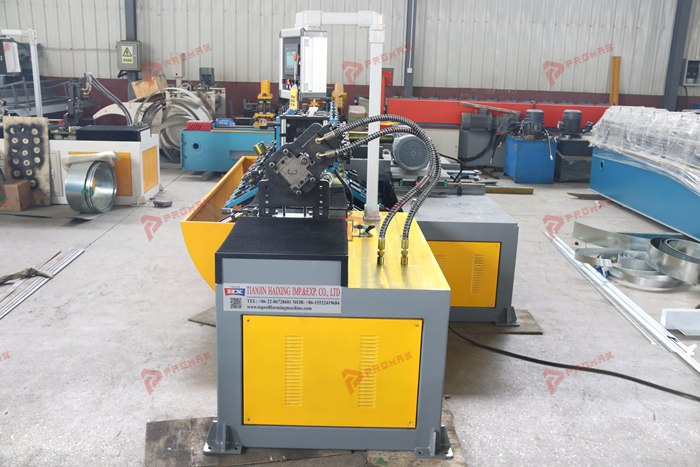

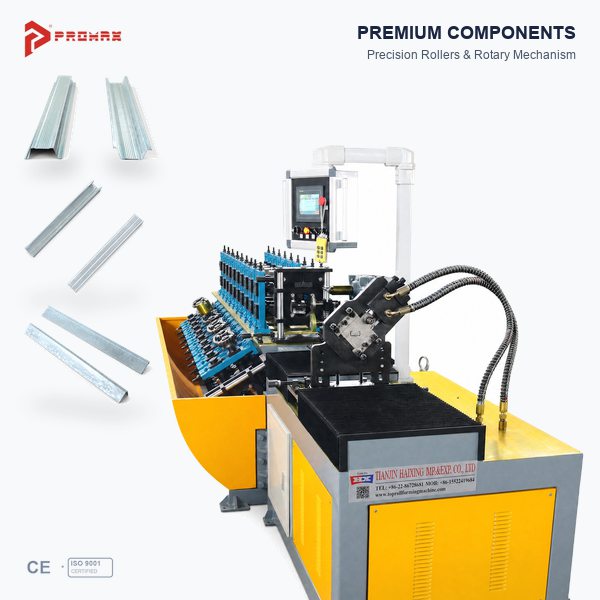

The PROMAX 3-in-1 reversible keel roll forming machine is designed for manufacturers looking for a flexible solution for producing multiple metal framing profiles. This machine concept combines three profile production requirements within one equipment solution, subject to the actual machine design, tooling arrangement, and supported profile specifications.

Metal keels and lightweight steel framing profiles are widely used in drywall partitions, suspended ceilings, interior construction, and related building systems. For manufacturers serving different markets, selecting suitable roll forming equipment starts with confirming profile drawings, raw material specifications, production requirements, and the intended profile conversion method.

Three-in-One Metal Keel Production Solution

Different construction applications require metal profiles with different cross-sectional shapes and dimensions. A three-in-one keel machine can be considered by manufacturers who need to produce several compatible profile types while organizing equipment investment and factory production space.

The actual three profile types supported by the machine should be confirmed before ordering. Profile compatibility depends on the forming structure, roller tooling, adjustment arrangements, and machine configuration. Providing drawings for all required profiles helps establish whether the equipment can meet your production needs.

Reversible Design and Profile Conversion

The reversible design is an important consideration when evaluating this type of production equipment. Buyers should confirm the machine's actual reversal mechanism and how it affects profile production, machine operation, and conversion between the intended products.

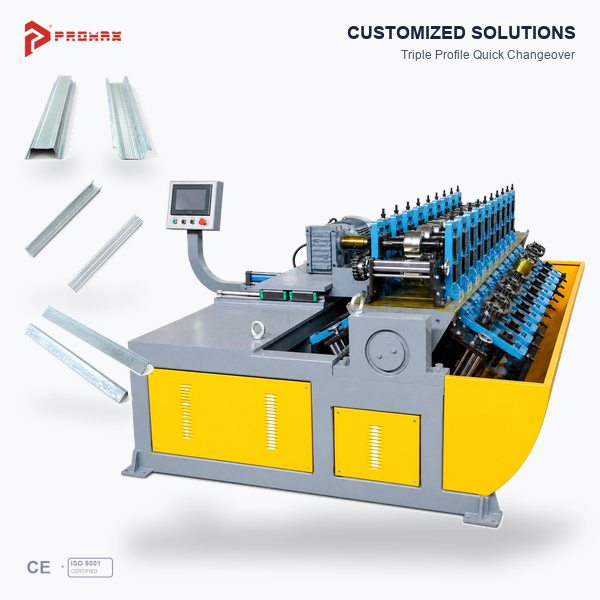

Depending on the machine design, producing different profiles may involve adjustment, tooling changes, or a specific operating procedure. The required conversion method should be discussed with the equipment supplier before purchase to ensure it fits the factory's production workflow.

Cold Roll Forming Process

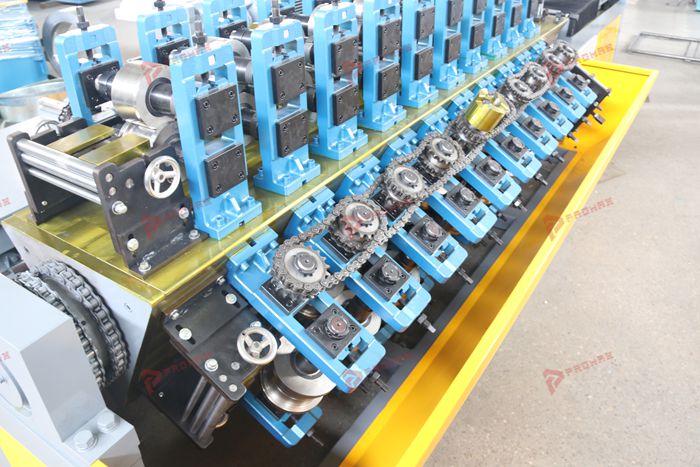

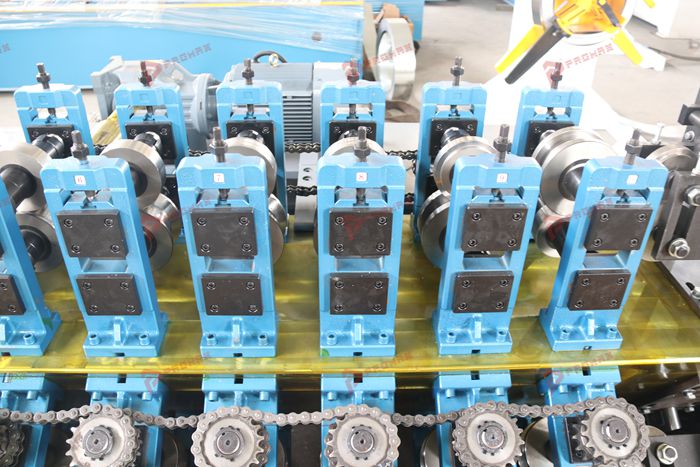

A typical keel roll forming process starts with steel coil feeding and material guiding. The steel strip passes through a series of forming stations, where successive rollers gradually shape it into the required cross-section. Depending on the selected configuration, the production line may also incorporate punching, cutting, and other supporting functions.

After forming and cutting, finished profiles can be checked against the approved drawings. Relevant inspection points may include profile dimensions, straightness, surface condition, and consistency between batches. Appropriate tooling design, material selection, and machine adjustment are important for achieving the required product specifications.

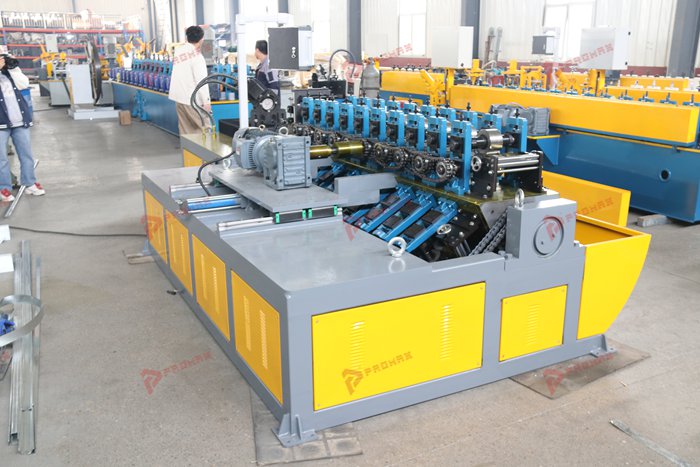

Customized Machine Configuration

Before selecting a 3-in-1 reversible keel machine, manufacturers should clarify the following technical requirements:

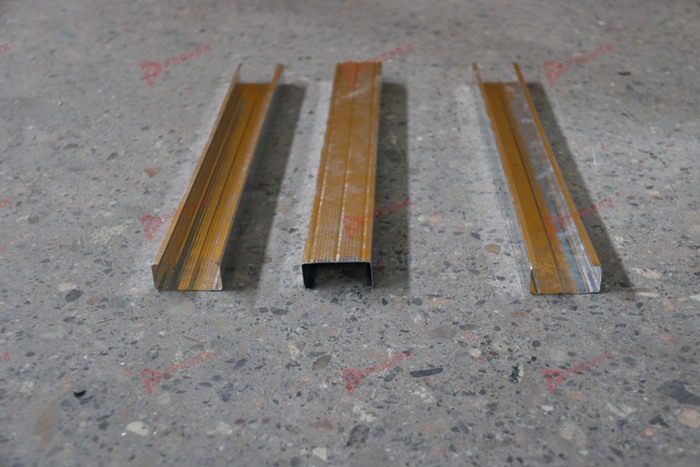

• Profile types: Identify the three intended profiles and provide a drawing for each.
• Profile dimensions: Specify web width, flange dimensions, profile height, lips, and other cross-sectional details.
• Raw material: Confirm steel grade, coil width, material thickness, and material properties.
• Reversible function: Explain the required reversal or profile conversion method.
• Punching and cutting: Specify hole positions, slot dimensions, and finished profile lengths, where applicable.
• Production objectives: Define the required product range, expected output, and planned operating schedule.

These details help the supplier assess profile compatibility and discuss a suitable machine configuration for the intended production process.

Applications in Drywall and Lightweight Construction

Depending on the supported profile designs, the machine may be suitable for producing components used in compatible drywall partition systems, suspended ceiling assemblies, interior framing, and other lightweight construction applications.

Profile compatibility is essential when supplying contractors, construction-material distributors, and framing-system manufacturers. The finished products should match the intended installation system, corresponding components, and applicable project specifications.

Why Consider PROMAX Roll Forming Equipment?

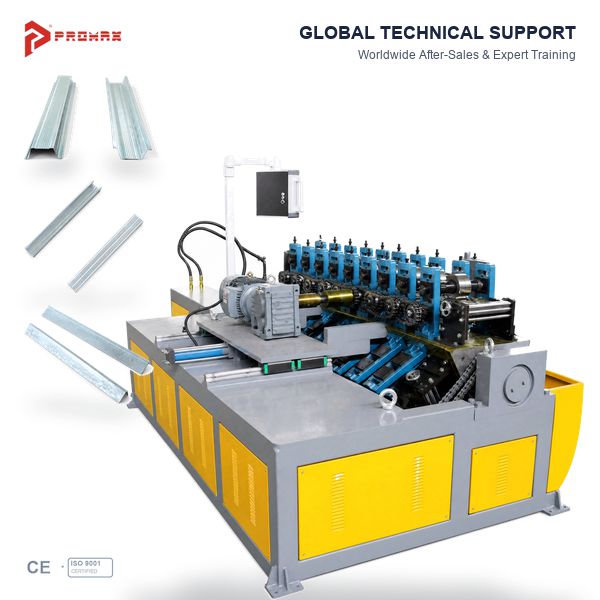

PROMAX provides roll forming equipment solutions for manufacturers of metal framing and lightweight steel construction profiles. We work with customers to review profile drawings, material specifications, production objectives, and machine configuration options.

When evaluating a three-in-one reversible keel roll forming machine, consider the supported profile range, tooling compatibility, profile conversion procedure, cutting arrangements, optional punching functions, operating requirements, and technical support. The final machine specification should be confirmed against the actual equipment design.

Request a Quote for a 3-in-1 Reversible Keel Machine

Are you looking for a flexible production solution for multiple metal keel profiles? Contact PROMAX with your profile drawings, material specifications, required cutting lengths, punching details, and target production output.

Our team can review your requirements and discuss a suitable 3-in-1 reversible keel roll forming machine configuration for your factory. Contact us to request a quotation and further technical information.
