C Channel Making Machine for Drywall Steel Studs

C Channel Making Machine for Drywall Steel Stud Manufacturing

The C channel making machine from PROMAX is designed for manufacturing galvanized steel C-shaped studs used in drywall partition walls, gypsum board framing systems and interior metal construction. Using continuous cold roll forming technology, the machine converts galvanized steel coils into finished C stud profiles with specified dimensions and cutting lengths.

Drywall C studs are commonly installed vertically between compatible U tracks to create the framework for gypsum board partitions. These metal profiles are widely used in residential buildings, commercial offices and other interior construction applications.

For drywall profile manufacturers, choosing suitable production equipment is important for maintaining consistent profile dimensions, managing material requirements and organizing manufacturing operations.

PROMAX develops customized C channel making machine solutions according to customer profile drawings, galvanized steel specifications and production requirements. The equipment can be configured with a decoiler, feeding system, roll forming stations, cutting unit, PLC control system and receiving table.

The final machine configuration, production speed, supported material thickness and automation functions are determined according to the approved technical specifications.

What Is a C Channel Making Machine?

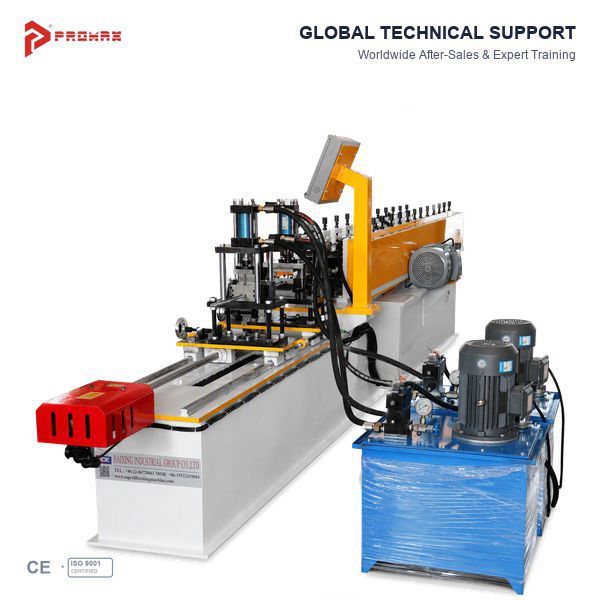

A C channel making machine is industrial equipment used to manufacture C-shaped steel profiles from metal coils through a continuous cold forming process.

For drywall applications, the equipment is designed to produce lightweight galvanized C studs according to the required profile geometry.

The steel strip passes through successive forming stations, where rollers gradually bend the material into the specified C-shaped cross-section.

After forming, the profile is cut to the required finished length and collected for inspection or packaging.

This machine is intended for drywall C stud manufacturing within its approved material and dimensional range. Structural C channels and heavy-duty purlins may require different equipment designs.

Applications of Galvanized C Stud Profiles

Galvanized steel C studs are widely used as vertical framing components in drywall partition systems.

Typical applications include:

• Drywall partition wall framing.
• Gypsum board wall construction.
• Residential interior partitions.
• Commercial office partition systems.
• Non-load-bearing metal framing.
• Customized galvanized steel C stud manufacturing.

The suitability of each finished profile depends on its dimensions, material thickness, mechanical properties and the requirements of the intended construction system.

How Does a C Channel Making Machine Work?

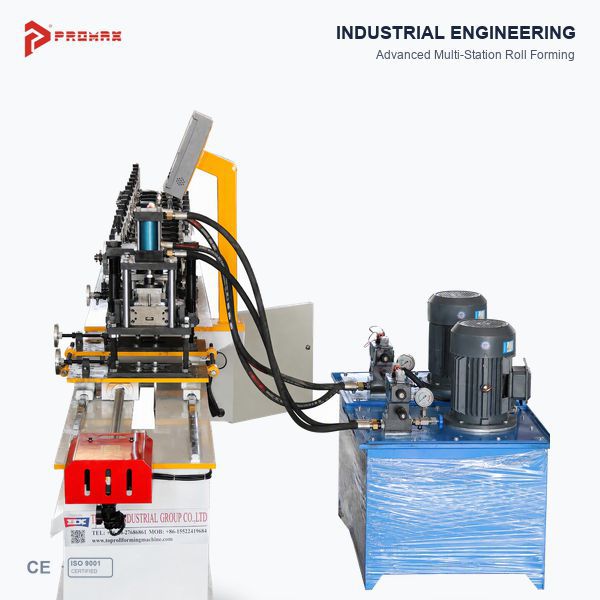

The C channel making machine uses progressive cold roll forming technology to transform galvanized steel strips into finished C-shaped profiles.

The manufacturing process begins with a galvanized steel coil placed on the decoiler. The material passes through the feeding and guiding system before entering the forming section.

Inside the forming section, successive roller stations gradually bend the flat steel strip into the required C stud geometry.

Each forming station performs part of the bending operation, allowing the material to reach the final cross-sectional shape through a controlled sequence.

After forming, the profile passes through the cutting system to obtain the specified finished length.

Depending on the machine configuration, optional operations such as punching, marking or automated length control may also be incorporated.

Main Components of a C Stud Manufacturing Machine

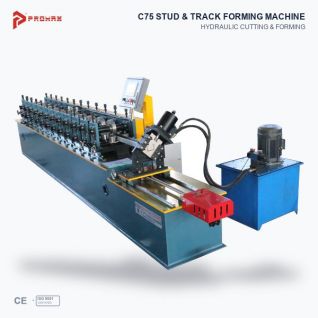

A typical C stud making machine may include several integrated systems:

• Decoiler: Supports the galvanized steel coil and supplies material to the production line.
• Feeding and guiding system: Aligns the steel strip before it enters the forming stations.
• Roll forming stations: Gradually bend the steel into the required C stud geometry.
• Drive system: Provides mechanical power for the forming process.
• PLC control system: Can manage selected production settings and machine functions.
• Cutting unit: Produces finished C studs according to the specified lengths.
• Receiving table: Supports collection and handling of completed profiles.

The number of forming stations, drive arrangement and component specifications depend on the approved machine design.

C Stud Profile Dimensions and Customization

Drywall C studs are manufactured according to defined profile dimensions and material specifications.

A typical C stud profile includes a central web, two flanges and return lips. The dimensions of these features influence compatibility with the intended drywall framing system.

PROMAX can develop customized C channel making machine solutions according to customer-approved drawings.

Important customization parameters include:

• Profile web width.
• Flange height.
• Return lip dimensions.
• Steel material thickness.
• Required finished cutting length.
• Optional punching requirements.
• Production capacity expectations.

The ability to manufacture multiple C stud sizes on one machine depends on the tooling arrangement and adjustment mechanisms.

Automatic size changing is available only when specifically included in the approved machine configuration.

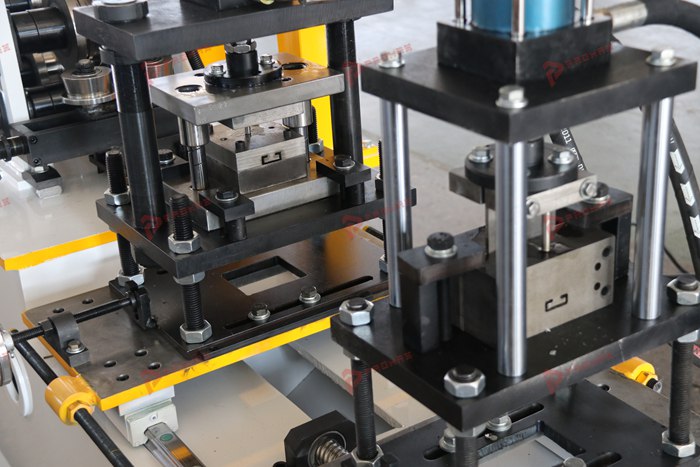

Precision Roller Tooling for C Channel Production

Roller tooling is one of the most important components of a C channel roll forming machine.

The forming rollers are designed according to the required profile geometry, steel thickness, bending radii and material properties.

Each roller station gradually changes the strip geometry until the specified C-shaped profile is achieved.

Proper roller alignment, material guidance and tooling design help maintain dimensional consistency during production.

PROMAX can develop customized roller tooling according to customer-approved C stud drawings.

Galvanized Steel Material Requirements

Galvanized steel is commonly used in drywall framing because it combines mechanical strength with a protective zinc coating.

Before selecting a galvanized C stud machine, manufacturers should confirm the steel thickness, strip width, yield strength and coating characteristics.

These parameters influence the forming forces, roller design and machine component selection.

The selected steel material must be compatible with the equipment specifications and the requirements of the finished C stud.

Different material grades or thickness ranges may require adjustments to the technical design.

Step-by-Step C Channel Manufacturing Process

The manufacturing process for galvanized drywall C studs generally includes the following stages:

1. Profile preparation: Confirm the required C stud drawings and production specifications.
2. Material inspection: Check the galvanized steel coil specifications.
3. Decoiling: Supply the steel strip to the production line.
4. Feeding and alignment: Guide the material into the forming section.
5. Progressive roll forming: Bend the steel into the specified C-shaped profile.
6. Length cutting: Cut the finished studs to the required lengths.
7. Quality inspection: Check profile dimensions, straightness and surface condition.
8. Product collection: Receive and organize completed C studs.

The actual manufacturing sequence may vary according to the selected equipment configuration.

PLC Control and Automatic Cutting Options

The PROMAX drywall C stud machine can be configured with a PLC control system to manage selected production functions.

Depending on the configuration, operators may enter cutting lengths, production quantities and other supported parameters through a human-machine interface.

The cutting system is selected according to the profile geometry, steel thickness and required manufacturing process.

Automatic cutting options can support manufacturing orders requiring different finished lengths.

Additional automation functions can be evaluated according to customer requirements.

Production Planning for a C Stud Manufacturing Factory

When establishing a C stud manufacturing operation, equipment selection should be based on the required profile dimensions, steel material specifications and expected production volume.

Manufacturers should also consider steel coil storage, material handling, machine installation space, finished product collection and quality inspection procedures.

The selected machine configuration should match the intended production workflow and available factory space.

For manufacturers supplying complete drywall framing systems, U track production equipment may also be required.

PROMAX can evaluate customer requirements and recommend suitable equipment arrangements for different manufacturing operations.

Difference Between C Studs and U Tracks

C studs and U tracks are complementary components of many drywall partition systems.

C Studs: C-shaped profiles commonly used as vertical framing members. They generally include a central web, flanges and return lips.

U Tracks: U-shaped channels commonly installed horizontally to receive and position compatible C studs.

Because their cross-sectional geometries are different, C studs and U tracks require suitable roller tooling.

This C channel making machine is intended for C stud manufacturing. Producing U tracks requires compatible tooling or a separate machine configuration.

Manufacturers requiring both profile types can consider a combined stud and track production solution.

Quality Control for Finished C Stud Profiles

Dimensional inspection is an important part of C stud manufacturing.

Typical inspection points include web width, flange height, return lip dimensions, straightness and cutting length.

The condition of the galvanized coating should also be checked after forming.

Inspection tolerances and acceptance criteria should be defined according to the approved profile drawings and the requirements of the intended drywall framing system.

Consistent raw material specifications and appropriate machine maintenance are important for stable manufacturing.

How to Choose a C Channel Making Machine

Before purchasing a C channel making machine, manufacturers should confirm the required C stud dimensions, steel material specifications and production needs.

Important information includes profile drawings, steel thickness, material grade, finished cutting lengths and expected production capacity.

Customers should also identify whether punching, automatic size adjustment or other processing functions are required.

These details help determine the appropriate roller tooling, forming stations, cutting system and control configuration.

PROMAX can evaluate customer requirements and prepare a suitable technical proposal.

Why Choose PROMAX for C Channel Making Equipment?

PROMAX develops cold roll forming equipment for drywall studs, tracks, ceiling channels and lightweight metal framing profiles.

Our services include profile drawing evaluation, machine configuration planning, customized tooling and equipment manufacturing.

Backed by Tianjin Haixing's experience in roll forming technology since 1996, PROMAX supports manufacturers seeking customized equipment solutions for different markets.

Our team can help customers evaluate C stud dimensions, material specifications and production requirements before preparing a quotation.

Request a Quote for a C Channel Making Machine

Are you looking for a C channel making machine to manufacture galvanized steel C studs for drywall partition systems?

Send us your C stud drawings, steel thickness, material specifications, required cutting lengths and production capacity expectations.

Our engineering team can review your requirements and recommend a suitable machine configuration.

Contact PROMAX today to request a customized quotation for your drywall C channel making machine.
