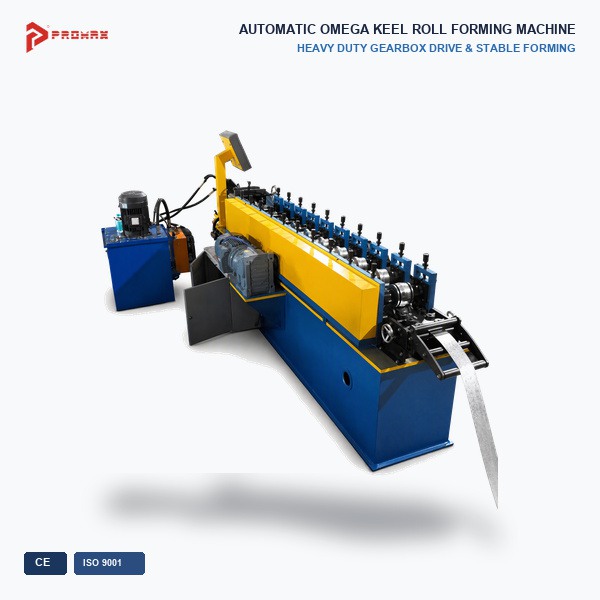

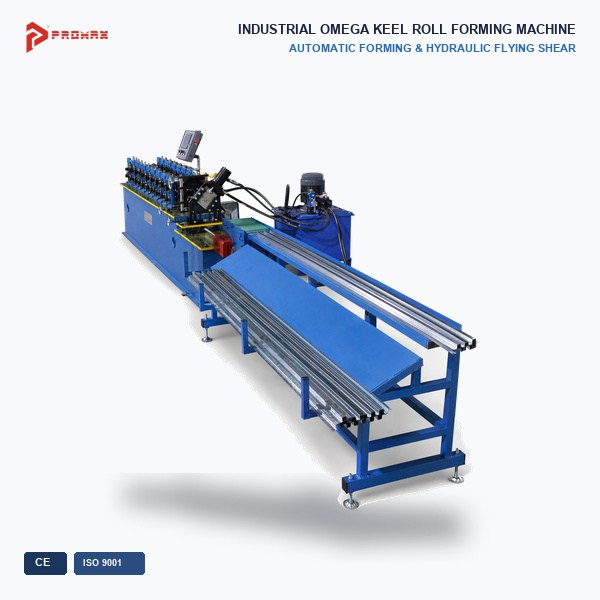

Channel Roll Forming Machine for Omega Keel

Channel Roll Forming Machine for Omega Keel

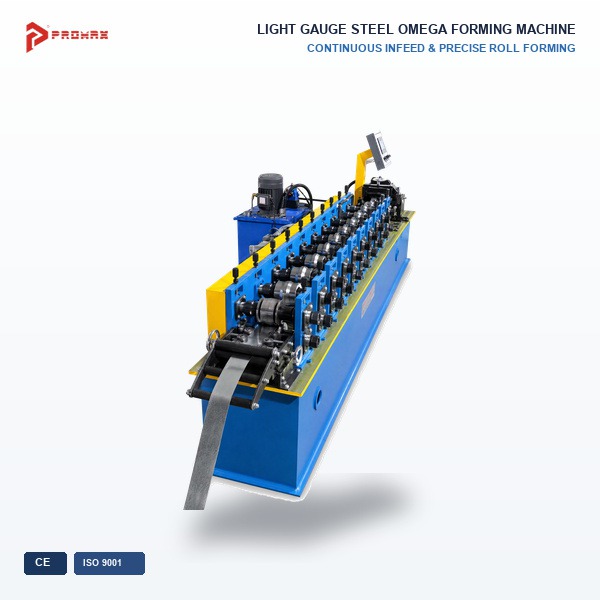

The PROMAX Channel Roll Forming Machine is a roll forming solution for manufacturers producing specified metal channel and construction profiles. For Omega keel production, the machine configuration should be determined by the actual profile drawing, raw material specifications, finished dimensions, and required processing functions.

Metal channel profiles can differ in overall width, height, flange shape, bends, and connection details. These differences affect the forming tooling and the configuration required to produce the finished product. Providing a clear technical drawing helps the manufacturer evaluate the intended profile before recommending a machine solution.

PROMAX focuses on roll forming equipment for metal framing and construction profile applications. Backed by Tianjin Haixing's experience in roll forming technology since 1996, the team can review customer requirements and discuss an equipment configuration based on the specified product.

What Is a Channel Roll Forming Machine?

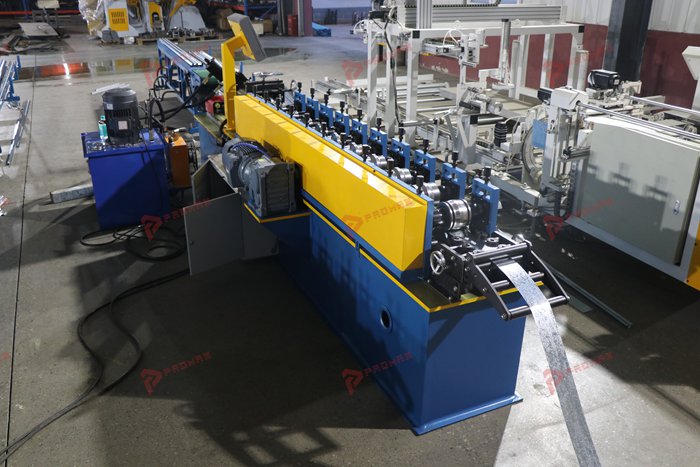

A channel roll forming machine progressively shapes suitable metal strip into a specified cross-section through a series of forming rollers. Depending on the product design, the complete line may include material feeding, guiding, roll forming, cutting, and other required processing functions.

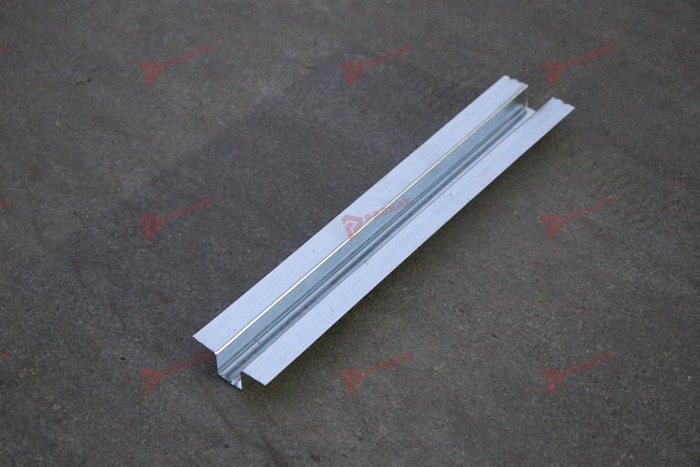

For an Omega keel application, the purpose of the equipment is to produce the defined profile consistently according to the agreed dimensions and product requirements. The exact machine design depends on the cross-section and material rather than on the product name alone.

The term “channel” can describe different types of metal profiles across construction and industrial markets. An Omega profile should not automatically be treated as interchangeable with a C stud, U track, main channel, or other framing component. The intended profile must be confirmed before finalizing the equipment specification.

Applications of Omega Channel Profile Production

Omega-shaped metal profiles may be used in compatible ceiling, wall lining, and interior construction systems. The suitability of a particular profile depends on its dimensions, installation method, material, and the requirements of the relevant building system.

• Ceiling profile manufacturing: Production of specified Omega profiles for compatible ceiling systems.
• Wall lining systems: Manufacturing metal profiles for selected interior lining applications.
• Construction material production: Supplying metal components to building material manufacturers and distributors.
• Custom channel profiles: Forming metal strip into a defined cross-section based on customer drawings.

Before purchasing a channel roll forming machine, buyers should confirm the exact application and profile geometry. This helps ensure that the machine proposal is based on the required finished product rather than a general category name.

How the Channel Roll Forming Process Works

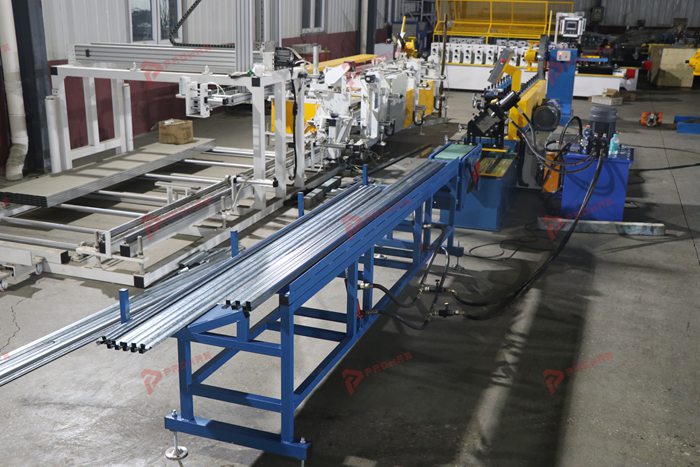

A typical roll forming line shapes metal strip progressively. Each forming stage contributes to the final cross-section, while the cutting arrangement produces profiles at the required length. The specific production sequence varies with the material, profile design, and machine configuration.

1. Material preparation: Confirm the material type, thickness, coil width, and other relevant specifications.
2. Feeding and guiding: Guide the strip into the forming section and align it for processing.

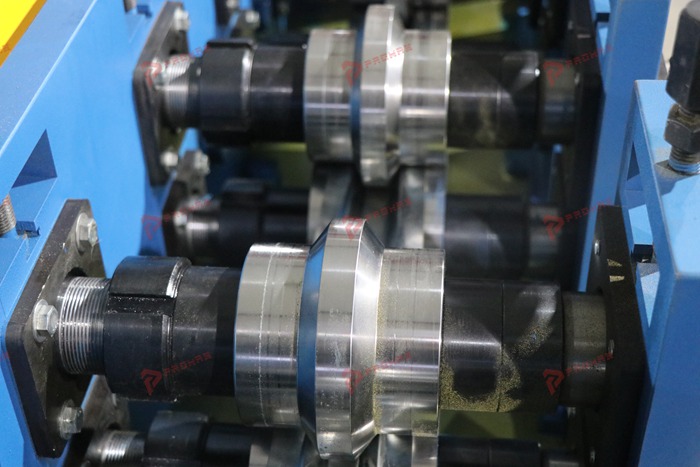

3. Progressive roll forming: Form the material through tooling designed for the target channel or Omega profile.

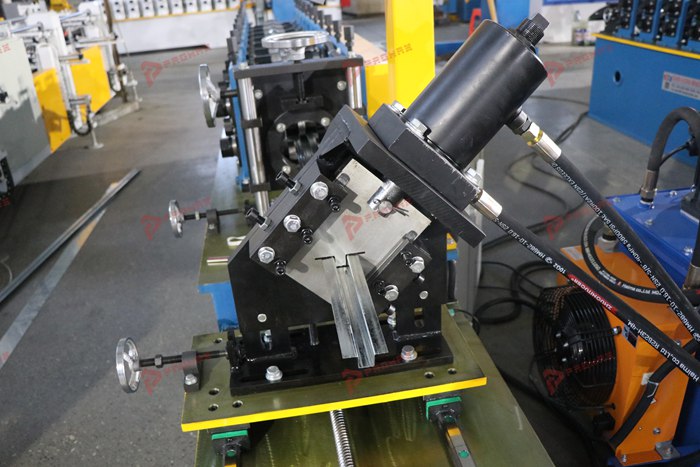

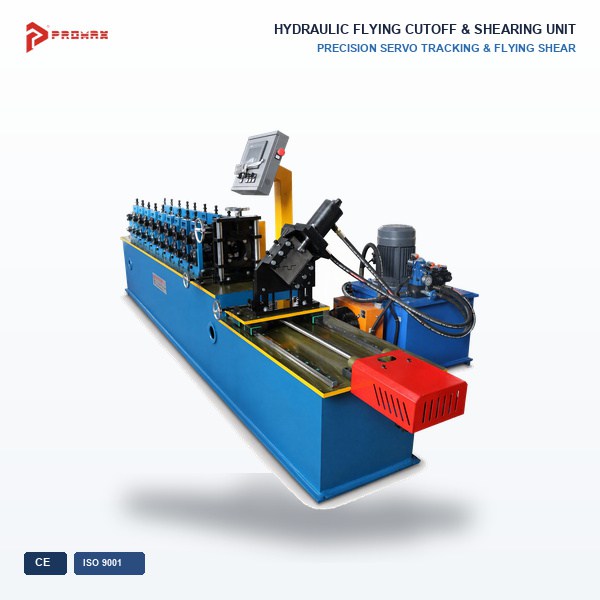

4. Cutting to length: Cut the formed profile according to the agreed finished length and cutting requirements.
5. Quality inspection: Check the cross-section, dimensions, edges, and cut quality against the approved drawing.

Additional functions such as punching, notching, or other processing operations should be discussed before the machine specification is finalized. Their availability depends on the required configuration.

Key Factors When Choosing a Channel Roll Forming Machine

1. Profile Drawing and Dimensions

The profile drawing is the starting point for equipment evaluation. It should show the overall width and height, flange dimensions, bend locations, and other important cross-sectional features. If multiple profiles are required, provide a drawing for each profile so the tooling and configuration requirements can be reviewed individually.

2. Material Type and Thickness

Material specifications influence the forming process and tooling requirements. Provide the material type, nominal thickness, coil width, and available material property information. Galvanized steel is commonly used for many construction framing profiles, but the actual material range must be confirmed for the intended machine.

3. Finished Length and Processing Requirements

Specify the required finished profile length and any holes, notches, or other features. These details help determine the cutting and processing arrangement. Confirm which functions are included in the machine scope and which, if any, are optional.

4. Production Targets

Expected output, order volume, profile dimensions, and operating conditions all contribute to equipment selection. Discuss your production requirements with the manufacturer so the proposed configuration can be assessed against the actual product and material.

5. Quality and Dimensional Tolerances

Buyers should define the important dimensional tolerances and quality criteria for the finished profile. These may include cross-sectional dimensions, straightness, cut length, edge condition, and surface appearance. Clear acceptance criteria help align the equipment proposal with production expectations.

Why Consider PROMAX Channel Roll Forming Equipment?

PROMAX provides roll forming equipment solutions for metal framing and construction profile applications. Machine requirements are evaluated according to the target profile, material specifications, production needs, and agreed processing functions.

• Drawing-based evaluation: Review the required Omega or channel cross-section before confirming the configuration.
• Material compatibility review: Evaluate the specified material and thickness for the intended application.
• Application-focused planning: Match the proposed equipment scope to the actual finished profile.
• Processing requirement review: Clarify cutting, punching, notching, and other required functions.
• Technical specification confirmation: Establish the agreed machine scope and product requirements before ordering.

The final proposal should clearly identify the supported profile, applicable material specifications, included functions, and relevant technical limitations. Buyers can then compare the proposed solution with their production objectives.

Information Needed for a Channel Roll Forming Machine Quotation

To evaluate a suitable channel roll forming machine for Omega keel production, please prepare the following information:

• Profile drawing or clear cross-sectional sketch.
• Material type, thickness, and coil width.
• Required finished profile length and dimensional tolerances.
• Any punching, notching, or additional processing requirements.
• Expected production volume and operating conditions.
• Destination country and factory power supply information.

If a complete technical drawing is not available, you can begin with the main dimensions and clear photographs of the finished profile. The manufacturer can review the information and identify any additional details required to assess the machine configuration.

Request a Quote for an Omega Channel Roll Forming Machine

Looking for a channel roll forming machine for Omega keel or other specified metal profiles? Contact PROMAX with your profile drawing, material specifications, and production requirements.

Sharing accurate technical details helps clarify the required forming process and machine scope. PROMAX can then review your application and discuss a suitable roll forming solution based on the confirmed requirements.
