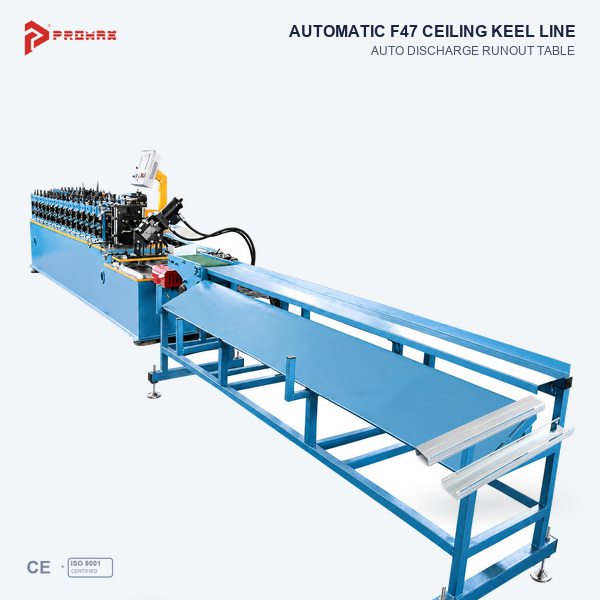

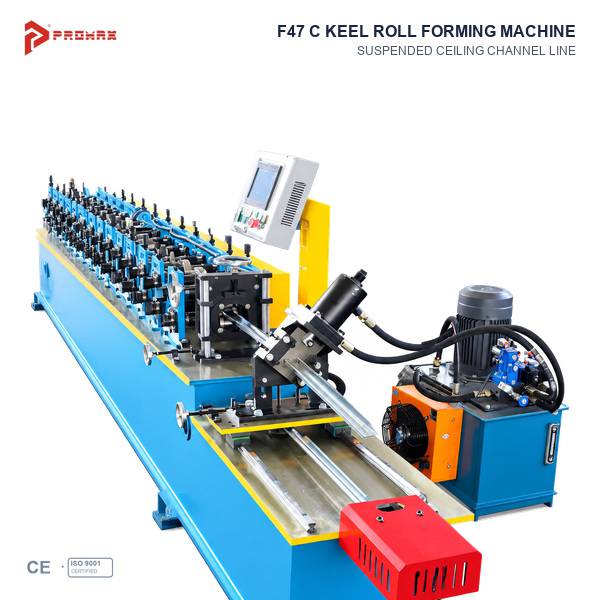

F47 C Channel Rolling Machine

F47 C Channel Rolling Machine for Ceiling Profiles

The PROMAX C Channel Rolling Machine is designed for producing specified C-shaped metal profiles used in compatible suspended ceiling systems. This machine is intended for F47 ceiling channel production, with the final configuration determined by the required profile drawing, raw material specifications, and production requirements.

F47 ceiling profiles are used in certain suspended ceiling framing systems. Manufacturers supplying ceiling contractors, building material distributors, and construction projects need metal channels that meet the dimensions and specifications of the intended ceiling system.

A C channel rolling machine progressively shapes metal strip into a specified cross-section through a series of forming rollers. To select a suitable machine, buyers should confirm the profile geometry, material type, thickness, coil width, finished length, and any additional processing requirements.

What Is a C Channel Rolling Machine?

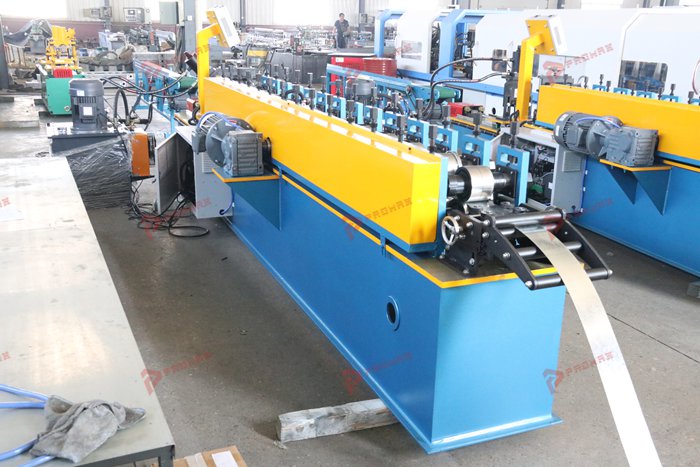

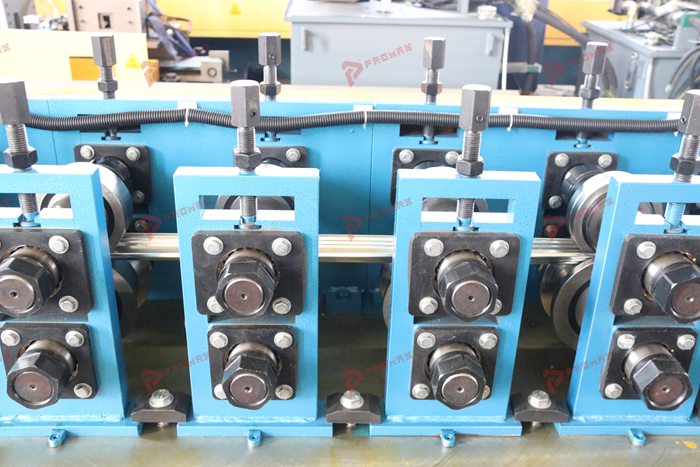

A C channel rolling machine is used to shape metal strip into C-shaped profiles through a progressive roll forming process. As the strip passes through successive roller stations, it gradually takes on the required cross-sectional shape.

C-shaped profiles are used in different construction and industrial applications, and their dimensions can vary considerably. A machine configured for one profile is not necessarily suitable for another. For F47 ceiling channel production, the roller tooling and machine configuration must match the specified profile drawing.

Before selecting equipment, manufacturers should confirm the following details:

• Profile dimensions: Overall width and height, web dimensions, flange geometry, and edge details.
• Material specifications: Material type, thickness, and coil width.
• Finished length: Required product lengths and cutting tolerances.
• Processing requirements: Any required holes, notches, or additional profile features.

Providing this information allows the equipment supplier to evaluate the tooling and production configuration required for the intended F47 channel.

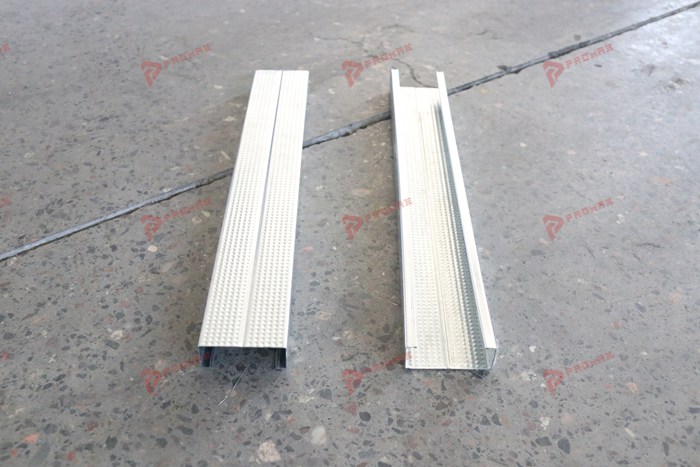

Applications of F47 C Channel Profiles

F47 metal channels are used in compatible suspended ceiling framing systems. Their specific function depends on the ceiling system design, profile dimensions, and installation method used in the target market.

Suspended Ceiling Systems

Metal ceiling channels form part of the supporting framework in compatible ceiling installations. The profile must match the required system dimensions and installation specifications to ensure compatibility with the other framing components.

Residential and Commercial Interiors

Ceiling framing profiles are used in residential buildings, offices, retail premises, and other interior construction projects. Manufacturers can produce profiles for different markets according to confirmed drawings and customer requirements.

Building Material Manufacturing

Manufacturers supplying contractors and building material distributors need a production process that meets the required profile specifications and finished lengths. A correctly configured C channel rolling machine can support repeatable production of the specified profile.

Because profile names and standards vary by market, buyers should verify the exact F47 cross-section and dimensions before ordering equipment.

How Does the C Channel Rolling Process Work?

The rolling process gradually forms a metal strip into the required C-shaped profile. The production sequence depends on the selected machine design and the functions required for the finished product.

1. Material preparation: Confirm the metal coil type, thickness, width, and material specifications.

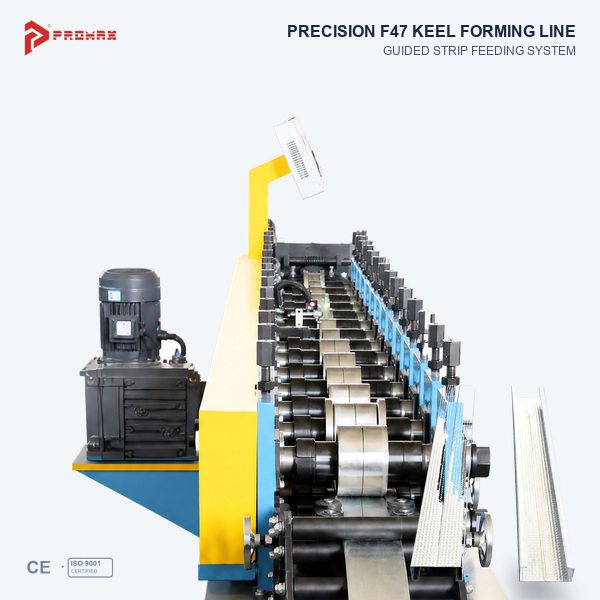

2. Feeding and guiding: Feed the strip into the machine and guide it toward the forming section.

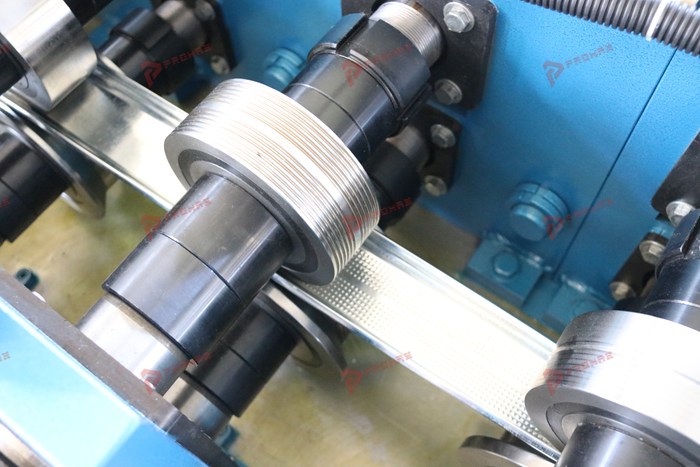

3. Progressive forming: Pass the strip through rollers configured for the specified F47 cross-section.

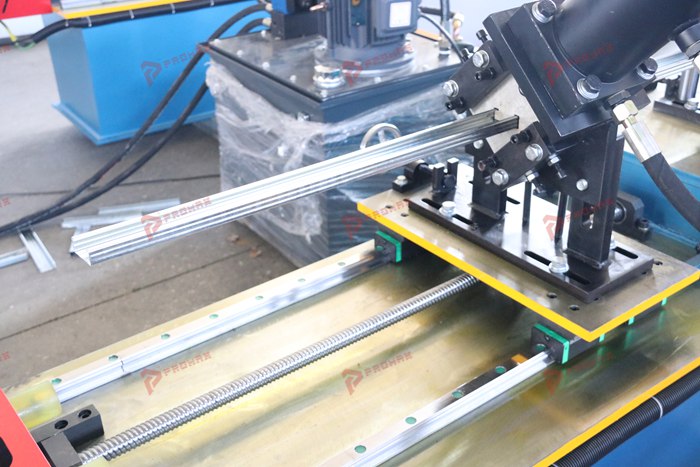

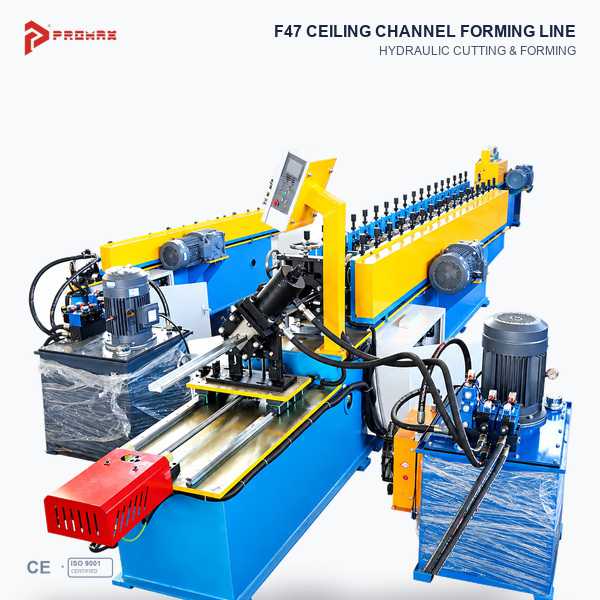

4. Cutting to length: Cut the formed channel to the required finished length using the agreed cutting system.
5. Quality inspection: Check profile dimensions, straightness, cut length, and other agreed acceptance criteria.
6. Finished product handling: Collect and organize the profiles for inspection, storage, or shipment.

Some profile designs require additional punching or notching operations. These functions should be identified during the technical evaluation and confirmed in the machine quotation.

Key Factors When Choosing an F47 C Channel Rolling Machine

1. Profile Drawing and Tooling

Provide a clear drawing of the required F47 profile, including the overall dimensions, web width, flange dimensions, and edge details. If you need multiple sizes, list each profile separately so the supplier can assess the necessary tooling and machine configuration.

2. Material Type and Thickness

Ceiling profiles may be manufactured from galvanized steel or other specified materials, depending on the intended application. Confirm the material type, thickness, and coil width before the machine configuration is finalized.

3. Finished Length and Cutting Requirements

Specify the required finished lengths and dimensional tolerances. If your production involves multiple lengths, explain the required range and cutting process so the machine configuration can be evaluated appropriately.

4. Additional Processing Functions

If the finished profile requires holes, notches, or other special features, provide their dimensions and positions. Confirm whether these functions are included in the proposed machine or require additional equipment.

5. Production Volume and Changeover Needs

Expected output, product variety, order frequency, and changeover requirements all influence equipment selection. Discuss your production targets with the supplier and confirm the expected performance for the specified profile and material.

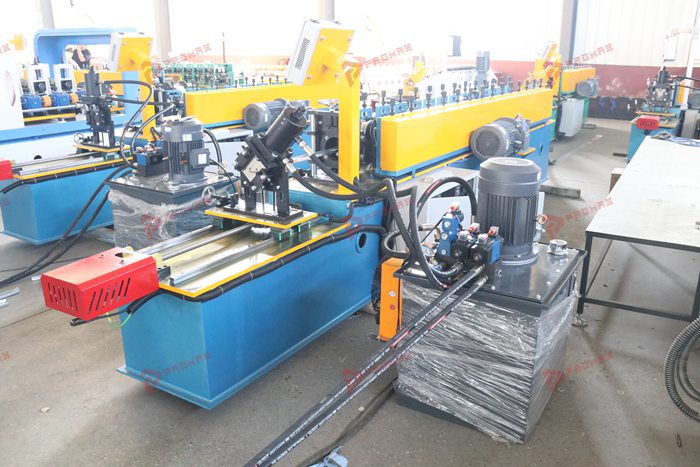

Machine Configuration and Production Planning

When evaluating a C channel rolling machine, consider the complete production requirements rather than relying on the machine name alone. The forming tooling, material feeding arrangement, cutting system, and any additional processing equipment should be suitable for the required F47 profile.

If multiple profile sizes are needed, ask the supplier to clarify the supported profile range and changeover method. Depending on the machine design, profile changes may require manual adjustments, tooling replacement, or specified automated functions.

Before placing an order, confirm the following items:

• Supported F47 profile dimensions and cross-sectional drawings.
• Applicable material type, thickness, and coil width.
• Required finished lengths and cutting tolerances.
• Included punching, notching, or other processing functions.
• Automation scope and profile changeover method.
• Machine specifications, installation requirements, and agreed acceptance criteria.

Clear technical documentation helps ensure that the proposed equipment matches your manufacturing needs and reduces uncertainty during project planning.

Why Consider PROMAX C Channel Rolling Equipment?

PROMAX focuses on roll forming equipment for metal framing and construction profile applications. Backed by Tianjin Haixing's experience in roll forming technology since 1996, PROMAX can review customer drawings and discuss equipment configurations for specified F47 ceiling channel production.

• Profile-based evaluation: Assess the required machine configuration against the F47 drawing.
• Material specification review: Evaluate the intended material and thickness requirements.
• Production planning: Discuss required lengths, production volume, and manufacturing workflow.
• Processing options: Review cutting, punching, notching, and other functions when required.
• Technical confirmation: Clarify supported profiles, machine scope, and agreed capabilities before ordering.

The final proposal should clearly state the supported profile dimensions, material specifications, included functions, and applicable machine capabilities. This gives buyers a practical basis for evaluating the equipment against their production requirements.

Request a Quote for an F47 C Channel Rolling Machine

Looking for a C channel rolling machine for F47 ceiling profile production? Contact PROMAX with your profile drawing, material specifications, required finished lengths, and expected production volume.

If your profile requires punching, notching, or other specialized processing, include these details in your inquiry. The technical team can review the information and discuss a suitable machine configuration for your application.

Send your F47 profile drawing and production requirements to discuss a C channel rolling solution for your business.
