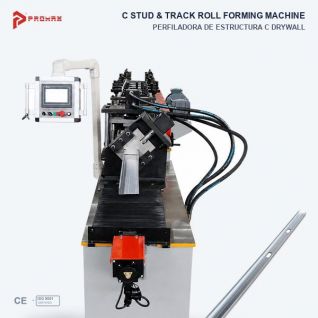

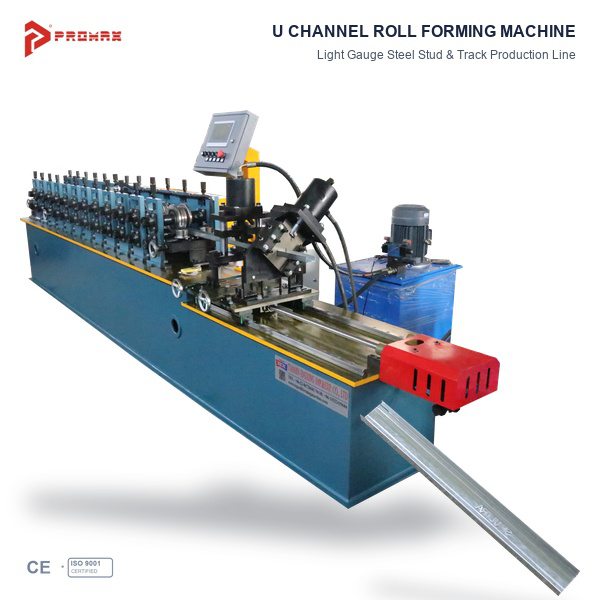

Channel Rolling Machine for C Stud Profiles

Channel Rolling Machine for C-Shaped Steel Stud Profiles

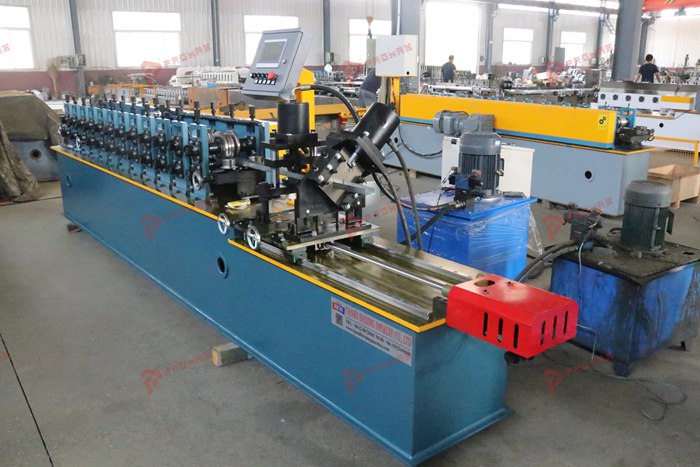

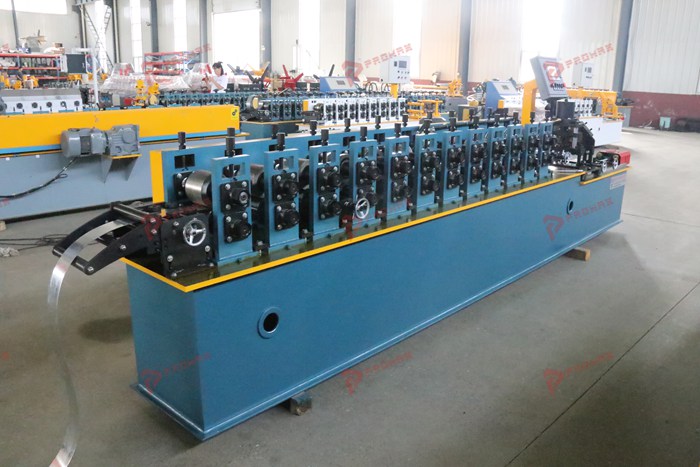

PROMAX channel rolling machine is designed for forming metal profiles used in construction and light steel framing applications. For customers manufacturing C-shaped drywall studs, the equipment can be evaluated according to the required profile drawing, steel material, dimensional specifications, and production targets.

Also described as a C stud roll forming machine or metal channel forming machine, this equipment uses a progressive roll forming process to shape steel strip into a specified cross-section. The final machine configuration depends on the target profile, material characteristics, cutting requirements, and any additional processing operations required by the customer.

Backed by Tianjin Haixing's experience in roll forming technology since 1996, PROMAX works with customers to evaluate roll forming solutions for metal framing production. Providing a clear profile drawing and material specifications at the quotation stage helps determine whether the proposed machine configuration is suitable for your application.

What Is a Channel Rolling Machine?

A channel rolling machine forms metal strip into a channel-shaped profile through a series of forming stages. Depending on the required cross-section, the finished product may be used in drywall framing, light steel construction, equipment structures, or other industrial applications.

For drywall framing production, C-shaped steel studs are commonly used as vertical members in partition systems. They work with compatible track profiles and other framing components to create the framework that supports wallboard and interior partitions.

Although channel rolling machine is a broad equipment keyword, a machine designed for one channel profile cannot automatically produce every other channel type. C studs, U tracks, structural channels, and other profiles have different cross-sectional geometries. The tooling and machine configuration must therefore be matched to the specific product drawing.

Applications of a C Stud Roll Forming Machine

When configured for the required C-shaped profile, a channel rolling machine can support the manufacture of metal framing products for the following applications:

• Drywall partition systems: Produce C-shaped metal studs used as vertical framing members in interior wall systems.
• Commercial interior construction: Manufacture framing components for offices, retail spaces, and other commercial interiors.
• Residential construction: Supply metal framing profiles for compatible interior partition applications.
• Light steel framing: Produce specified light-gauge steel profiles when the material and profile are within the machine's designed capabilities.
• Building material supply: Support manufacturers supplying steel framing components to distributors, contractors, and construction product businesses.

The suitability of the equipment for each application depends on the actual profile dimensions, material specifications, and required production process. Confirming these details before ordering helps reduce the risk of selecting an unsuitable machine.

How the Channel Rolling Process Works

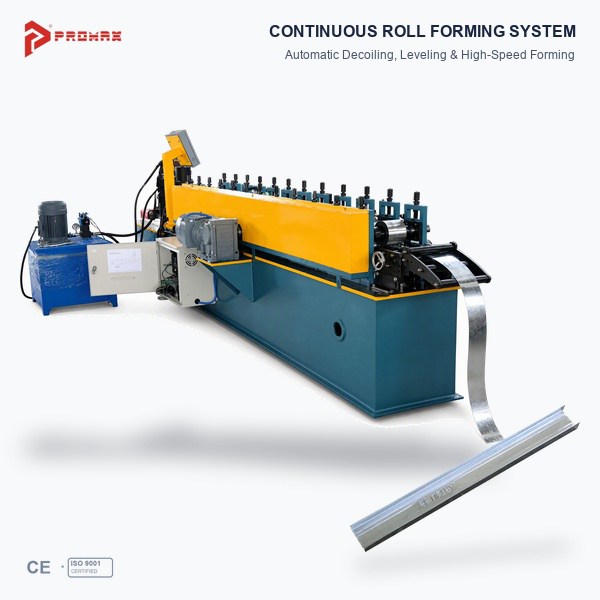

Roll forming is a continuous process in which flat metal strip passes through successive roller stations. Each stage gradually changes the strip's shape until it reaches the required cross-section. For C stud production, the forming process must be designed around the web, flanges, lips, and other dimensions shown in the customer's drawing.

1. Steel coil preparation: Select material that meets the specified grade, thickness, and coil requirements.
2. Material feeding and guiding: Feed and guide the strip into the forming section according to the machine design.

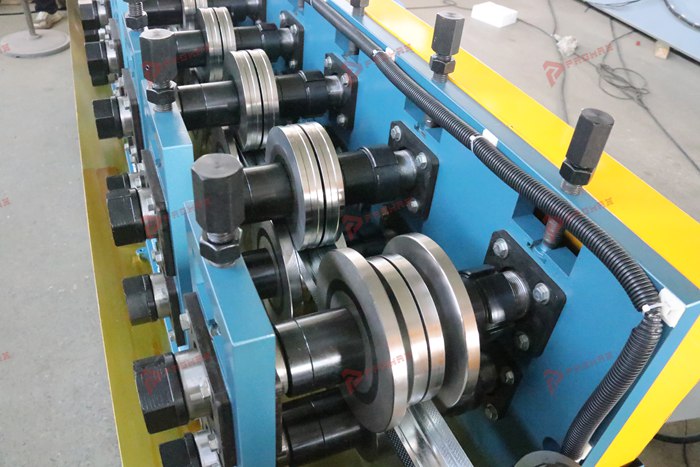

3. Progressive roll forming: Gradually shape the steel strip into the required C-shaped profile.

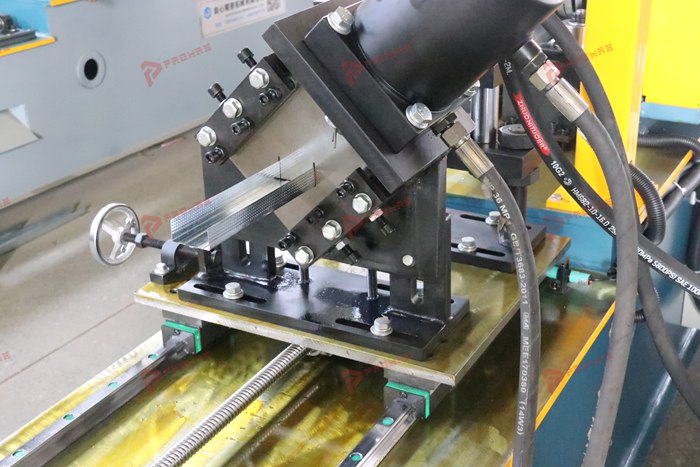

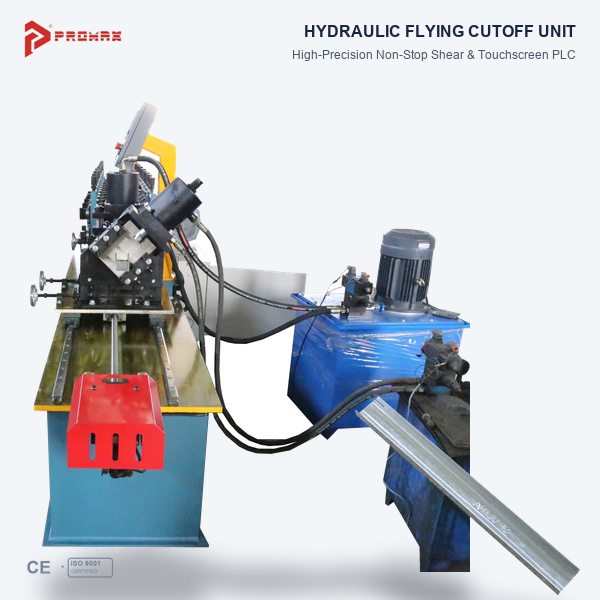

4. Cutting to length: Cut the formed profile to the required length using the configured cutting system.
5. Quality inspection: Check profile dimensions, straightness, cut quality, and other specified product requirements.

Additional operations, such as punching holes or notches, may be considered when required by the product design. Their availability, layout, and operating method must be confirmed against the actual machine configuration.

Key Considerations When Selecting a Channel Rolling Machine

1. Profile Drawing and Dimensions

The profile drawing is the starting point for machine selection. For C stud production, provide the web width, flange dimensions, lip dimensions, and any other relevant cross-sectional details. If multiple profiles are required, provide a separate drawing for each one and clarify whether profile changeover is necessary.

2. Material Specifications

Steel grade, material thickness, coil width, and other material characteristics influence the forming process and equipment design. Galvanized steel strip is commonly used for drywall framing profiles, but the suitable material range must be verified for the specific machine.

3. Punching and Cutting Requirements

Some framing profiles require service holes, fastening holes, notches, or other features. If these are necessary, share their dimensions, locations, spacing, and tolerance requirements. The punching and cutting arrangements should be evaluated as part of the complete production solution.

4. Production Goals

Consider your required finished length, product range, expected output, production schedule, and changeover frequency. These requirements help establish an appropriate machine configuration. Production speed and output should be confirmed for the actual material and profile rather than estimated from a general product description.

5. Factory and Support Requirements

Before purchasing, discuss installation space, electrical requirements, operator training, technical documentation, spare parts, and after-sales support. Confirming these arrangements early can make installation and production planning more straightforward.

Why Consider PROMAX for C Stud Production?

Choosing a channel rolling machine involves more than comparing equipment names. The machine must be appropriate for the target profile, material, manufacturing process, and production objectives.

• Profile-focused evaluation: Discuss the required C stud dimensions and cross-sectional drawing before confirming the equipment.
• Application-based planning: Evaluate feeding, forming, cutting, and any required additional processing operations.
• Roll forming experience: Work with a supplier backed by Tianjin Haixing's roll forming technology experience since 1996.
• Clear technical communication: Establish material specifications, product tolerances, and production expectations before ordering.
• Project support planning: Discuss documentation, installation, training, spare parts, and technical assistance as part of the purchasing process.

Machine specifications, included components, automation functions, and optional features should be verified in the final technical proposal. This ensures that the equipment selection reflects the customer's actual production requirements.

Information Required for a Channel Rolling Machine Quotation

To help us evaluate a suitable channel rolling machine for your C stud production, please prepare the following information:

• C stud profile drawing or cross-sectional diagram.
• Profile dimensions and required finished length.
• Steel material type, thickness, and coil specifications.
• Required punching holes, notches, or other profile features.
• Expected production output and number of profiles to be manufactured.
• Destination country and relevant factory or electrical requirements.

These details help the technical team evaluate the forming process, identify any additional equipment requirements, and clarify the specifications that need confirmation before the machine is manufactured.

Request a Quote for a C Stud Channel Rolling Machine

Looking for a channel rolling machine for your drywall framing or light steel construction business? Contact PROMAX to discuss your C-shaped steel stud profile, material requirements, cutting length, and production goals.

Send us your profile drawing and project details so that the proposed machine configuration can be evaluated against your requirements. Our team can discuss the relevant technical specifications and prepare a quotation based on the confirmed scope of supply.

Contact PROMAX today to discuss your C stud roll forming machine requirements.
