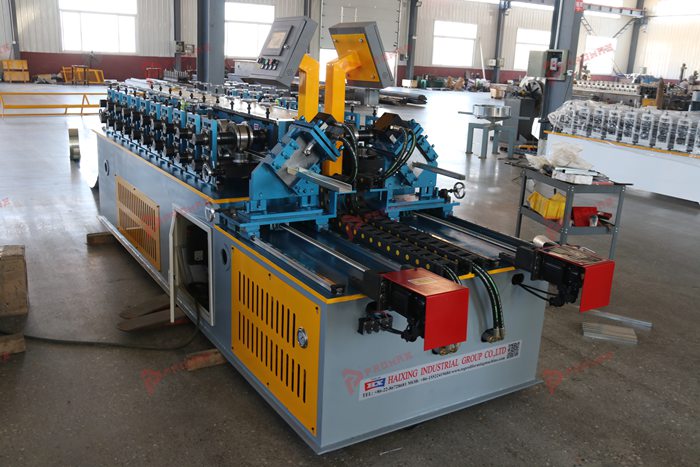

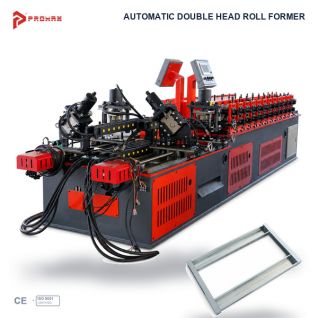

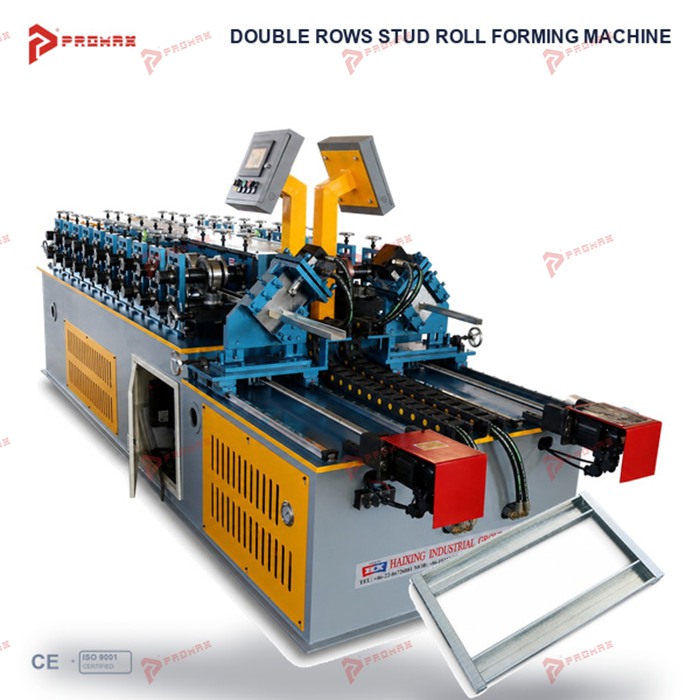

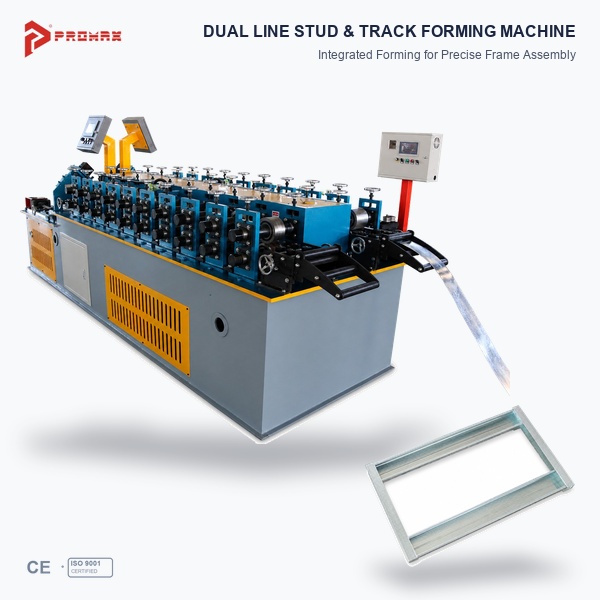

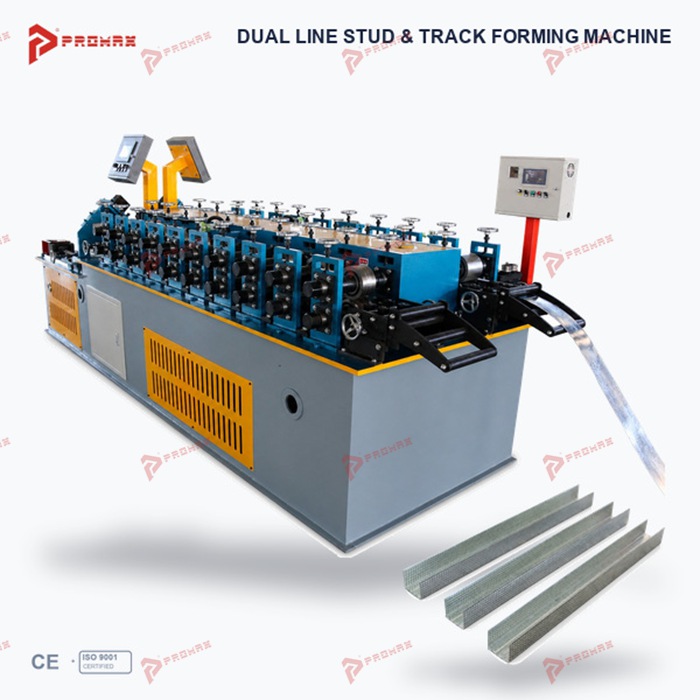

Dual-Head Steel Frame Roll Forming Machine

Dual-Head Steel Frame Roll Forming Machine

The dual-head steel frame roll forming machine from PROMAX is designed for manufacturers producing formed metal profiles for lightweight steel framing and related construction applications. The machine configuration can be evaluated according to the required profile geometry, material specifications, and production process.

For manufacturers of light steel framing components, selecting suitable roll forming equipment starts with a clear understanding of the target profiles and manufacturing requirements. PROMAX can discuss machine configurations based on technical drawings, raw material details, and the intended production workflow.

Roll Forming for Lightweight Steel Profiles

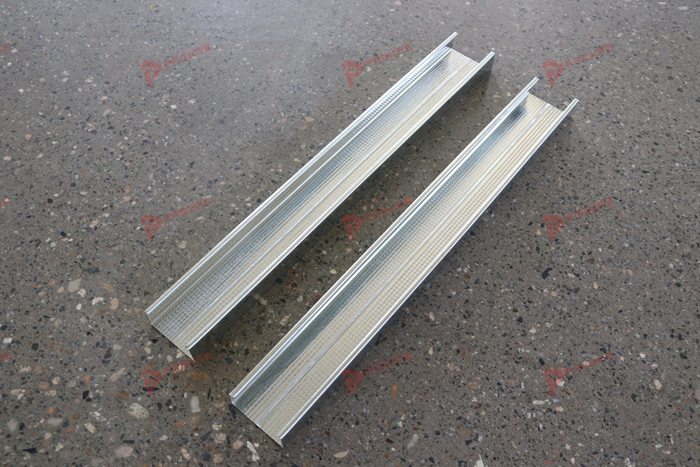

Light steel framing profiles are used in applications such as drywall partitions, interior wall systems, ceiling structures, and lightweight construction frameworks. Depending on the machine model and tooling arrangement, roll forming equipment can be configured for specified metal profile designs.

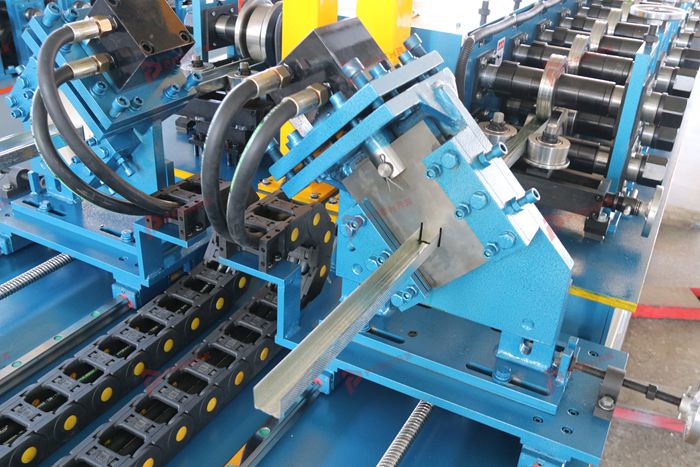

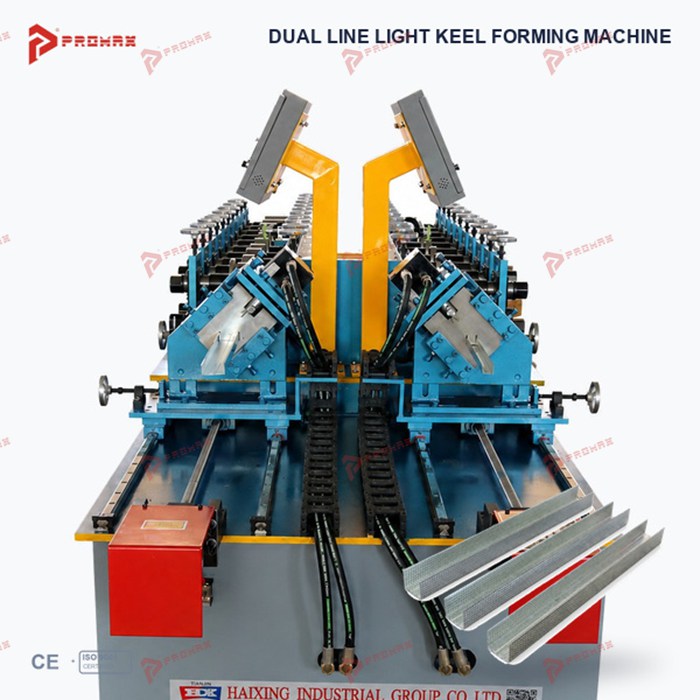

The term dual-head describes the machine's forming-head arrangement, but the exact operating method depends on the equipment design. Buyers should confirm whether the heads are intended for different profiles, separate operating modes, or another specific production arrangement before selecting a machine.

Customized Machine Configuration

Different framing systems require different profile dimensions, cross-sections, and processing operations. A suitable dual-head keel roll forming machine should be designed around the actual profile drawings rather than a general product category.

Important design considerations include the profile cross-section, steel grade, material thickness, coil width, finished length, and required punching or cutting operations. These details help determine the forming tooling and the appropriate machine arrangement.

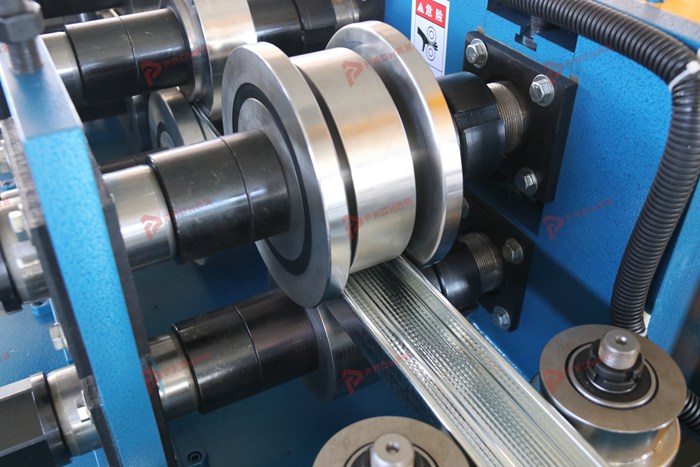

Depending on the confirmed configuration, the production process may include coil feeding, progressive roll forming, length measurement, cutting, and finished-profile collection. Any additional functions should be confirmed against the selected machine specification.

Key Specifications to Confirm

Before ordering a dual-head steel framing machine, manufacturers should prepare the following information:

• Profile drawings: Cross-sectional shape, web dimensions, flange width, and lip geometry.
• Raw material: Steel grade, material thickness, coil width, and surface finish.
• Forming-head arrangement: The intended function of each head and the compatible profile configurations.
• Punching requirements: Hole dimensions, slot positions, and processing details, if required.
• Finished product: Required lengths, cutting method, and dimensional requirements.
• Production workflow: Operating method, output objectives, and finished-profile handling.

Providing this information allows the equipment supplier to evaluate tooling requirements and clarify whether the proposed machine arrangement meets the intended production needs.

Applications in Light Steel Construction

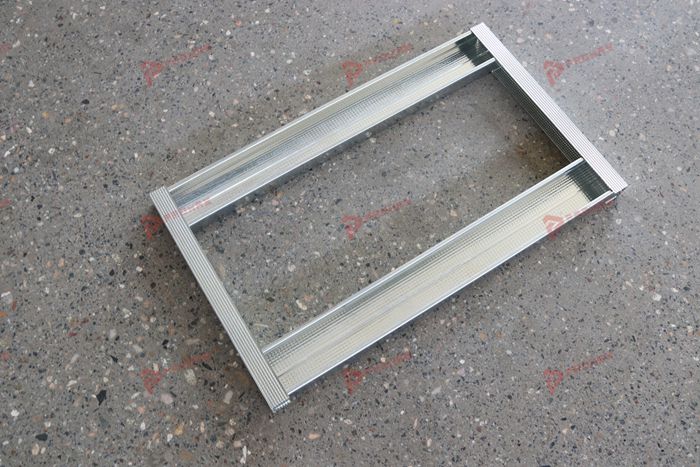

Formed steel framing profiles are widely used in lightweight interior construction, including partition walls, ceiling frameworks, and other systems that use compatible metal framing components. The required profile design depends on the building system, installation method, and local project specifications.

Manufacturers should verify that the finished profiles meet the requirements of their intended application and are compatible with the corresponding framing components. Providing profile drawings and material specifications at the inquiry stage helps clarify the appropriate equipment configuration.

Request a Dual-Head Roll Forming Machine Quote

PROMAX works with customers to discuss roll forming equipment based on their product drawings and manufacturing objectives. To evaluate your project, please provide the target profile drawings, material specifications, finished lengths, processing requirements, and expected production needs.

Please also describe the intended function of each forming head and whether the production process requires separate or simultaneous operation. This information helps clarify the machine configuration before a quotation is prepared.

Contact PROMAX to discuss a dual-head steel frame roll forming machine solution tailored to your metal profile manufacturing requirements.
