GI Channel Making Machine for U-32-90 Keel

GI Channel Making Machine for U-32-90 Keel Profiles

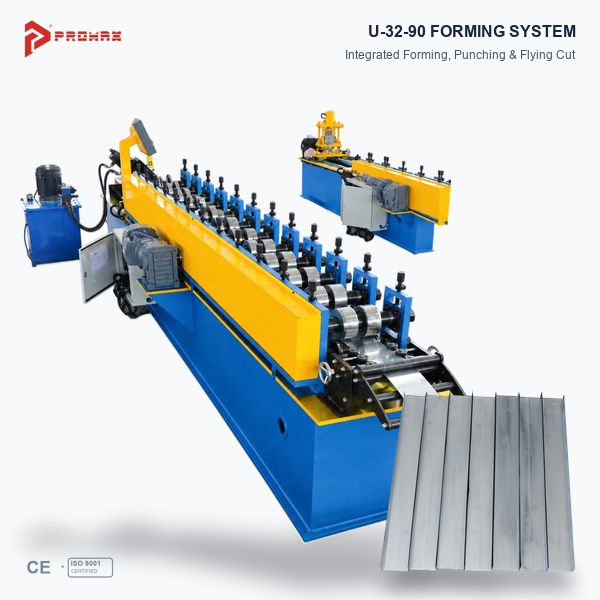

The GI channel making machine from PROMAX is designed for manufacturing specified U-32-90 metal keel profiles from compatible galvanized steel strip. Using a progressive roll forming process, the machine gradually shapes the material into the required channel cross-section for suitable ceiling and light steel framing applications.

For manufacturers of galvanized steel channels and construction framing components, selecting the right machine begins with the finished profile drawing and raw material specifications. Profile dimensions, material thickness, strip width, cutting requirements, and production targets all affect the recommended machine configuration.

Before confirming a machine order, provide your U-32-90 profile drawing and material details so the equipment requirements can be evaluated against your actual production needs.

Galvanized Steel Channel Roll Forming Solution

GI commonly refers to galvanized iron, while galvanized steel is a widely used term for steel strip protected by a zinc coating. In roll forming applications, compatible galvanized steel strip can be shaped into channel profiles used in building and interior framing systems.

The U-32-90 keel profile is intended for a specific channel geometry. Its exact dimensions and application should be verified against the customer's technical drawing because profile codes may vary between manufacturers and markets.

A profile-specific GI channel making machine uses forming tooling selected for the required cross-section. The channel width, side height, flange shape, material thickness, and other geometric details should be confirmed before the tooling and production configuration are finalized.

How the GI Channel Making Machine Works

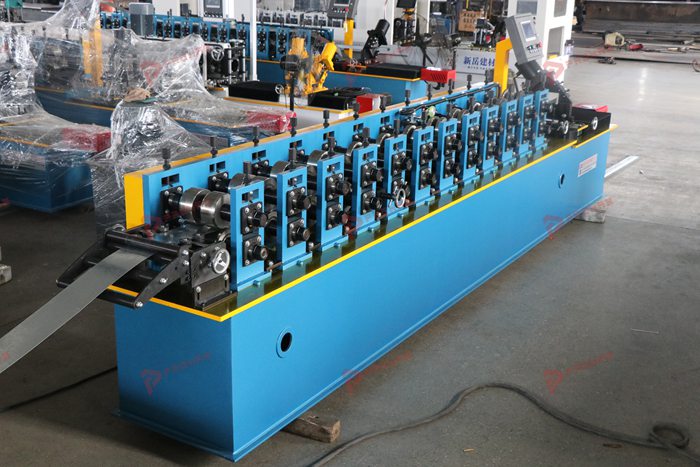

Roll forming is a continuous process in which metal strip passes through successive roller stations. Each station progressively bends the material until the specified channel profile is achieved. The forming sequence and tooling must be matched to the profile geometry and material characteristics.

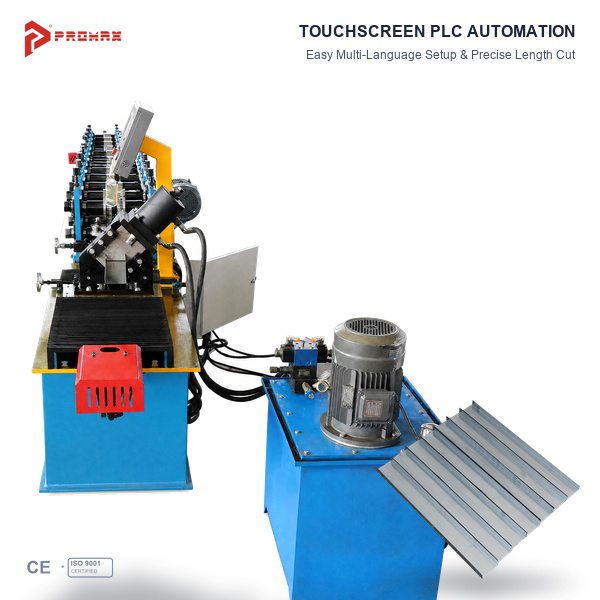

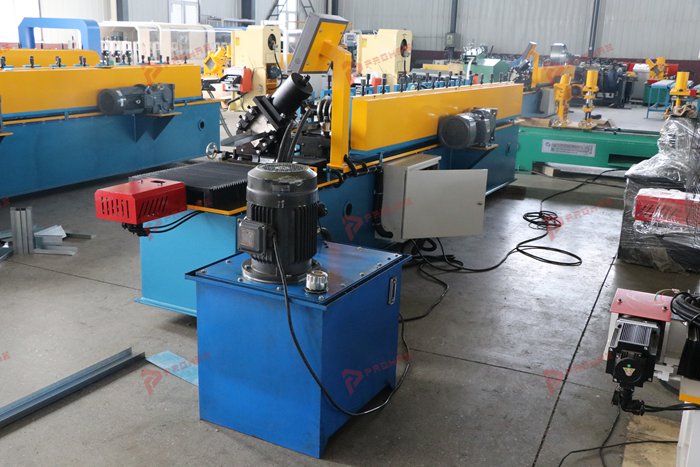

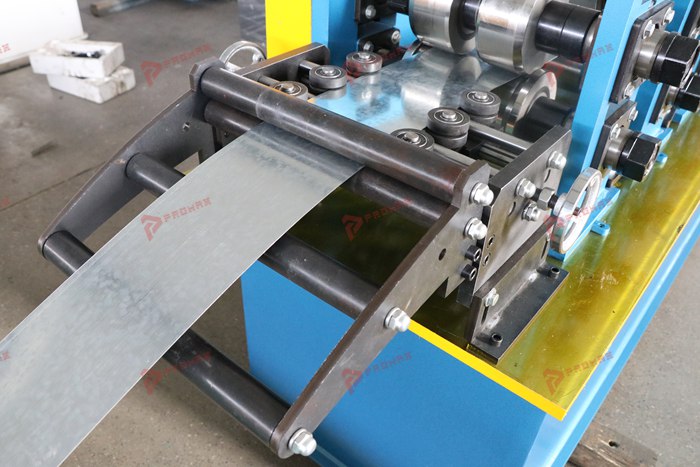

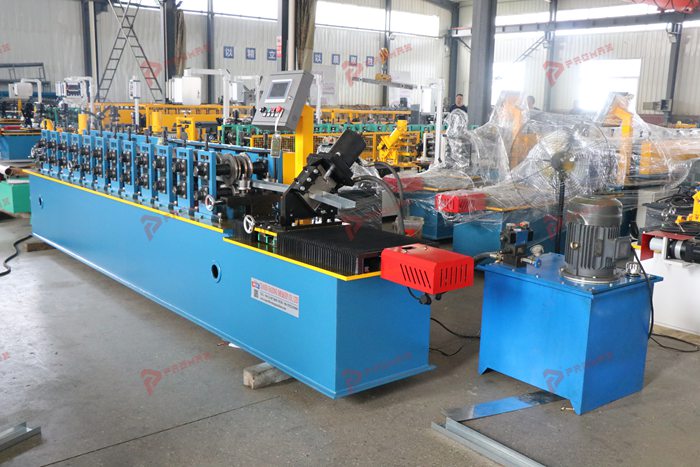

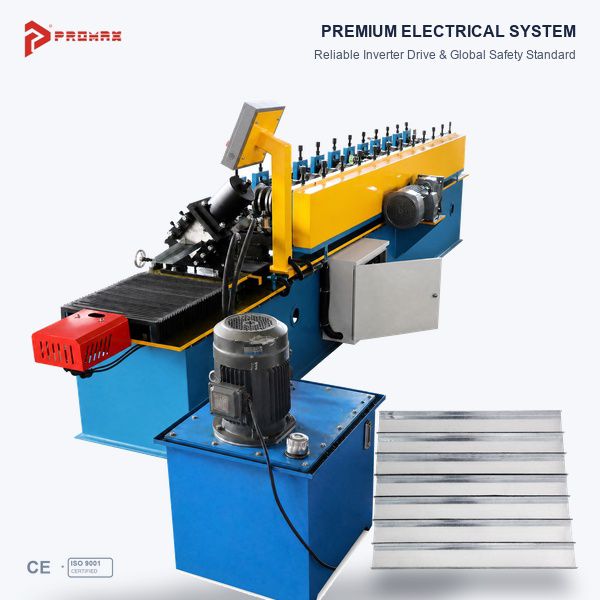

Depending on the selected configuration, a production line may include a decoiler, feeding and guiding equipment, roll forming stations, a cutting unit, and an electrical control system. The exact equipment arrangement and included functions should be confirmed for the specific machine model.

For reliable production planning, manufacturers should identify the raw material grade, coating requirements, strip thickness, strip width, finished profile length, and target output. These details help the equipment supplier evaluate the forming process and prepare an appropriate technical proposal.

Key Features to Consider

• Profile-specific tooling: The forming rollers should be configured for the required U-32-90 channel dimensions.
• Galvanized steel compatibility: Confirm the material grade, thickness, width, and coating specifications supported by the proposed machine.
• Progressive forming process: Successive forming stations gradually shape the strip into the specified cross-section.
• Cutting requirements: The cutting arrangement should match the required finished lengths and production workflow.
• Production configuration: Auxiliary equipment and control functions can be evaluated according to the customer's requirements.
• Technical customization: Profile drawings and material information provide the basis for reviewing machine suitability.

The actual forming speed, supported thickness range, cutting method, automation functions, and control-system specifications depend on the final machine design. These parameters should be confirmed with the manufacturer before purchase.

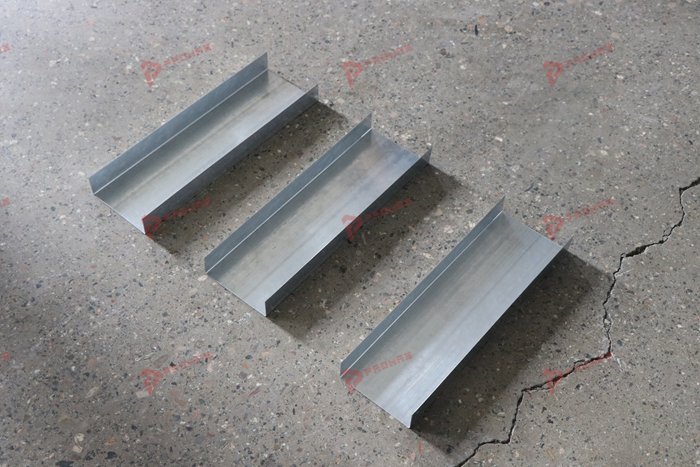

Applications of U-32-90 Metal Keel Profiles

U-shaped metal channels are used in compatible construction framing systems where a channel-shaped component is required. Depending on the exact U-32-90 profile design, potential applications may include:

• Ceiling framing: Channel components for compatible ceiling systems.
• Light steel keel manufacturing: Production of metal channels for building material suppliers and construction component manufacturers.
• Interior framing: U-shaped profiles used in suitable interior construction assemblies.
• Galvanized steel profile production: Forming specified channel profiles from compatible galvanized steel strip.

Not all U-shaped profiles are interchangeable. Confirm the final profile dimensions and intended application before manufacturing components for a particular construction system or market.

What Information Is Needed for Machine Selection?

To assess a suitable GI channel making machine, prepare the following information before requesting a quotation:

• U-32-90 profile drawing or sample dimensions
• Raw material type and grade
• Galvanized steel strip thickness and width
• Coating specifications, where applicable
• Required finished profile length
• Expected production output
• Cutting and automation requirements
• Factory power supply and destination country

Providing complete technical information helps the supplier evaluate the tooling, forming configuration, cutting arrangement, and auxiliary equipment required for the project. If you intend to produce multiple channel profiles, provide a separate drawing for each profile so compatibility can be assessed.

Request a Quote for a GI Channel Making Machine

If you are looking for a GI channel making machine for U-32-90 keel production, contact PROMAX with your profile drawing and galvanized steel material specifications. Our team can review your production requirements and discuss a suitable roll forming solution.

For a more accurate quotation, please include the target profile dimensions, material thickness, strip width, required output, cutting requirements, and destination country. The quotation can then be prepared according to the confirmed machine configuration and supply scope.

Contact PROMAX to discuss your galvanized steel channel manufacturing project and request a solution based on your actual production requirements.
