C100 Main Channel Machine

C100 Main Channel Machine

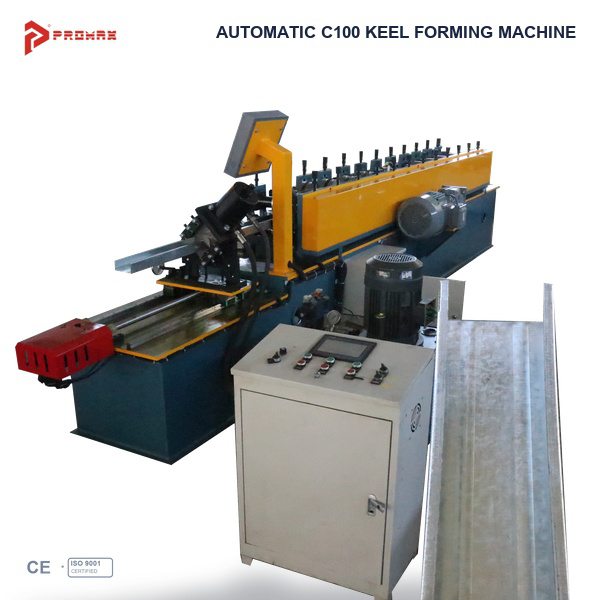

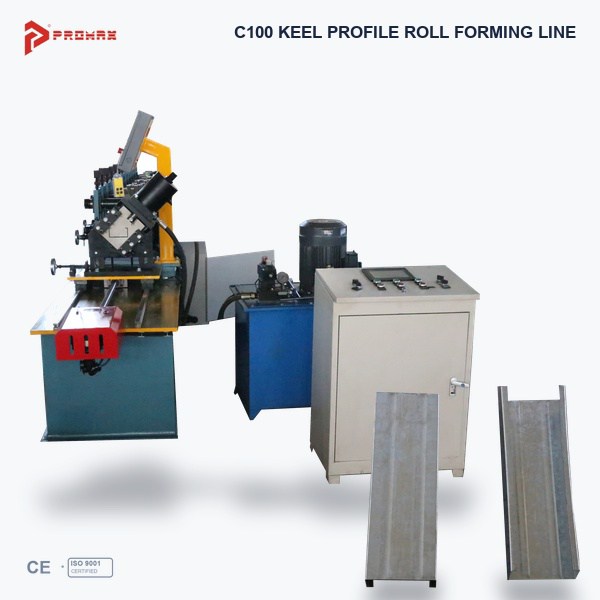

The PROMAX C100 Main Channel Machine is designed for manufacturing C100 metal channel profiles used in compatible ceiling framing and building systems. Using a roll forming process, the machine progressively shapes metal strip into the required cross-section. Its configuration can be evaluated according to the customer's profile drawing, raw material specifications, finished product dimensions, and production requirements.

For manufacturers of metal ceiling components and light steel framing materials, selecting suitable forming equipment is essential for maintaining profile consistency and supporting stable production. PROMAX provides roll forming solutions tailored to specified profile requirements, helping customers evaluate the appropriate tooling, feeding arrangement, cutting system, and other machine components.

Since channel profile dimensions and naming conventions can vary between markets, the designation C100 should be verified against the customer's technical drawing before production. The final machine configuration should be based on the actual cross-section rather than the product name alone.

Applications of C100 Main Channel Profiles

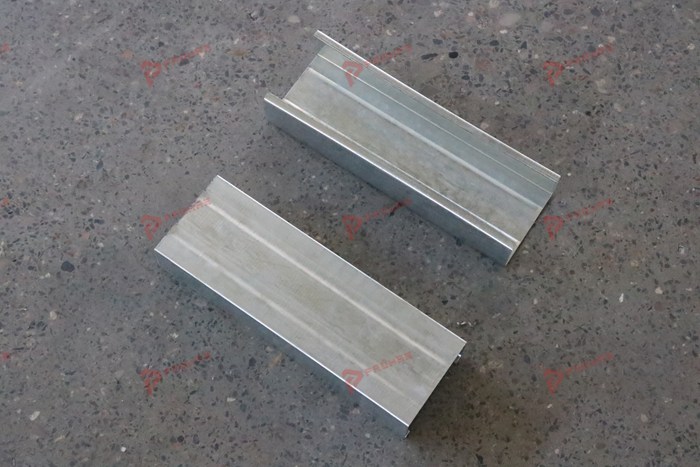

C100 main channel profiles are intended for compatible metal ceiling or framing systems, depending on their cross-sectional design and installation method. The exact application should be confirmed with the project specifications and the profile drawing.

• Ceiling framing: Production of specified metal channel components for compatible ceiling construction systems.
• Building material manufacturing: Supply of standardized or customized channel profiles to construction material distributors and contractors.
• Metal profile production: Continuous forming of metal strip into a defined channel cross-section.
• Customized construction profiles: Equipment evaluation for customers requiring a particular C100 profile geometry or finished length.

Before ordering a C100 main channel machine, buyers should confirm whether their target profile is a main carrying channel, furring channel, or another locally named ceiling component. Similar product names do not necessarily indicate identical dimensions or interchangeable tooling.

How the C100 Main Channel Machine Works

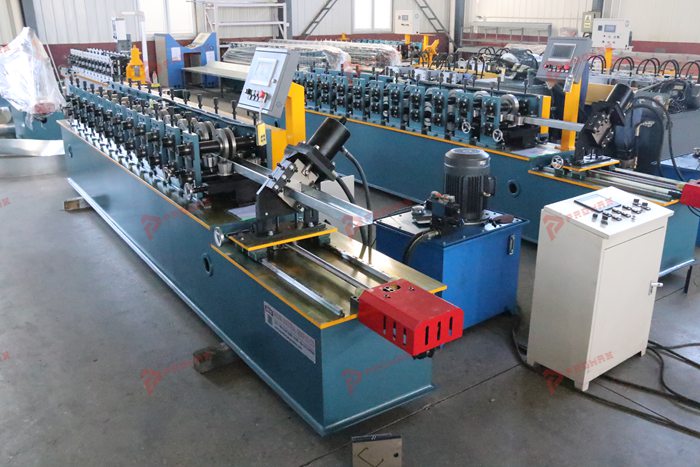

A roll forming line typically processes metal strip from a coil through a sequence of forming operations. The strip is gradually shaped by rollers designed for the specified profile. A cutting system then separates the formed channel into the required lengths. The precise production sequence depends on the machine configuration and the customer's product requirements.

1. Raw material preparation: Confirm the material type, thickness, coil width, and other specifications required for the C100 profile.

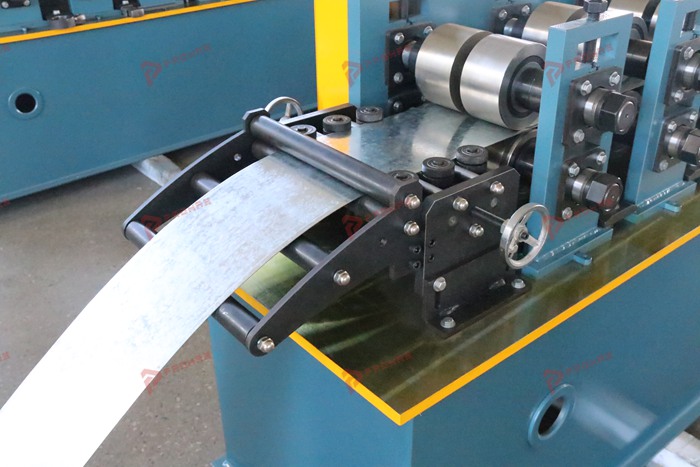

2. Material feeding: Feed the metal strip into the machine using the configured feeding and guiding arrangement.

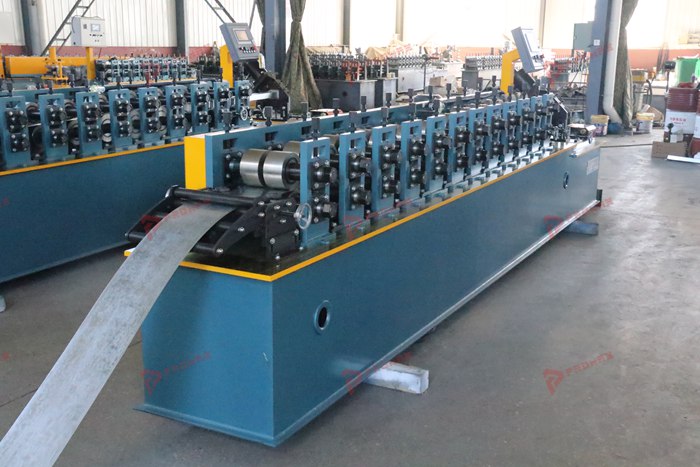

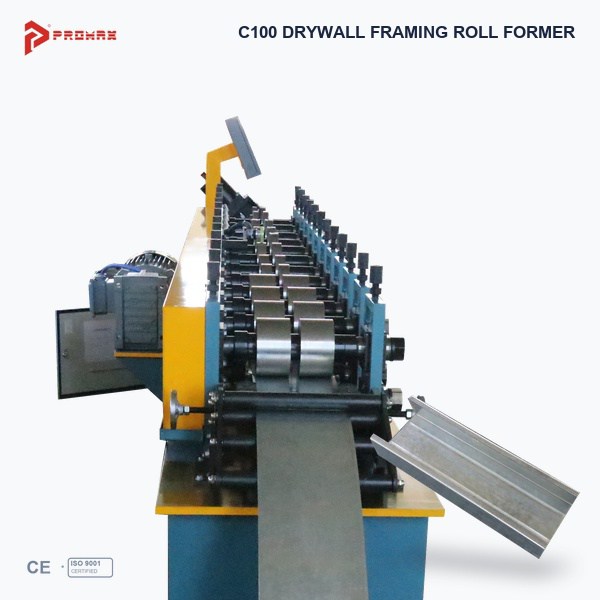

3. Progressive roll forming: Shape the strip through successive roller stations to achieve the specified channel cross-section.

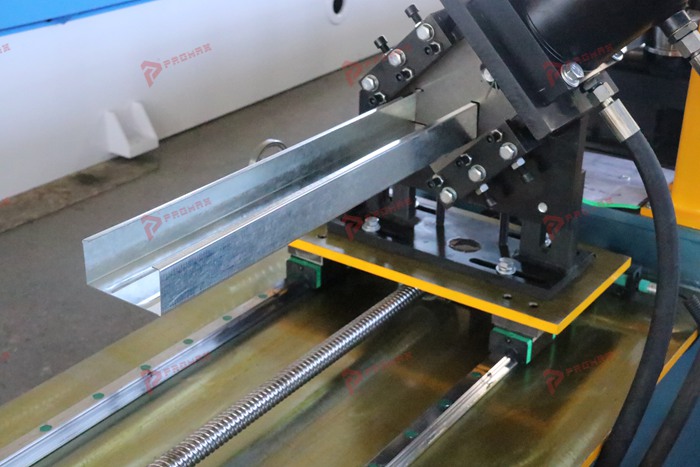

4. Length cutting: Cut the formed profile according to the required finished length and configured cutting method.
5. Finished product inspection: Check the profile dimensions, shape, cutting quality, and consistency against the approved drawing.

Punching, notching, automatic length measurement, and other functions should be confirmed according to the required product design. These functions should not be assumed to be included in every machine configuration.

Key Factors When Selecting a C100 Main Channel Machine

1. Profile Drawing and Cross-Section

The profile drawing is the foundation of machine design. It should show the channel's overall dimensions, web width, flange dimensions, bends, lips, and any additional features. If the C100 profile has special edges or connection details, these should be clearly marked before the forming tooling is designed.

Providing a dimensioned drawing helps the manufacturer evaluate the forming process and identify the tooling requirements. If a finished sample is available, it can also help clarify details that may not be obvious from the product name.

2. Material Type and Thickness

The raw material specification directly affects the forming process. Buyers should provide the material type, nominal thickness, coil width, and relevant mechanical properties where available. Galvanized steel strip is commonly used for many ceiling and framing profiles, but material compatibility must be confirmed for the particular C100 product.

The machine should be designed for the intended material range. A change in thickness, material strength, or profile geometry may affect tooling requirements and the forming process.

3. Cutting and Punching Requirements

Finished channel profiles may require different cutting lengths or additional holes and notches. Buyers should explain whether the product needs straight cutting, punching, or other processing operations. The required features and their positions should be included in the technical drawing.

By confirming these details before ordering, manufacturers can evaluate the appropriate machine arrangement and reduce uncertainty during installation and commissioning.

4. Production Requirements

Production targets, order quantities, product dimensions, and factory layout all influence equipment selection. Buyers should discuss their expected output and operating conditions with the supplier so that the proposed configuration can be assessed against their actual needs.

Production speed should be evaluated together with the required profile quality, cutting method, material specification, and operating process. Any quoted speed or output figure should be tied to a clearly defined material and product specification.

Why Consider PROMAX for C100 Channel Production?

PROMAX focuses on roll forming equipment for metal framing and construction profile applications. Backed by Tianjin Haixing's experience in roll forming technology since 1996, the team can evaluate equipment requirements using the customer's drawings and manufacturing objectives.

• Drawing-based evaluation: Discuss the C100 profile geometry and required finished dimensions before confirming a machine configuration.
• Application-focused planning: Evaluate the forming and cutting arrangements according to the intended construction profile.
• Material specification review: Confirm the proposed machine's compatibility with the intended metal strip.
• Configuration discussion: Review any required punching, cutting, or other functions before the technical proposal is finalized.
• Project communication: Exchange technical information to help clarify product requirements, production objectives, and equipment scope.

The final equipment specification should clearly state the supported profile dimensions, material range, cutting arrangement, optional functions, and other agreed technical details. This helps ensure that both parties have the same understanding of the required production line.

What Information Is Needed for a C100 Main Channel Machine Quotation?

To help evaluate a suitable machine, please prepare the following information wherever available:

• C100 main channel profile drawing or a clear cross-sectional sketch.
• Required material type and thickness.
• Coil width and other available raw material specifications.
• Finished profile length and cutting tolerance.
• Punching holes, notches, or other additional processing requirements.
• Expected production volume and operating requirements.
• Destination country and factory power supply information.

If a complete technical drawing is not available, start with the profile name, basic dimensions, material details, and photographs of the finished channel. The manufacturer can then review the available information and identify what else is needed to evaluate the machine.

Request a Quote for a C100 Main Channel Machine

Looking for a main channel machine for C100 metal profile production? Contact PROMAX with your product drawing and material specifications. The team can review your requirements and discuss a suitable roll forming configuration for your intended application.

Providing accurate profile dimensions and processing requirements at the beginning of the project helps make technical communication more efficient and supports a clearer quotation process.
