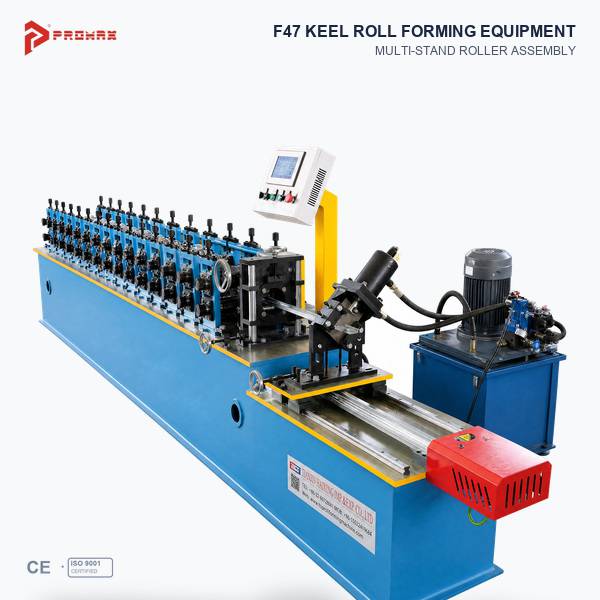

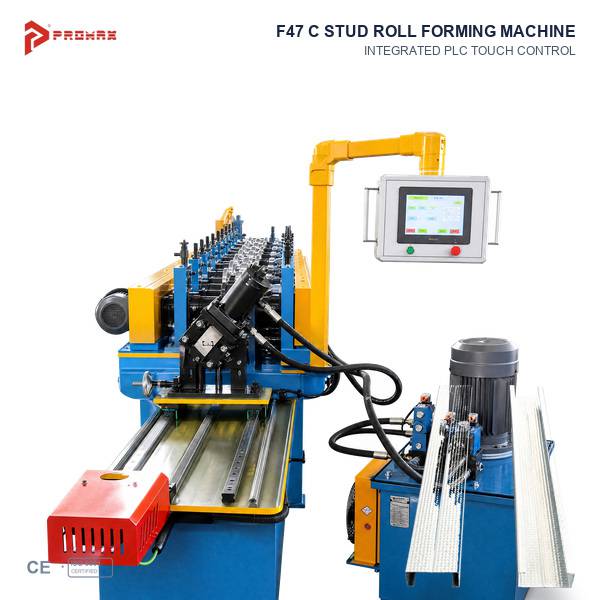

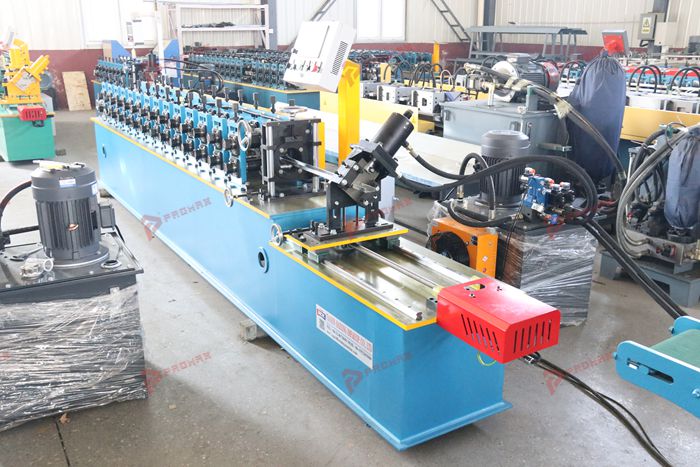

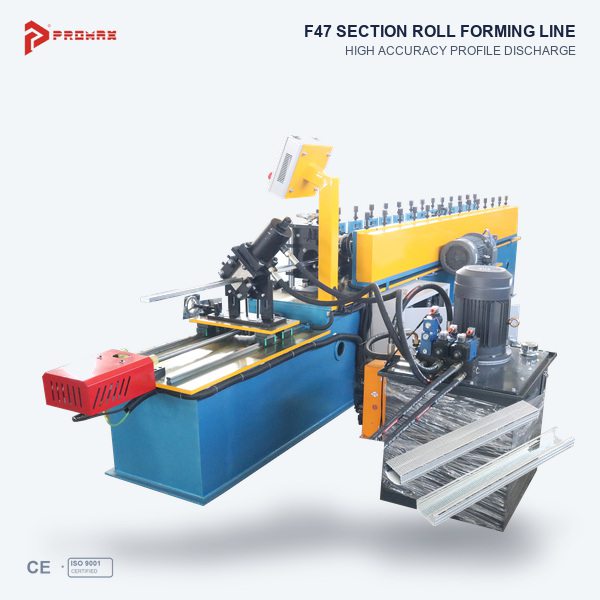

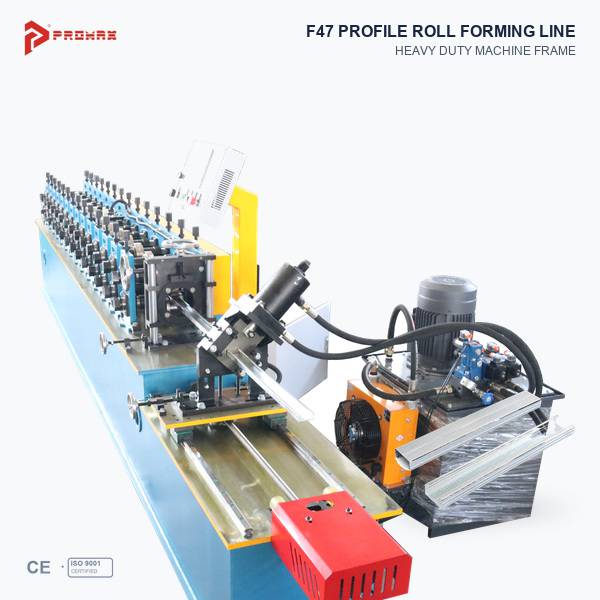

F47 C Channel Machine

F47 C Channel Machine for Metal Ceiling Profiles

The PROMAX C Channel Machine is designed for manufacturing specified C-shaped metal profiles used in compatible ceiling framing systems. This model is intended for F47 ceiling channel production, with the final machine configuration determined by the required profile drawing, raw material specifications, and production requirements.

F47 profiles are used in certain suspended ceiling systems to support ceiling framing arrangements. Manufacturers supplying construction material distributors, ceiling contractors, and building product wholesalers need profiles that meet the dimensions and requirements of their target market.

A suitable C channel machine helps manufacturers establish a repeatable roll forming process for the specified profile. Before selecting equipment, buyers should confirm the F47 cross-section, material thickness, coil width, finished length, and any additional processing requirements.

What Is an F47 C Channel Machine?

An F47 C channel machine is roll forming equipment configured to produce a specified metal ceiling channel profile. During production, metal strip passes through a series of forming rollers that progressively shape the material into the required cross-section.

The term C channel machine can refer to equipment for different C-shaped profiles. Not every C channel machine is suitable for F47 production because profile geometry, dimensions, material requirements, and tooling arrangements may differ. Buyers should therefore provide a technical drawing before confirming the machine configuration.

For F47 ceiling channel production, the main considerations include:

• Profile geometry: The required cross-section, including the web, flanges, and relevant edges.
• Material specifications: The metal type, thickness, and coil width required for the finished product.
• Finished length: The required profile lengths and cutting tolerances.
• Processing requirements: Any specified holes, notches, or additional features.

These details help determine whether the proposed machine and tooling are suitable for the intended F47 profile.

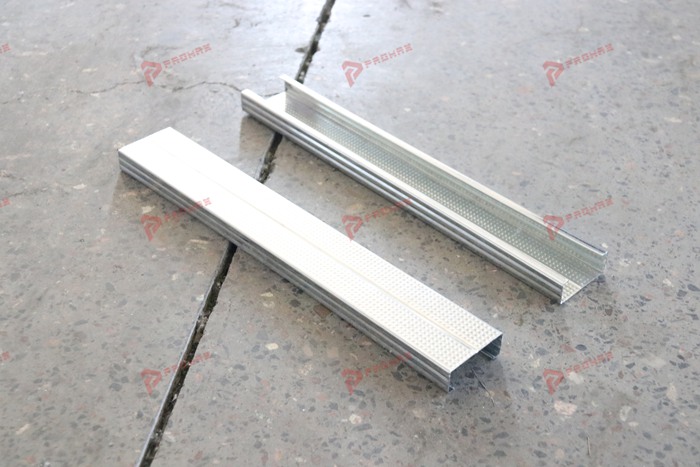

Applications of F47 Ceiling Channel Profiles

F47 metal profiles are used in compatible suspended ceiling framing systems. Their function depends on the ceiling system design, profile specifications, and installation method used in the target market.

Suspended Ceiling Systems

Specified ceiling channels form part of the metal framework used to support compatible ceiling boards or panels. The profile dimensions and installation arrangement must match the intended ceiling system.

Interior Construction Projects

Metal ceiling profiles are used in a variety of residential, commercial, and other interior construction projects. Manufacturers can supply profiles according to the requirements of local contractors, distributors, and building material suppliers.

Building Material Manufacturing

Manufacturers producing F47 profiles for wholesale or project-based orders need to consider product consistency, finished length, material specifications, and production planning. A correctly configured roll forming machine can support a repeatable manufacturing process for the specified product.

Because ceiling profile standards and naming conventions differ between markets, buyers should verify the exact F47 profile drawing rather than relying on the product name alone.

How Does a C Channel Roll Forming Machine Work?

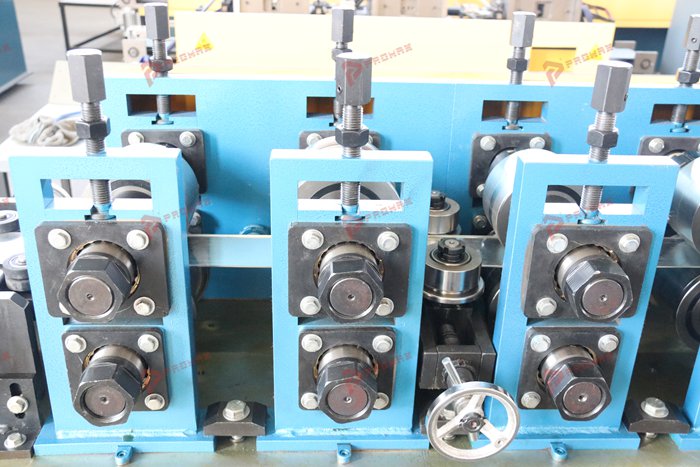

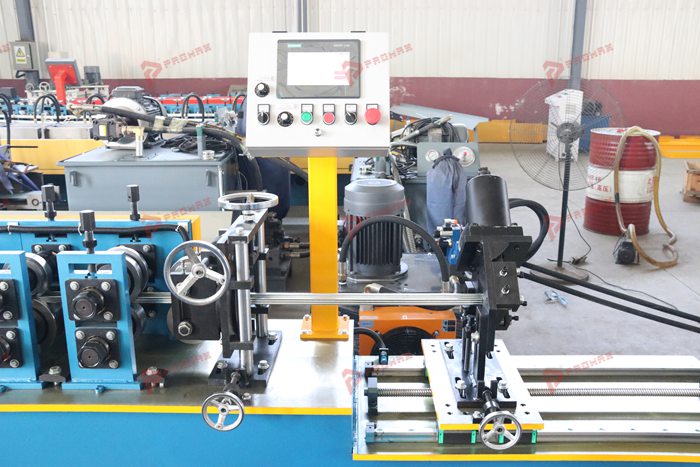

A C channel roll forming machine shapes metal strip through a progressive forming process. Each set of rollers performs part of the forming operation until the strip reaches the required cross-sectional geometry.

A typical production process may include the following stages, depending on the selected equipment configuration:

1. Material preparation: Confirm the metal coil type, thickness, width, and relevant material specifications.

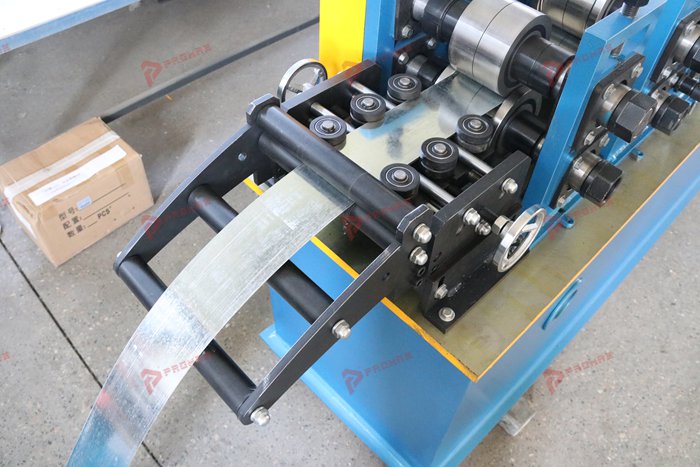

2. Material feeding: Feed the strip into the production line and guide it toward the forming section.
3. Roll forming: Pass the strip through rollers configured for the specified F47 profile.

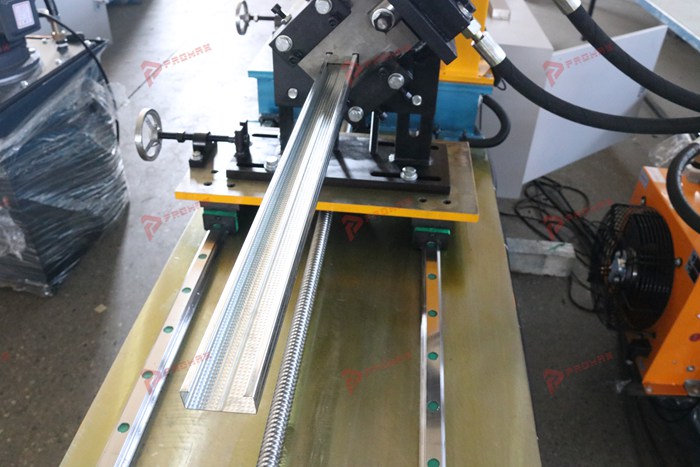

4. Cutting to length: Cut the formed channel to the required finished length using the agreed cutting system.
5. Quality inspection: Check the profile dimensions, straightness, cut length, and other agreed acceptance criteria.
6. Finished product handling: Collect and organize the profiles for inspection, storage, or shipment.

Additional functions, such as punching or notching, may be needed for some product designs. These requirements should be specified in advance and confirmed in the final machine proposal.

Key Factors When Choosing an F47 C Channel Machine

1. Confirm the F47 Profile Drawing

Provide a clear drawing showing the required profile cross-section and dimensions. Include the web width, flange dimensions, edge details, and any other features relevant to the finished product. This helps the supplier evaluate the appropriate roller tooling and machine configuration.

2. Specify Material Type and Thickness

Ceiling profiles are commonly manufactured from specified metal strip materials, including galvanized steel where appropriate. The material type and thickness affect the forming process and must be confirmed before the equipment is configured.

3. Define Finished Lengths and Tolerances

Identify the required cutting lengths and dimensional tolerances. If different product lengths are needed, provide the expected range and production requirements so the cutting arrangement can be evaluated.

4. Clarify Additional Processing Functions

If the F47 profile requires holes, notches, or other special features, provide their positions and dimensions. Confirm whether these functions are included in the proposed machine or require additional equipment.

5. Evaluate Production Requirements

Consider expected production volume, product variety, changeover frequency, and available factory space. Discuss your production targets with the supplier and confirm the expected machine performance against the specified profile and material.

Why Consider PROMAX C Channel Forming Equipment?

PROMAX focuses on roll forming equipment for metal framing and construction profile applications. Backed by Tianjin Haixing's experience in roll forming technology since 1996, PROMAX can review customer drawings and discuss equipment configurations for specified F47 ceiling channel production.

• Profile-based evaluation: Machine selection based on the required F47 drawing and product dimensions.
• Material specification review: Assessment of the intended metal strip and thickness requirements.
• Production planning: Discussion of finished lengths, required output, and manufacturing workflow.
• Processing options: Evaluation of cutting, punching, notching, and other functions when required.
• Technical confirmation: Clarification of the supported profile, machine configuration, and included functions before ordering.

The final technical proposal should identify the supported profile dimensions, material specifications, processing functions, and applicable machine capabilities. Confirming these details helps ensure that the equipment matches your production requirements.

Request a Quote for an F47 C Channel Machine

Looking for a C channel machine for F47 ceiling profile production? Contact PROMAX with your profile drawing, material specifications, required finished lengths, and production targets.

If your product requires punching, notching, or other special processing, include those details in your inquiry. The technical team can review your requirements and discuss a suitable roll forming machine configuration.

Send your F47 profile drawing and production details to request a quotation for a C channel roll forming machine tailored to your application.
