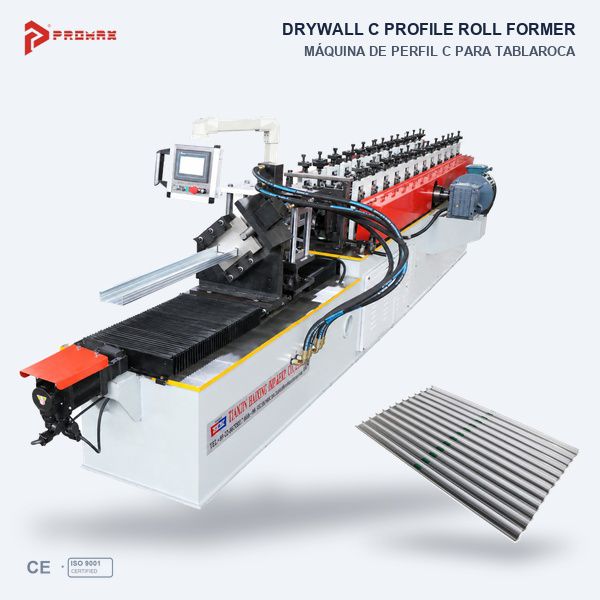

The PROMAX Metal Stud Forming Machine is designed for manufacturing galvanized steel C-shaped studs used in drywall partitions and interior metal framing systems.
Machine Type: Cold Roll Forming Machine
Material: Galvanized Steel
Features: Customized roller tooling, precision C stud forming, cut-to-length production and optional PLC control.
Applications: Drywall C studs, gypsum board partition walls and non-load-bearing metal framing.
Customization: Profile dimensions, steel thickness, cutting lengths and machine configuration.
Send your profile drawings and request a customized quotation.

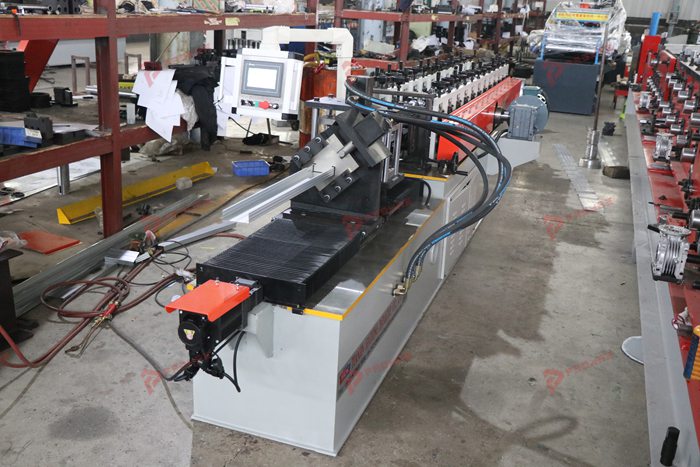

The metal stud forming machine from PROMAX is designed for manufacturing galvanized steel C-shaped studs used in drywall partition walls, gypsum board framing and interior metal construction. The equipment uses progressive cold roll forming technology to convert flat steel strips into metal studs with specified cross-sectional dimensions.
In drywall construction, C studs are commonly installed vertically between compatible U tracks. Together, these components create a framing system for supporting gypsum boards and other specified partition materials. The dimensional accuracy of each metal stud is important for installation, assembly and compatibility with the corresponding track profiles.
PROMAX provides customized metal stud roll forming machine solutions based on customer drawings, steel material properties and production requirements. The equipment can be configured with a decoiler, feeding system, forming rollers, cutting unit, PLC control system and receiving table.
Machine specifications, production capacity and optional functions are determined according to the approved technical design.
A metal stud forming machine is industrial equipment used to manufacture metal framing studs from steel coils through a continuous cold forming process.
For drywall applications, the machine is commonly designed to produce C-shaped galvanized steel profiles.
The steel strip passes through successive roller stations, where each station performs a controlled bending operation. The material gradually changes from a flat strip into the required C-shaped cross-section.
After forming, the profile is cut to the specified finished length.
The machine is developed according to the required profile dimensions, steel thickness, material properties and manufacturing requirements.

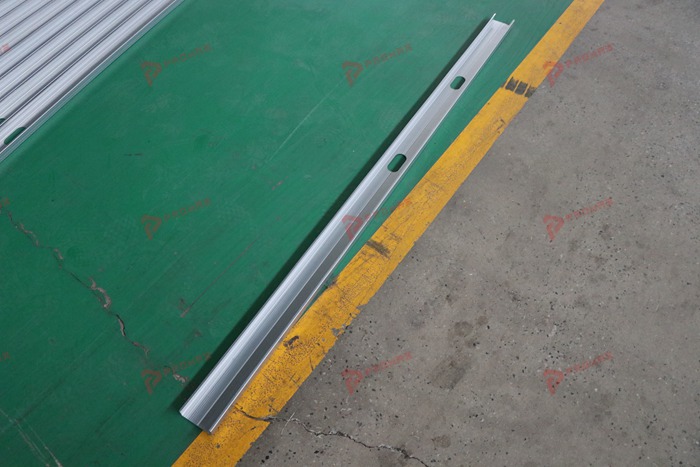

Galvanized C studs are widely used as vertical framing members in non-load-bearing drywall partition systems.
They are typically installed between compatible U tracks to form the supporting framework for gypsum board walls.
Depending on the design, a C stud may include a central web, flanges and return lips. These dimensions must be compatible with the intended drywall framing system.
Typical applications include:
The suitability of each finished stud depends on its profile dimensions, steel thickness, mechanical properties and the requirements of the intended construction system.
The C stud forming machine uses a series of forming rollers to shape galvanized steel strips without heating the material for bending.

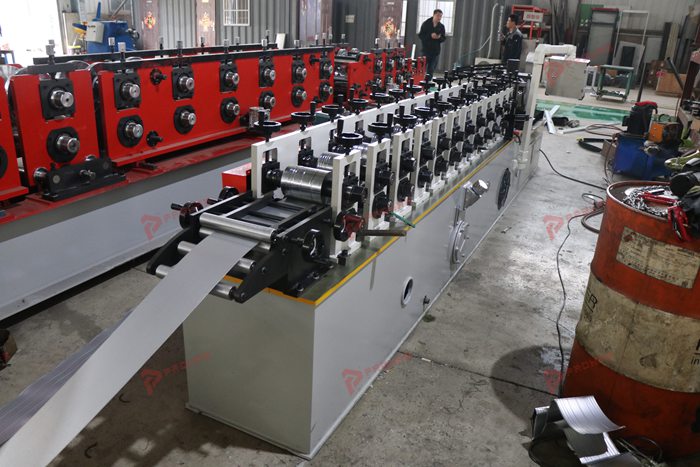

The production process begins with a steel coil placed on the decoiler. The material passes through the feeding and guiding section before entering the forming stations.
Each roller station gradually bends the steel strip to create the required C-shaped geometry.
After the final forming station, the profile passes through the cutting system to obtain the specified length.
Depending on the equipment configuration, additional operations such as punching, marking or automated length control may be incorporated.
The forming sequence and equipment arrangement are designed according to the profile geometry and steel material specifications.
A typical drywall metal stud machine may include several integrated systems. The final configuration depends on the approved machine design.
The number of forming stations, drive arrangement and component specifications are determined according to the technical requirements.
Dimensional consistency is an important consideration when manufacturing C studs for drywall framing systems.
Important profile dimensions may include the web width, flange height, return lip geometry and bending radii.
These dimensions affect the compatibility of the finished stud with corresponding tracks and other framing components.
Roller tooling must be designed according to the approved profile drawing and material properties.
Proper strip guidance, roller alignment and machine adjustment help maintain the intended profile geometry during production.
Finished products should be inspected against the agreed dimensional tolerances.

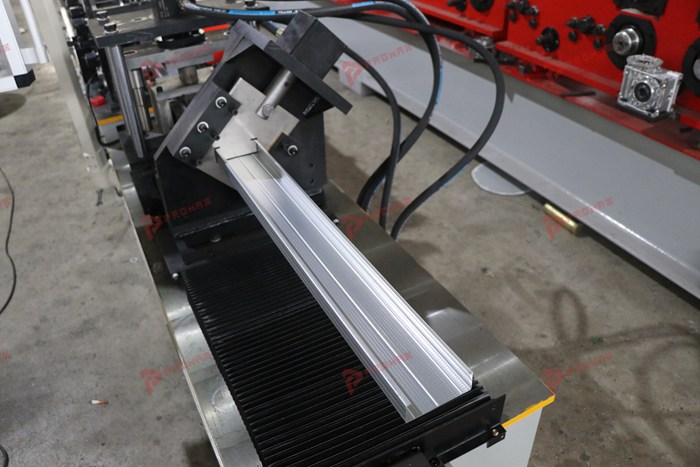

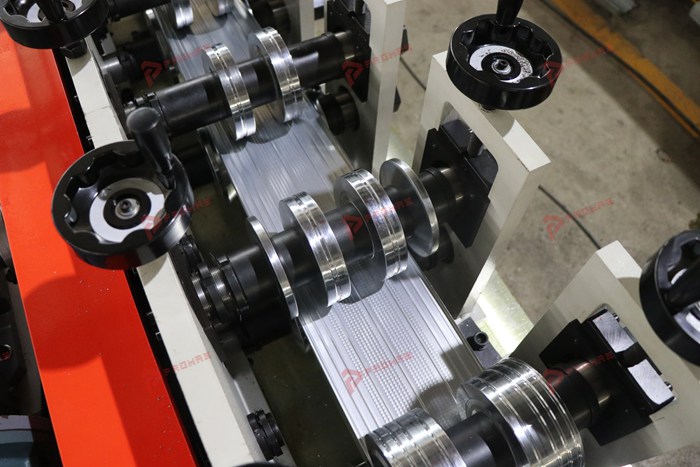

The forming rollers are among the most important components of a steel stud forming machine.
Each roller station performs part of the bending process, gradually changing the steel strip into the final C-shaped section.
The roller design must consider the steel thickness, profile dimensions, bending radii and mechanical properties of the material.
Different profile geometries may require different roller tooling or adjustment arrangements.
PROMAX can develop customized tooling according to customer-approved C stud drawings.
Galvanized steel is commonly selected for drywall framing because it combines mechanical strength with a protective zinc coating.
When selecting a galvanized metal stud machine, manufacturers should confirm the steel thickness, strip width, yield strength and coating characteristics.
These factors influence the forming forces, roller tooling and machine component selection.
The selected material must be compatible with the equipment specifications and the requirements of the finished profile.
Different material grades and thickness ranges may require adjustments to the machine design.
The galvanized surface should also be checked during finished product inspection.
The production of galvanized C studs generally follows a series of cold forming operations.
The sequence may vary depending on the machine configuration and optional processing functions.

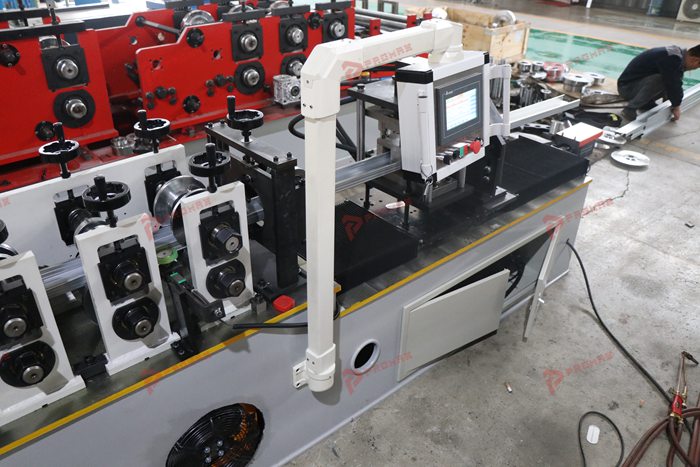

The PROMAX metal stud manufacturing machine can be configured with a PLC control system for selected production functions.
Depending on the configuration, operators may enter cutting lengths, production quantities and other available parameters through a control interface.
The cutting system is selected according to the profile geometry, steel thickness and required manufacturing process.
Automatic cutting options can support production orders requiring different finished lengths.
Specific control functions and cutting capabilities are confirmed during the technical design stage.
PROMAX provides customized roll forming solutions for manufacturers requiring different C-shaped drywall stud profiles.
Machine design can be based on customer requirements for web width, flange dimensions, return lips, steel thickness and finished cutting length.
Optional processing functions, such as punching, may be evaluated according to the production requirements.
The ability to produce multiple profile sizes on one machine depends on the tooling design and adjustment mechanisms.
Automatic profile size changing is not assumed unless it is specifically included in the equipment configuration.
Customers are encouraged to provide complete profile drawings and material specifications before selecting equipment.
C studs and U tracks are complementary components of many drywall partition systems, but they have different cross-sectional designs.
C studs typically include a central web, flanges and return lips, and they commonly function as vertical framing members.
U tracks generally have a channel-shaped section and are installed horizontally to receive and position compatible studs.
Because their geometries are different, the roller tooling required to manufacture each profile is also different.
This metal stud forming machine is intended for C-shaped profiles. Manufacturing U tracks requires suitable tooling or a separate machine configuration.
Manufacturers requiring both profile types may consider a double-head stud and track machine or another suitable production solution.
Finished C studs should be inspected according to the approved product drawings and manufacturing requirements.
Typical inspection points include profile width, flange height, return lip dimensions, straightness and cutting length.
Surface inspection can help identify visible damage to the galvanized coating after forming.
Dimensional tolerances and acceptance criteria should be agreed upon according to the intended drywall framing system.
Consistent raw material specifications and appropriate machine maintenance are important for stable manufacturing.
Before purchasing a metal stud forming machine, manufacturers should define the required C stud dimensions, steel material specifications and production needs.
Important information includes the profile drawing, steel thickness, material grade, required cutting lengths and expected production capacity.
Customers should also identify whether punching, special cutting functions or customized automation are required.
These details help determine the appropriate roller tooling, forming stations, cutting system and machine control configuration.
PROMAX can evaluate customer requirements and prepare a suitable technical proposal.
PROMAX develops cold roll forming equipment for drywall studs, tracks, ceiling channels and lightweight steel framing profiles.
Our services include profile drawing evaluation, machine configuration planning, customized tooling and equipment manufacturing.
Backed by Tianjin Haixing's experience in roll forming technology since 1996, PROMAX supports manufacturers seeking customized equipment solutions for different markets.
Our team can help customers evaluate profile dimensions, material specifications and production requirements before preparing a quotation.
Are you looking for a metal stud forming machine to manufacture galvanized steel C studs for drywall framing systems?
Send us your C stud drawings, steel thickness, material specifications, required cutting lengths and production capacity expectations.
Our engineering team can review your requirements and recommend a suitable machine configuration.
Contact PROMAX today to request a customized quotation for your C stud metal forming machine.
