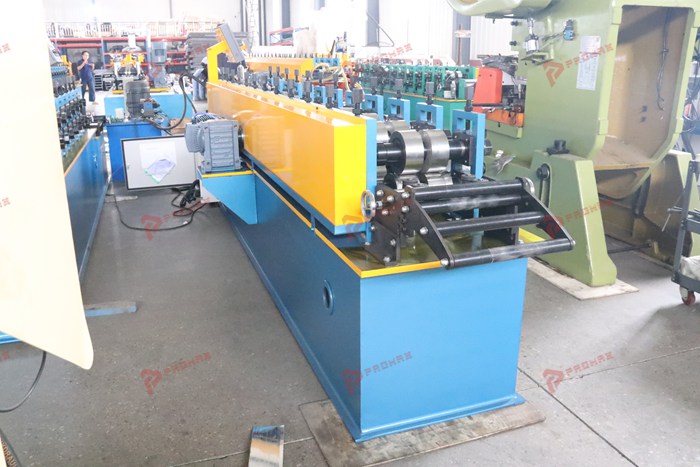

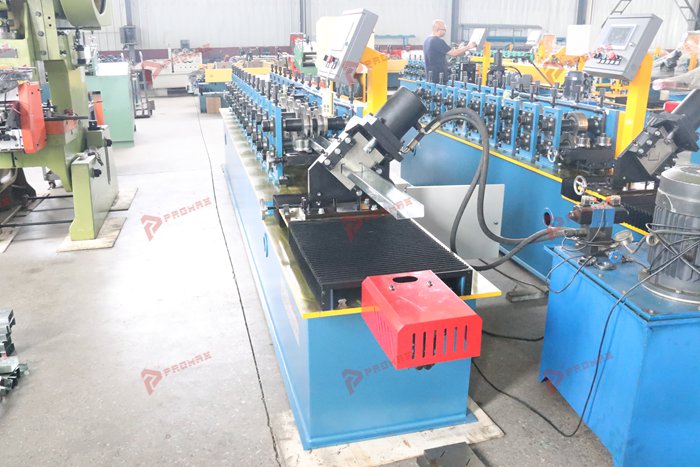

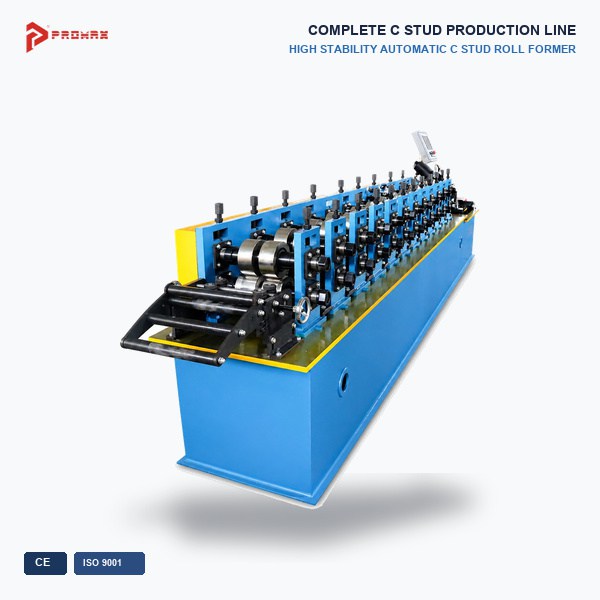

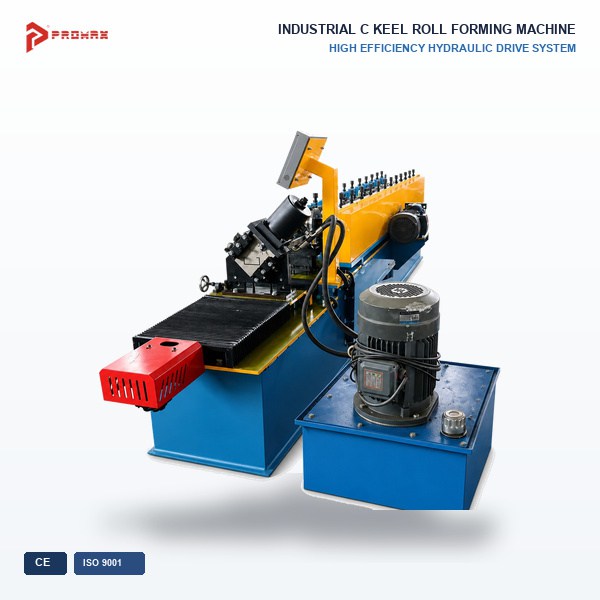

Stud Profile C Channel Machine for Metal Framing

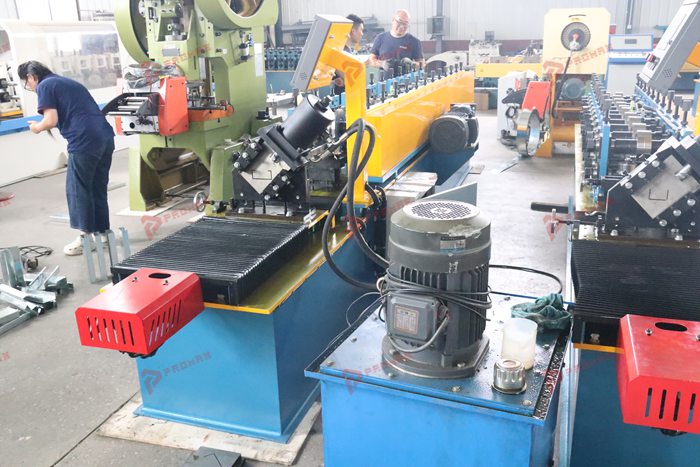

PROMAX Stud Profile C Channel Machine for Metal Framing

The PROMAX stud profile C channel machine is designed to manufacture C-shaped metal profiles used in drywall framing, lightweight steel construction, partition systems, and interior building projects. Through a continuous cold roll forming process, the machine transforms metal coil into formed profiles according to the required dimensions and cross-sectional design.

For manufacturers supplying construction materials, a suitable C channel roll forming machine can help establish a consistent production process for metal framing components. The machine configuration can be discussed according to the profile drawing, raw material specifications, required output, and punching requirements.

Applications of the C Channel Stud Machine

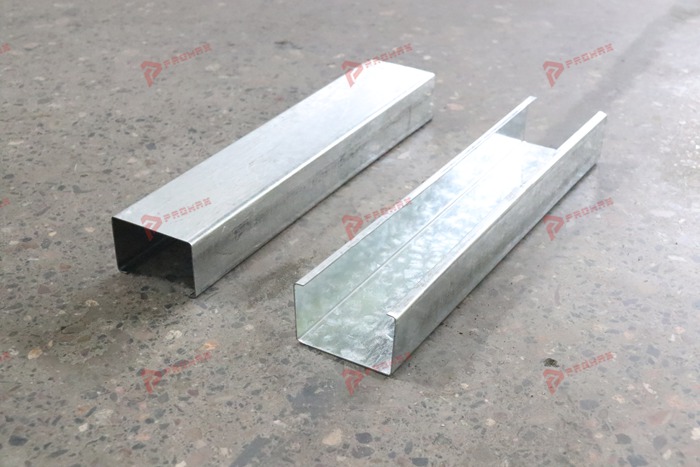

C-shaped metal profiles are widely used in lightweight construction and interior framing systems. Depending on the profile design and project requirements, profiles produced by this machine may be used for:

• Drywall framing: C-shaped studs for partition wall systems.
• Interior construction: Metal framing components for residential and commercial buildings.
• Lightweight steel framing: Structural and non-structural framing applications where the specified profile is suitable.
• Building material manufacturing: Production of metal profiles for distributors, contractors, and construction material suppliers.

The exact application depends on the finished profile dimensions, material grade, thickness, and applicable building requirements. Customers should confirm the intended profile design before selecting the machine configuration.

Roll Forming Process and Machine Configuration

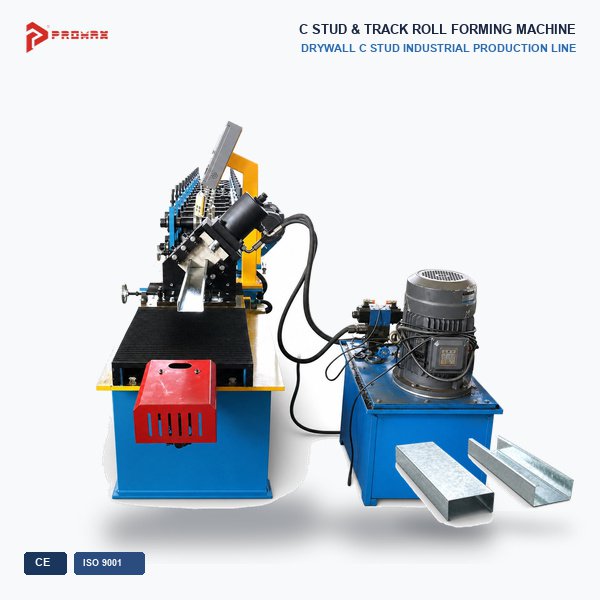

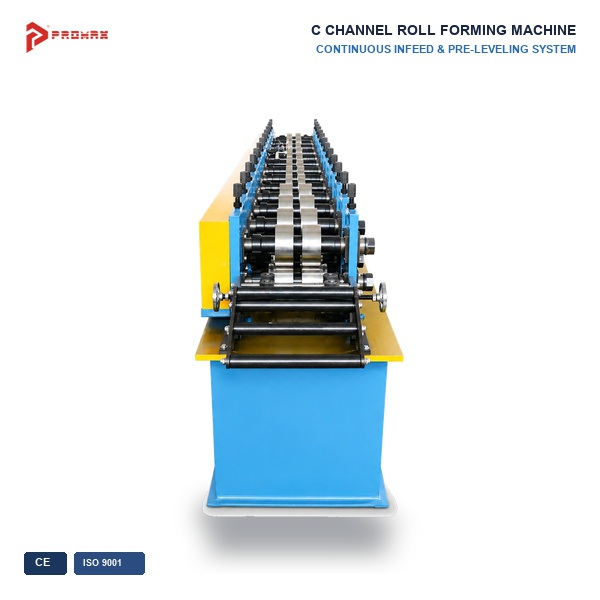

A stud profile C channel machine generally integrates material feeding, guiding, roll forming, and profile cutting. Additional equipment, such as punching units or automatic control functions, can be considered according to the required finished product and production process.

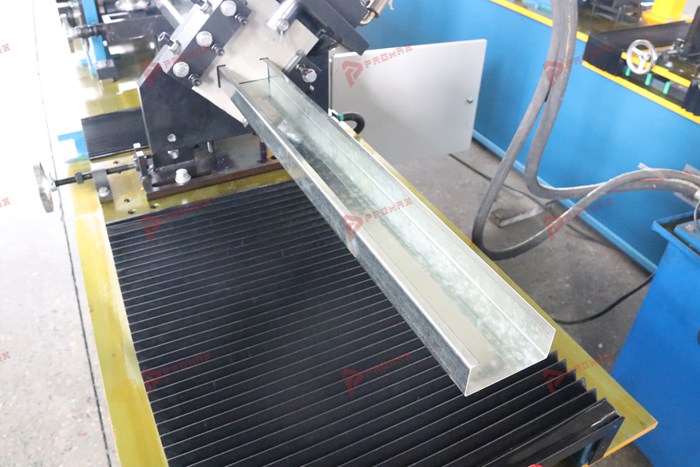

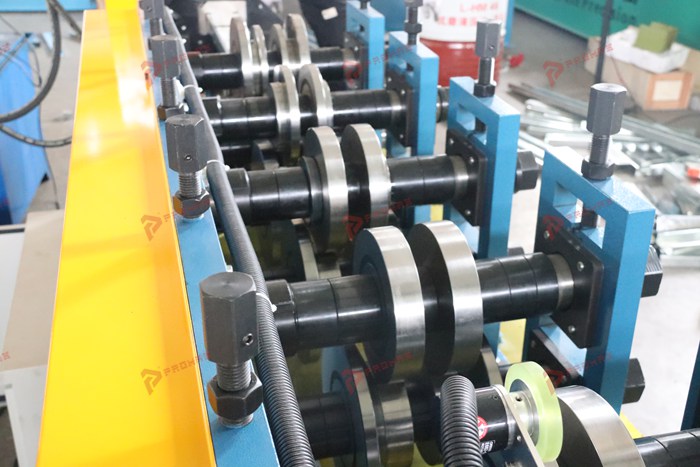

During production, the metal strip passes through a series of forming stations that progressively shape the material into the specified C-channel cross-section. The cutting system then produces profiles at the required length, subject to the selected machine configuration.

For a practical machine proposal, PROMAX recommends confirming the following details:

• Profile drawing: Cross-sectional dimensions, flange geometry, and any return lips.
• Raw material: Steel type, material grade, and coil specifications.
• Material thickness: The required thickness range for the intended application.
• Profile length: Fixed-length production or other cutting requirements.
• Punching requirements: Hole positions, hole shapes, and punching sequence, if applicable.
• Production targets: Required output and preferred operating method.

Key Considerations When Choosing a C Channel Roll Forming Machine

Not all C-shaped profiles share the same dimensions or forming requirements. Selecting equipment based only on the general product name may result in a mismatch between the machine and the intended finished profile.

Before purchasing a C channel stud machine, consider the following factors:

• Profile compatibility: Confirm that the machine is designed for the required C-shaped section.
• Material thickness: Match the forming system and tooling to the specified material.
• Dimensional requirements: Review the web, flange, lip, and other critical dimensions shown in the profile drawing.
• Cutting and punching: Specify whether the finished profiles require holes, notches, or particular cut lengths.
• Future production needs: Discuss whether additional profile sizes or product variations may be required.

PROMAX C Channel Stud Machine Solutions

PROMAX provides roll forming equipment solutions for manufacturers of drywall profiles and lightweight metal framing products. Machine planning can be based on the customer's profile drawing and production requirements, helping align the forming process with the intended product specifications.

When discussing a new project, customers can provide a profile drawing, material thickness, coil specifications, required cutting length, and punching details. This information helps determine a suitable machine configuration and identify any additional equipment that may be necessary.

For manufacturers planning to expand their metal framing product range, the proposed solution can also take future profile requirements into consideration. Final machine specifications, production speed, automation level, and compatible profile range should be confirmed in the technical proposal.

Request a Quote for a Stud Profile C Channel Machine

Looking for a C channel roll forming machine for your metal framing business? Contact PROMAX with your profile drawing and production requirements. Our team can review the proposed C-shaped profile and discuss a suitable machine configuration for your application.

To help prepare a more accurate proposal, please provide the profile dimensions, material type, thickness range, required profile length, punching details, and expected production output.

Contact PROMAX today to discuss your C channel stud machine project.
