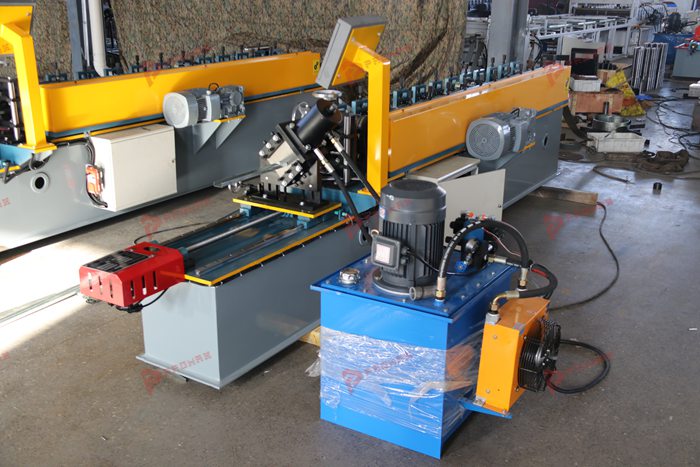

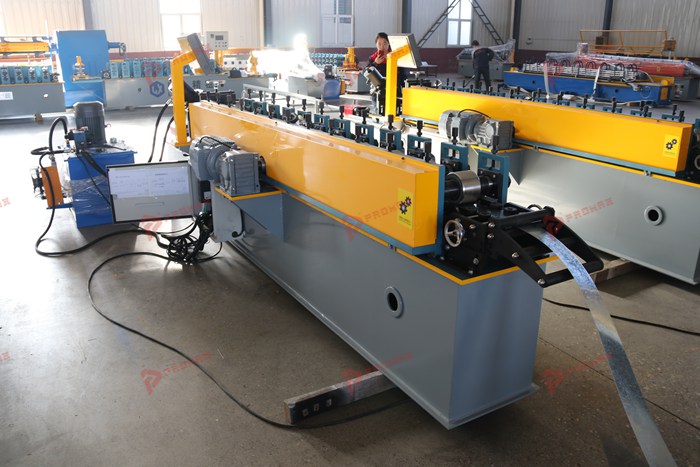

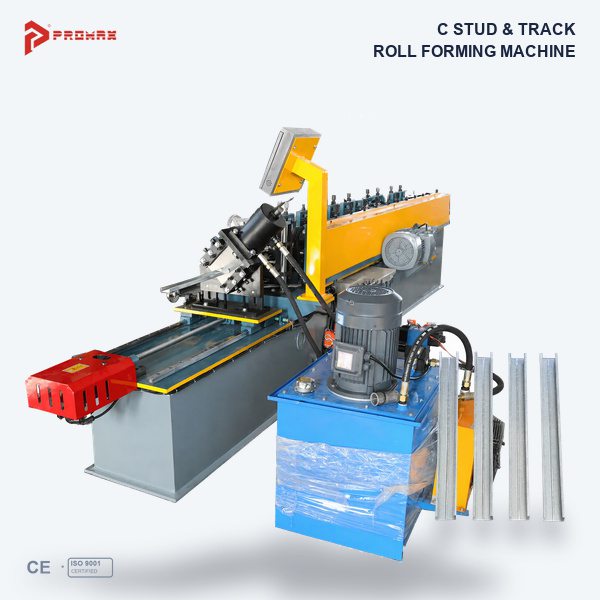

The PROMAX Steel Stud Machine is designed for manufacturing galvanized steel C-shaped studs used in drywall partitions and interior metal framing systems.
Machine Type: Cold Roll Forming Machine
Material: Galvanized Steel
Features: Customized roller tooling, precision C stud forming, cut-to-length production and optional PLC control.
Applications: Drywall C studs, gypsum board partition walls and non-load-bearing metal framing.
Customization: Profile dimensions, steel thickness, cutting lengths and machine configuration.
Send your profile drawings and request a customized quotation.

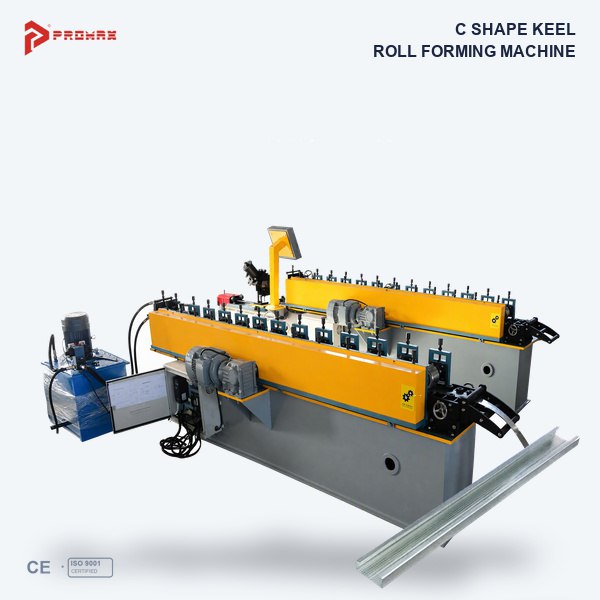

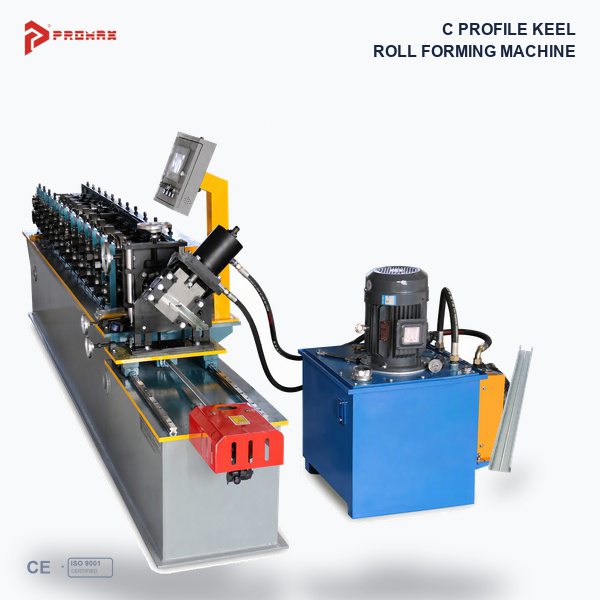

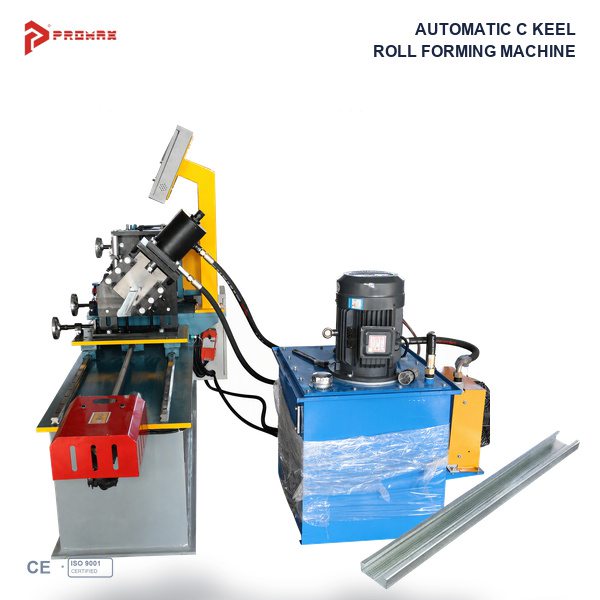

The steel stud machine from PROMAX is designed for manufacturing galvanized steel C studs used in drywall partitions, gypsum board wall systems and interior metal framing applications. Using cold roll forming technology, the equipment transforms flat steel strips into C-shaped profiles through a series of forming stations.
Steel studs are important components of drywall framing systems. They are commonly installed vertically between compatible U tracks to create the metal framework used to support gypsum boards and other specified partition materials.
For steel stud manufacturers, consistent profile dimensions, reliable production and accurate cutting lengths are important factors when selecting equipment. PROMAX develops customized roll forming solutions according to customer drawings, material specifications and manufacturing requirements.
The machine can be configured with a decoiler, feeding and guiding system, roll forming stations, cutting equipment, PLC control and product receiving table. The final specifications depend on the approved technical design.
A steel stud machine is industrial roll forming equipment used to manufacture steel studs from galvanized steel coils.
For drywall applications, the equipment is typically designed to produce C-shaped metal studs with a defined cross-sectional geometry.
The steel strip passes through successive roller stations, where it is gradually bent into the required profile shape.
After forming, the profile is cut to the specified length and collected for inspection and handling.
The machine configuration is developed according to the profile drawing, steel material properties and production requirements.

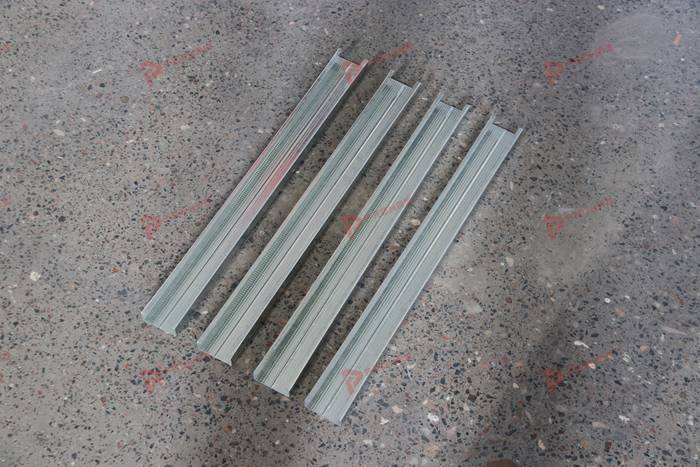

C-shaped steel studs are widely used as vertical framing members in non-load-bearing drywall partition systems.
They are typically installed between compatible U tracks and provide support for gypsum board installation.

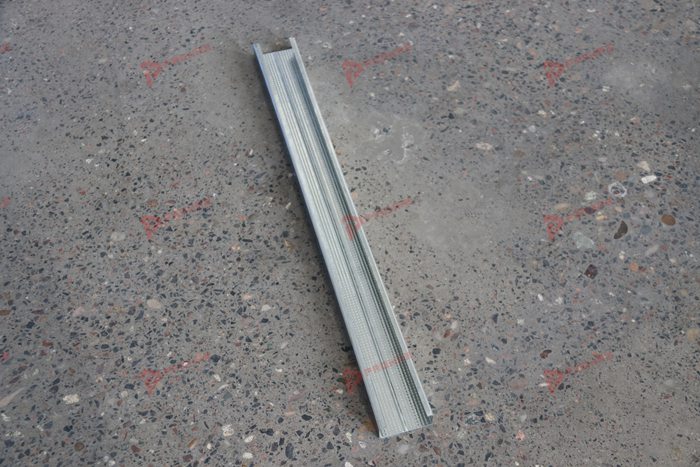

A C stud profile may include a central web, two flanges and return lips, depending on the specified design.
Manufacturers must consider profile dimensions, steel thickness, straightness and compatibility with the corresponding track profiles.
Typical applications include:
The suitability of each profile depends on its dimensions, mechanical properties and the requirements of the intended construction system.
The steel stud roll forming machine uses a continuous cold forming process to transform galvanized steel strips into finished C-shaped studs.

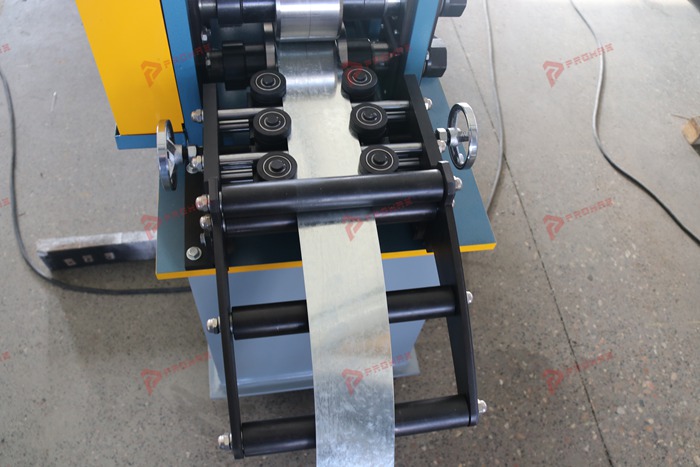

The manufacturing process begins with a steel coil placed on the decoiler. The strip is guided into the forming section, where successive roller stations gradually create the required C profile.
Each station performs a controlled bending operation until the final cross-sectional geometry is achieved.
After forming, the profile passes through the cutting system to obtain the specified finished length.
Depending on the machine configuration, additional functions such as punching, marking or automated length control may be incorporated.
The forming process is performed without heating the steel for bending.
A typical steel stud making machine may include several integrated systems. The final configuration is determined during the technical design stage.
The number of forming stations, drive arrangement and component specifications depend on the approved machine design.

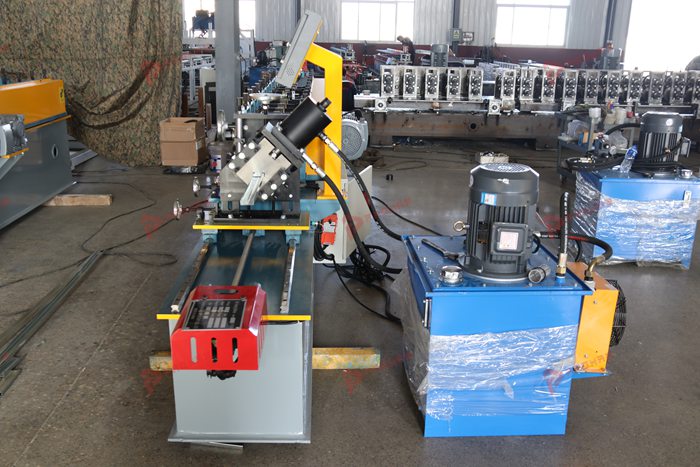

The forming rollers are essential components of a C stud making machine.
Roller design must consider the profile width, flange height, return lips, bending radii and steel material properties.
Each forming station gradually changes the steel strip geometry to achieve the final C-shaped section.
A properly designed forming sequence helps control the bending process and supports dimensional consistency during production.
Roll alignment, strip positioning and tooling accuracy are important factors in maintaining the quality of finished steel studs.
PROMAX can develop customized roller tooling according to the approved C stud drawings.
Galvanized steel is commonly used in drywall framing because it combines mechanical strength with a protective zinc coating.
When selecting a galvanized steel stud machine, manufacturers should confirm the steel thickness, strip width, yield strength and coating characteristics.
These parameters affect the forming forces, roller design and machine component selection.
The steel material must be compatible with the equipment specifications and the requirements of the finished profile.
Different material grades or thickness ranges may require adjustments to the technical design.
The manufacturing process for galvanized steel C studs generally includes the following stages:
The manufacturing sequence may vary according to the equipment configuration and optional processing functions.
The PROMAX drywall stud manufacturing machine can be configured with a PLC control system to manage selected production functions.
Depending on the configuration, operators may be able to enter cutting lengths, production quantities and other available parameters through a human-machine interface.
The cutting system is selected according to the profile geometry, steel thickness and required production process.
Automatic cutting options can support manufacturing orders that require different finished lengths.
All control functions and cutting specifications are confirmed in the final technical proposal.
PROMAX provides customized roll forming solutions for manufacturers producing different types of C-shaped steel studs.
The machine can be developed according to customer requirements for profile width, flange dimensions, return lip geometry, steel thickness and cutting length.
Additional operations, such as punching, can be evaluated when compatible with the machine design.
The ability to manufacture multiple profile sizes on one machine depends on the tooling arrangement and adjustment mechanisms.
Automatic size changing should not be assumed unless it is specifically included in the equipment configuration.
For accurate machine development, customers are encouraged to provide complete profile drawings and material specifications.
Steel studs and U tracks are complementary components of many drywall partition systems, but they have different cross-sectional geometries and installation functions.
A C stud generally includes a central web, flanges and return lips, and it commonly functions as a vertical framing member.
A U track has a channel-shaped section designed to receive compatible studs and is generally installed horizontally at the top and bottom of the partition.
Because their geometries are different, the roller tooling required to manufacture each profile is also different.
This steel stud machine is intended for C-shaped profiles. Manufacturing U tracks requires suitable tooling or a separate machine configuration.
Manufacturers requiring both profile types may consider a double-head stud and track machine or another suitable production solution.
A dedicated C stud machine allows manufacturers to organize production around a defined profile geometry.
Cold roll forming is suitable for repetitive manufacturing of galvanized steel profiles.
Customized roller tooling can support the production of studs according to approved drawings.
Cut-to-length manufacturing allows different finished lengths within the capabilities of the equipment.
Optional automation can help manage selected production operations.
Actual machine performance depends on the material properties, profile dimensions and equipment configuration.
Dimensional inspection is an important part of steel stud manufacturing.
Typical inspection points include profile width, flange height, return lip dimensions, straightness and cutting length.
The condition of the galvanized coating should also be checked after forming.
Inspection tolerances and acceptance criteria should be defined according to the approved profile drawings and the intended drywall framing system.
Consistent raw material specifications and appropriate machine maintenance are important for stable manufacturing.
Before purchasing a steel stud machine, manufacturers should define the required C stud dimensions, steel material specifications and production needs.
Important information includes the profile drawing, steel thickness, material grade, finished cutting lengths and expected production capacity.
Customers should also identify whether punching, special cutting functions or customized automation are required.
These details help determine the appropriate roller tooling, forming stations, cutting system and machine control configuration.
PROMAX can evaluate customer requirements and develop a suitable technical proposal.
PROMAX develops cold roll forming equipment for drywall studs, tracks, ceiling channels and lightweight steel framing profiles.
Our services include profile drawing evaluation, machine configuration planning, customized tooling and equipment manufacturing.
Backed by Tianjin Haixing's experience in roll forming technology since 1996, PROMAX supports manufacturers seeking customized equipment solutions for different markets.
Our team can help customers evaluate material specifications, profile geometry and production requirements before preparing a quotation.
Are you looking for a steel stud machine to manufacture galvanized steel C studs for drywall framing systems?
Send us your C stud drawings, steel thickness, material specifications, required cutting lengths and production capacity expectations.
Our engineering team can review your requirements and recommend a suitable machine configuration.
Contact PROMAX today to request a customized quotation for your steel stud roll forming machine.
