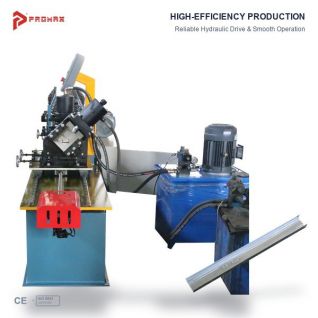

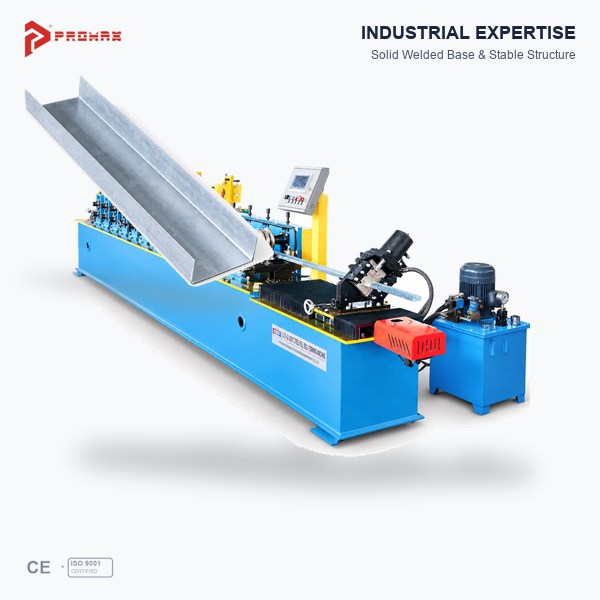

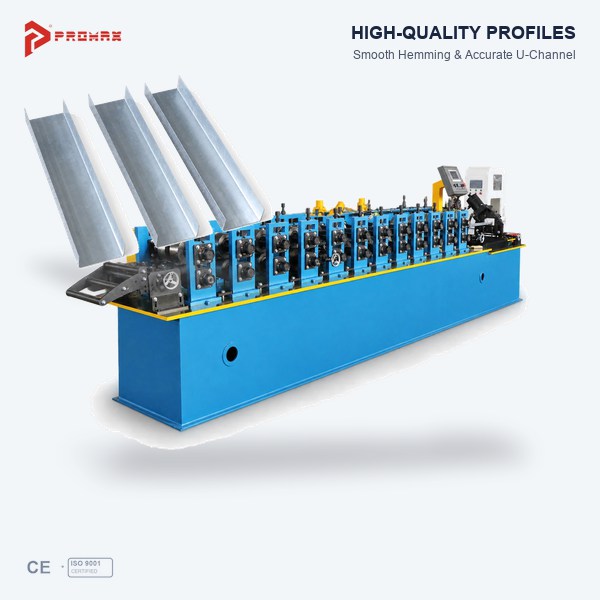

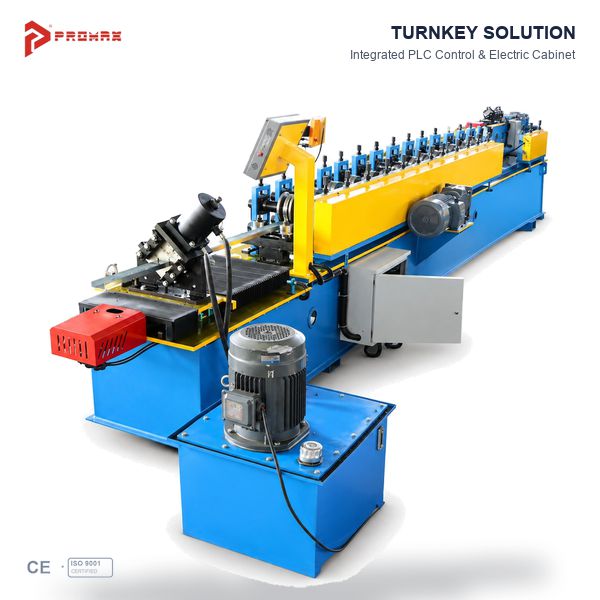

U-Type Steel Stud Making Machine

Steel Stud Making Machine for U-Type Metal Keel Profiles

The steel stud making machine from PROMAX is designed for manufacturing U-type metal keel profiles used in compatible ceiling and drywall framing systems. Through a continuous roll forming process, metal strip is progressively shaped into the required U-shaped profile for construction and interior finishing applications.

Designed for manufacturers of light steel framing components, this U-type keel making machine can be configured according to the required profile drawing, material specifications, and production requirements. Sharing your target dimensions and application details helps our engineering team evaluate a suitable machine configuration.

U-Type Keel Roll Forming for Construction Applications

U-shaped metal channels are commonly used as track or channel components in compatible light steel framing systems. Depending on the profile design, they can serve as perimeter channels, ceiling system components, or horizontal tracks for metal framing assemblies.

Unlike a machine designed specifically for C-shaped studs, a U-channel roll forming machine forms a profile with a U-shaped cross-section. The final profile dimensions, flange geometry, lip design, and connection details should be confirmed against the customer's technical drawing before production.

This distinction is important when selecting a steel stud making machine. Manufacturers should verify that the machine is designed for the exact U-type profile they intend to produce rather than assuming that all stud and track profiles can be manufactured on the same line.

Continuous Roll Forming Process

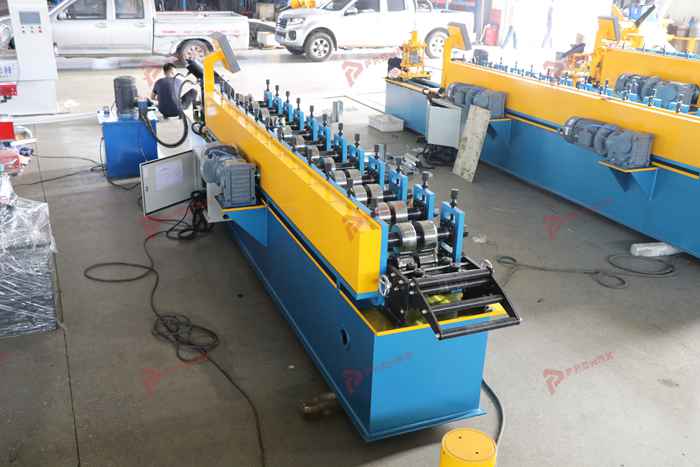

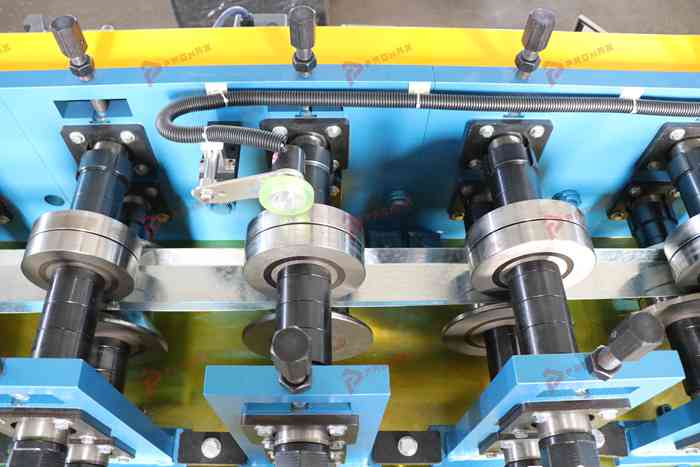

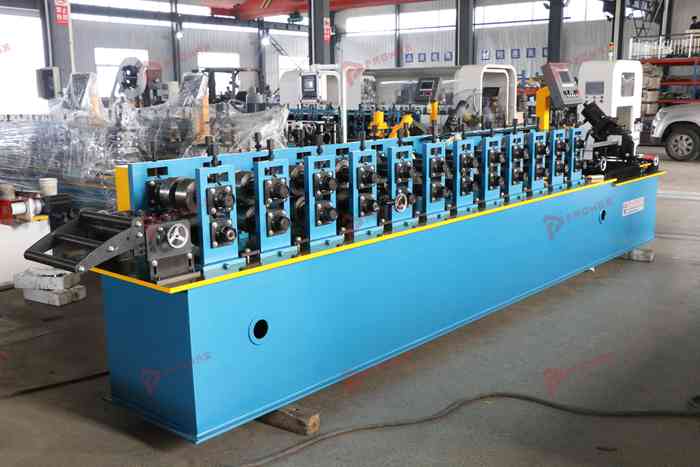

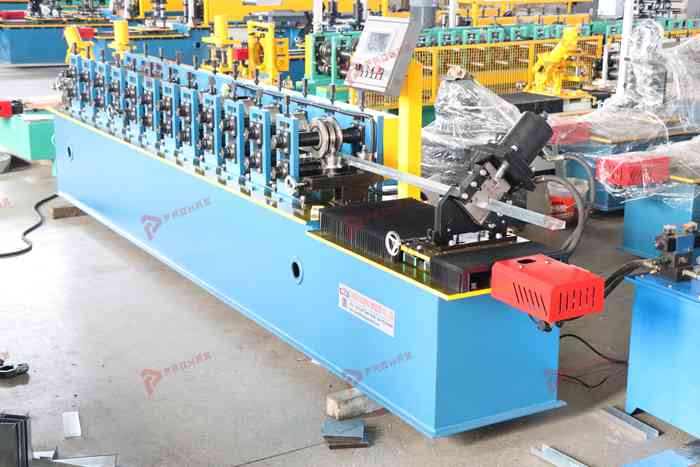

A U-type keel roll forming line shapes metal strip through a series of forming stations. Each station gradually bends the material until the required cross-section is achieved. This progressive process supports repeatable profile production when the tooling, material, and machine settings are correctly matched.

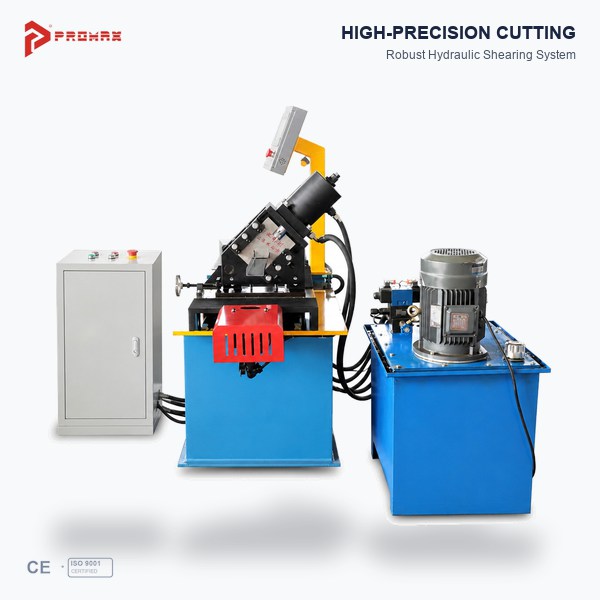

Depending on the final machine configuration, a production line may include a decoiler, feeding and guiding equipment, roll forming stations, a cutting unit, and a control system. The actual equipment arrangement depends on the customer's profile drawing, production targets, and required automation level.

For stable production, manufacturers should consider material thickness, strip width, steel grade, profile tolerance, cutting length, and the required output. These details help determine the appropriate forming tooling and machine configuration.

Features of the PROMAX Steel Stud Making Machine

• Profile-specific configuration: Machine design can be evaluated according to the required U-shaped keel drawing and finished profile dimensions.
• Progressive roll forming: Multiple forming stations gradually shape the metal strip into the specified channel profile.
• Construction profile production: Suitable for manufacturers producing compatible U-type channels for ceiling and drywall framing applications.
• Production process integration: Decoiling, feeding, forming, cutting, and control functions can be considered according to the selected configuration.
• Technical customization: Customers can provide drawings and material details so the proposed solution can be matched to their manufacturing requirements.
• Manufacturer support: PROMAX can discuss profile requirements, machine configuration, and production planning with customers before an order is finalized.

Available functions and technical specifications depend on the actual machine model. Please confirm forming speed, compatible material thickness, tooling arrangement, automatic adjustment functions, and cutting method with our sales and engineering team before placing an order.

Applications of U-Type Metal Keel Profiles

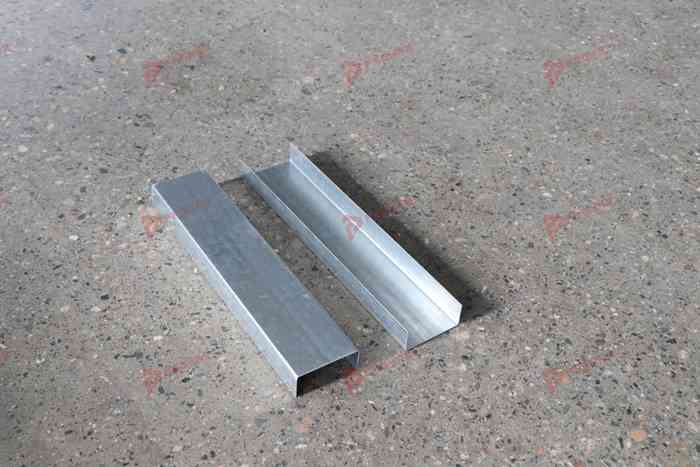

U-type metal keel profiles are used in construction systems where a channel-shaped component is required. Depending on the design and dimensional compatibility, typical applications may include:

• Drywall framing systems: U-shaped track components used with compatible metal studs.
• Suspended ceiling systems: Channel profiles used in ceiling framing assemblies according to the system design.
• Interior partition construction: Track components that help position and support compatible framing members.
• Light steel keel manufacturing: Production of metal channels for building material distributors and construction component manufacturers.

Application suitability depends on the profile geometry and the specifications of the complete framing system. Before manufacturing, customers should confirm that the proposed U-type profile matches the requirements of their local market and construction applications.

Customized Machine Configuration

Every roll forming project starts with a clear understanding of the target product. To evaluate the right U-type keel making machine, please prepare the following information:

• Profile drawing with all key dimensions
• Raw material type and grade
• Material thickness and strip width
• Required finished profile length
• Target production speed or output
• Required cutting method and automation level
• Power supply requirements and destination country

These details help the engineering team assess the forming process, tooling requirements, cutting arrangement, and control configuration. If you manufacture several U-type profiles, provide drawings for each profile so the feasibility of a multi-profile solution can be evaluated separately.

How to Request a Quote

If you are looking for a steel stud making machine for U-type keel production, send us your profile drawing and production requirements. Our team can review the information and discuss the machine configuration suitable for your target product.

When requesting a quotation, please specify the required profile dimensions, material specifications, expected output, and destination country. Providing complete technical information helps reduce uncertainty during machine selection and quotation preparation.

Contact PROMAX to discuss your U-type keel manufacturing project and request a solution based on your actual production needs.
