Metal Track Machine for Drywall U Track Production

Metal Stud Machine for Drywall U Track Production – PROMAX

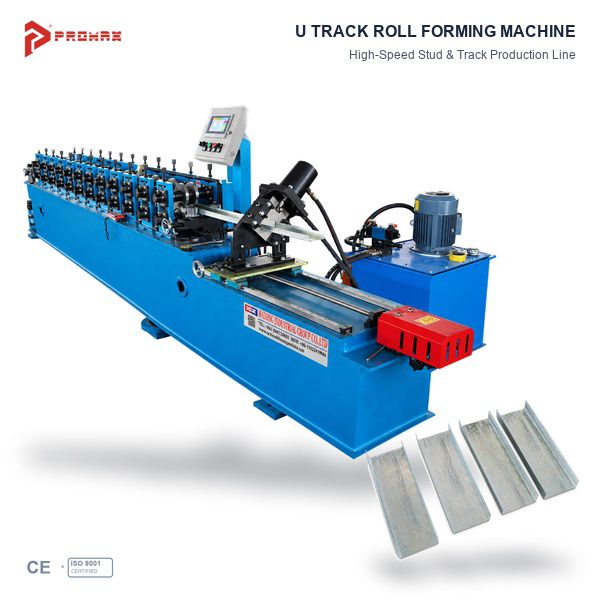

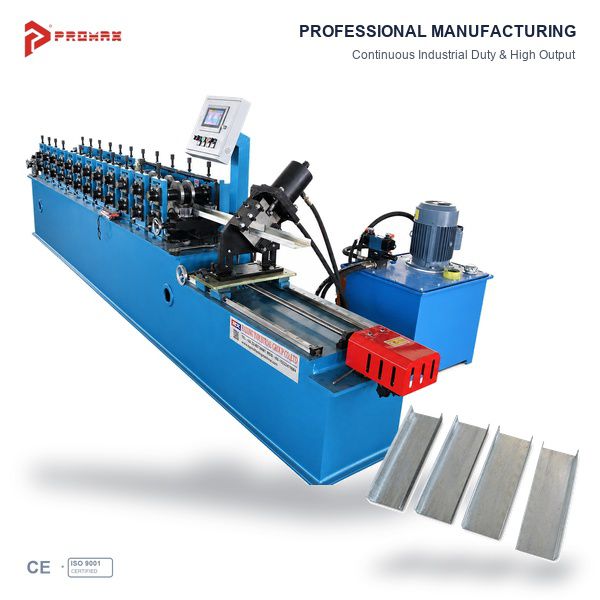

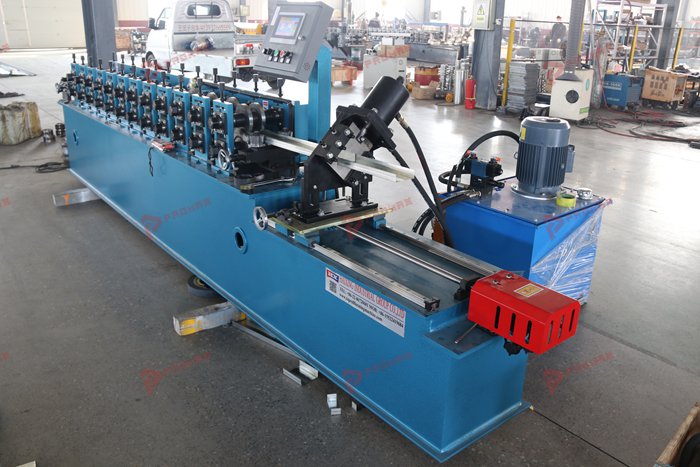

The metal stud machine from PROMAX is designed for manufacturing galvanized steel U tracks used in drywall partition walls, gypsum board framing systems and interior metal construction applications. This equipment focuses on producing U-shaped track profiles that work together with compatible C studs in drywall framing systems.

Through a continuous cold roll forming process, the machine transforms flat galvanized steel strips into U-shaped metal channels with defined cross-sectional dimensions. These tracks are commonly installed horizontally at the top and bottom of drywall partition structures to guide and position the vertical metal studs.

PROMAX develops customized U track roll forming machine solutions based on customer profile drawings, steel material specifications and production requirements. The equipment can be configured with a decoiler, feeding and guiding system, roll forming stations, cutting unit, PLC control and product receiving table.

The final machine specifications and optional functions are determined according to the approved technical design.

What Is a U Track Roll Forming Machine?

A U track roll forming machine is industrial equipment used to manufacture U-shaped metal channels from galvanized steel coils.

The machine uses a series of forming rollers to gradually bend a flat steel strip into the required U-shaped profile. Each forming station performs a controlled portion of the bending process until the final track geometry is achieved.

Unlike C studs, which commonly serve as vertical framing members, U tracks are generally installed horizontally to receive and position compatible studs.

The U-shaped profiles manufactured by this machine are used in drywall partition systems and other suitable non-structural metal framing applications.

The equipment is designed according to the required profile drawing rather than a universal fixed channel size.

Applications of Metal U Tracks in Drywall Construction

Galvanized steel U tracks are widely used in drywall framing systems for residential, commercial and institutional buildings.

They form part of the framework used to support gypsum board partitions and other specified interior wall systems.

Typical applications include:

• Drywall partition wall framing.
• Gypsum board wall systems.
• Interior metal framing construction.
• Top and bottom tracks for compatible C studs.
• Non-load-bearing partition structures.
• Customized galvanized steel channel manufacturing.

The suitability of each track profile depends on its dimensions, steel thickness, material properties and the requirements of the intended framing system.

How Does a Metal Track Making Machine Work?

The metal track making machine uses cold roll forming technology to transform galvanized steel strips into finished U-shaped profiles.

The manufacturing process begins with a steel coil placed on the decoiler. The material is guided into the forming section, where successive roller stations gradually create the required channel geometry.

After forming, the profile passes through the cutting system to obtain the specified finished length.

Depending on the machine configuration, additional functions such as punching, marking or automated length control may be incorporated.

The process is designed according to the profile geometry, material characteristics and production requirements.

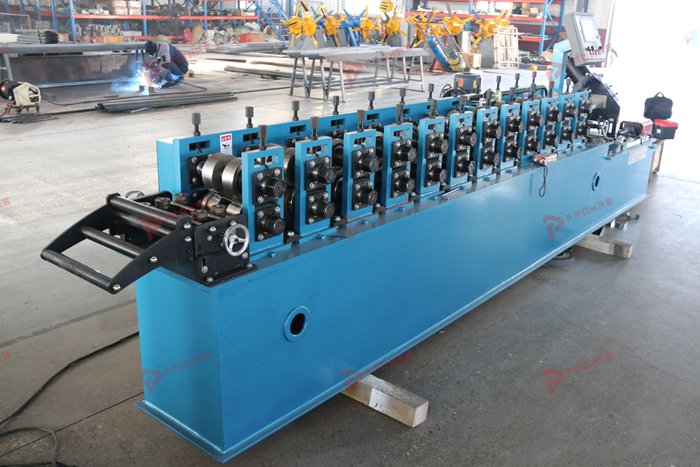

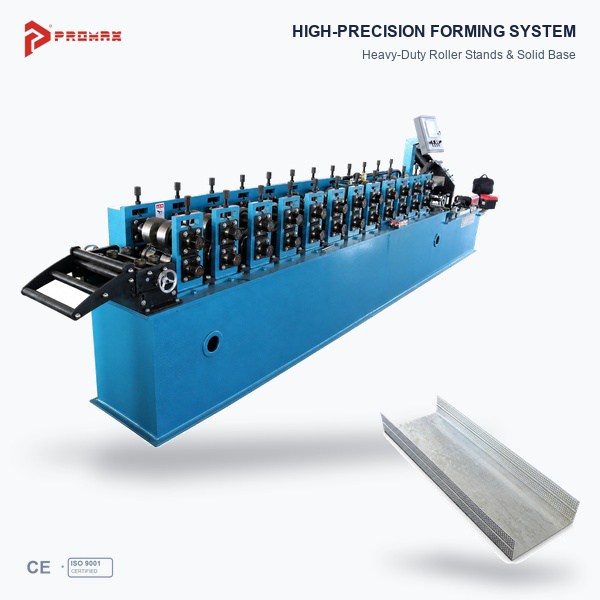

Main Components of the Drywall U Track Machine

A typical drywall U track machine may include several integrated systems. The final configuration is determined during the technical design stage.

• Decoiler: Supports the galvanized steel coil and supplies material to the production line.
• Feeding and guiding system: Aligns the steel strip before it enters the forming stations.
• Roll forming stations: Gradually bend the material into the required U-shaped channel.
• Drive system: Provides mechanical power for the forming process.
• PLC control system: Can manage selected production settings and machine functions.

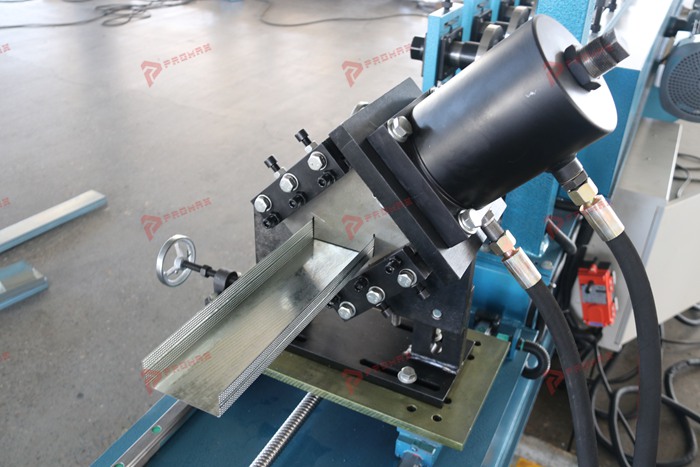

• Cutting unit: Produces finished U tracks according to the specified lengths.
• Receiving table: Supports collection and handling of completed metal channels.

The number of forming stations, drive arrangement and component specifications depend on the approved machine design.

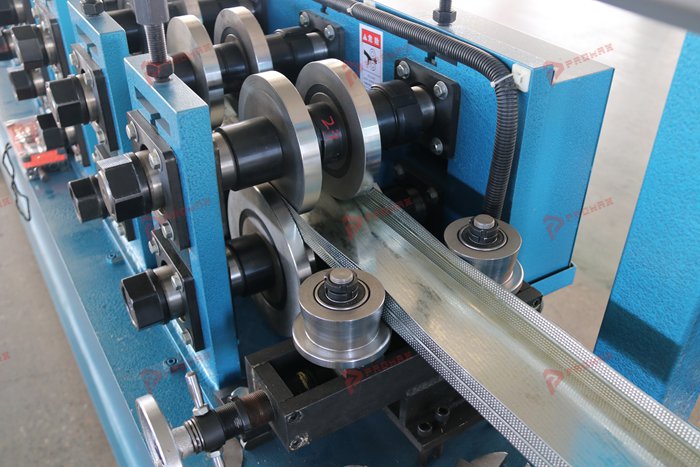

Roller Design for U-Shaped Metal Channels

The forming rollers are essential components of a U channel roll forming machine.

Roller design must consider the profile width, flange height, bending radii, steel thickness and material properties.

Each forming station gradually changes the steel strip geometry to achieve the final U-shaped section.

A properly designed forming sequence helps control the bending process and supports dimensional consistency during production.

Roll alignment, strip positioning and tooling accuracy are important factors in maintaining the quality of finished tracks.

PROMAX can develop customized roller tooling according to the approved U track drawings.

Galvanized Steel Materials for U Track Manufacturing

Galvanized steel is commonly used in drywall framing because it combines mechanical strength with a protective zinc coating.

When selecting a galvanized steel track machine, manufacturers should confirm the steel thickness, strip width, yield strength and coating characteristics.

These parameters affect the forming forces, roller design and machine component selection.

The steel material must be compatible with the equipment specifications and the requirements of the finished track profile.

Different material grades or thickness ranges may require adjustments to the technical design.

Step-by-Step U Track Production Process

The manufacturing process for galvanized steel U tracks generally includes the following stages:

1. Steel coil preparation: Check the material grade, thickness and other specifications.
2. Decoiling: Supply the steel strip to the production line.
3. Feeding and alignment: Guide the material into the forming section.
4. Progressive roll forming: Bend the steel into the specified U track profile.
5. Length cutting: Cut the finished tracks to the required lengths.
6. Product inspection: Check the profile dimensions and surface condition.
7. Collection: Receive and organize the finished metal tracks.

The manufacturing sequence may vary according to the equipment configuration and optional processing functions.

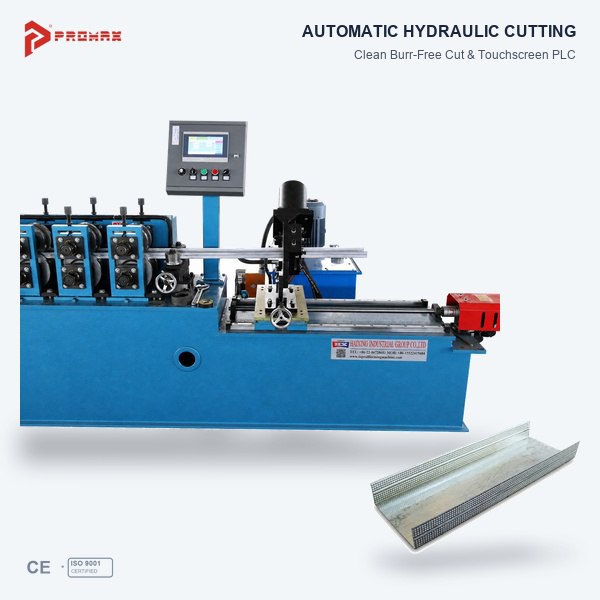

PLC Control and Cut-to-Length Production

The PROMAX drywall track roll forming machine can be configured with a PLC control system to manage selected production functions.

Depending on the configuration, operators may be able to enter cutting lengths, production quantities and other available parameters through a human-machine interface.

The cutting system is selected according to the profile geometry, steel thickness and required production process.

Automatic cutting options can support manufacturing orders that require different finished lengths.

All control functions and cutting specifications are confirmed in the final technical proposal.

Custom U Track Sizes and Tooling

PROMAX provides customized roll forming solutions for manufacturers producing different types of U-shaped drywall tracks.

The machine can be developed according to customer requirements for profile width, flange dimensions, steel thickness and cutting length.

Additional operations, such as punching, can be evaluated when compatible with the machine design.

The ability to manufacture multiple profile sizes on one machine depends on the tooling arrangement and adjustment mechanisms.

Automatic size changing should not be assumed unless it is specifically included in the equipment configuration.

For accurate machine development, customers are encouraged to provide complete profile drawings and material specifications.

Difference Between Metal Studs and Metal Tracks

Metal studs and metal tracks are complementary components of many drywall partition systems, but they have different cross-sectional designs and installation functions.

A C stud generally includes a central web, flanges and return lips defined by the profile drawing. It commonly functions as a vertical framing member.

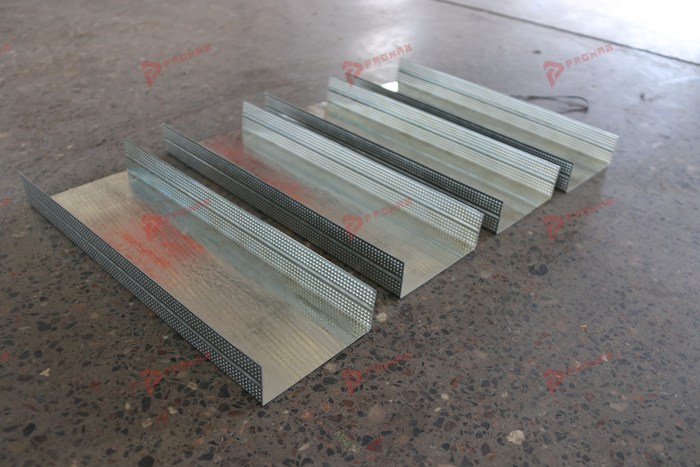

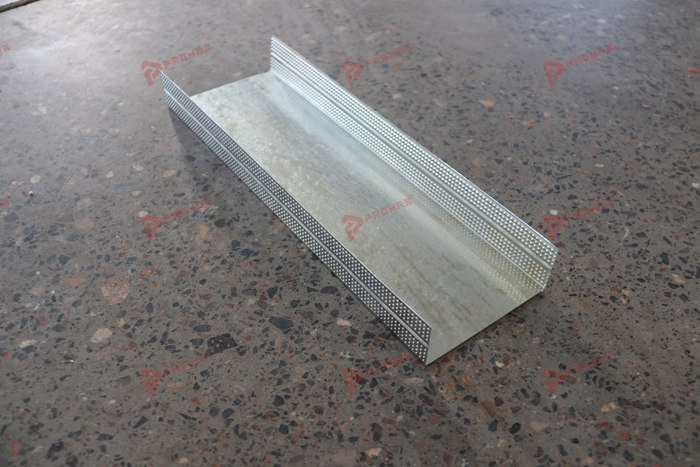

A U track has a channel-shaped section designed to receive compatible studs. It is generally installed horizontally at the top and bottom of the partition.

Because their geometries are different, the roller tooling required to manufacture each profile is also different.

This metal stud machine for U track production is intended for U-shaped profiles. Manufacturing C studs requires suitable tooling or a separate machine configuration.

Manufacturers requiring both profile types may consider a double-head stud and track machine or another suitable production solution.

Benefits of a Dedicated U Track Roll Forming Machine

A dedicated U track machine allows manufacturers to organize production around a defined channel geometry.

Cold roll forming is suitable for repetitive manufacturing of galvanized steel profiles.

Customized roller tooling can support the production of tracks according to approved drawings.

Cut-to-length manufacturing allows different finished lengths within the capabilities of the equipment.

Optional automation can help manage selected production operations.

Actual machine performance depends on the material properties, profile dimensions and equipment configuration.

Quality Control for Finished Drywall Tracks

Dimensional inspection is an important part of drywall track manufacturing.

Typical inspection points include profile width, flange height, straightness and cutting length.

The condition of the galvanized coating should also be checked after forming.

Inspection tolerances and acceptance criteria should be defined according to the approved profile drawings and the intended drywall framing system.

Consistent raw material specifications and appropriate machine maintenance are important for stable manufacturing.

Choosing the Right Metal Track Machine for Your Factory

Before purchasing a metal track making machine, manufacturers should define the required channel dimensions, steel material specifications and production needs.

Important information includes the U track drawing, steel thickness, material grade, finished cutting lengths and expected production capacity.

Customers should also identify whether punching, special cutting functions or customized automation are required.

These details help determine the appropriate roller tooling, forming stations, cutting system and machine control configuration.

PROMAX can evaluate customer requirements and develop a suitable technical proposal.

Why Choose PROMAX for U Track Roll Forming Equipment?

PROMAX develops cold roll forming equipment for drywall studs, tracks, ceiling channels and lightweight steel framing profiles.

Our services include profile drawing evaluation, machine configuration planning, customized tooling and equipment manufacturing.

Backed by Tianjin Haixing's experience in roll forming technology since 1996, PROMAX supports manufacturers seeking customized equipment solutions for different markets.

Our team can help customers evaluate material specifications, profile geometry and production requirements before preparing a quotation.

Request a Quote for a U Track Roll Forming Machine

Are you looking for a metal stud machine to manufacture galvanized steel U tracks for drywall framing systems?

Send us your U track drawings, steel thickness, material specifications, required cutting lengths and production capacity expectations.

Our engineering team can review your requirements and recommend a suitable machine configuration.

Contact PROMAX today to request a customized quotation for your U track roll forming machine.
