Steel Stud Manufacturing Equipment

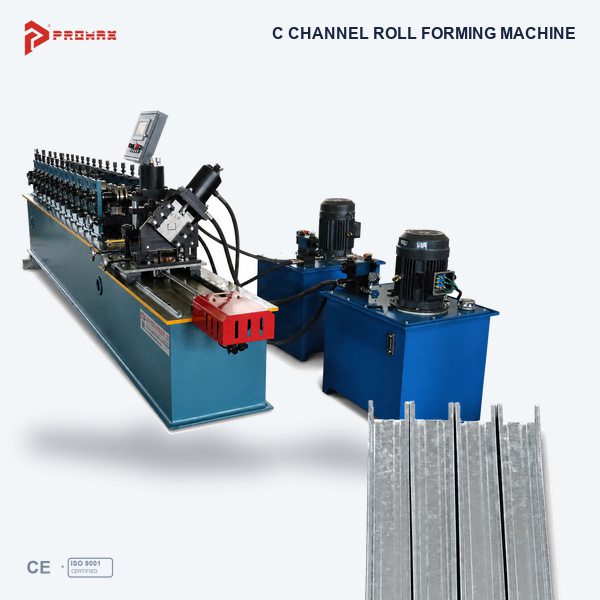

Steel Stud Manufacturing Equipment for C-Shaped Metal Framing

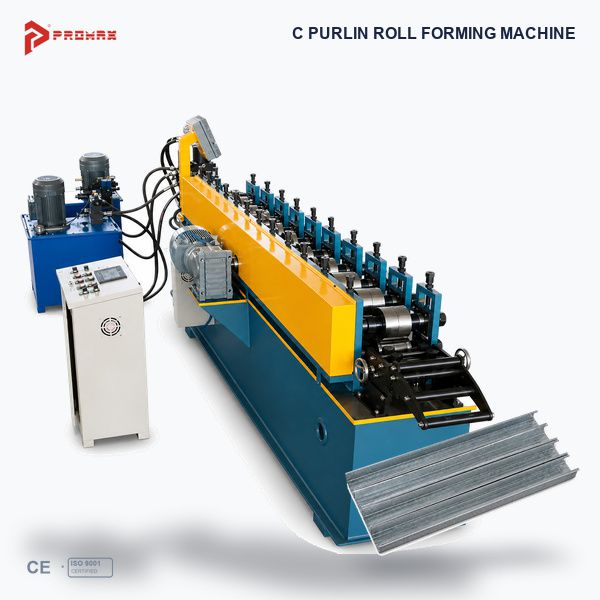

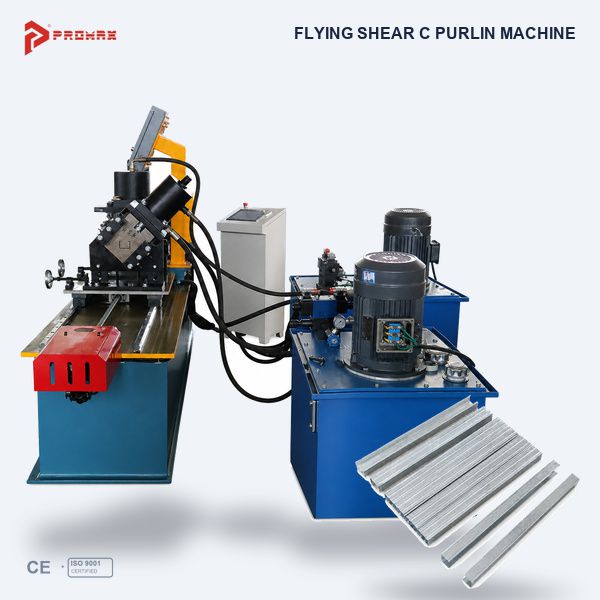

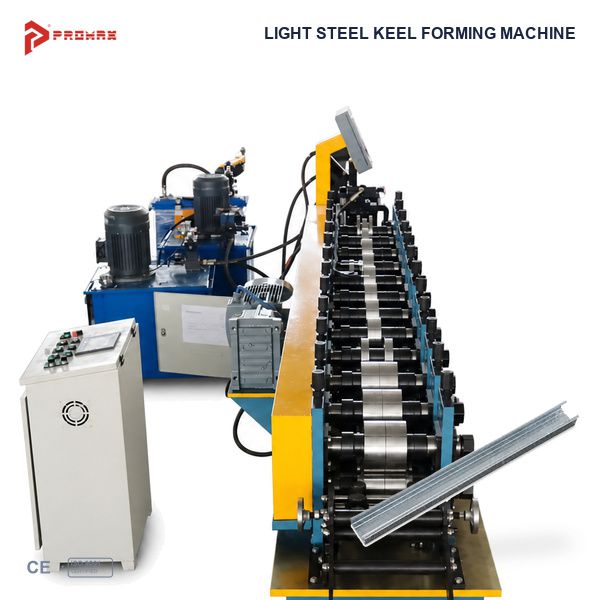

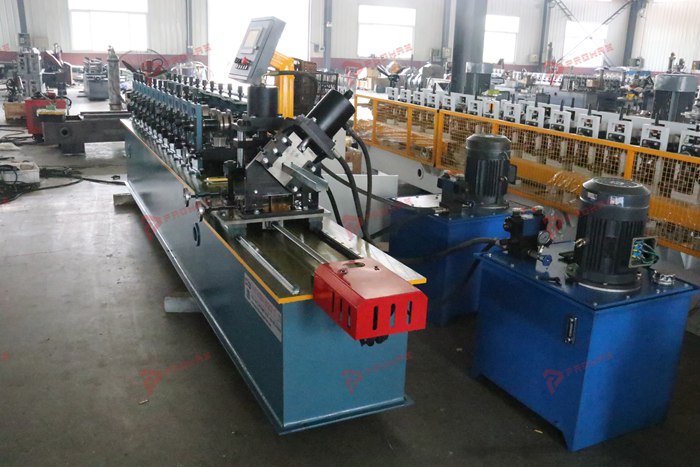

PROMAX steel stud manufacturing equipment is designed for producing C-shaped steel studs used in drywall partition systems, interior wall framing, and light steel construction. The equipment forms metal strip into the required stud profile through a continuous roll forming process, helping manufacturers establish a consistent production workflow for metal framing products.

Also known as a C stud roll forming machine or C-shaped keel forming machine, this equipment can be discussed according to your target profile drawing, material specifications, dimensional requirements, and production objectives. Backed by Tianjin Haixing's experience in roll forming technology since 1996, PROMAX provides roll forming solutions for manufacturers seeking equipment suited to their steel stud production requirements.

What Is Steel Stud Manufacturing Equipment?

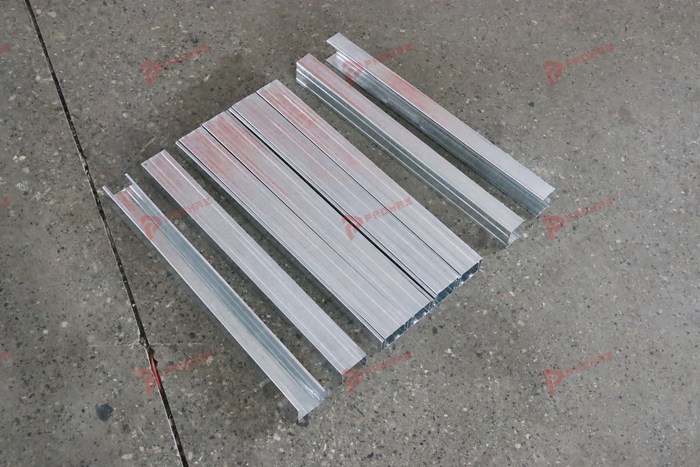

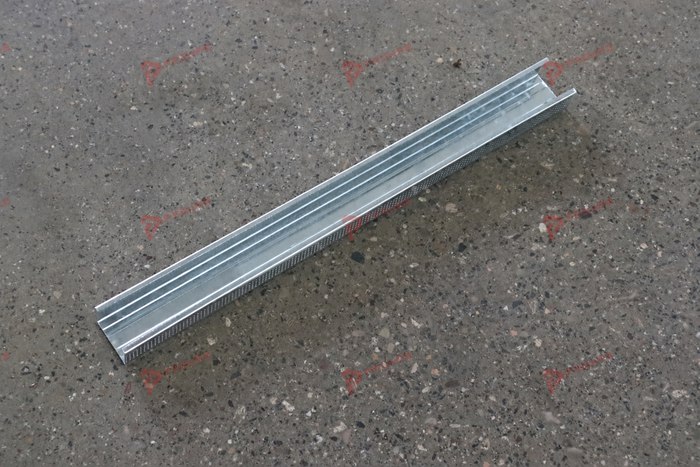

Steel stud manufacturing equipment is used to convert steel strip into metal framing profiles with a specified cross-sectional shape. In drywall construction, C-shaped studs are commonly installed vertically within partition frameworks. They work with compatible U-shaped tracks and other framing components to create the supporting structure for wallboard and interior partition systems.

The machine's configuration depends on the profile that needs to be produced. Important considerations include the web width, flange dimensions, lip geometry, material thickness, steel grade, and required finished length. Confirming these details before ordering helps ensure that the proposed forming and cutting configuration matches the intended product.

For manufacturers supplying construction material distributors, drywall contractors, or building product wholesalers, choosing suitable steel stud manufacturing equipment is an important step in establishing a repeatable production process.

Applications of C Stud Roll Forming Machines

A C stud roll forming machine is suitable for manufacturers producing metal framing components for a range of interior construction applications, subject to the machine's designed profile and material specifications.

• Drywall partition systems: Manufacture C-shaped studs used as vertical framing members in interior partition walls.
• Interior wall framing: Produce metal profiles for commercial, residential, and institutional building interiors.
• Light steel framing: Support the production of selected light-gauge steel framing components when the profile and material are compatible with the machine configuration.
• Construction material manufacturing: Supply standardized steel framing profiles to building material distributors and construction product manufacturers.

Each application may require a different profile specification. Customers should provide the actual cross-sectional drawing and material details so that the proposed equipment can be evaluated against the intended application.

How the Steel Stud Forming Process Works

The production process generally begins with a coil of suitable steel strip. Depending on the selected machine configuration, the material is fed into the forming section, where a series of roll forming stations progressively shapes the strip into the required C-shaped profile. The formed section is then cut to the specified length using the configured cutting system.

1. Material preparation: Select steel coil that meets the profile drawing and material requirements.

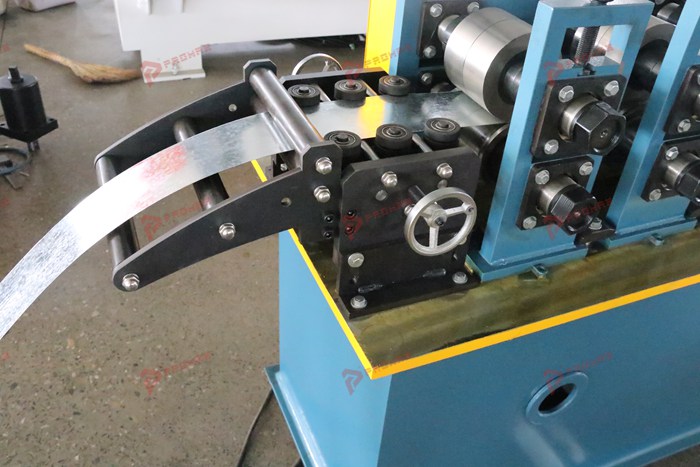

2. Feeding and guiding: Guide the strip into the machine to support stable entry into the forming section.

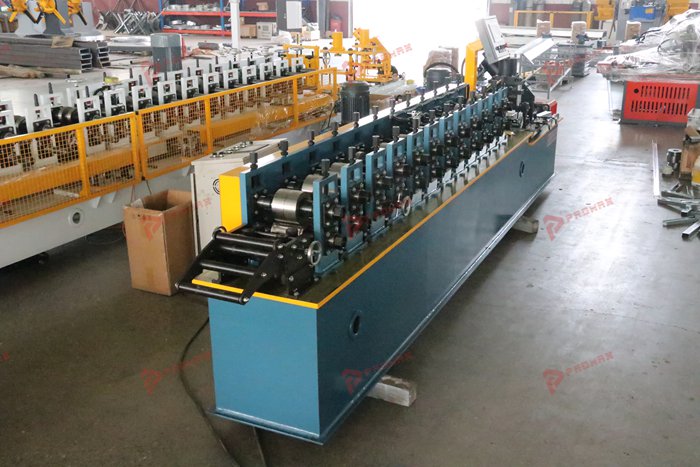

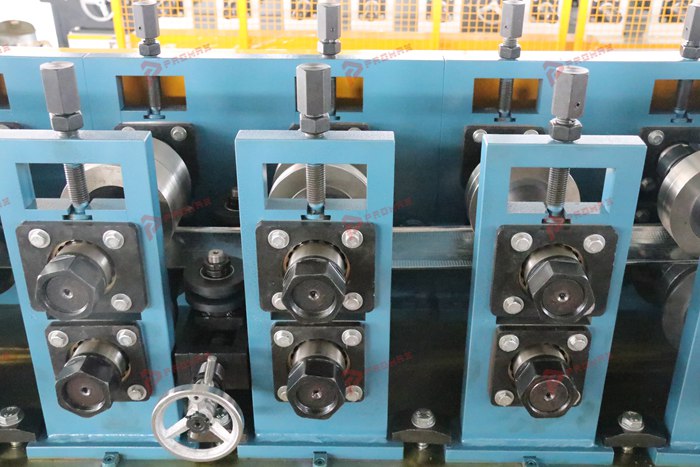

3. Progressive roll forming: Shape the steel strip through successive forming stages to obtain the target cross-section.

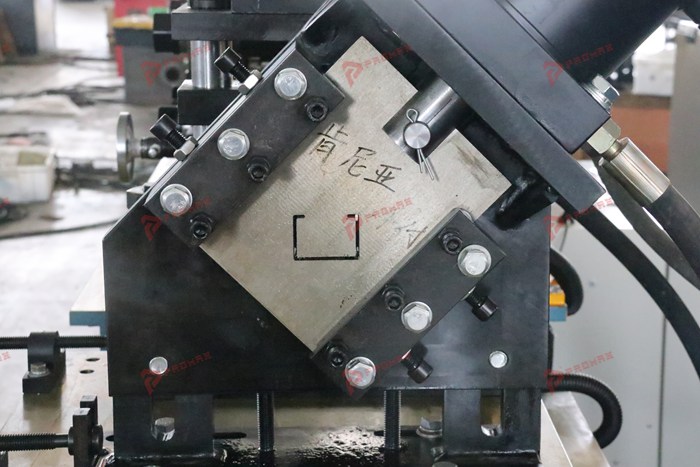

4. Length cutting: Cut the formed profile according to the specified product length and machine configuration.
5. Finished profile inspection: Check dimensions, shape, cut quality, and consistency against the required specifications.

The actual process arrangement, punching operations, cutting method, and automation level depend on the equipment configuration. These details should be confirmed during technical review rather than assumed from a general machine description.

Key Factors When Choosing Steel Stud Manufacturing Equipment

1. C Stud Profile Dimensions

Profile dimensions determine the forming geometry required for the machine. Provide the C stud drawing with the web, flange, lip, and other relevant dimensions. If several profiles are required, identify each profile separately and clarify whether changeover capability is needed.

2. Steel Material and Thickness

Material type, thickness, yield characteristics, and coil dimensions affect the machine design and forming requirements. Confirm the intended steel specifications with the manufacturer before selecting the equipment. Do not rely on a generic thickness range when the actual material requirements have not been reviewed.

3. Punching and Cutting Requirements

Some C stud profiles require holes or notches for installation, fastening, or service routing. If punching is needed, provide the hole dimensions, positions, spacing, and required tolerances. The punching arrangement and cutting system should be selected according to the actual product drawing and production workflow.

4. Production Objectives

Consider the required output, finished profile length, product range, changeover frequency, and available factory space. These factors help determine a suitable machine configuration. Any production speed or output target should be evaluated against the specified material, profile, and operating conditions.

5. Installation and Technical Support

Before purchasing steel stud manufacturing equipment, discuss machine installation, operator training, documentation, spare parts, and after-sales support. Clear technical communication helps reduce avoidable problems during commissioning and production startup.

Why Consider PROMAX Steel Stud Manufacturing Equipment?

When evaluating a C stud machine, manufacturers need more than a general equipment description. The proposed solution should be matched to the required profile, material, production process, and factory conditions.

• Profile-based evaluation: Discuss the equipment according to your C stud drawing and target product dimensions.
• Application-focused configuration: Review material feeding, forming, punching, and cutting requirements for the intended production process.
• Manufacturing experience: Benefit from the roll forming technology experience of Tianjin Haixing, established in 1996.
• Communication around specifications: Clarify product drawings, material requirements, and technical expectations before confirming the machine configuration.
• Support planning: Discuss documentation, installation arrangements, spare parts, and technical support as part of the purchasing process.

Machine capabilities, included components, automation functions, and optional equipment must be confirmed in the final technical proposal. This ensures that the selected machine aligns with the customer's actual manufacturing requirements.

Information Needed for a Steel Stud Machine Quotation

To help evaluate the right steel stud manufacturing equipment for your factory, please prepare the following information when requesting a quotation:

• C stud profile drawing or cross-sectional diagram.
• Required profile dimensions and finished product length.
• Steel material type, thickness, and coil specifications.
• Required punching holes, notches, or other profile features.
• Target production output and expected product range.
• Destination country and any relevant factory or electrical requirements.

Providing these details allows the technical team to assess the proposed forming process and identify questions that need to be resolved before the machine configuration is finalized.

Request a Quote for Steel Stud Manufacturing Equipment

Are you looking for steel stud manufacturing equipment for your drywall framing or light steel construction business? Contact PROMAX to discuss your target C stud profile, material specifications, punching requirements, and production objectives.

Send us your profile drawing and project requirements to begin a technical evaluation. Our team can discuss a suitable machine configuration based on the information provided and help you identify the details that need to be confirmed before ordering.

Contact PROMAX today to discuss your C stud roll forming machine requirements and request a quotation.
