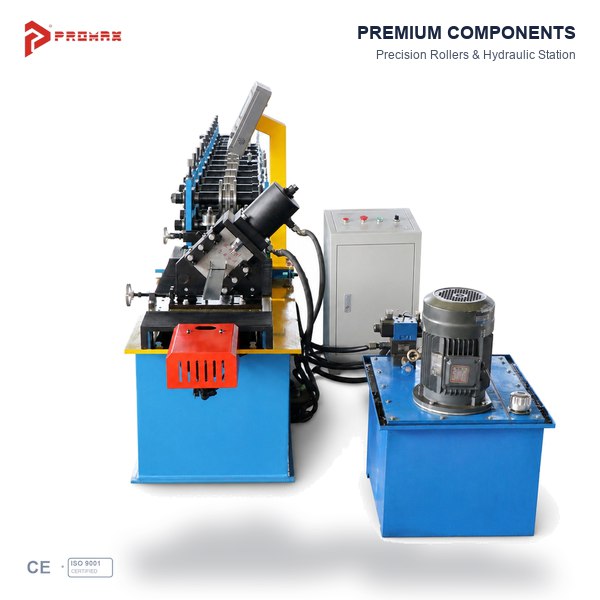

U-Type Keel Stud Roll Former

Stud Roll Former for U-Type Metal Keel Profiles

The stud roll former from PROMAX is designed for manufacturing U-type metal keel profiles used in compatible ceiling and drywall framing systems. The machine gradually forms metal strip through a series of roll forming stations to produce a consistent U-shaped cross-section according to the specified profile drawing.

For manufacturers of light steel framing components and building materials, a U-type keel roll forming machine provides a production solution for channel-shaped metal profiles. Machine configuration can be evaluated according to the required profile dimensions, raw material specifications, cutting requirements, and production targets.

To ensure the proposed machine matches your product, please provide a profile drawing or sample dimensions before confirming the equipment configuration.

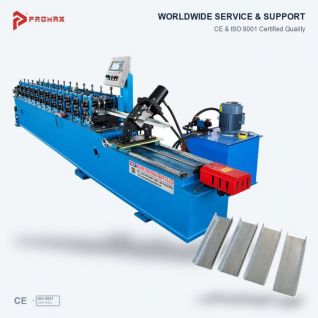

U-Type Keel Roll Forming Machine for Construction

U-shaped metal keel profiles are used in a variety of compatible building framing systems. Depending on their dimensions and design, these profiles may function as tracks, perimeter channels, or other channel-shaped components in ceiling and drywall installations.

The stud roll former featured on this page is positioned for U-type keel production. A U-shaped track has a different cross-section and function from a C-shaped stud, so the tooling and forming arrangement must be designed for the actual profile being manufactured.

Before purchasing a machine, manufacturers should verify the profile width, side height, flange geometry, material thickness, and any required return edges. These details help determine the appropriate roll forming tooling and production configuration.

How the Stud Roll Former Works

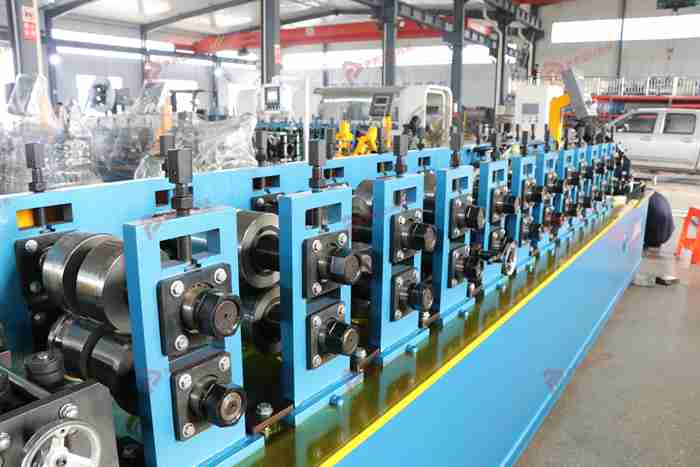

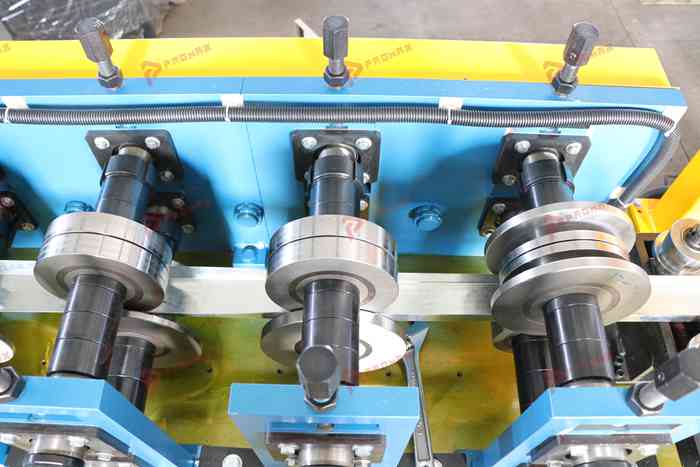

A roll forming machine shapes metal strip through successive forming stations. Each set of rollers bends the material progressively until the specified U-shaped profile is achieved. When the machine is correctly configured for the material and profile, the process supports repeatable production for ongoing manufacturing requirements.

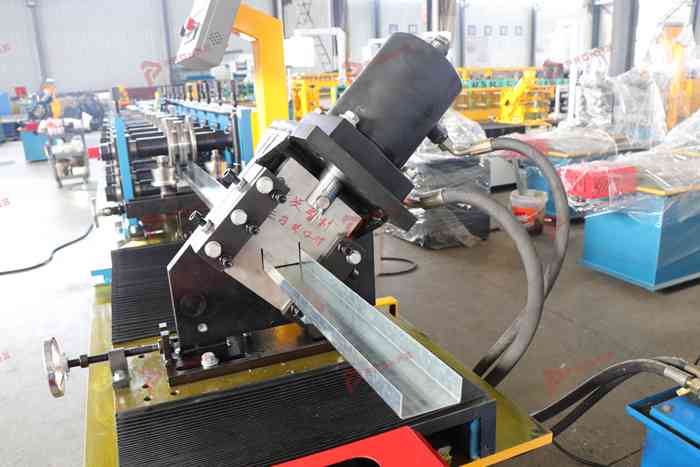

Depending on the selected configuration, a U-type keel production line may incorporate a decoiler, feeding and guiding equipment, roll forming stations, a cutting unit, and an electrical control system. The exact equipment arrangement should be confirmed against the machine specification rather than assumed to be identical for every model.

Production performance depends on several factors, including material grade, thickness, strip width, profile geometry, tooling design, cutting method, and required output. Providing these details helps the manufacturer assess a suitable solution for your factory.

Key Considerations When Choosing a U-Type Keel Machine

• Profile compatibility: Confirm that the machine is designed for the exact U-shaped keel or channel profile you need to produce.
• Material requirements: Specify the material type, grade, thickness, and strip width so the forming system can be evaluated correctly.
• Profile dimensions: Supply the profile drawing with the key dimensions, including channel width, side height, and flange details.
• Cutting requirements: Confirm the required finished length and cutting method for your production process.
• Production targets: Explain your expected output and operating requirements to support machine configuration planning.
• Future product needs: If you plan to manufacture additional profiles, provide their drawings so the feasibility of a multi-profile solution can be assessed.

Actual forming speed, material thickness range, automation level, and changeover capability depend on the selected machine design. These specifications should be confirmed by the engineering team before an order is placed.

Applications of U-Shaped Metal Keel Profiles

U-type metal profiles are widely associated with construction framing systems where a channel-shaped component is required. Depending on the profile design and compatibility with the complete system, potential applications include:

• Drywall framing: U-shaped track components used with compatible metal studs.
• Ceiling systems: Channel profiles used in suitable ceiling framing assemblies.
• Interior partitions: Track components that help position and support compatible framing members.
• Building material manufacturing: Production of metal channels for construction material suppliers and profile manufacturers.

The correct application depends on the final profile geometry and local construction system requirements. Customers should verify profile compatibility before manufacturing for a particular market or project.

Customized Stud Roll Former Solutions

PROMAX evaluates roll forming projects according to the customer's target profile and manufacturing requirements. Rather than selecting a machine based on its name alone, it is important to match the forming tooling and production configuration to the finished product.

For a more accurate technical evaluation, please prepare the following information:

• U-type keel profile drawing or sample dimensions
• Raw material type and grade
• Material thickness and strip width
• Finished profile length
• Expected production output
• Required cutting and automation functions
• Factory power supply and destination country

These details help the engineering team review the profile requirements and discuss the appropriate forming, cutting, and control configuration. If multiple profile sizes are required, each profile should be reviewed to determine whether one machine can accommodate them.

Request a Quote for a Stud Roll Former

If you are looking for a stud roll former for U-type keel manufacturing, contact PROMAX with your profile drawing and production requirements. Our team can review your information and discuss a machine solution suited to your target product.

When requesting a quotation, include the profile dimensions, material specifications, desired output, cutting requirements, and destination country. Complete information helps clarify the technical scope and supports a more accurate quotation.

Contact PROMAX today to discuss your U-type keel roll forming project and find a solution based on your actual manufacturing needs.
