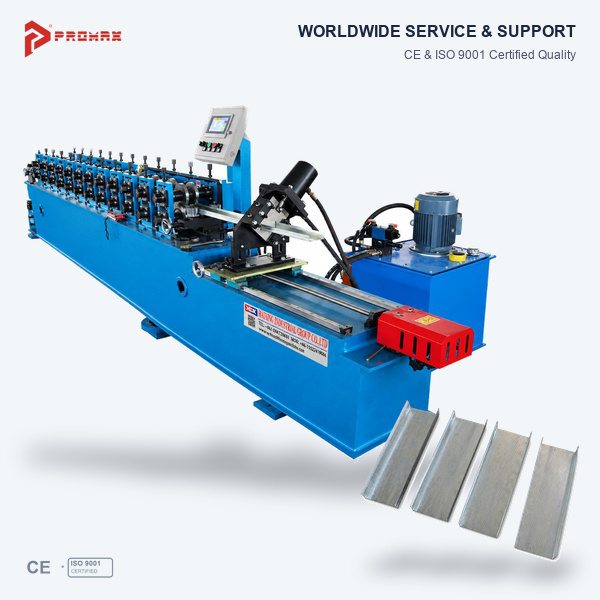

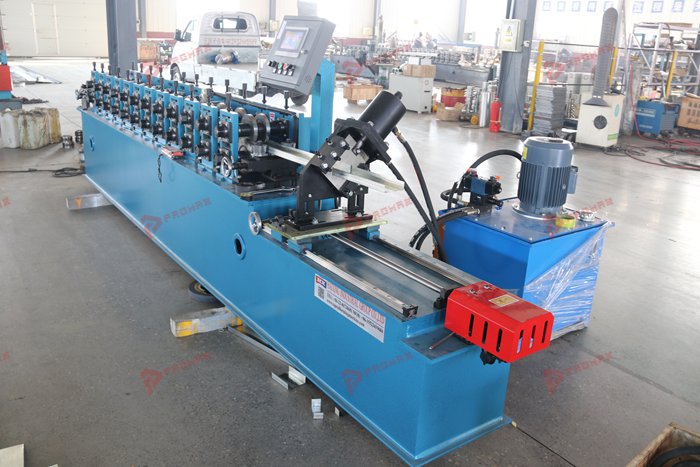

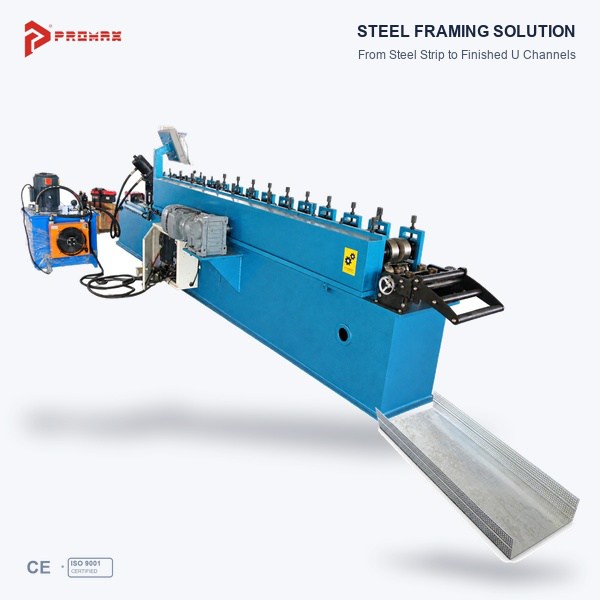

Track Roll Forming Machine for Drywall U Channels

Track Roll Forming Machine for Drywall U Channel Production

The track roll forming machine from PROMAX is designed for manufacturing galvanized steel U-shaped tracks used in drywall partition walls, gypsum board framing systems and interior metal construction. Through a continuous cold roll forming process, the machine transforms flat steel strips into U channels with defined cross-sectional dimensions.

U tracks are essential components of many drywall framing systems. They are generally installed horizontally at the top and bottom of partition walls to receive and position compatible C-shaped metal studs. Accurate channel dimensions are important for proper assembly and compatibility with the complete framing system.

PROMAX develops customized U track roll forming machine solutions based on customer profile drawings, material specifications and production requirements. The equipment can be configured with a decoiler, feeding and guiding system, roll forming stations, cutting unit, control system and receiving table.

The final technical specifications, production capacity and optional functions are determined according to the approved machine design.

What Is a Track Roll Forming Machine?

A track roll forming machine is industrial equipment used to manufacture metal track profiles from steel coils through a cold forming process.

For drywall applications, the machine is commonly configured to produce U-shaped channels that serve as horizontal guides for metal stud framing.

The steel strip passes through successive roller stations, where it is gradually bent into the required channel geometry.

After the profile is formed, the cutting system produces finished tracks according to the specified lengths.

The machine is developed according to the required profile drawing, steel material properties and production conditions.

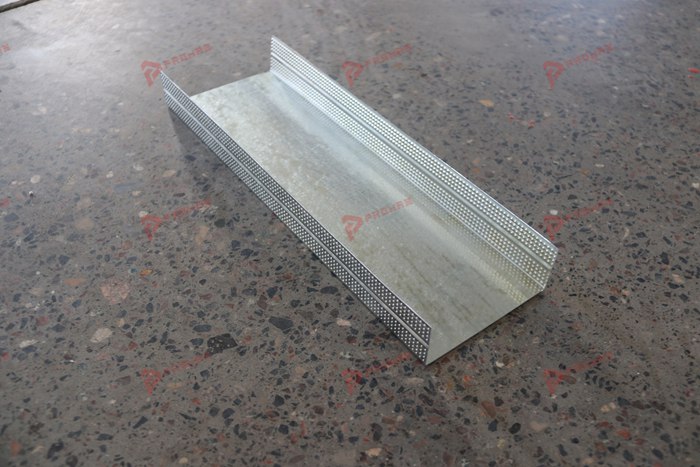

U Tracks for Drywall Partition Wall Systems

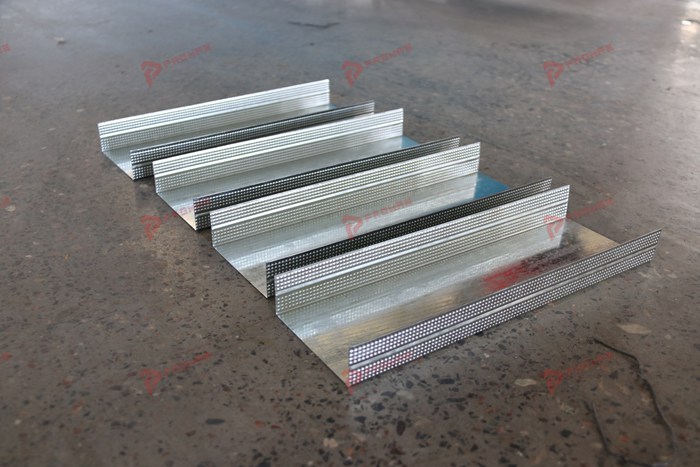

Galvanized steel U tracks are widely used in drywall framing systems for residential, commercial and institutional buildings.

They form part of the framework used to support gypsum board partition walls and other specified interior construction systems.

Typical applications include:

• Top and bottom tracks for drywall partitions.
• Gypsum board wall framing systems.
• Interior metal framing construction.
• Compatible channels for vertical C studs.
• Non-load-bearing partition wall systems.
• Customized galvanized steel U profile manufacturing.

The suitability of each track depends on its dimensions, steel thickness, mechanical properties and the requirements of the intended construction system.

How Does a U Track Roll Forming Machine Work?

The U track roll forming machine uses a sequence of forming rollers to transform galvanized steel strips into finished U-shaped channels.

The process begins with a steel coil placed on the decoiler. The material passes through the feeding and guiding system before entering the roll forming stations.

Each roller station performs a controlled bending operation, gradually shaping the flat steel strip into the required U profile.

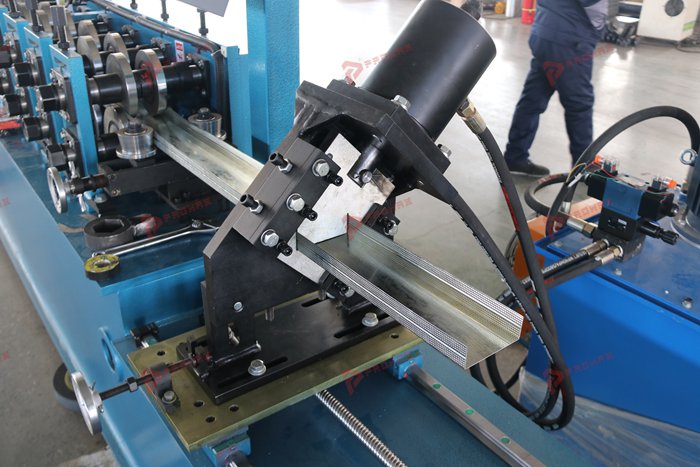

After forming, the track passes through the cutting system to obtain the specified finished length.

Depending on the equipment configuration, optional operations such as punching or automated length control may be incorporated.

The complete process is designed according to the channel geometry, material characteristics and production requirements.

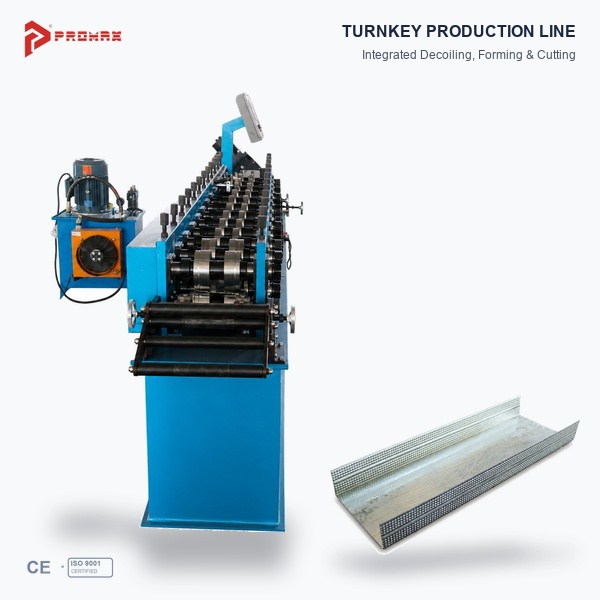

Main Components of a Drywall Track Making Machine

A typical drywall track making machine may include several integrated systems. The final configuration is determined during the technical design stage.

• Decoiler: Supports the galvanized steel coil and supplies material to the production line.
• Feeding and guiding system: Aligns the steel strip before it enters the forming stations.
• Roll forming stations: Gradually bend the material into the required U-shaped channel.
• Drive system: Provides mechanical power for the forming process.
• PLC control system: Can manage selected production settings and machine functions.
• Cutting unit: Produces finished tracks according to the required lengths.
• Receiving table: Supports collection and handling of completed metal channels.

The number of forming stations, drive arrangement and component specifications depend on the approved machine design.

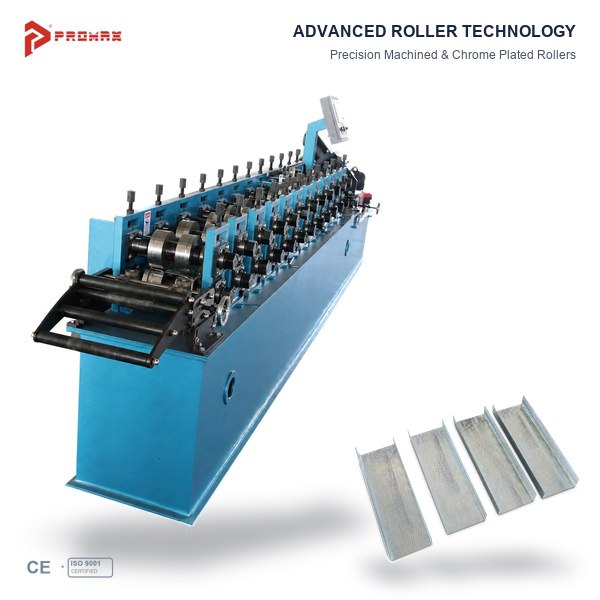

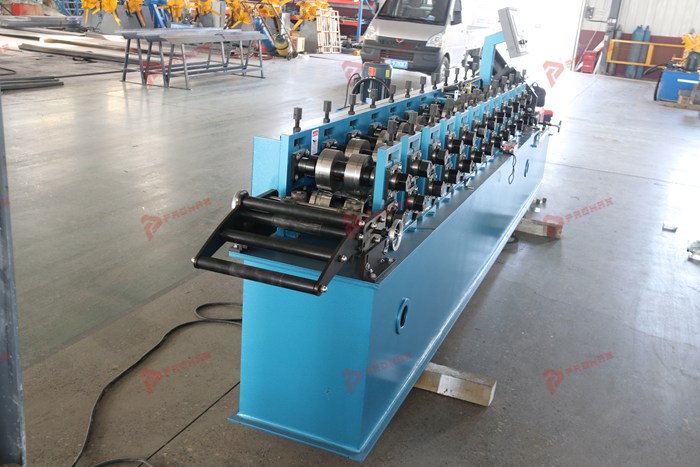

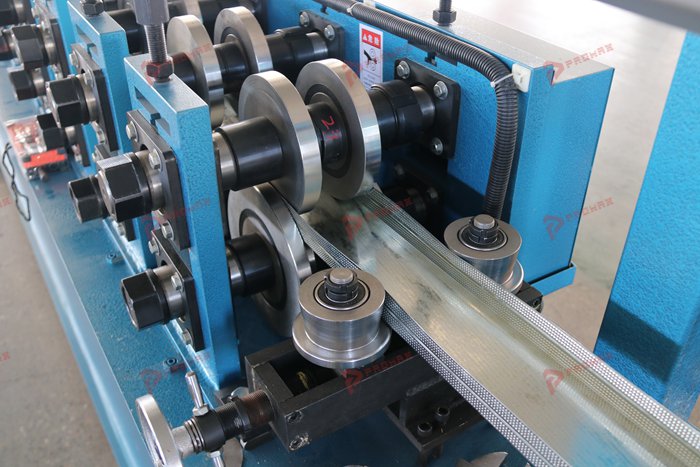

Precision Roller Tooling for U Channel Profiles

Roller tooling is one of the most important parts of a metal track roll forming machine.

The forming rollers are designed according to the U channel drawing, including the web width, flange height, bending radii and steel thickness.

Each forming station performs part of the bending process, allowing the steel strip to gradually reach the final cross-sectional geometry.

Proper roller alignment and material guidance are important for maintaining dimensional consistency during manufacturing.

PROMAX can develop customized roller tooling according to the approved U track drawings.

Galvanized Steel Materials for Track Manufacturing

Galvanized steel is commonly used in drywall framing because it provides mechanical strength and a protective zinc coating.

When selecting a galvanized steel track machine, manufacturers should confirm the material thickness, strip width, yield strength and coating characteristics.

These parameters influence the forming forces, roller design and mechanical configuration of the equipment.

The selected steel material must be compatible with the machine specifications and the requirements of the finished product.

Different material grades and thickness ranges may require adjustments to the equipment design.

Step-by-Step Drywall U Track Production Process

The manufacturing process for galvanized steel U tracks generally includes the following stages:

1. Steel coil preparation: Check the material grade, thickness and other specifications.
2. Decoiling: Supply the steel strip to the production line.
3. Feeding and alignment: Guide the material into the forming section.
4. Progressive roll forming: Bend the steel into the specified U track profile.
5. Length cutting: Cut the finished tracks to the required lengths.
6. Product inspection: Check profile dimensions and surface condition.
7. Collection: Receive and organize the finished metal tracks.

The manufacturing sequence may vary according to the equipment configuration and optional processing functions.

PLC Control and Cut-to-Length Production

The PROMAX track roll forming machine can be configured with a PLC control system to manage selected production functions.

Depending on the configuration, operators may enter cutting lengths, production quantities and other available parameters through a human-machine interface.

The cutting system is selected according to the profile geometry, steel thickness and production requirements.

Automatic cutting options can support manufacturing orders that require different finished lengths.

All control functions and cutting specifications are confirmed in the final technical proposal.

Custom U Track Sizes and Tooling

PROMAX provides customized roll forming solutions for manufacturers producing different types of U-shaped drywall tracks.

The machine can be developed according to customer requirements for profile width, flange dimensions, steel thickness and cutting length.

Additional operations, such as punching, can be evaluated when compatible with the machine design.

The ability to manufacture multiple profile sizes on one machine depends on the tooling arrangement and adjustment mechanisms.

Automatic size changing should not be assumed unless it is specifically included in the equipment configuration.

For accurate machine development, customers are encouraged to provide complete profile drawings and material specifications.

Difference Between U Tracks and C Studs

U tracks and C studs are complementary components of many drywall partition systems, but they have different cross-sectional geometries and installation functions.

U tracks generally have a channel-shaped section and are installed horizontally at the top and bottom of the partition.

C studs typically have a web, flanges and return lips, and they function as vertical framing members.

Because their geometries are different, the roller tooling required to manufacture each profile is also different.

This track roll forming machine is intended for U-shaped profiles. Manufacturing C studs requires suitable tooling or a separate machine configuration.

Manufacturers requiring both types of profiles may consider a double-head stud and track machine or another suitable production solution.

Benefits of a Dedicated U Track Manufacturing Machine

A dedicated U track machine allows manufacturers to organize production around a defined channel geometry.

Cold roll forming is suitable for repetitive manufacturing of galvanized steel profiles.

Customized roller tooling can support the production of tracks according to approved drawings.

Cut-to-length manufacturing allows different finished lengths within the capabilities of the equipment.

Optional automation can help manage selected production operations.

Actual machine performance depends on the material properties, profile dimensions and equipment configuration.

Quality Control for Finished U Track Profiles

Dimensional inspection is an important part of drywall track manufacturing.

Typical inspection points include channel width, flange height, straightness and cutting length.

The condition of the galvanized coating should also be checked after forming.

Inspection tolerances and acceptance criteria should be defined according to the approved profile drawings and the intended drywall framing system.

Consistent raw material specifications and appropriate machine maintenance are important for stable manufacturing.

Choosing the Right Track Roll Forming Machine

Before purchasing a track roll forming machine, manufacturers should define the required U channel dimensions, steel material specifications and production needs.

Important information includes the track drawing, steel thickness, material grade, finished cutting lengths and expected production capacity.

Customers should also identify whether punching, special cutting functions or customized automation are required.

These details help determine the appropriate roller tooling, forming stations, cutting system and machine control configuration.

PROMAX can evaluate customer requirements and develop a suitable technical proposal.

Why Choose PROMAX for Drywall Track Machines?

PROMAX develops cold roll forming equipment for drywall studs, tracks, ceiling channels and lightweight steel framing profiles.

Our services include profile drawing evaluation, machine configuration planning, customized tooling and equipment manufacturing.

Backed by Tianjin Haixing's experience in roll forming technology since 1996, PROMAX supports manufacturers seeking customized equipment solutions for different markets.

Our team can help customers evaluate material specifications, profile geometry and production requirements before preparing a quotation.

Request a Quote for a Track Roll Forming Machine

Are you looking for a track roll forming machine to manufacture galvanized steel U channels for drywall framing systems?

Send us your U track drawings, steel thickness, material specifications, required cutting lengths and production capacity expectations.

Our engineering team can review your requirements and recommend a suitable machine configuration.

Contact PROMAX today to request a customized quotation for your drywall U track roll forming machine.
