The PROMAX Drywall Profile Machine is designed for manufacturing galvanized steel C studs used in drywall partitions and interior metal framing systems.
Machine Type: Cold Roll Forming Machine
Material: Galvanized Steel
Features: Customized roller tooling, precision C stud forming, cut-to-length production and optional PLC control.
Applications: Drywall C studs, gypsum board partition walls and non-load-bearing metal framing.
Customization: Profile dimensions, steel thickness, cutting lengths and machine configuration.
Send your profile drawings and request a customized quotation.

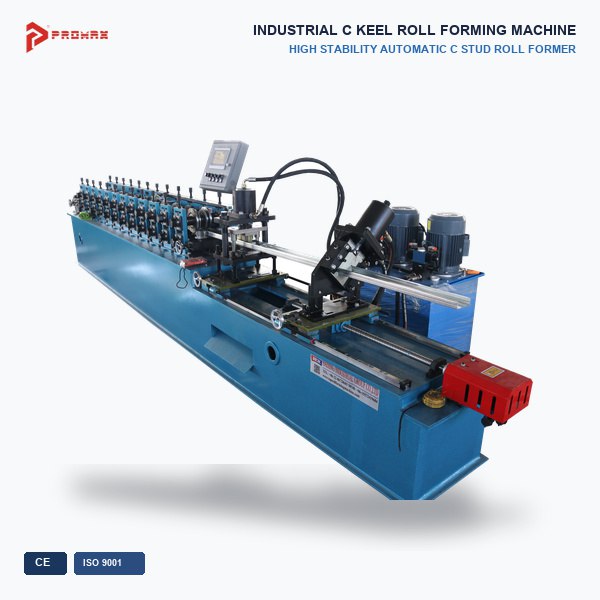

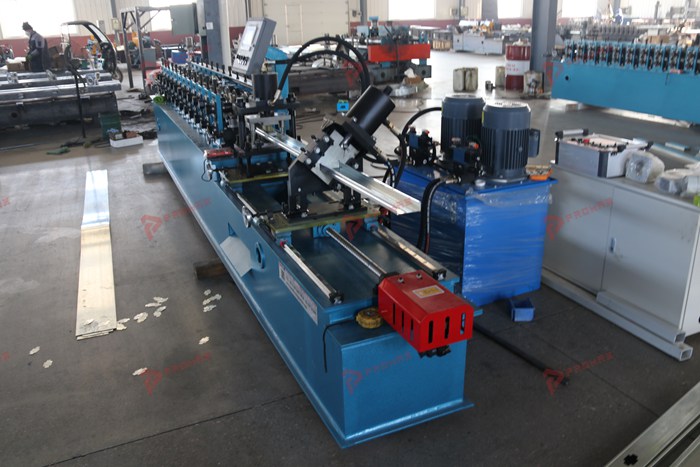

The drywall profile machine from PROMAX is designed to manufacture galvanized steel C studs used in drywall partition walls, gypsum board framing systems and interior metal construction. By using cold roll forming technology, the equipment converts flat steel strips into accurately shaped C profiles through a series of forming rollers.
C-shaped metal studs are essential components in many drywall wall systems. They are generally installed vertically between compatible U tracks to form the framework that supports gypsum boards and other specified wall materials.
For drywall profile manufacturers, consistent profile dimensions, reliable forming operations and flexible finished lengths are important production requirements. PROMAX develops customized equipment solutions based on customer drawings, steel material specifications and manufacturing needs.
The machine can be configured with a decoiler, material guiding system, roll forming stations, cutting equipment, PLC control and a receiving table, depending on the approved technical design.
A drywall profile machine is industrial roll forming equipment used to manufacture metal profiles for drywall framing applications.
Depending on the machine design, drywall profile equipment may produce C studs, U tracks, ceiling channels or other lightweight steel sections.
This PROMAX machine is intended for manufacturing C-shaped metal studs according to customer-approved profile drawings.
The machine uses successive roller stations to bend galvanized steel into the required cross-sectional shape.
After forming, the profiles are cut to specified lengths for collection, inspection and further handling.
The final configuration depends on the profile geometry, steel thickness and production requirements.

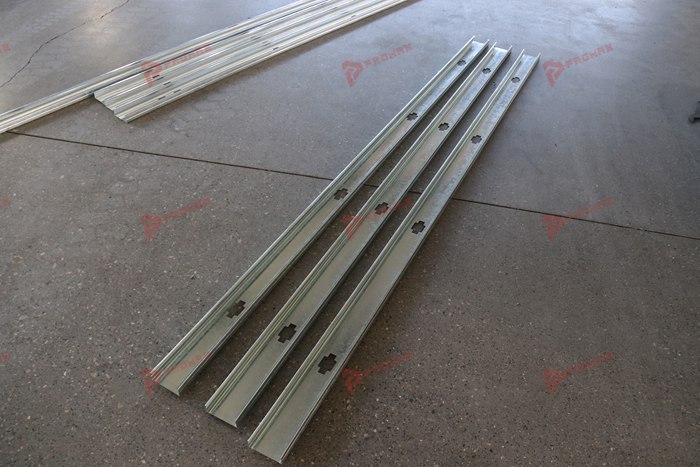

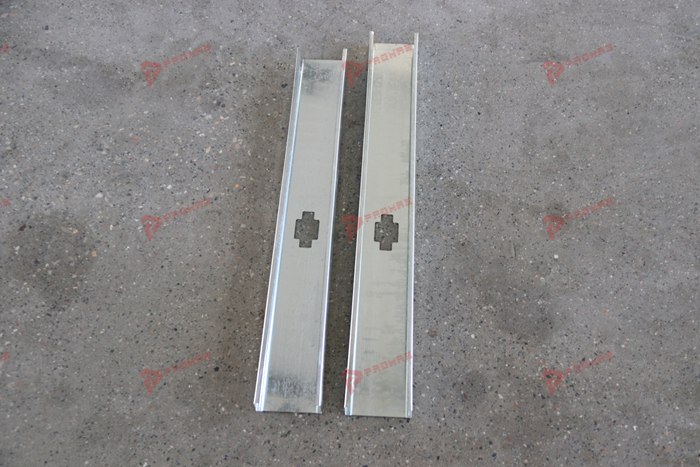

C studs are widely used as vertical framing members in non-load-bearing drywall partition systems.
They are normally installed between compatible U tracks and provide the supporting framework for gypsum board installation.
The profile geometry may include a central web, two flanges and return lips, depending on the specified design.
Manufacturers must consider profile dimensions, steel thickness, straightness and compatibility with the corresponding track profiles.
Common applications include:
The suitability of each C stud depends on its dimensions, mechanical properties and the requirements of the intended construction system.

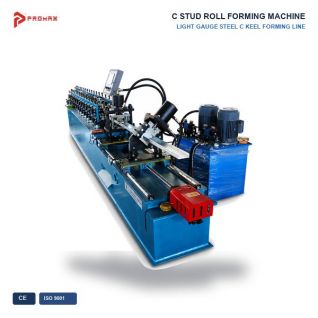

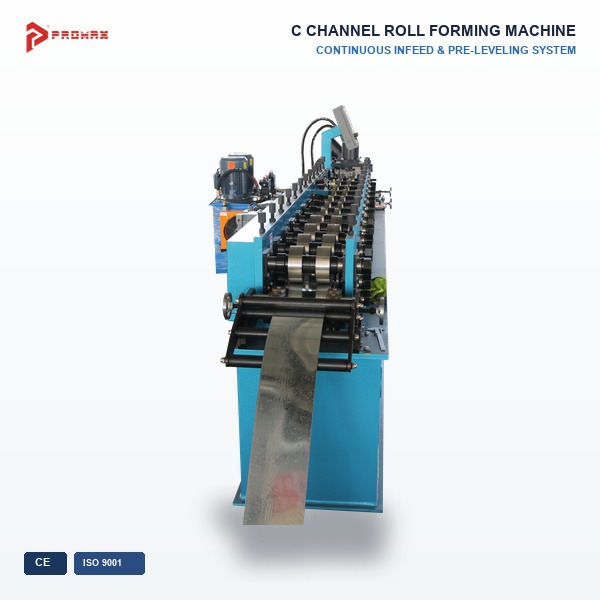

The C stud roll forming machine uses a continuous cold forming process to transform galvanized steel strips into finished metal studs.

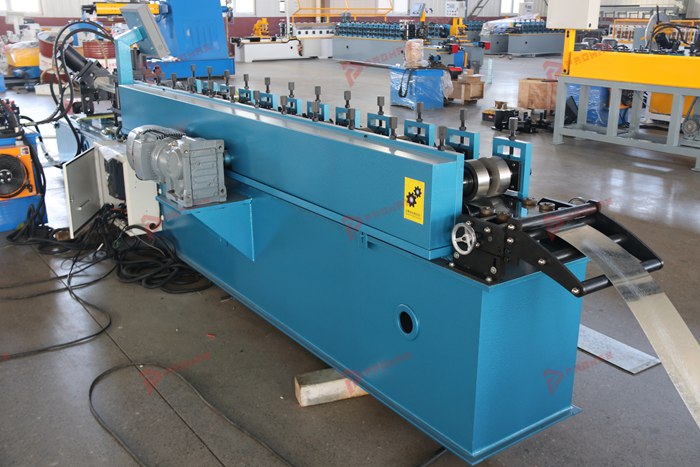

First, the steel coil is placed on the decoiler and supplied to the feeding section.
The strip passes through the guiding system before entering the roll forming stations.
Each roller station performs a controlled bending operation, gradually shaping the material into the required C-shaped section.

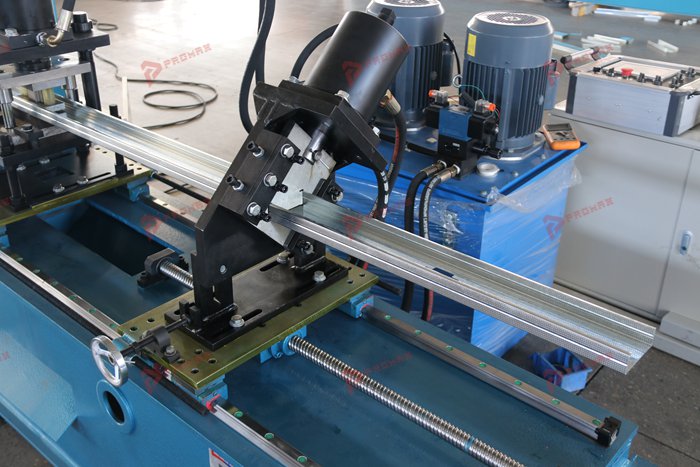

Once the profile has been formed, the cutting unit produces the specified finished lengths.
Depending on the equipment configuration, optional punching or other processing functions may be incorporated.
The forming process is performed without heating the steel for bending.
A drywall stud manufacturing line may include several integrated systems.
The exact components and their specifications are determined according to the approved machine configuration.
Roller tooling is one of the most important parts of a drywall stud making machine.
The forming rollers are designed according to the profile drawing, including the web width, flange dimensions, return lips and bending radii.
The mechanical properties of the steel must also be considered during tooling development.
Each forming station performs a portion of the bending process, helping the strip gradually reach the final cross-sectional geometry.
Correct roller alignment and material guidance are important for maintaining dimensional consistency.
PROMAX can develop customized roller tooling for C stud profiles with different dimensions and design requirements.
Galvanized steel is commonly used in drywall framing because it provides mechanical strength and a protective zinc coating.
When selecting a metal stud manufacturing machine, manufacturers should confirm the material thickness, strip width, yield strength and coating characteristics.
These parameters influence the forming forces, roller design and mechanical configuration of the equipment.
The selected steel material must be compatible with the machine specifications and the requirements of the finished product.
Different material grades and thickness ranges may require adjustments to the equipment design.
The manufacturing process for galvanized C studs generally includes the following stages:
The process sequence may vary according to the machine configuration and additional manufacturing operations.
The PROMAX drywall profile roll forming machine can be equipped with a PLC control system for selected production functions.
Depending on the configuration, operators may enter required cutting lengths, production quantities and other available parameters through a control interface.

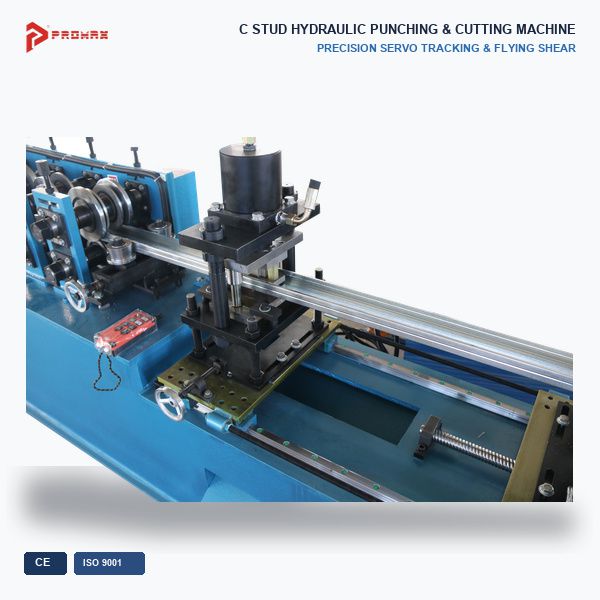

The cutting system is selected based on the profile geometry, steel thickness and production requirements.
Automatic cutting options can help manufacturers produce C studs in different finished lengths.
Specific control functions and cutting capabilities are confirmed during the technical design stage.
PROMAX provides customized equipment solutions for manufacturers requiring different C stud profile specifications.
The machine can be designed according to the required profile width, flange height, return lip geometry, steel thickness and finished length.

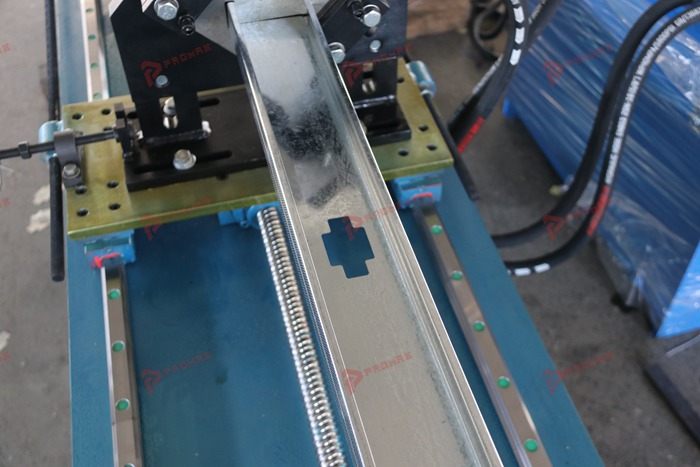

Optional punching operations may also be evaluated when compatible with the equipment design.
The ability to produce multiple profile sizes on one machine depends on the tooling and adjustment mechanisms incorporated.
Automatic profile size changing is not assumed unless it is specifically included in the machine configuration.
Customers are encouraged to provide complete profile drawings and steel material specifications before equipment selection.

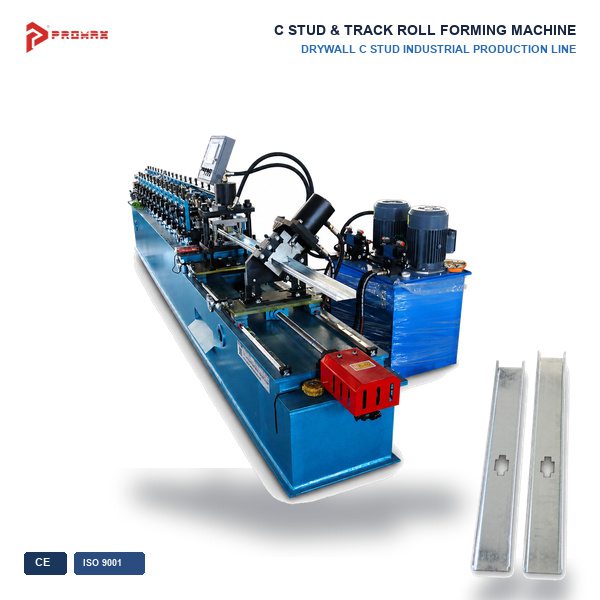

C studs and U tracks are complementary components of many drywall framing systems.
C studs generally function as vertical framing members, while U tracks are installed horizontally to guide and position the studs.
Because the two profiles have different cross-sectional geometries, they require suitable roller tooling for their respective shapes.
This machine is intended for C stud manufacturing according to the approved profile design.
Manufacturers who also need to produce U tracks may consider a separate track machine, a double-head stud and track machine or another suitable production configuration.
A dedicated C stud machine allows manufacturers to organize production around a defined profile geometry.
Cold roll forming is suitable for repetitive manufacturing of galvanized steel profiles.
Customized roller tooling can support the production of profiles according to approved drawings.
Cut-to-length production allows manufacturers to supply different finished lengths within the capabilities of the equipment.
Optional automation can help manage selected manufacturing operations.
Actual machine performance depends on the material properties, profile dimensions and equipment configuration.
Dimensional inspection is an important part of drywall stud manufacturing.
Typical inspection points include profile width, flange height, return lip dimensions, straightness and cutting length.
The condition of the galvanized coating should also be checked after forming.
Inspection tolerances and acceptance criteria should be defined according to the approved profile drawings and the intended drywall system.
Consistent raw material specifications and appropriate machine maintenance are important for stable manufacturing.
Before purchasing a drywall profile machine, manufacturers should define the profile dimensions, steel material specifications and expected production requirements.
Important information includes the C stud drawing, steel thickness, material grade, finished cutting lengths and required production capacity.
Customers should also identify whether additional punching, special cutting functions or customized automation are necessary.
These details help determine the roller tooling, forming stations, cutting system and machine control configuration.
PROMAX can evaluate customer requirements and develop a suitable technical proposal.
PROMAX develops cold roll forming equipment for drywall studs, tracks, ceiling channels and lightweight steel framing profiles.
Our services include profile drawing evaluation, machine configuration planning, customized tooling and equipment manufacturing.
Backed by Tianjin Haixing's experience in roll forming technology since 1996, PROMAX supports manufacturers seeking customized equipment solutions for different markets.
Our team can help customers evaluate material specifications, profile geometry and production requirements before preparing a quotation.
Are you looking for a drywall profile machine to manufacture galvanized steel C studs for gypsum board partition systems?
Send us your profile drawings, steel thickness, material specifications, required cutting lengths and production capacity expectations.
Our engineering team can review your requirements and recommend a suitable machine configuration.
Contact PROMAX today to request a customized quotation for your C stud drywall profile machine.
