C Type Metal Stud Roll Forming Machine

C Type Metal Stud Roll Forming Machine for Drywall Framing

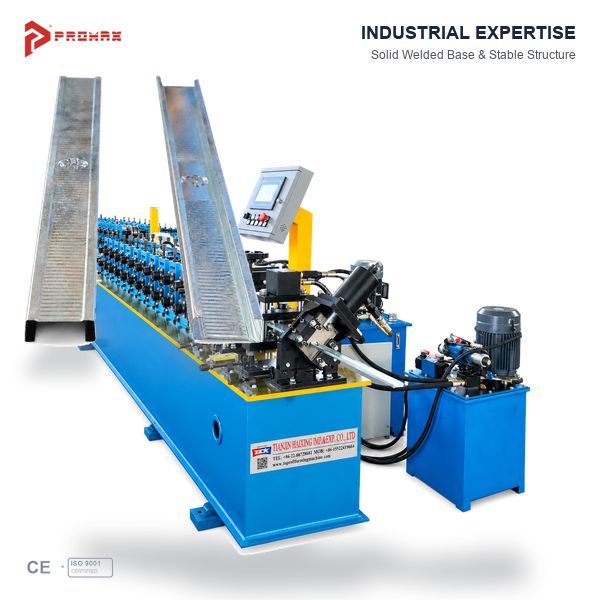

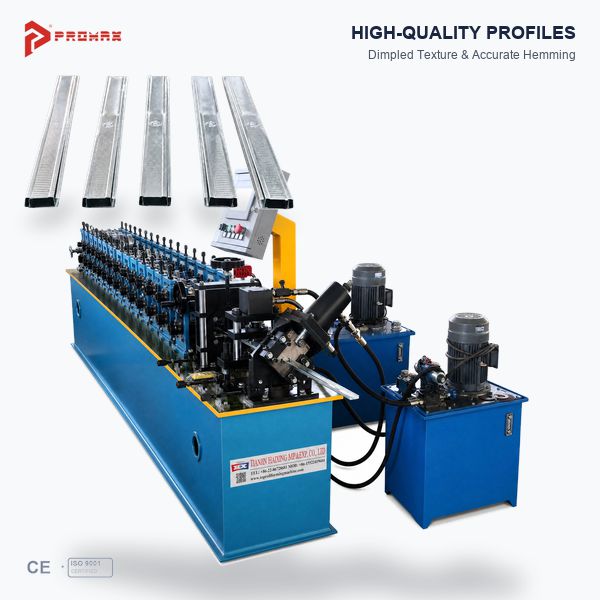

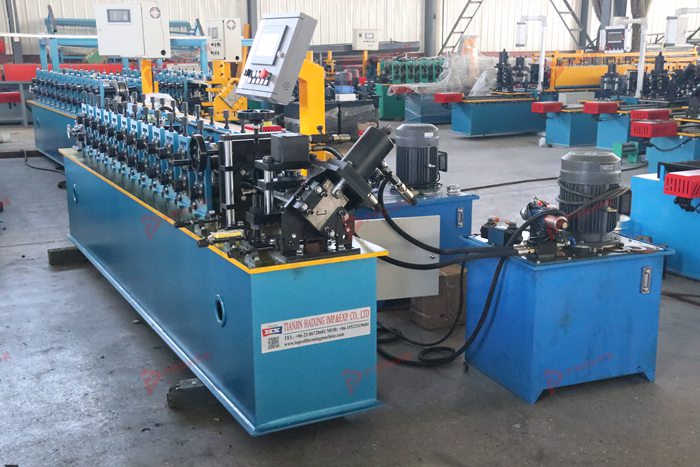

The PROMAX C type metal stud roll forming machine is designed for manufacturing C-shaped metal studs used in drywall partition systems, interior wall framing, and lightweight steel construction. The machine gradually forms steel strip into the required C profile through a series of roll forming stations.

For manufacturers supplying construction companies, building-material distributors, and drywall system suppliers, selecting suitable forming equipment is essential for producing profiles that meet project specifications. PROMAX can discuss machine configurations based on your profile drawings, raw material requirements, punching specifications, and finished product dimensions.

Designed for C-Shaped Metal Stud Production

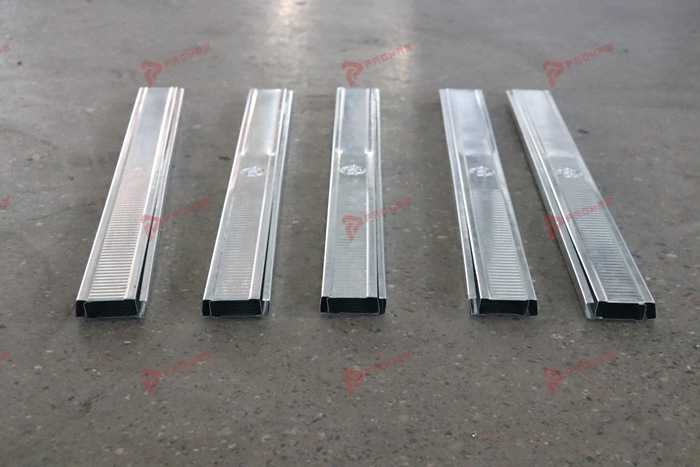

C-shaped metal studs are widely used as vertical framing members in compatible drywall partition and lightweight steel framing systems. Their dimensions and cross-sectional features vary according to the construction system, application, and local market requirements.

A C stud roll forming machine must be configured to match the intended profile geometry. Web width, flange dimensions, lip design, material thickness, and punching positions should be confirmed before tooling and production arrangements are finalized.

How the C Stud Roll Forming Process Works

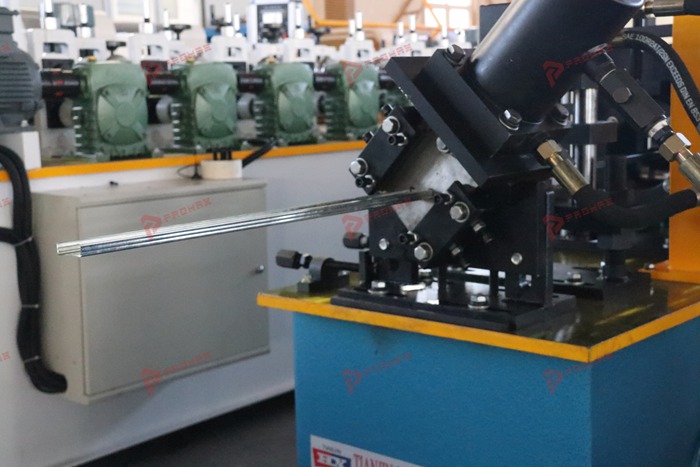

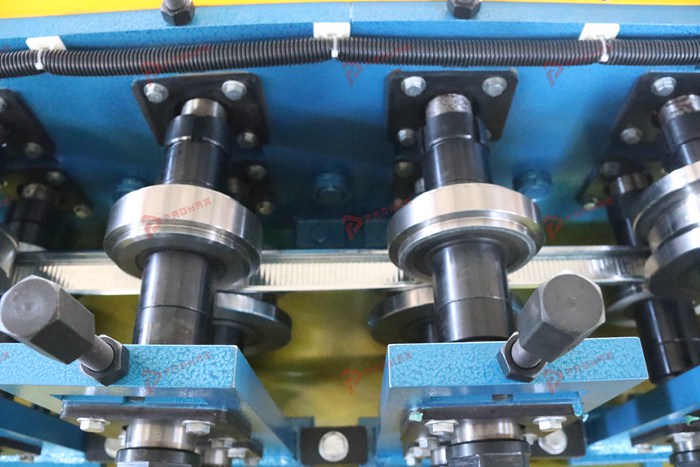

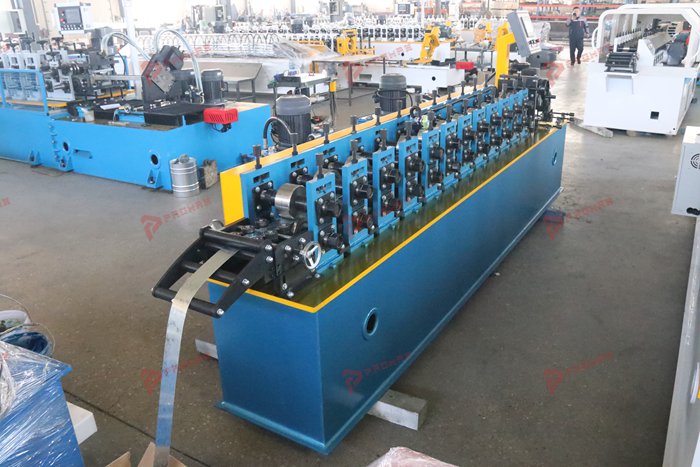

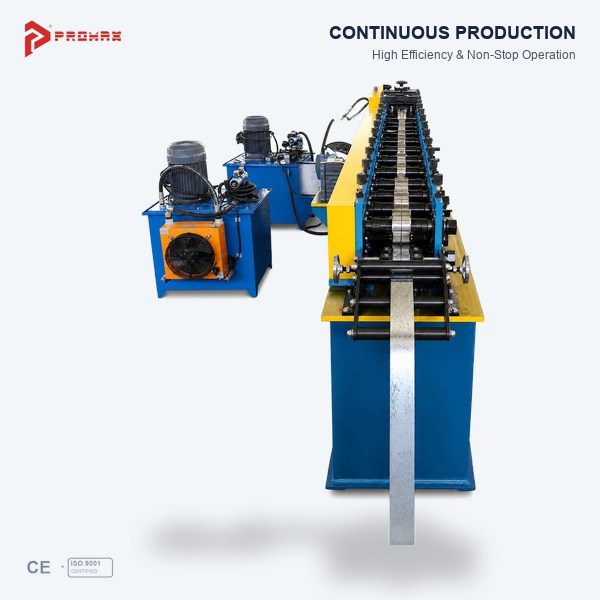

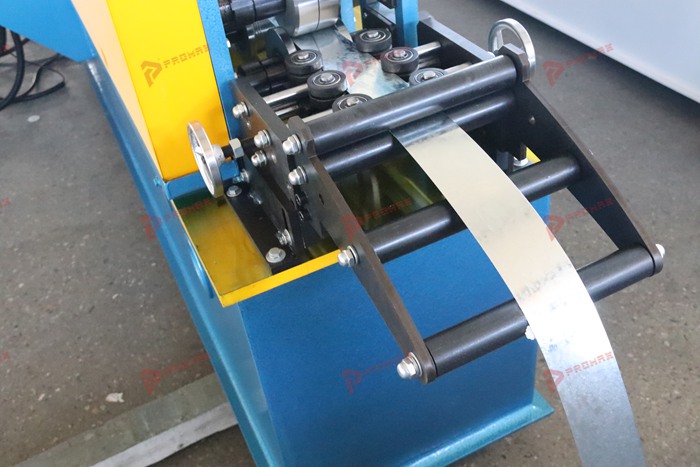

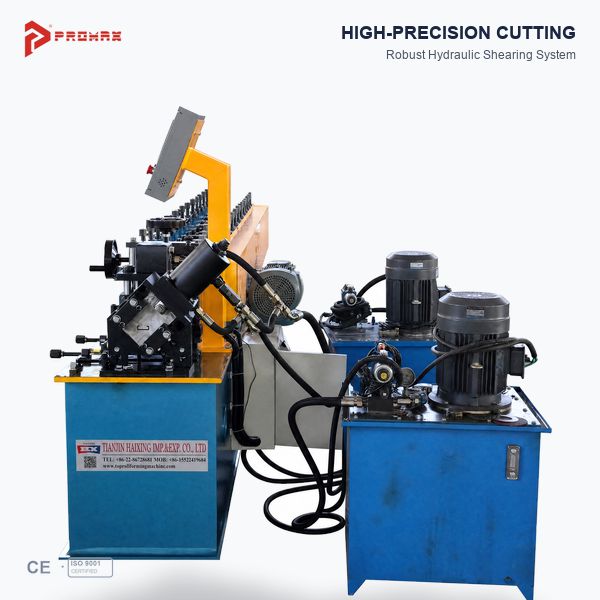

The production process generally starts with steel coil feeding and material guiding. The steel strip then passes through successive forming stations, where the rollers progressively shape it into the required C profile. Depending on the selected configuration, the production line may also incorporate punching and automatic cutting functions.

After forming and cutting, finished profiles can be inspected for dimensions, straightness, surface condition, and consistency with the approved drawing. Appropriate roller tooling, machine adjustment, and material specifications all contribute to the final product quality.

Configuration Based on Your Profile Requirements

Every C stud production project may involve different profile standards and manufacturing requirements. Before purchasing a C stud making machine, buyers should evaluate the following factors:

• Profile dimensions: Web width, flange height, lip dimensions, and overall cross-sectional geometry.
• Material specifications: Steel type, coil width, thickness, and material properties.
• Punching requirements: Hole shapes, slot positions, and required spacing, where applicable.
• Cutting requirements: Finished profile lengths and the preferred cutting arrangement.
• Control and automation: Feeding, forming, cutting, and control functions required for the production process.
• Production objectives: Product range, expected output, and intended operating schedule.

Providing a technical drawing and material details helps the equipment supplier assess the required forming tooling and machine configuration more accurately.

Applications of C Metal Stud Profiles

C-shaped metal studs are commonly used in compatible interior partition walls, drywall framing, commercial building fit-outs, and lightweight steel construction systems. They are typically installed with matching track profiles and other framing components to create a structural framework for wallboard installation.

For businesses manufacturing metal framing products, profile compatibility is particularly important. The finished C stud must correspond to the intended track system and applicable project specifications. Buyers should confirm the required profile standards and dimensions before ordering the machine.

Why Choose PROMAX C Stud Forming Equipment?

PROMAX provides roll forming equipment solutions for manufacturers of drywall profiles and lightweight steel framing components. Our approach focuses on reviewing customer drawings, understanding production objectives, and discussing a machine configuration suited to the required profile.

When comparing a C channel forming machine, consider tooling compatibility, profile accuracy requirements, cutting arrangements, punching options, ease of operation, and technical support. The final configuration should be confirmed against the actual product specifications rather than general machine descriptions alone.

Request a Quote for a C Type Metal Stud Machine

Are you planning to manufacture C-shaped metal studs for drywall partition systems or lightweight steel framing? Contact PROMAX with your profile drawing, material thickness, required cutting lengths, punching details, and production targets.

Our team can review your requirements and discuss a suitable C type metal stud roll forming machine solution for your business. Contact us to request a quotation and further technical information.
