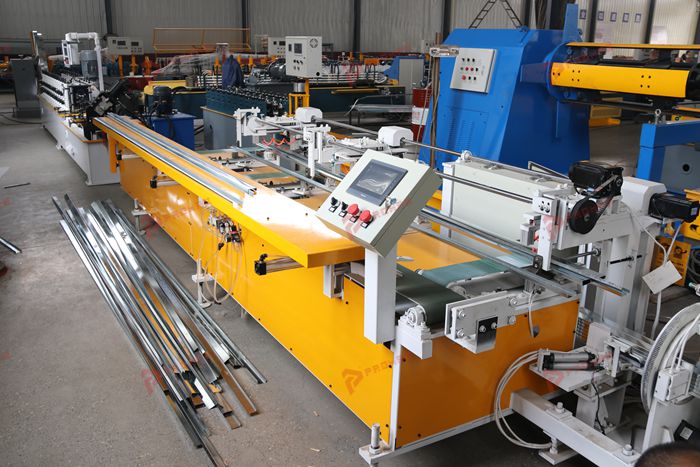

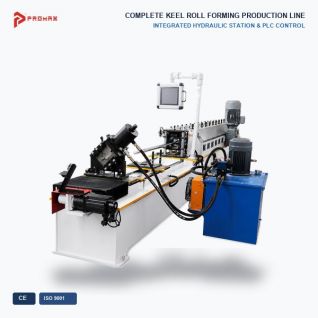

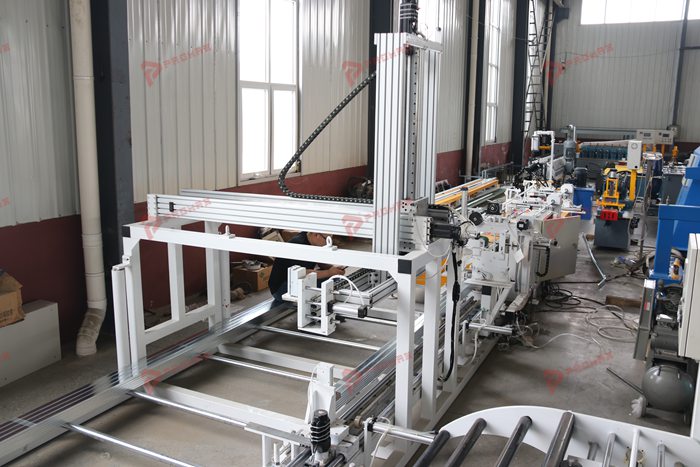

The PROMAX Drywall Roll Forming Machine is designed for manufacturing galvanized steel profiles used in drywall partitions, gypsum board framing and suspended ceiling
Model: Customized Drywall Profile Production Line
Machine Type: Cold Roll Forming Production Line
Material: Galvanized Steel
Profile Options: C Stud, U Track, Ceiling Channel and customized drywall profiles, depending on machine configuration.
Features: Customized roller tooling, continuous roll forming, cut-to-length production and optional PLC control.
Applications: Drywall partitions, gypsum board walls, ceiling framing and interior metal construction.
Customization: Profile geometry, steel thickness, cutting lengths and automation configuration.
Send your profile drawings and request a customized quotation.
The drywall roll forming machine from PROMAX is designed for manufacturing galvanized steel profiles used in drywall partitions, suspended ceiling systems and interior metal framing applications. By using continuous cold roll forming technology, the production line transforms flat galvanized steel strips into finished profiles with specified cross-sectional dimensions.
Drywall construction requires a range of metal framing components, including C studs, U tracks and ceiling channels. These profiles perform different functions within partition walls and ceiling structures. Manufacturers therefore need suitable production equipment that matches their required profile designs, steel materials and output requirements.
PROMAX develops customized drywall profile production line solutions based on customer drawings and manufacturing needs. Depending on the selected configuration, a production line may include a decoiler, material feeding and guiding system, roll forming stations, cutting equipment, PLC control system and finished product receiving table.
The profile types supported by each machine, production speed, material thickness range and automation functions are determined according to the approved technical specifications.
A drywall roll forming machine is industrial equipment used to manufacture lightweight galvanized steel profiles for drywall and interior framing systems.
The machine processes steel coils through a series of forming rollers that gradually bend the material into the required profile shape.
After the forming process, the finished profile is cut to the specified length and collected for inspection or packaging.
Different drywall profiles require different roller tooling and machine configurations because their cross-sectional geometries are not identical.
A machine may be dedicated to one profile type or designed with an adjustment or changeover arrangement for a defined range of compatible profiles.
The final manufacturing capabilities depend on the equipment design.
Drywall and interior framing systems use several types of galvanized steel profiles.
C Stud Profiles: C-shaped studs are commonly used as vertical framing members in drywall partition walls. Their geometry typically includes a central web, flanges and return lips.
U Track Profiles: U-shaped tracks are commonly installed horizontally at the top and bottom of drywall partitions to receive and position compatible C studs.
Ceiling Channel Profiles: Metal ceiling channels are used in specified suspended ceiling and gypsum board support systems. Their dimensions and cross-sectional shapes vary according to the construction system.
Special Drywall Profiles: Additional framing profiles can be developed according to customer drawings and the requirements of the intended application.
PROMAX can evaluate different profile drawings and recommend suitable production equipment. Manufacturing multiple profile types on one machine requires a compatible tooling and changeover design.
A drywall profile making machine is suitable for manufacturers supplying galvanized steel framing products for interior construction.
Typical applications include:
The suitability of each finished profile depends on its dimensions, steel thickness, mechanical properties and the requirements of the intended construction system.
The drywall roll forming machine uses progressive cold forming technology to transform galvanized steel strips into finished metal framing profiles.

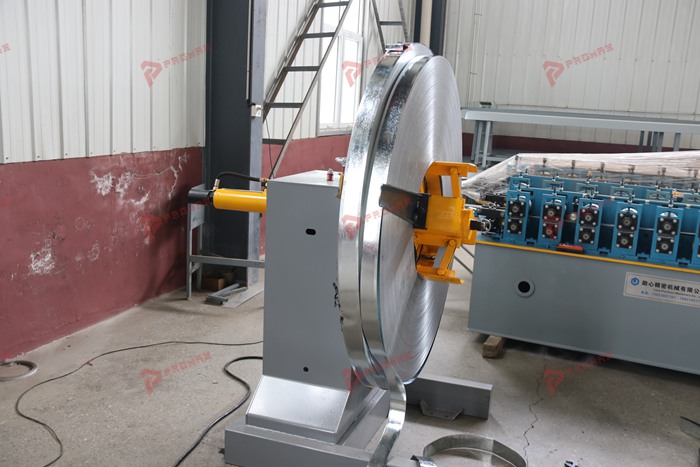

The manufacturing process begins with a steel coil placed on the decoiler. The material is fed into the guiding system, which helps maintain correct alignment before the forming operation.

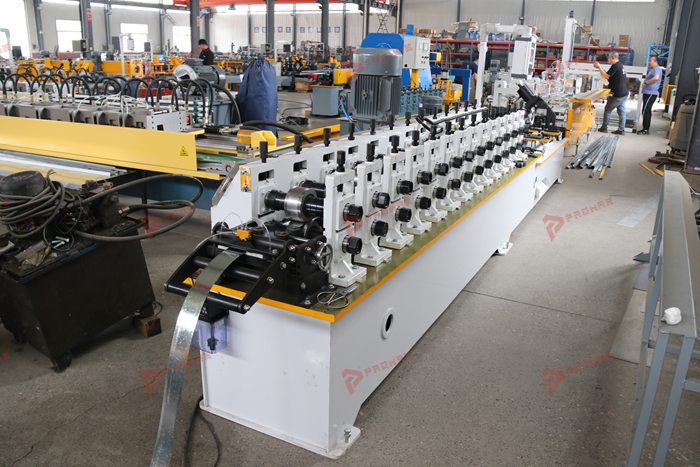

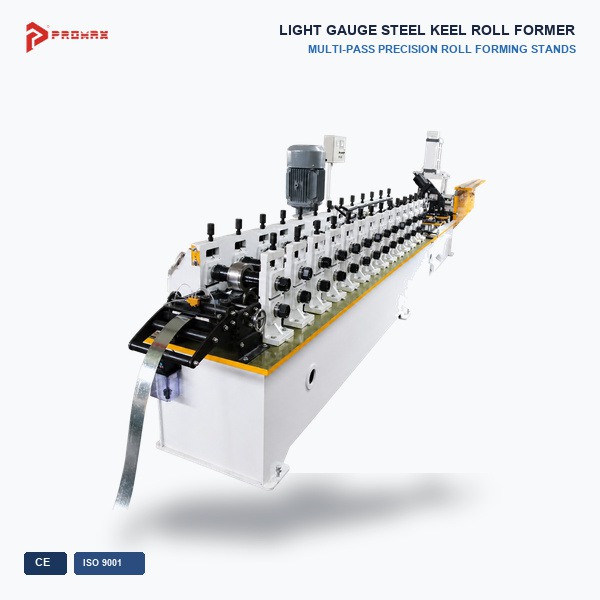

Inside the roll forming section, successive roller stations gradually bend the flat steel strip into the required cross-sectional geometry.
Each forming station performs part of the bending operation, allowing the material to reach the final profile shape through a controlled sequence.

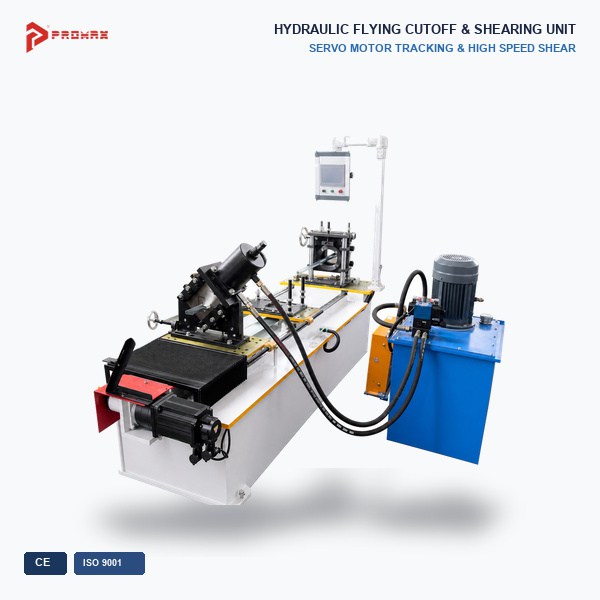

After forming, the cutting system produces the required finished lengths.
Depending on the machine configuration, optional functions such as punching, marking or automated length control may be incorporated.
A typical drywall profile production line may consist of the following equipment:
Additional systems can be evaluated according to customer requirements. The exact equipment arrangement is determined during the technical design stage.

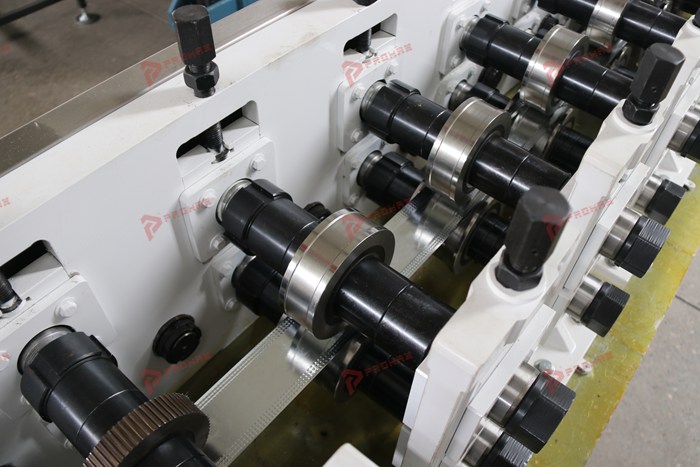

Roller tooling is an essential component of a metal framing roll forming machine.
The forming rollers are designed according to the required profile drawing, steel thickness, bending radii and material properties.
Each forming station gradually changes the steel strip geometry until the required profile shape is achieved.
Different products, such as C studs, U tracks and ceiling channels, require suitable roller tooling because their cross-sectional geometries are different.
Correct roller alignment and material guidance are important for maintaining dimensional consistency during production.
PROMAX can develop customized roller tooling according to approved customer profile drawings.
Galvanized steel is commonly used in drywall framing because it provides mechanical strength and a protective zinc coating.
When selecting a galvanized steel profile machine, manufacturers should confirm the material thickness, strip width, yield strength and coating characteristics.
These parameters influence the forming forces, roller design and mechanical configuration of the equipment.
The selected steel material must be compatible with the machine specifications and the requirements of the finished profile.
Different material grades and thickness ranges may require adjustments to the equipment design.
A typical drywall profile manufacturing process includes the following stages:
The actual production sequence may vary depending on the selected machine configuration and optional processing functions.

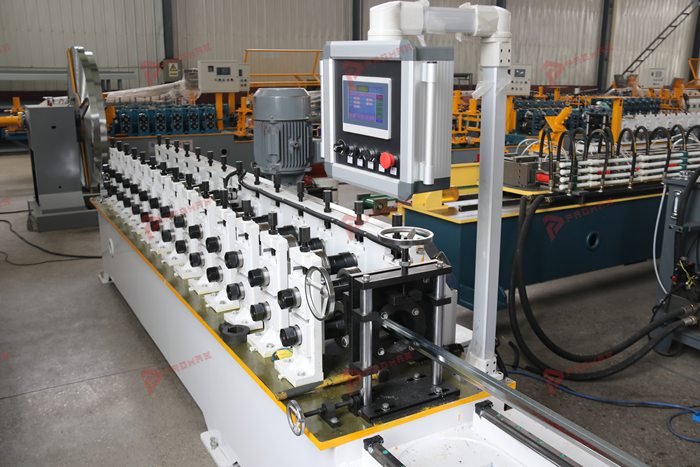

The PROMAX drywall roll forming machine can be configured with a PLC control system to manage selected production operations.
Depending on the equipment configuration, operators may enter cutting lengths, production quantities and other supported parameters through a human-machine interface.
Automatic cutting options can help manufacturers produce profiles according to specified order lengths.
Additional automation functions can be evaluated according to the required production process.
Automatic profile size changing or C/U changeover is available only when specifically included in the approved machine configuration.
PROMAX provides customized roll forming solutions for manufacturers requiring different drywall framing profiles.
The machine can be developed according to customer requirements for profile width, flange dimensions, return lips, steel thickness and finished cutting length.
For ceiling channel applications, the profile geometry and tooling arrangement are designed according to the specified product drawing.
Optional operations, such as punching or specialized cutting, can be evaluated according to the manufacturing requirements.
The ability to produce multiple profile sizes or types on one machine depends on the tooling arrangement and adjustment mechanisms.
Customers are encouraged to provide complete profile drawings and material specifications before equipment selection.
Drywall manufacturers can select different equipment arrangements according to their product range and production requirements.
Dedicated Profile Machines: A dedicated machine is configured for a defined profile geometry, such as a C stud, U track or ceiling channel.
Adjustable Roll Forming Machines: An adjustable machine may support a specified range of compatible profile dimensions, depending on its tooling and adjustment design.
Combined Stud and Track Solutions: Certain configurations can be designed to manufacture both C studs and U tracks, including optional automatic changeover systems.
These configurations have different tooling requirements, production arrangements and investment considerations.
PROMAX can review customer profile drawings and recommend an appropriate equipment solution.
When establishing a drywall profile manufacturing operation, equipment selection should be based on the intended product range, material specifications and production volume.
Manufacturers should determine which profiles will be produced, the required dimensions, steel thickness and finished lengths.
Factory planning should also consider coil storage, material handling, machine installation space, finished product collection and quality inspection.
If multiple profile types are required, manufacturers should evaluate whether separate dedicated machines or a combined production arrangement is more suitable.
The final equipment selection should match the expected production workflow and technical requirements.
Dimensional inspection is an important part of drywall profile manufacturing.
Typical inspection points include profile width, flange height, bending geometry, straightness and cutting length.
For C studs, return lip dimensions may also require inspection.
The condition of the galvanized coating should be checked after forming.
Inspection tolerances and acceptance criteria should be defined according to the approved profile drawings and the requirements of the intended construction system.
Consistent raw material specifications and appropriate machine maintenance are important for stable production.
Before purchasing a drywall roll forming machine, manufacturers should confirm their required profile types and production specifications.
Important information includes profile drawings, steel thickness, material grade, finished cutting lengths and expected production capacity.
Customers should also identify whether punching, automatic size adjustment, profile changeover or other processing functions are required.
These details help determine the appropriate roller tooling, forming stations, cutting system and control configuration.
PROMAX can evaluate customer requirements and prepare a suitable technical proposal.
PROMAX specializes in cold roll forming equipment for drywall studs, tracks, ceiling channels and lightweight metal framing profiles.
Our services include profile drawing evaluation, machine configuration planning, customized tooling and equipment manufacturing.
Backed by Tianjin Haixing's experience in roll forming technology since 1996, PROMAX supports manufacturers seeking customized equipment solutions for different markets.
Our team can help customers evaluate profile dimensions, material specifications and production requirements before preparing a quotation.
Are you looking for a drywall roll forming machine to manufacture galvanized steel framing profiles for drywall partitions or ceiling systems?
Send us your profile drawings, steel thickness, material specifications, required cutting lengths and production capacity expectations.
Our engineering team can review your requirements and recommend a suitable production line configuration.
Contact PROMAX today to request a customized quotation for your drywall profile production line.
