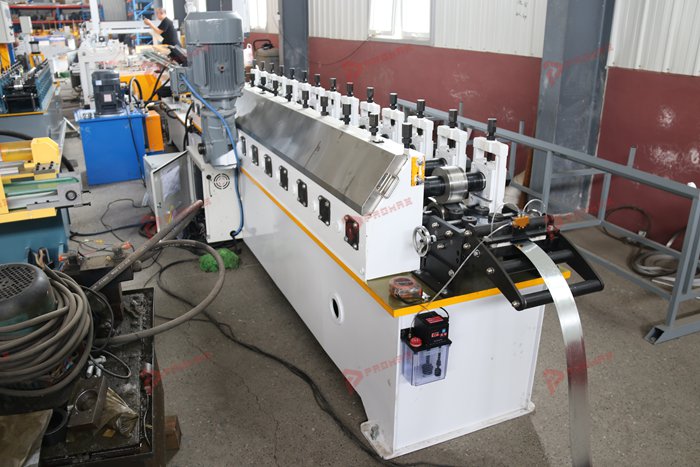

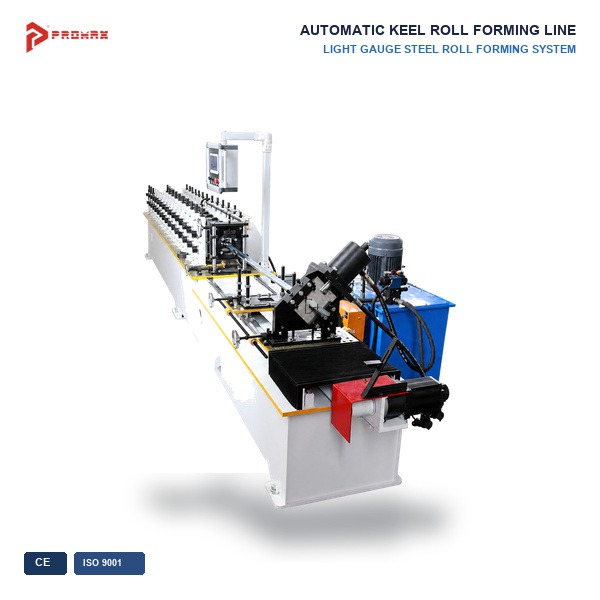

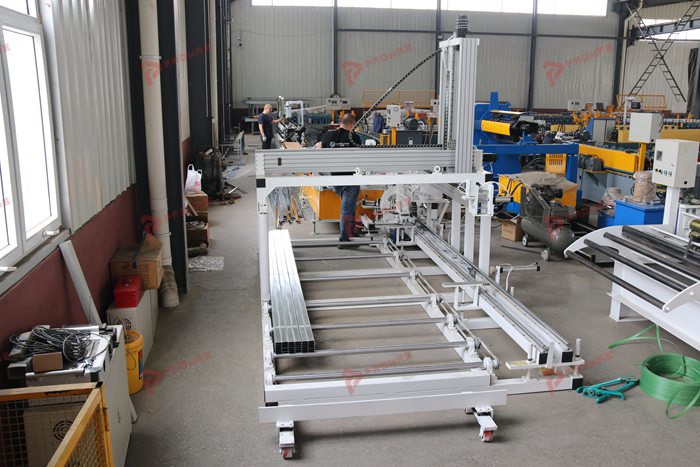

The PROMAX Profile Roll Forming Machine is designed for manufacturing galvanized steel profiles used in drywall partitions, gypsum board framing and suspended ceiling systems.
Machine Type: Cold Roll Forming Production Line
Material: Galvanized Steel
Profile Options: C Stud, U Track, Ceiling Channel and customized metal profiles, depending on machine configuration.
Features: Customized roller tooling, continuous roll forming, cutting options and optional PLC control.
Applications: Drywall partitions, ceiling framing and interior metal construction.
Customization: Profile geometry, steel thickness, cutting lengths and automation configuration.
Send your profile drawings and request a customized quotation.
The profile roll forming machine from PROMAX is designed for manufacturing galvanized steel profiles used in drywall partitions, gypsum board framing systems and interior metal construction. The equipment applies continuous cold roll forming technology to transform flat steel strips into finished profiles with specified cross-sectional shapes and dimensions.
Metal framing profiles are important components in modern drywall construction. Depending on the application, manufacturers may need C studs, U tracks, ceiling channels or other customized steel profiles. Each product requires suitable dimensions, material specifications and forming tooling to meet the intended construction requirements.
PROMAX develops customized metal profile roll forming machine solutions based on customer profile drawings and manufacturing requirements. A typical production line may include a decoiler, feeding and guiding system, forming stations, cutting equipment, PLC control system and receiving table.
The supported profile types, production capacity, material thickness range and automation functions are determined according to the approved technical configuration.
A profile roll forming machine is industrial equipment used to manufacture metal profiles from steel coils through a continuous cold forming process.
The steel strip passes through a series of forming rollers that gradually bend the material into the required cross-sectional geometry.
Each forming station performs part of the bending operation until the final profile shape is achieved.

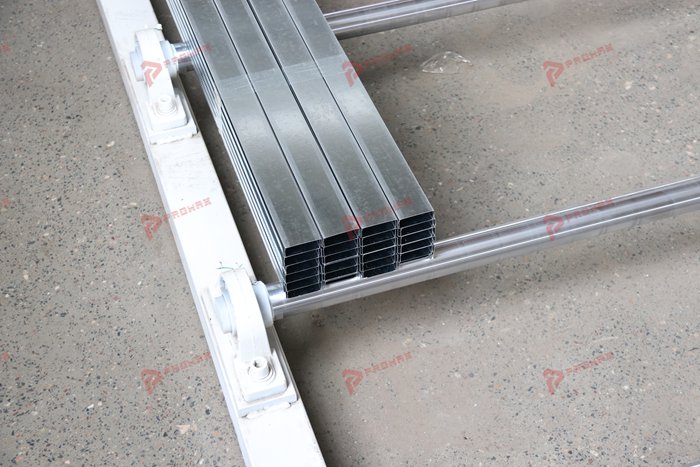

After forming, the profile is cut to the specified length and collected for inspection or packaging.
Cold roll forming is widely used for manufacturing profiles with consistent cross-sectional shapes, including drywall framing components and other lightweight steel products.
The machine design depends on the profile geometry, material properties and production requirements.
The PROMAX profile forming machine can be developed for manufacturers supplying galvanized steel profiles for interior construction.
Typical applications include:
The suitability of each finished profile depends on its dimensions, steel thickness, mechanical properties and the requirements of the intended construction system.
Different drywall and ceiling framing systems require different galvanized steel profiles.
C Stud Profiles: C-shaped metal studs are commonly used as vertical framing members in drywall partition walls. Their cross-sectional geometry generally includes a central web, flanges and return lips.
U Track Profiles: U-shaped tracks are commonly installed horizontally at the top and bottom of drywall partitions to receive and position compatible C studs.
Ceiling Channel Profiles: Metal ceiling channels are used in specified suspended ceiling and gypsum board support systems. Their shapes and dimensions vary according to the construction system.
Customized Steel Profiles: Additional profiles can be developed according to customer drawings and material specifications.
Different profile geometries require suitable roller tooling. Manufacturing multiple profile types on one machine depends on the approved tooling and adjustment arrangement.
The profile roll forming machine uses progressive cold forming technology to manufacture galvanized steel profiles.

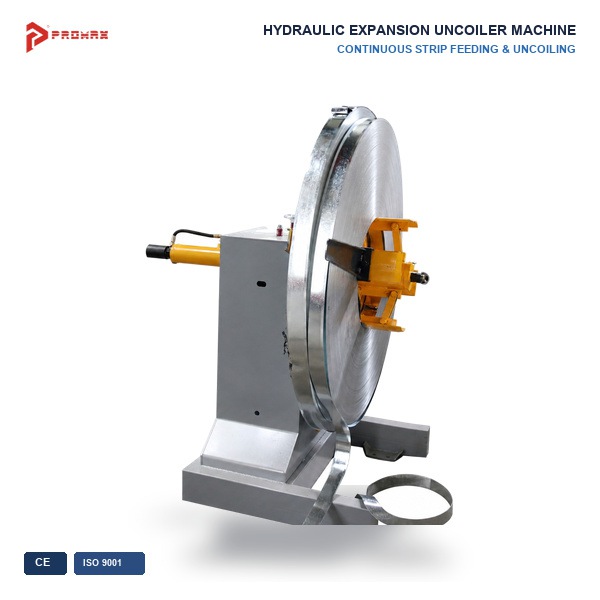

The production process begins with a steel coil placed on the decoiler. The steel strip is supplied through the feeding and guiding system before entering the forming section.
Inside the forming section, successive roller stations gradually bend the material into the required profile shape.
The forming sequence is designed according to the cross-sectional geometry, steel thickness and material properties.
After the forming process, the finished profile passes through a cutting system to obtain the specified length.
Depending on the machine configuration, additional operations such as punching, marking or automated length control may be incorporated.
A typical drywall profile roll forming machine may include several integrated systems:
The number of forming stations, drive arrangement and component specifications depend on the approved machine design.

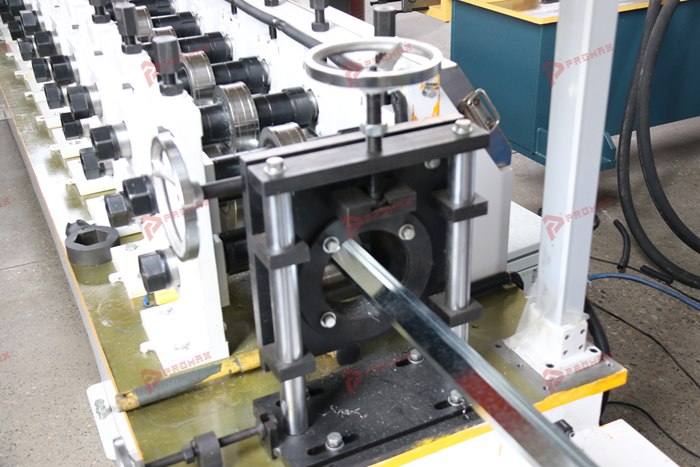

Roller tooling is one of the most important components of a steel profile making machine.
The forming rollers are designed according to the required profile drawing, steel thickness, bending radii and material properties.
Each forming station gradually changes the steel strip geometry until the specified cross-sectional shape is achieved.
For drywall profiles, important dimensions may include web width, flange height, return lips and other features defined by the profile drawing.
Proper roller alignment, material guidance and tooling design help maintain dimensional consistency during production.
PROMAX can develop customized roller tooling according to customer-approved profile drawings.
Cold roll forming is widely used for manufacturing metal profiles with defined cross-sectional shapes.
During the process, the steel strip passes through multiple forming stations without being heated for the bending operation.
Progressive forming allows the material to reach the required profile geometry through a controlled sequence of bending steps.
The forming process must be designed according to the steel properties, profile dimensions and expected manufacturing conditions.
For drywall framing manufacturers, cold roll forming provides a practical method for producing galvanized steel profiles in repeatable shapes and lengths.
Galvanized steel is commonly used for drywall framing because it combines mechanical strength with a protective zinc coating.
When selecting a galvanized steel profile machine, manufacturers should confirm the steel thickness, strip width, yield strength and coating characteristics.
These parameters influence the forming forces, roller design and machine component selection.
The selected material must be compatible with the equipment specifications and the requirements of the finished profile.
Different steel grades or thickness ranges may require adjustments to the technical design.
The manufacturing process for galvanized drywall profiles generally includes the following stages:
The actual manufacturing sequence may vary according to the selected equipment configuration.

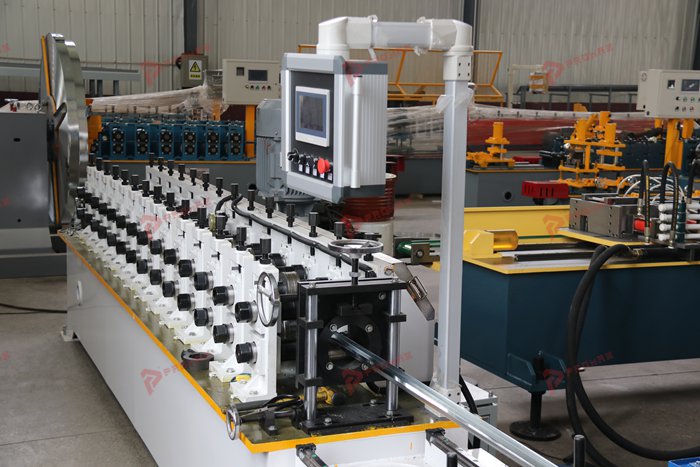

The PROMAX metal profile roll forming machine can be configured with a PLC control system to manage selected production functions.
Depending on the configuration, operators may enter cutting lengths, production quantities and other supported parameters through a human-machine interface.
The cutting system is selected according to the profile geometry, steel thickness and required manufacturing process.
Automatic cutting options can support production orders requiring different finished lengths.
Additional automation functions can be evaluated according to customer requirements.
Automatic profile size adjustment or C/U changeover is available only when specifically included in the approved equipment configuration.
PROMAX provides customized roll forming solutions for manufacturers requiring different drywall framing profiles.
The machine can be developed according to customer requirements for profile width, flange dimensions, return lip geometry, steel thickness and cutting length.
For ceiling channel applications, the tooling is designed according to the specified cross-sectional drawing.
Optional operations, such as punching or specialized cutting, can be evaluated according to production requirements.
The ability to manufacture multiple profile sizes or types on one machine depends on the tooling arrangement and adjustment mechanisms.
Customers are encouraged to provide complete profile drawings and material specifications before equipment selection.
Manufacturers can select different equipment arrangements according to their product range and production requirements.
Dedicated Profile Machines: A dedicated machine is configured for a defined profile geometry, such as a C stud, U track or ceiling channel.
Adjustable Roll Forming Machines: An adjustable machine may support a specified range of compatible profile dimensions, depending on its tooling design.
Combined Production Solutions: Certain machine configurations can be developed to manufacture compatible C and U profiles, including optional changeover arrangements.
These configurations have different tooling requirements, operating procedures and investment considerations.
PROMAX can evaluate customer drawings and recommend an appropriate production solution.
Dimensional inspection is an important part of metal profile manufacturing.
Typical inspection points include profile width, flange height, bending geometry, straightness and cutting length.
For C-shaped profiles, return lip dimensions may also require inspection.
The condition of the galvanized coating should be checked after forming.
Inspection tolerances and acceptance criteria should be defined according to the approved profile drawings and the requirements of the intended construction system.
Consistent raw material specifications and appropriate machine maintenance are important for stable manufacturing.
Before purchasing a profile roll forming machine, manufacturers should confirm the required profile types, steel material specifications and production needs.
Important information includes profile drawings, steel thickness, material grade, finished cutting lengths and expected production capacity.
Customers should also identify whether punching, automatic size adjustment, profile changeover or other processing functions are required.
These details help determine the appropriate roller tooling, forming stations, cutting system and control configuration.
PROMAX can evaluate customer requirements and prepare a suitable technical proposal.

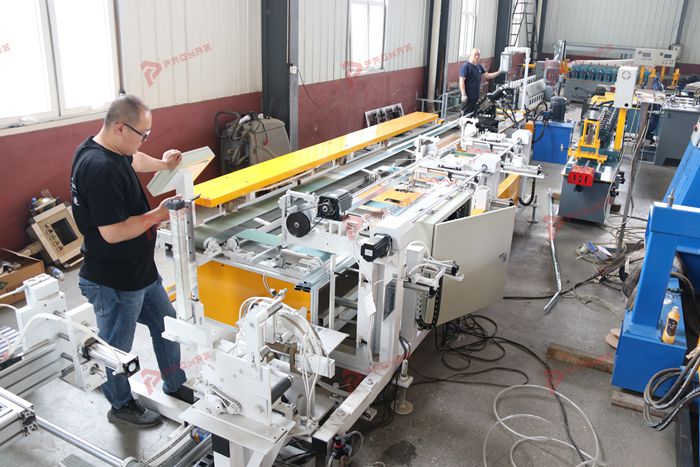

PROMAX develops cold roll forming equipment for drywall studs, tracks, ceiling channels and lightweight metal framing profiles.
Our services include profile drawing evaluation, machine configuration planning, customized tooling and equipment manufacturing.
Backed by Tianjin Haixing's experience in roll forming technology since 1996, PROMAX supports manufacturers seeking customized equipment solutions for different markets.
Our team can help customers evaluate profile dimensions, material specifications and production requirements before preparing a quotation.
Are you looking for a profile roll forming machine to manufacture galvanized steel profiles for drywall partitions or ceiling framing systems?
Send us your profile drawings, steel thickness, material specifications, required cutting lengths and production capacity expectations.
Our engineering team can review your requirements and recommend a suitable machine configuration.
Contact PROMAX today to request a customized quotation for your metal profile roll forming production line.
