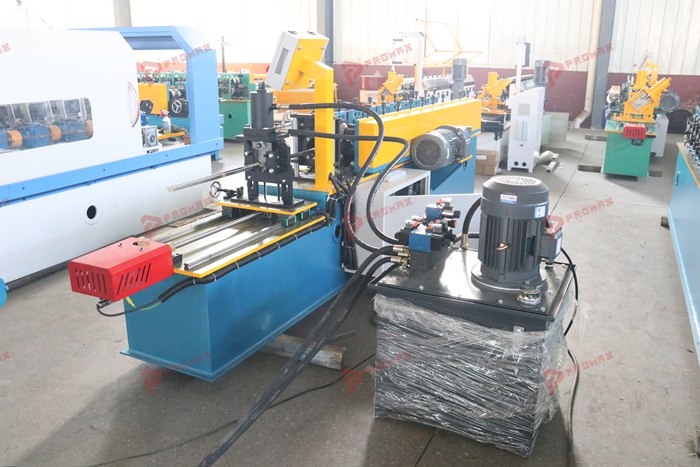

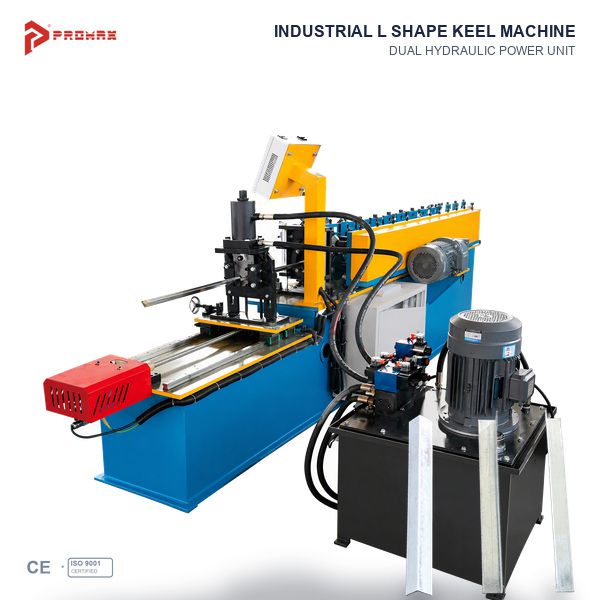

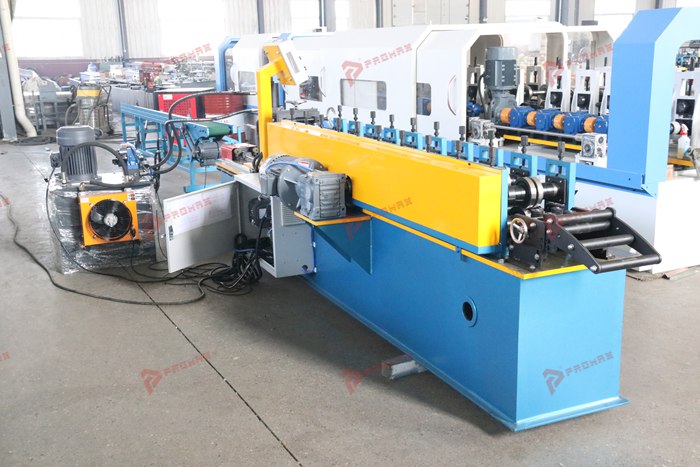

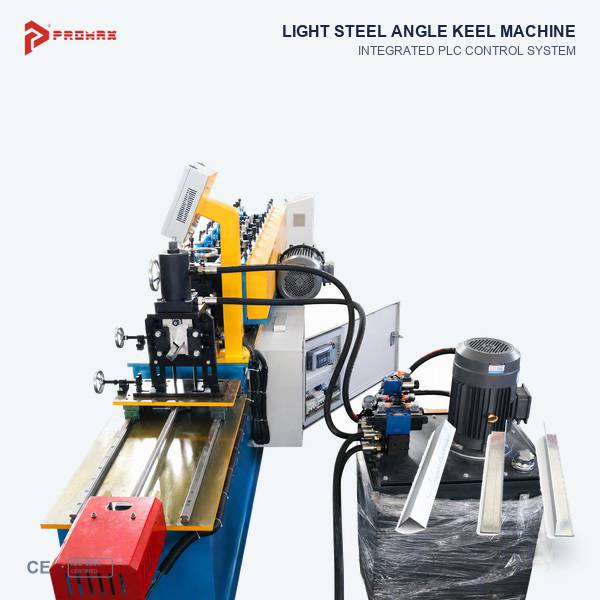

Gypsum Channel Roll Forming Machine for L-Type Metal Profiles

The PROMAX gypsum channel roll forming machine is designed for manufacturing specified L-shaped metal profiles used in compatible gypsum board ceiling and interior construction systems. The machine forms metal strip progressively through a series of rollers to achieve the required cross-sectional shape. Its configuration depends on the profile drawing, material specifications, finished lengths, and production requirements.

For manufacturers supplying ceiling accessories and light gauge metal framing components, selecting the correct roll forming equipment is essential for establishing a consistent production process. PROMAX provides roll forming solutions based on the customer's target profile and manufacturing needs. Before selecting a machine, buyers should confirm the intended L-type profile and its application within the relevant ceiling or drywall system.

What Is a Gypsum Channel Roll Forming Machine?

A gypsum channel roll forming machine is equipment used to manufacture metal channels and framing profiles for compatible gypsum board and ceiling construction systems. This product is intended for forming specified L-shaped metal profiles rather than producing gypsum boards themselves.

During roll forming, a flat metal strip passes through successive roller stations. Each station gradually bends the material until it reaches the required cross-section. Depending on the machine configuration, a cutting system can then cut the formed profile to the specified length.

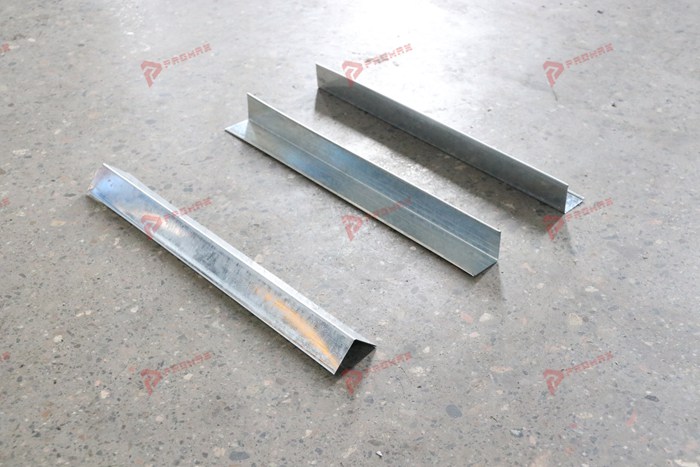

L-shaped profiles may serve as perimeter angles, edge components, or other framing elements in compatible construction systems. The actual function depends on the dimensions, material, installation method, and requirements of the finished product. Customers should provide a profile drawing so the machine configuration can be matched to the intended application.

Key Features of the L-Type Gypsum Channel Machine

1. Profile-Specific Forming Configuration

The forming system should be designed around the target L-shaped profile. Important parameters include the dimensions of both legs, material thickness, bend geometry, and dimensional tolerances. These details help determine the required roller tooling and forming arrangement.

A dedicated configuration helps avoid selecting equipment intended for a different profile, such as a C-shaped stud, U-shaped track, or Omega channel. Although these products may all be used in interior construction, their cross-sections and tooling requirements are different.

2. Progressive Roll Forming Process

Progressive roll forming shapes metal strip gradually rather than creating the entire profile in one operation. When the machine is correctly configured and maintained, this process can support repeatable production of long metal profiles.

Actual dimensional accuracy and production performance depend on the machine design, material properties, tooling condition, operating parameters, and inspection procedures. These factors should be evaluated during technical specification and machine acceptance.

3. Cutting to Required Lengths

Different ceiling projects may require different profile lengths. The cutting configuration should therefore match the customer's product range and manufacturing workflow. Buyers should specify standard lengths, any length variations, and the required cutting method when requesting a quotation.

The available cutting and length-control functions must be confirmed in the proposed machine specification. Additional automation should only be included where it is supported by the actual machine configuration.

4. Material Compatibility

The metal material and thickness influence forming forces, roller design, tooling requirements, and the final profile. Galvanized steel is commonly used for many light gauge ceiling profiles, but the suitable material grade and thickness range must be confirmed for the target product.

Providing material details before ordering helps the supplier assess whether the proposed equipment is appropriate for the intended production conditions.

Applications of L-Type Gypsum Channel Profiles

L-shaped metal profiles can be used in compatible ceiling and interior construction systems. Depending on the specific profile design, potential applications may include:

• Perimeter angles for compatible suspended ceiling systems.
• Edge profiles for interior ceiling installations.
• Metal framing components for drywall construction.
• Ceiling accessories for residential and commercial projects.
• Light gauge metal profiles used in renovation and interior finishing.

Not every L-shaped profile is suitable for every ceiling system. The profile drawing, connection method, installation requirements, and applicable construction standards should be checked before production. The finished product must match the intended use and any relevant project requirements.

How the Gypsum Channel Roll Forming Process Works

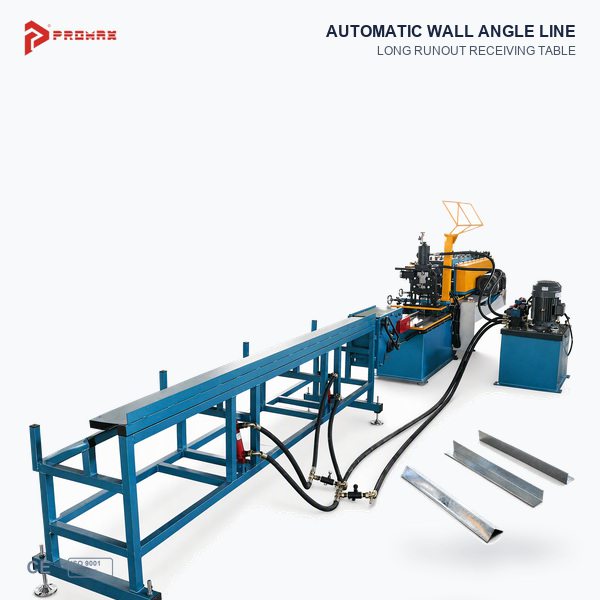

The production process depends on the final equipment configuration. A typical metal profile roll forming workflow may include the following stages:

1. Material preparation: Select metal coil that meets the agreed material grade, width, and thickness specifications.
2. Coil feeding: Feed the strip into the production line using the configured feeding equipment.
3. Material guiding: Align and guide the strip toward the forming section.

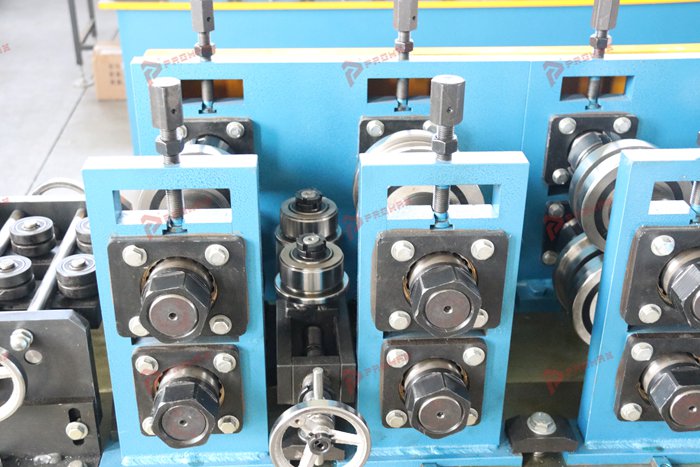

4. Progressive forming: Pass the strip through successive roller stations to create the specified L-shaped cross-section.
5. Length control: Set or control the required finished profile length according to the machine configuration.

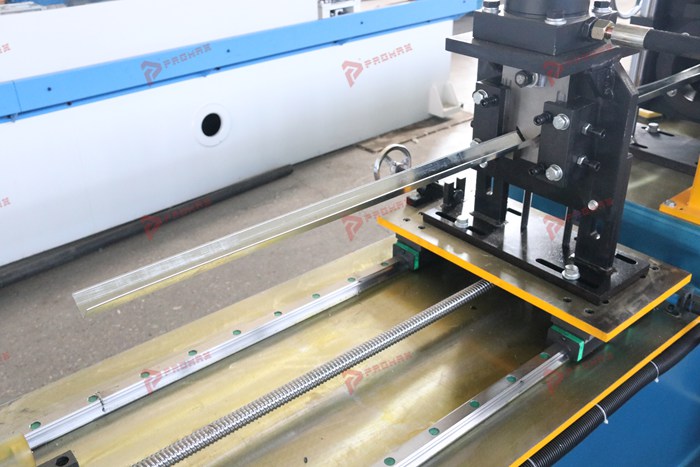

6. Cutting: Cut the formed profile to the specified length using the selected cutting arrangement.
7. Quality inspection: Check dimensions, bend geometry, surface condition, and cut quality against the agreed requirements.

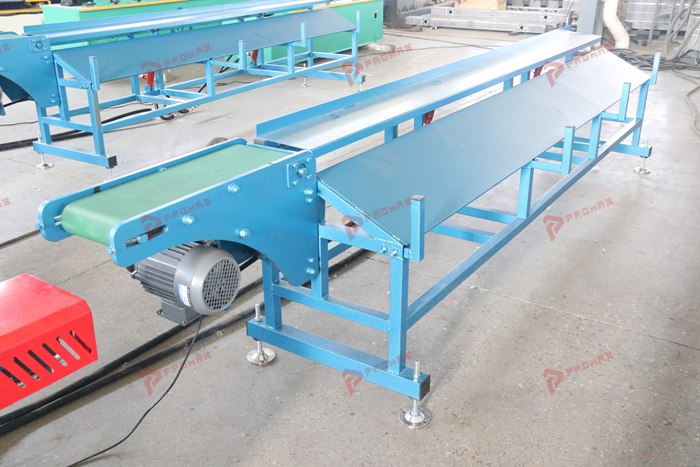

8. Bundling and packaging: Prepare finished profiles for storage, transport, or delivery to customers.

Manufacturers should establish suitable inspection procedures for profile dimensions and appearance. Regular checks can help identify dimensional deviations and support consistent product quality throughout production.

How to Choose the Right Gypsum Channel Roll Forming Machine

When evaluating a gypsum channel roll forming machine, buyers should focus on the finished product and the technical requirements of the production line. The following information helps the supplier assess the required configuration.

• Profile drawing: Provide a technical drawing or clear image showing the L-shaped cross-section and its dimensions.
• Material specifications: Confirm the metal type, grade, strip width, and thickness.
• Finished length: Specify standard profile lengths and whether multiple lengths are required.
• Production target: Explain the expected output and working schedule.
• Cutting requirements: Confirm the preferred cutting method and length-control needs.
• Electrical requirements: Provide the installation country's voltage and frequency.
• Available factory space: Share the planned installation area and material handling requirements where relevant.
• Scope of supply: Clarify whether you need the main forming machine only or a line with additional feeding, decoiling, cutting, and handling equipment.

These details help determine whether the proposed machine is suitable for the target profile. Production speed, material thickness capacity, forming stations, automation functions, and other technical parameters should be confirmed in the final technical proposal rather than assumed from the product name.

Why Consider PROMAX Roll Forming Equipment?

PROMAX focuses on roll forming equipment for light steel keel and metal construction profiles. Backed by Tianjin Haixing's experience in roll forming technology since 1996, the team can review profile drawings and discuss machine configurations based on specific production requirements.

For manufacturers of L-shaped ceiling profiles, the key is to select equipment that matches the required dimensions, material specifications, cutting requirements, and production workflow. A correctly specified machine can support a repeatable forming process and help establish consistent quality inspection procedures.

Before confirming an order, buyers should review the technical specification, roller tooling, cutting arrangement, electrical configuration, included equipment, delivery terms, and after-sales service arrangements. The final performance parameters and scope of supply should be documented in the technical agreement.

Request a Quote for a Gypsum Channel Roll Forming Machine

Looking for a gypsum channel roll forming machine for L-type metal profiles? Contact PROMAX with your profile drawing, material thickness, finished lengths, expected production output, and delivery destination.

Our team can review your requirements and discuss a suitable roll forming solution for your application. Request a quotation based on your actual product specifications and confirm the machine configuration before placing an order.
