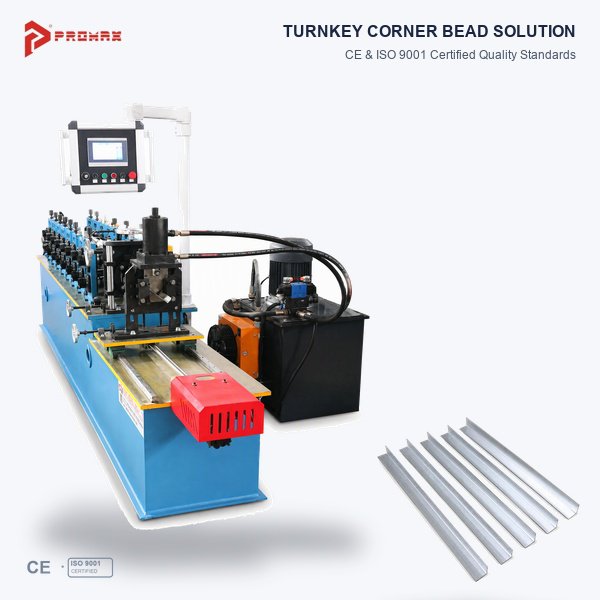

Plasterboard Ceiling Machine for L-Shaped Keel

Plasterboard Ceiling Machine for L-Shaped Keel

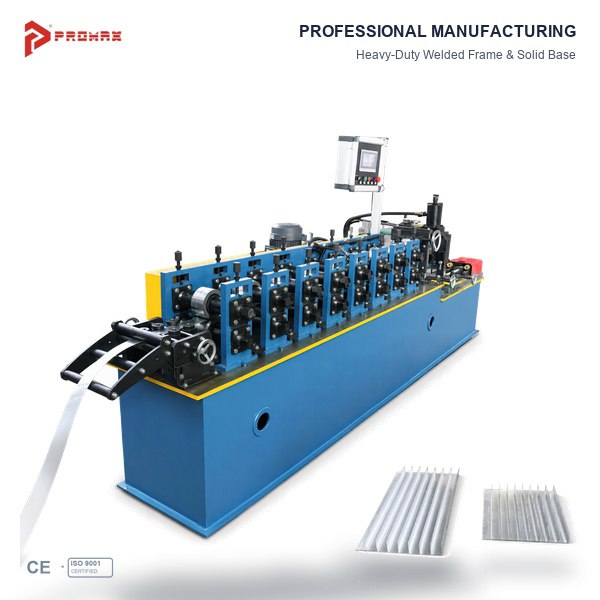

The PROMAX Plasterboard Ceiling Machine is designed for manufacturers seeking a roll forming solution for specified metal ceiling profiles. For L-shaped keel production, the machine configuration should be determined by the actual profile drawing, material specifications, finished dimensions, and production requirements.

Metal profiles used in plasterboard ceiling systems come in different shapes and sizes. An L-shaped profile may serve as an angle or perimeter component in a compatible ceiling system, depending on its dimensions and installation method. Providing the correct profile drawing helps establish the intended application and the machine configuration required for production.

PROMAX focuses on roll forming equipment for metal framing and construction profiles. Backed by Tianjin Haixing's experience in roll forming technology since 1996, the team can review your profile requirements and discuss a suitable equipment solution based on the specified product.

What Is a Plasterboard Ceiling Machine?

A plasterboard ceiling machine is commonly used to manufacture metal profiles for compatible plasterboard and suspended ceiling systems. In a roll forming line, metal strip passes through a series of forming rollers that gradually shape it into the required cross-section.

Depending on the product design and machine configuration, a production line may include material feeding, guiding, progressive forming, and cutting. Additional functions, such as punching or notching, should be confirmed according to the required finished profile.

For L-shaped keel production, the forming tooling must match the required angle, flange dimensions, material thickness, and other profile characteristics. A machine designed for one ceiling profile should not automatically be assumed to produce other profiles without a technical assessment.

Applications of L-Shaped Ceiling Profiles

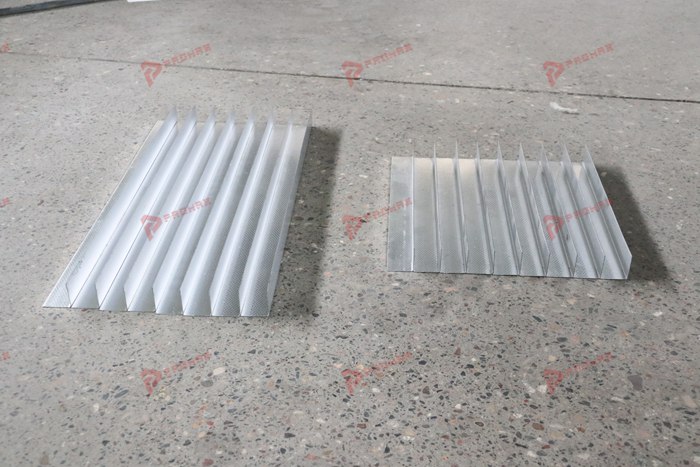

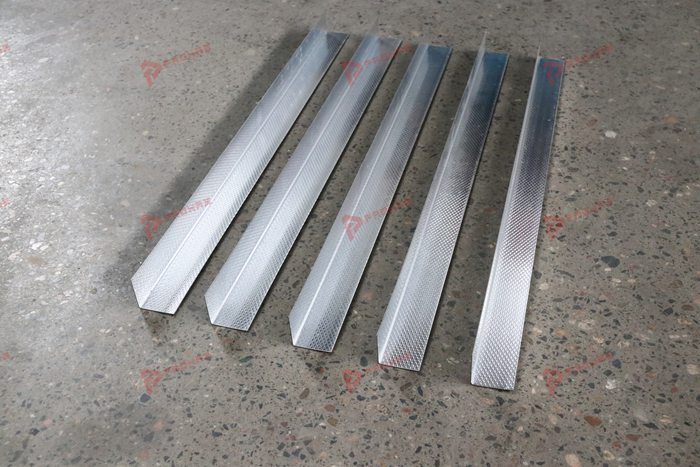

L-shaped metal profiles may be used as perimeter angles, edge profiles, or other components in compatible ceiling and interior finishing systems. The exact function depends on the profile dimensions and the installation requirements of the relevant building system.

• Plasterboard ceiling systems: Production of specified L-shaped metal profiles for compatible ceiling installations.
• Perimeter and edge applications: Manufacturing suitable angle profiles for selected ceiling layouts.
• Interior construction: Producing metal components for compatible interior finishing systems.
• Customized profile production: Forming metal strip into a defined L-shaped cross-section according to customer drawings.

Not every L-shaped profile has the same dimensions or load-bearing function. Before selecting a machine, confirm the intended application, cross-sectional dimensions, and requirements of the ceiling system in which the profile will be installed.

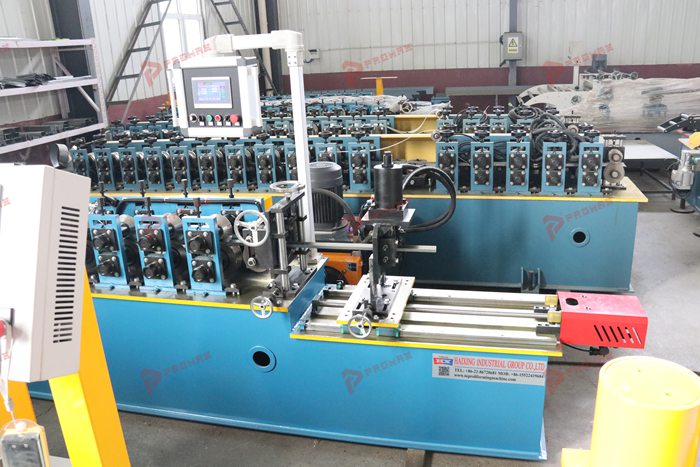

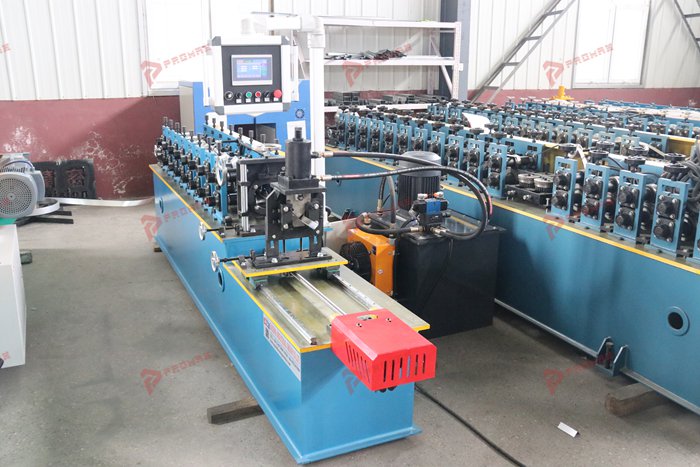

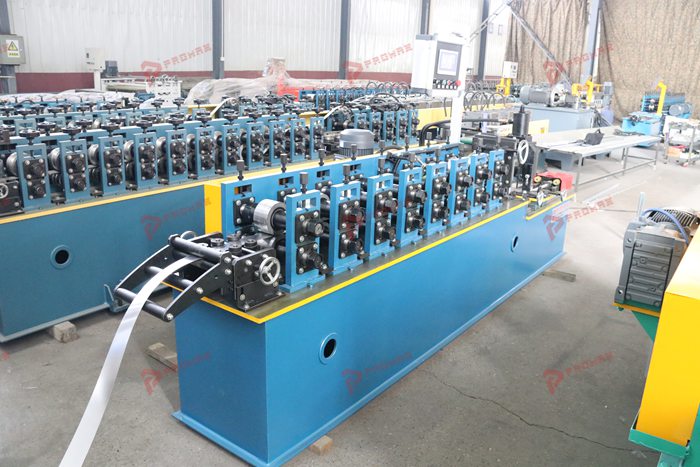

How the Ceiling Keel Roll Forming Process Works

A typical ceiling profile roll forming process gradually shapes metal strip into the specified cross-section. The exact production sequence depends on the material, profile design, finished length, and required processing functions.

1. Material preparation: Confirm the material type, thickness, coil width, and other relevant material specifications.
2. Feeding and guiding: Feed the strip into the machine and align it for the forming process.
3. Progressive roll forming: Shape the material through tooling configured for the specified L-shaped profile.

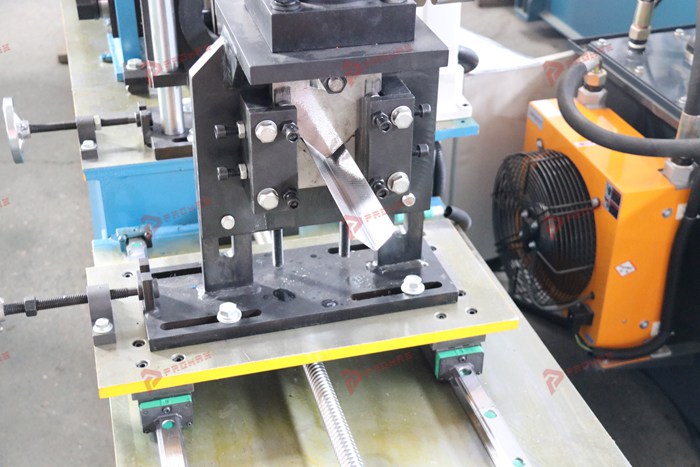

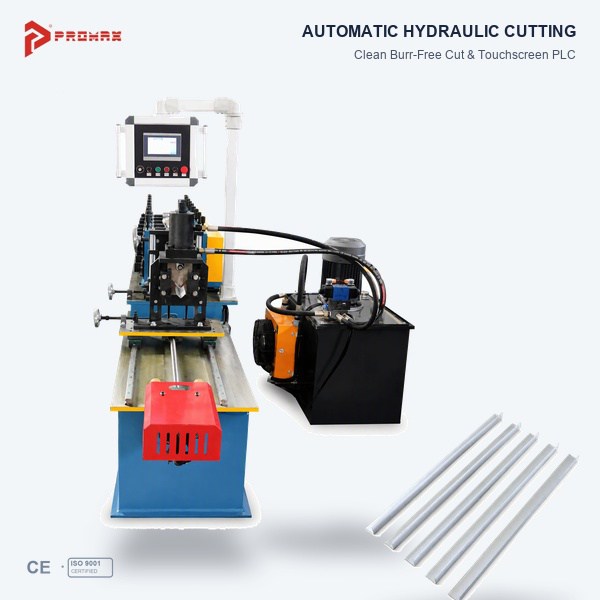

4. Cutting to length: Cut the formed profile to the agreed finished length using the selected cutting arrangement.
5. Quality inspection: Check the angle, flange dimensions, overall profile size, straightness, and cut quality against the approved drawing.

If the finished profile requires holes, slots, notches, or other features, provide their locations and dimensions before confirming the machine configuration. The availability of these functions depends on the agreed equipment scope.

Key Factors When Choosing a Plasterboard Ceiling Machine

1. Profile Drawing and Dimensions

The profile drawing is the starting point for machine selection. It should show the two flange dimensions, material thickness, bend geometry, and other important features. If you need to manufacture several ceiling profiles, provide a separate drawing for each product so the tooling and machine requirements can be evaluated.

2. Material Type and Thickness

Galvanized steel strip is commonly used for many metal ceiling profiles, but the actual material depends on the target product and market. Buyers should specify the material type, nominal thickness, coil width, and available material information. These details help the manufacturer evaluate the forming requirements.

3. Finished Length and Cutting Requirements

Specify the required finished length and dimensional tolerances. If the profile needs punching, notching, or other processing, provide drawings showing the relevant features. These requirements affect the proposed configuration and should be agreed upon before ordering.

4. Production Requirements

Expected output, order volume, product dimensions, and factory operating conditions are important when evaluating a roll forming solution. Discuss your production targets with the manufacturer so the proposed configuration can be assessed against the actual product and material.

5. Finished Profile Quality

Define the acceptance criteria for the finished L-shaped profile, including flange dimensions, angle accuracy, straightness, cut length, edge condition, and surface appearance where applicable. Clear requirements help align the machine proposal with your production needs.

Why Consider PROMAX Ceiling Profile Equipment?

PROMAX provides roll forming equipment solutions for metal framing and construction profile applications. The equipment evaluation process focuses on the intended profile, material specifications, production requirements, and required processing functions.

• Drawing-based evaluation: Review the actual L-shaped profile before confirming the machine configuration.
• Material compatibility review: Evaluate the specified material and thickness for the intended application.
• Application-focused planning: Match the proposed equipment scope to the target ceiling profile.
• Processing clarification: Identify the required feeding, forming, cutting, and additional processing functions.
• Technical scope confirmation: Clarify the supported profile and agreed machine specifications before ordering.

The final proposal should identify the intended profile, applicable material specifications, included functions, and relevant technical limitations. This gives buyers a clear basis for evaluating the proposed solution.

Information Needed for a Plasterboard Ceiling Machine Quotation

To evaluate a suitable machine for L-shaped ceiling keel production, please prepare the following information:

• L-shaped profile drawing or clear cross-sectional sketch.
• Material type, thickness, and coil width.
• Required finished profile length and dimensional tolerances.
• Any punching, notching, or additional processing requirements.
• Expected production volume and operating requirements.
• Destination country and factory power supply information.

If a complete drawing is not available, you can begin with the main profile dimensions and clear photographs of the finished product. The manufacturer can review the available information and identify any additional details required to evaluate the machine.

Request a Quote for an L-Shaped Ceiling Keel Machine

Looking for a plasterboard ceiling machine for L-shaped keel production? Contact PROMAX with your profile drawing, material specifications, and production requirements.

Providing accurate technical information helps clarify the forming process and the required machine scope. PROMAX can then review your application and discuss a suitable roll forming solution based on the confirmed requirements.
