Automatic Metal Stud Making Machine for C/U Profiles

Automatic Metal Stud Making Machine for C/U Drywall Profiles

The automatic metal stud making machine from PROMAX is designed for manufacturing galvanized steel C studs and U tracks used in drywall partition walls, gypsum board framing systems and interior metal construction. Equipped with an automatic C/U profile changeover system, the machine allows manufacturers to switch between compatible stud and track profiles according to production requirements.

C studs and U tracks are two essential components of drywall framing systems. C studs are generally installed vertically to support gypsum board partitions, while U tracks are installed horizontally at the top and bottom of the wall to guide and position the studs.

For drywall profile manufacturers, producing both profile types is important for supplying complete framing solutions. A combined metal stud making machine with automatic C/U changeover provides an integrated production solution for manufacturers requiring flexible profile manufacturing.

PROMAX develops customized equipment according to customer profile drawings, steel material specifications and production requirements. The machine can be configured with a decoiler, feeding system, automatic profile adjustment mechanism, roll forming stations, cutting unit, PLC control system and receiving table.

The final production capacity, supported profile dimensions and technical specifications are determined according to the approved machine configuration.

What Is an Automatic Metal Stud Making Machine?

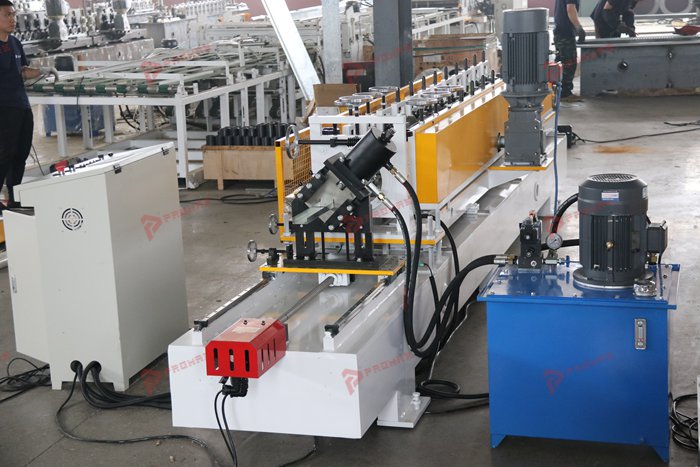

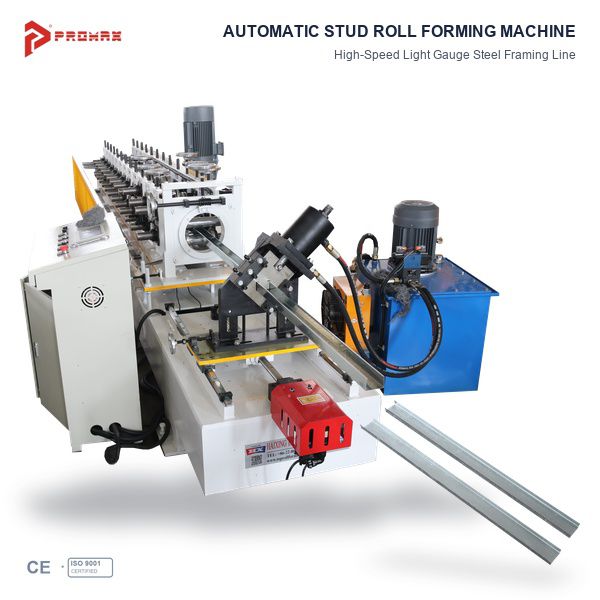

An automatic metal stud making machine is industrial roll forming equipment used to manufacture galvanized steel framing profiles from steel coils.

Unlike a conventional machine dedicated to a single C stud or U track profile, this PROMAX solution is designed for both C and U profile production through an automatic changeover arrangement.

The machine uses progressive cold roll forming technology to transform flat steel strips into the required metal profiles.

When the production order changes from C studs to U tracks, the automatic changeover system adjusts the relevant forming configuration according to the machine design.

The specific adjustment sequence, supported profile sizes and operating requirements depend on the approved equipment specifications.

Automatic C/U Changeover for Flexible Production

The automatic C/U changeover system is a key feature of this metal stud and track making machine.

Drywall framing manufacturers often need to produce both C-shaped studs and U-shaped tracks for the same construction system.

A machine with automatic profile changeover allows operators to select a compatible profile configuration through the control system and perform the required adjustments using the installed changeover mechanism.

This arrangement can reduce the manual adjustment work associated with switching between supported C and U profiles.

It also provides greater flexibility when planning production orders involving different drywall framing components.

The machine's automatic changeover capabilities are defined by the approved profile range and technical design.

C Stud and U Track Profiles for Drywall Construction

C studs and U tracks are complementary components used in many drywall partition systems.

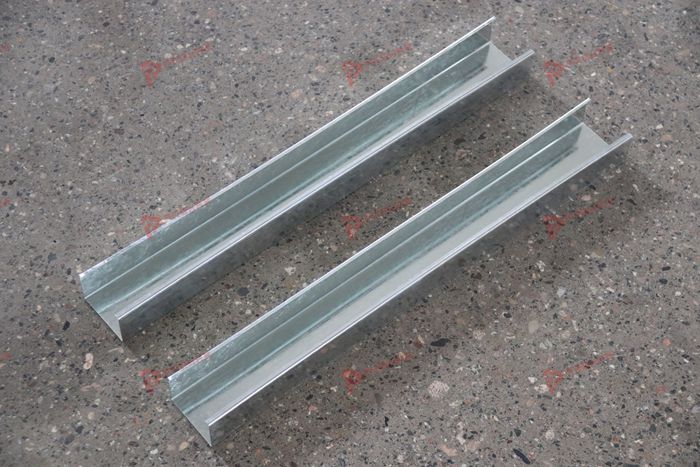

C Stud Profiles: C-shaped metal studs generally include a central web, flanges and return lips. They are commonly installed vertically between U tracks to form the framing structure for gypsum board walls.

U Track Profiles: U-shaped tracks are commonly installed horizontally at the top and bottom of partition walls. They provide guidance and positioning for compatible C studs.

Both profiles must be manufactured according to the required dimensions, steel thickness and construction system specifications.

The PROMAX automatic stud and track machine is developed to manufacture compatible C and U profiles within its approved production range.

Applications of Automatic C/U Stud and Track Machines

The machine is suitable for manufacturers supplying galvanized steel framing profiles for interior construction.

Typical applications include:

• Drywall partition wall framing systems.
• Gypsum board wall construction.
• Residential interior partition systems.
• Commercial office partition walls.
• Non-load-bearing metal framing.
• C stud and U track manufacturing factories.
• Customized galvanized steel drywall profile production.

The suitability of the finished profiles depends on their dimensions, material properties and the requirements of the intended construction system.

How Does the Automatic C/U Roll Forming Machine Work?

The C U stud roll forming machine uses a continuous cold forming process to manufacture galvanized steel framing profiles.

The production process begins with a galvanized steel coil placed on the decoiler. The material is supplied through the feeding and guiding system before entering the roll forming section.

Successive roller stations gradually bend the steel strip into the selected C stud or U track profile.

When a different supported profile is required, the automatic changeover mechanism adjusts the relevant forming configuration according to the selected production settings.

After the required profile is formed, the cutting system produces the specified finished lengths.

Depending on the machine configuration, optional operations such as punching or marking may also be incorporated.

Main Components of the Automatic Metal Stud Making Machine

A typical automatic drywall profile machine with C/U changeover may include the following systems:

• Decoiler: Supports the galvanized steel coil and supplies material to the production line.
• Feeding and guiding system: Aligns the steel strip before forming.
• Automatic C/U changeover system: Adjusts the relevant forming configuration between supported C stud and U track profiles.

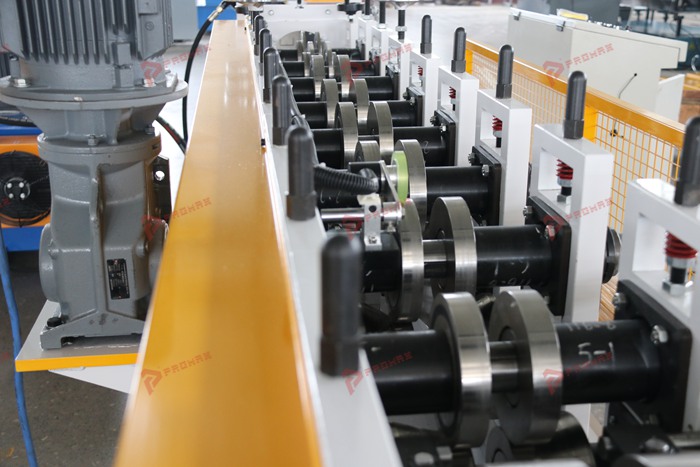

• Roll forming stations: Gradually bend the steel strip into the required profile geometry.
• Drive system: Provides mechanical power for continuous forming.
• PLC control system: Manages selected production functions and changeover settings.
• Cutting unit: Produces finished profiles according to the required lengths.
• Receiving table: Supports collection and handling of completed studs and tracks.

The number of forming stations, drive arrangement and changeover mechanism are determined according to the approved machine design.

PLC Control for C/U Profile Selection

The automatic changeover system is integrated with the machine's control arrangement.

Depending on the configuration, operators can select the required profile type and enter supported production parameters through the control interface.

The control system coordinates selected machine functions and the relevant changeover operations.

Production settings may include profile selection, cutting length, production quantity and other functions supported by the equipment.

The exact operating procedure and available control functions are confirmed in the final technical proposal.

Precision Roller Tooling for C and U Profiles

Roller tooling is an important part of the automatic metal stud making machine.

The tooling must accommodate the different geometries of C studs and U tracks within the approved machine configuration.

For C studs, the forming process may include the creation of a central web, flanges and return lips.

For U tracks, the tooling forms a channel-shaped cross-section with the required web and flange dimensions.

The roller design must consider profile dimensions, steel thickness, material properties and the automatic adjustment mechanism.

Proper tooling design and alignment help maintain dimensional consistency when producing the supported profiles.

Galvanized Steel Materials for Drywall Profiles

Galvanized steel is commonly used in drywall framing because it combines mechanical strength with a protective zinc coating.

Before selecting a metal stud and track making machine, manufacturers should confirm the steel thickness, strip width, yield strength and coating characteristics.

These parameters influence the forming forces, roller tooling and machine configuration.

The selected material must be compatible with the approved C and U profile production range.

Different steel grades or thickness ranges may require adjustments to the machine design.

Automatic Stud and Track Production Process

The production of galvanized C studs and U tracks generally includes the following stages:

1. Profile selection: Select the required C stud or U track configuration.
2. Material preparation: Confirm the galvanized steel coil specifications.
3. Automatic changeover: Adjust the relevant forming configuration for the selected profile.
4. Decoiling and feeding: Supply the steel strip to the forming section.
5. Progressive roll forming: Shape the steel into the required C or U profile.
6. Length cutting: Produce finished profiles according to the required lengths.
7. Quality inspection: Check dimensions, straightness and surface condition.
8. Product collection: Receive and organize the completed profiles.

The operating sequence may vary depending on the machine configuration and approved changeover procedure.

Custom C/U Profile Sizes and Machine Configuration

PROMAX provides customized equipment solutions for manufacturers producing different drywall C stud and U track profiles.

The machine can be developed according to customer requirements for profile width, flange dimensions, return lips, steel thickness and finished cutting length.

The supported C and U profile combinations depend on the approved tooling and changeover system.

Additional functions, such as punching or customized cutting arrangements, can be evaluated according to production requirements.

Automatic C/U changeover does not necessarily mean that every possible profile dimension can be produced without tooling changes. The supported size range must be confirmed during equipment design.

Customers are encouraged to provide complete C stud and U track drawings before selecting the machine.

Advantages of Automatic C/U Changeover

An automatic C/U changeover machine offers several potential advantages for drywall profile manufacturers.

• Integrated production: Supports manufacturing of compatible C studs and U tracks using one equipment solution.
• Flexible order planning: Allows production schedules to include both framing components.
• Reduced manual adjustment: Automatic changeover can reduce manual work when switching between supported profiles.
• Customized production: Equipment can be designed around customer-approved profile drawings.
• Controlled manufacturing: PLC-based functions can support selected production operations.
• Efficient factory layout: Combining compatible profile production may reduce the need for separate dedicated machines.

Actual productivity, changeover time and operating requirements depend on the equipment configuration.

Quality Control for C Stud and U Track Production

Dimensional inspection is important for both C studs and U tracks.

For C studs, typical inspection points include web width, flange height, return lip dimensions, straightness and cutting length.

For U tracks, inspection points may include channel width, flange height, straightness and finished length.

The condition of the galvanized coating should also be checked after forming.

Inspection tolerances and acceptance criteria should be defined according to the approved profile drawings and intended drywall framing system.

How to Choose an Automatic C/U Stud and Track Machine

Before purchasing an automatic C U changeover machine, manufacturers should define the required C stud and U track dimensions, steel material specifications and production needs.

Important information includes the profile drawings, steel thickness, material grade, required cutting lengths and expected production capacity.

Customers should also confirm the number of profile sizes required, the preferred changeover method and any additional processing functions.

These details help determine the appropriate roller tooling, adjustment system, forming stations, cutting unit and control configuration.

PROMAX can evaluate customer requirements and develop a suitable technical proposal.

Why Choose PROMAX for Automatic Stud and Track Machines?

PROMAX develops cold roll forming equipment for drywall studs, tracks, ceiling channels and lightweight steel framing profiles.

Our services include profile drawing evaluation, machine configuration planning, customized tooling and equipment manufacturing.

Backed by Tianjin Haixing's experience in roll forming technology since 1996, PROMAX supports manufacturers seeking customized equipment solutions for different markets.

Our team can help customers evaluate C/U profile combinations, material specifications and production requirements before preparing a quotation.

Request a Quote for an Automatic Metal Stud Making Machine

Are you looking for an automatic metal stud making machine capable of manufacturing galvanized steel C studs and U tracks for drywall framing systems?

Send us your C and U profile drawings, steel thickness, material specifications, required cutting lengths and expected production capacity.

Our engineering team can review your requirements and recommend a suitable automatic C/U changeover configuration.

Contact PROMAX today to request a customized quotation for your automatic metal stud and track making machine.
