The PROMAX Stud and Track Roll Forming Machine is designed for manufacturing C-shaped metal studs and U-shaped tracks used in compatible drywall framing and light gauge steel partition systems. It is suitable for manufacturers supplying metal framing components to construction companies, drywall contractors, and building material distributors.

Studs and tracks are important components in metal partition framing. C studs are generally used as vertical framing members, while U tracks are commonly installed horizontally to position and support compatible studs. The exact profile dimensions and material requirements depend on the intended framing system and the standards followed in the target market.

This automatic stud and track roll forming machine can be configured according to the required profile drawings, material specifications, cutting lengths, and production requirements. Before ordering, buyers should confirm whether the selected configuration supports both C stud and U track production and how profile changes are performed.

What Is a Stud and Track Roll Forming Machine?

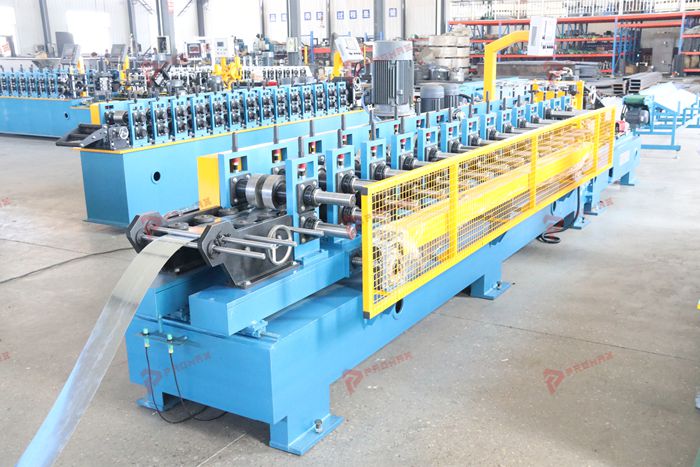

A stud and track roll forming machine uses a progressive forming process to transform metal strip into specified framing profiles. The material passes through a series of forming rollers, with each stage gradually shaping the strip into the required cross-section.

Compared with producing profiles through separate manual forming operations, a properly configured roll forming line provides a repeatable manufacturing process for specified profile designs. Actual production output, dimensional accuracy, and supported material specifications depend on the machine design, tooling, material properties, and operating conditions.

The main profile categories include:

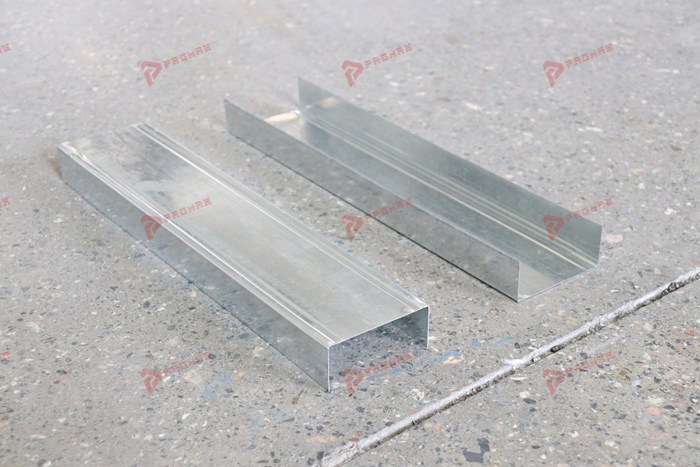

• C Stud Profiles: C-shaped metal framing members commonly used vertically in compatible drywall partition systems.
• U Track Profiles: U-shaped channels commonly used as horizontal tracks at the top and bottom of compatible partition frames.

Each profile requires suitable forming geometry and tooling. Manufacturers should provide the drawings for all required profiles so the equipment supplier can evaluate the appropriate configuration.

Applications of C Stud and U Track Roll Forming Equipment

C studs and U tracks are widely used in compatible interior metal framing systems. A stud and track roll forming machine helps manufacturers produce the framing components required by their customers.

Drywall Partition Framing

Metal studs and tracks form the framework for many drywall partition systems. C studs provide vertical framing members, while U tracks help position the studs along the horizontal boundaries of the partition. The selected profile dimensions must match the specified wall system.

Commercial and Residential Interiors

Metal framing profiles are used in offices, retail buildings, residential interiors, and other construction projects requiring compatible partition systems. Profile requirements may vary by project, market, and construction method.

Building Material Manufacturing and Distribution

Manufacturers and building material suppliers may produce standardized framing profiles for contractors and construction distributors. The required profile range, production volume, and frequency of size changes are important factors when selecting equipment.

Custom Metal Framing Profiles

Some customers require profile dimensions tailored to a specific framing system. Custom production should be evaluated using engineering drawings that clearly define the cross-section, material, and other relevant specifications.

How Does the Roll Forming Process Work?

The stud and track roll forming process consists of several production stages. The exact equipment arrangement depends on the required profiles and the functions included in the machine configuration.

1. Raw material preparation: Confirm the metal coil material, thickness, width, and other relevant specifications.
2. Material feeding and guiding: Feed the metal strip into the line and align it before forming.

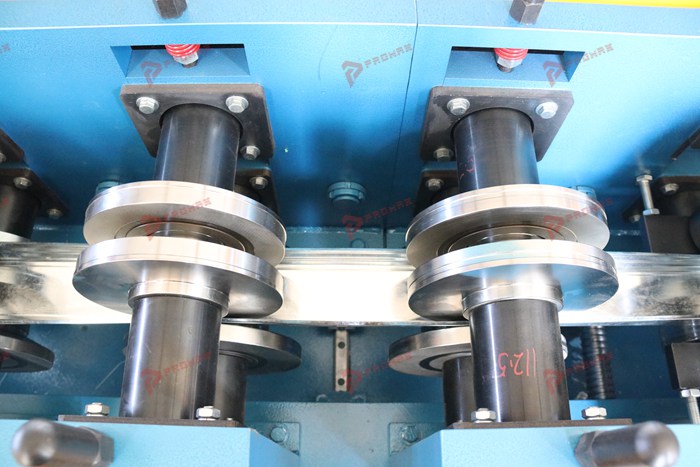

3. Progressive roll forming: Pass the strip through forming rollers designed for the required C stud or U track cross-section.
4. Cutting to length: Cut the formed profile to the specified finished length using the agreed cutting system.
5. Optional profile processing: Add punching, notching, or other processing functions if required and supported by the machine design.
6. Quality inspection: Check profile dimensions, straightness, cut length, and other agreed acceptance criteria.

For production planning, buyers should distinguish between the standard roll forming process and additional processing functions. Punching, notching, automatic stacking, and other options should be confirmed in the technical specification rather than assumed to be included.

Automatic Operation and Profile Changeover

Automation requirements are an important consideration when choosing a stud and track roll forming machine. Depending on the machine configuration, automation may cover material feeding, forming, cutting, or selected additional operations.

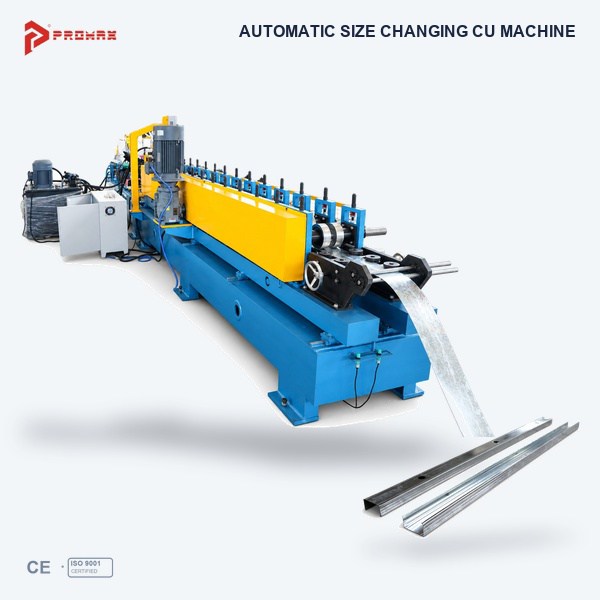

For manufacturers producing multiple C stud and U track sizes, the profile changeover method can influence production planning and operator workload. Some machine designs require manual adjustment or tooling replacement, while other configurations may support specified automatic adjustments.

Before purchasing an automatic machine, confirm the following details:

• Whether the machine is designed to produce both C studs and U tracks.
• The supported profile dimensions and tooling configuration.
• Whether profile changeover is manual, partially automatic, or fully automatic.
• Which feeding, cutting, and processing operations are automated.
• Whether punching or notching is included in the proposed configuration.
• Which production steps require operator supervision or intervention.

Clear technical confirmation helps buyers evaluate the real automation level and understand the production process before placing an order.

Key Factors When Selecting a Stud and Track Roll Forming Machine

1. Profile Drawings and Dimensions

Provide the technical drawings for each C stud and U track profile. Include overall dimensions, flange widths, lip geometry, and any other relevant cross-sectional details. If multiple sizes are required, list each profile separately so the supplier can assess the necessary tooling and configuration.

2. Material Type and Thickness

Galvanized steel strip is commonly used for drywall framing profiles, but material requirements vary by application and market. Share the specified material type, thickness range, and coil width before the machine configuration is finalized.

3. Cutting Length and Processing Requirements

Specify the required finished lengths and dimensional tolerances. If the profiles need holes, notches, or other features, provide their locations and dimensions. These details help determine the required cutting and processing arrangements.

4. Production Volume and Product Range

Expected output, order frequency, and the number of profile sizes all affect equipment selection. Discuss your production targets with the manufacturer and confirm the expected performance for the specified material and profile configuration.

5. Factory Layout and Utilities

Consider installation space, electrical supply, coil handling, operator access, and finished-product storage. Confirm the machine dimensions and utility requirements before arranging delivery and installation.

Why Consider PROMAX Roll Forming Equipment?

PROMAX focuses on roll forming equipment for metal framing and construction profile applications. Backed by Tianjin Haixing's experience in roll forming technology since 1996, PROMAX can review customer requirements and discuss suitable equipment configurations for specified C stud and U track products.

• Profile-based equipment planning: Evaluate the machine configuration according to customer drawings and product requirements.
• Material specification review: Assess the intended material and dimensions before confirming the machine scope.
• Automation clarification: Define the automated functions, profile changeover method, and operator requirements.
• Processing options: Discuss cutting, punching, notching, and other functions according to the required products.
• Technical specification confirmation: Document the supported profiles, material range, included functions, and agreed requirements.

The final proposal should clearly identify the supported profile range, machine configuration, processing functions, and automation scope. This makes it easier to compare the proposed equipment with your factory's production needs.

Request a Quote for a Stud and Track Roll Forming Machine

Looking for a stud and track roll forming machine for drywall framing production? Contact PROMAX with your C stud and U track drawings, raw material specifications, required finished lengths, and production targets.

If your project requires automatic profile changeover, punching, notching, or other specialized functions, include those requirements in your inquiry. Providing accurate technical information helps the supplier evaluate the appropriate configuration and prepare a proposal for your application.

Send your profile drawings and production requirements to discuss a suitable stud and track roll forming solution for your business.
