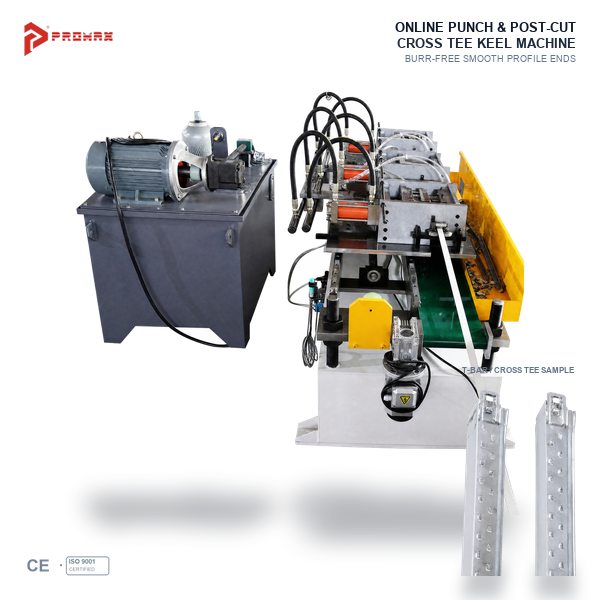

T-Bar Cross Tee Roll Forming Machine

T Grid Roll Forming Machine for Suspended Ceiling Systems

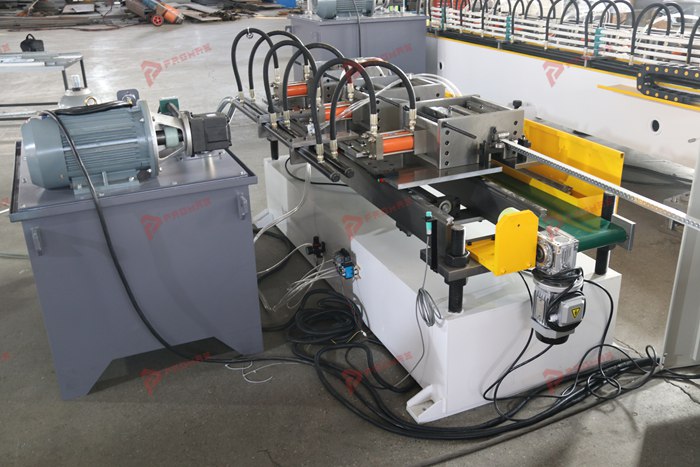

The T grid roll forming machine from PROMAX is designed for manufacturing metal T-shaped profiles used in suspended ceiling grid systems. These profiles form part of the supporting framework for ceiling panels in commercial buildings, offices, retail spaces, public facilities, and other interior construction projects.

For manufacturers supplying ceiling installation contractors and building material distributors, a suitable T-grid production line can help establish a consistent manufacturing process. The machine configuration can be developed according to the required cross tee profile, material specifications, connection structure, and production requirements.

Designed for Metal Ceiling Grid Profiles

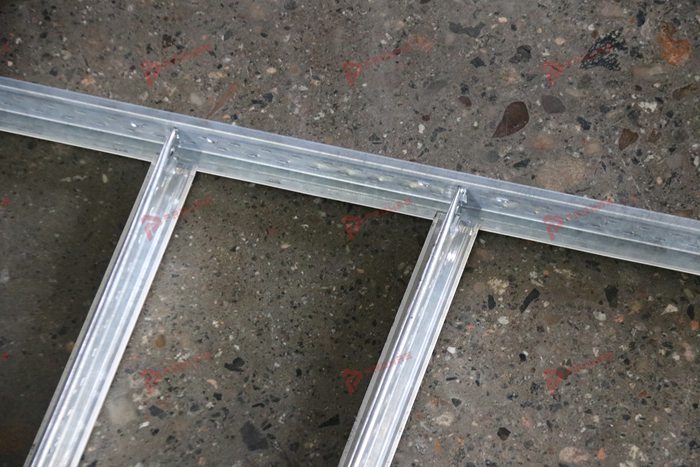

T-bar profiles are commonly used to create modular suspended ceiling frameworks. Depending on the ceiling system design, cross tees connect with compatible main runners to form a grid that supports ceiling panels. Correct profile geometry and compatible end connections are important considerations when selecting a T grid roll forming machine.

Before production, manufacturers should confirm the profile drawing, cross-sectional dimensions, material thickness, steel specifications, required cutting length, and end connector design. These details help determine the appropriate forming stations, tooling, punching arrangements, and cutting system.

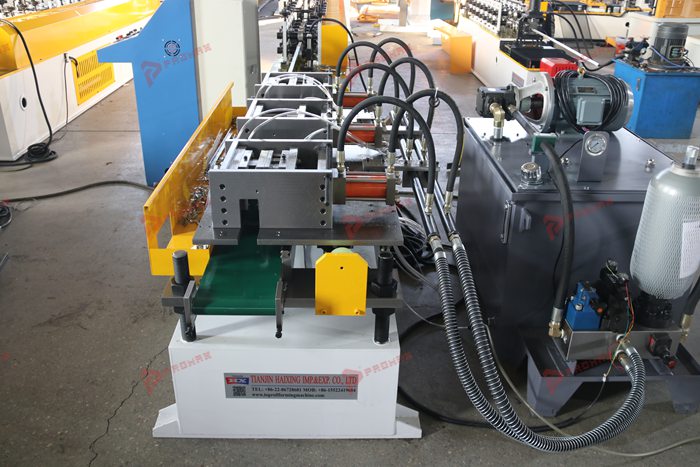

Customized Roll Forming Configuration

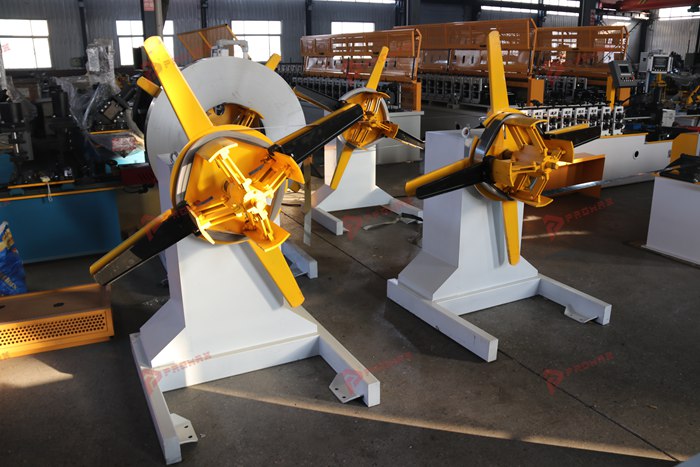

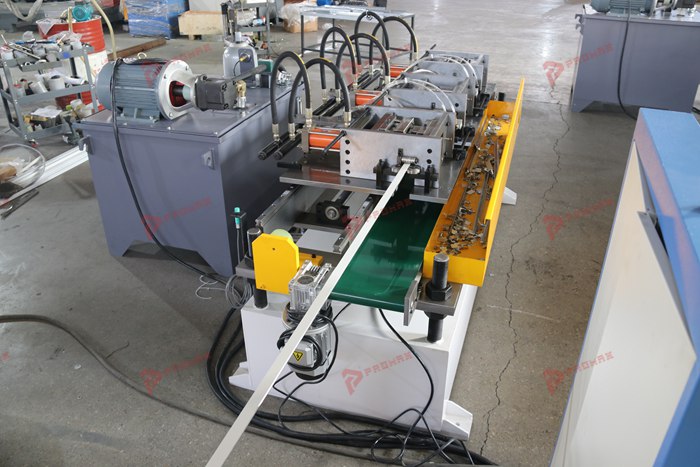

PROMAX provides roll forming equipment solutions based on individual product requirements. The machine layout and tooling can be discussed around the target T-grid profile and the customer's manufacturing process. Depending on the selected configuration, the production line may incorporate material feeding, profile forming, punching, length measurement, cutting, and finished-profile collection.

Not every T-bar ceiling profile uses the same connector structure or manufacturing sequence. For this reason, the machine design should be confirmed against the customer's actual drawings rather than relying on a general machine description alone.

Important Specifications to Confirm

When evaluating a T-bar cross tee roll forming machine, buyers should review the following technical details with the equipment supplier:

• Profile design: Cross-sectional dimensions, flange shape, web height, and overall profile geometry.
• Raw material: Steel grade, coil width, material thickness, and surface finish.

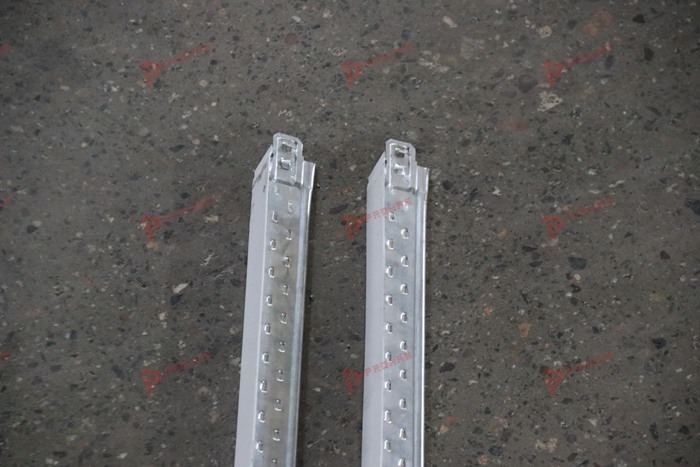

• End connection: Connector shape, punching position, and compatibility with the intended main runner system.
• Cutting requirements: Finished profile lengths, cutting method, and dimensional tolerances.
• Production process: Required operations, expected output, operator workflow, and collection method.
• Electrical control: Control system and operating requirements according to the agreed machine configuration.

Providing these details at the inquiry stage helps the manufacturer assess tooling requirements and propose a production solution that matches the intended ceiling grid system.

Applications in Ceiling Grid Manufacturing

T-grid roll forming equipment is intended for manufacturers producing metal components for suspended ceiling systems. The finished profiles can be used in compatible ceiling grid assemblies for offices, commercial interiors, educational facilities, retail spaces, and other construction applications.

Because ceiling grid products can vary by market and installation system, profile compatibility should be checked before production. Buyers should confirm the dimensions and connection details of the cross tee together with the corresponding main runner and ceiling panel system.

Request a T Grid Roll Forming Machine Quote

PROMAX works with customers to discuss roll forming equipment according to their product drawings and production objectives. To help us evaluate your project, please provide the T-bar or cross tee profile drawing, material specifications, finished product length, end connector details, and estimated production requirements.

Based on this information, we can discuss the appropriate machine configuration, tooling, punching and cutting requirements, and other project-specific details. Contact PROMAX to request a quotation for a T grid roll forming machine tailored to your ceiling profile manufacturing needs.
