The PROMAX Metal Stud Roll Forming Machine is designed for manufacturing galvanized steel C studs used in drywall partitions and interior metal framing systems.
Machine Type: Cold Roll Forming Machine
Material: Galvanized Steel
Features: Customized C stud tooling, continuous roll forming, cutting options and optional PLC control.
Applications: Drywall C studs, gypsum board partitions and non-load-bearing metal framing.
Customization: C stud dimensions, steel thickness, cutting lengths and machine configuration.
Send your C stud drawings to request a customized quotation.

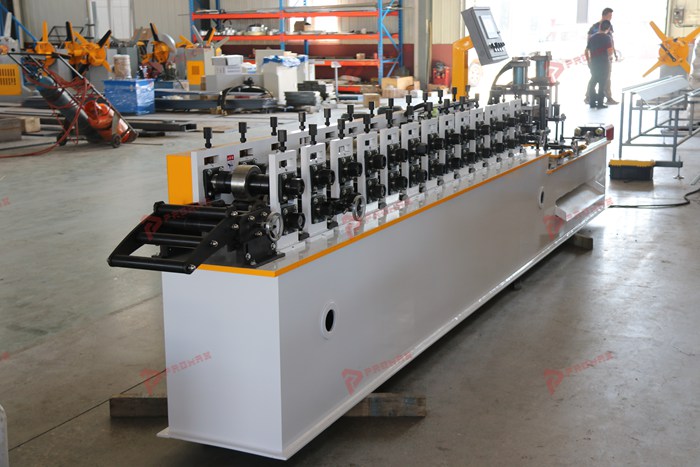

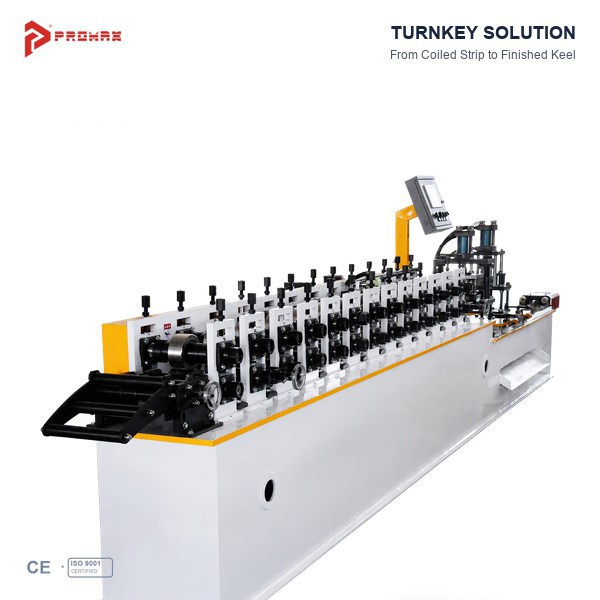

The metal stud roll forming machine from PROMAX is designed for manufacturing galvanized steel C studs used in drywall partition walls, gypsum board framing systems and interior metal construction. The machine applies continuous cold roll forming technology to convert galvanized steel strips into finished metal stud profiles with specified dimensions and cutting lengths.
Metal studs are essential vertical framing components in many drywall partition systems. They are typically installed between compatible U tracks to create a stable framework for gypsum board installation. The dimensional accuracy, straightness and material properties of these profiles are important for proper assembly and compatibility with the intended framing system.

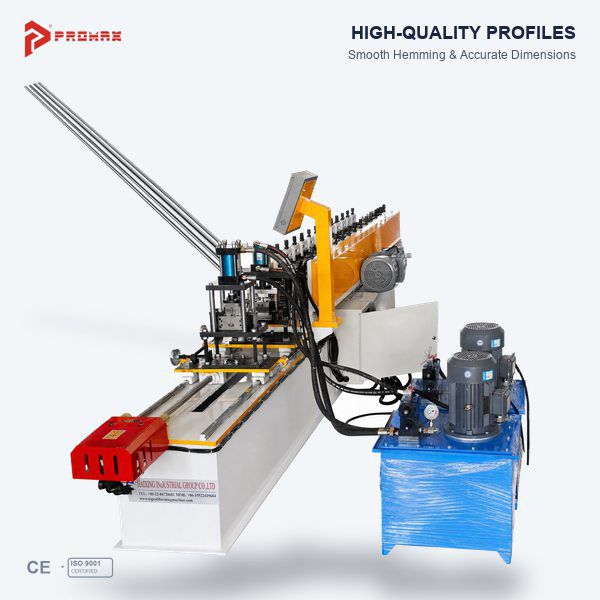

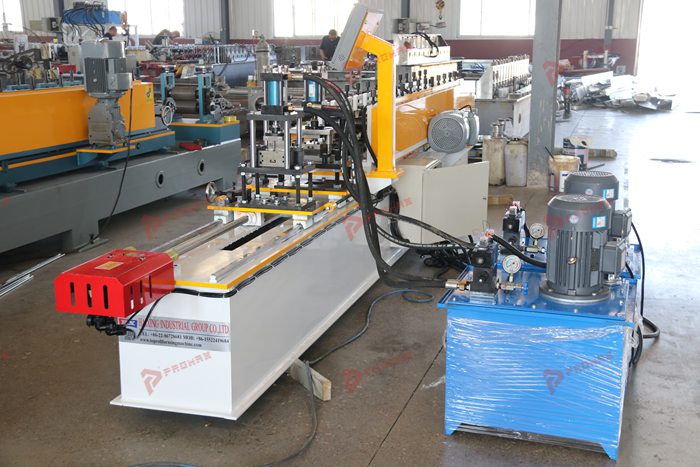

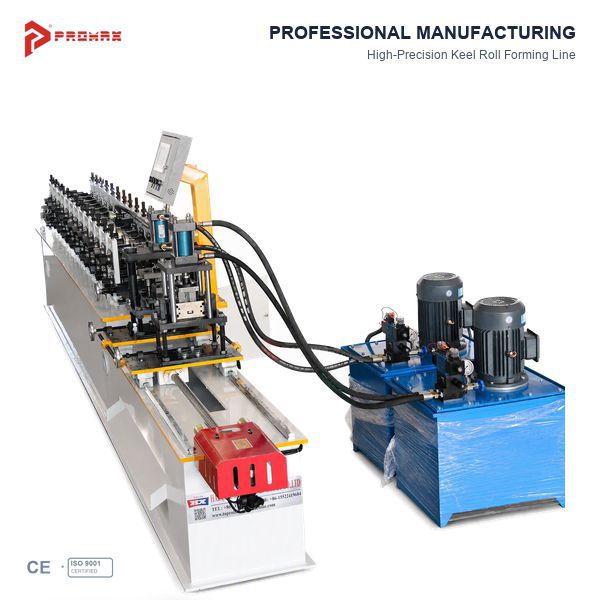

PROMAX develops customized metal stud roll forming machine solutions according to customer profile drawings, galvanized steel specifications and manufacturing requirements. A typical machine configuration may include a decoiler, feeding and guiding system, roll forming stations, cutting equipment, PLC control system and finished product receiving table.
The final production speed, supported material thickness, profile dimensions and automation functions are determined according to the approved technical specifications.
A metal stud roll forming machine is industrial equipment used to manufacture lightweight steel framing studs from metal coils through a continuous cold forming process.
For drywall applications, the equipment is configured to produce C-shaped galvanized metal studs according to the required profile drawings.
The steel strip passes through successive roller stations, where the material is gradually bent into the specified C-shaped cross-section.

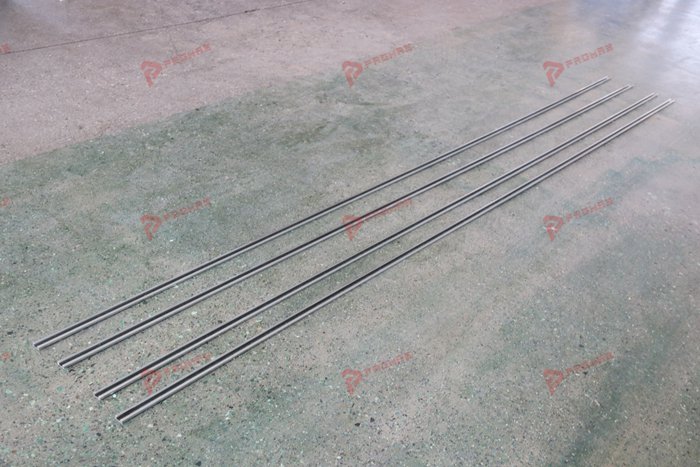

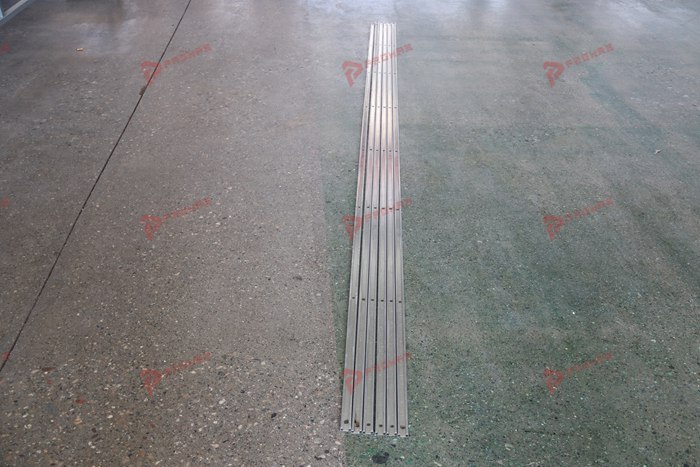

After forming, the profile is cut to the required finished length and collected for inspection or packaging.
The machine is intended for drywall metal stud manufacturing within its approved material and dimensional range.
Galvanized steel studs are widely used as vertical framing members in drywall partition systems.
Typical applications include:
The suitability of each finished profile depends on its dimensions, material thickness, mechanical properties and the requirements of the intended construction system.
The metal stud roll forming machine uses progressive cold forming technology to transform galvanized steel strips into finished C-shaped studs.
The manufacturing process begins with a galvanized steel coil placed on the decoiler. The material passes through the feeding and guiding system before entering the forming section.
Inside the forming section, successive roller stations gradually bend the flat steel strip into the required C stud geometry.
Each forming station performs part of the bending operation, allowing the material to reach the final cross-sectional shape through a controlled sequence.
After forming, the profile passes through the cutting system to obtain the specified finished length.
Depending on the machine configuration, optional operations such as punching, marking or automated length control may be incorporated.
A typical metal stud production machine may include several integrated systems:
The number of forming stations, drive arrangement and component specifications depend on the approved machine design.

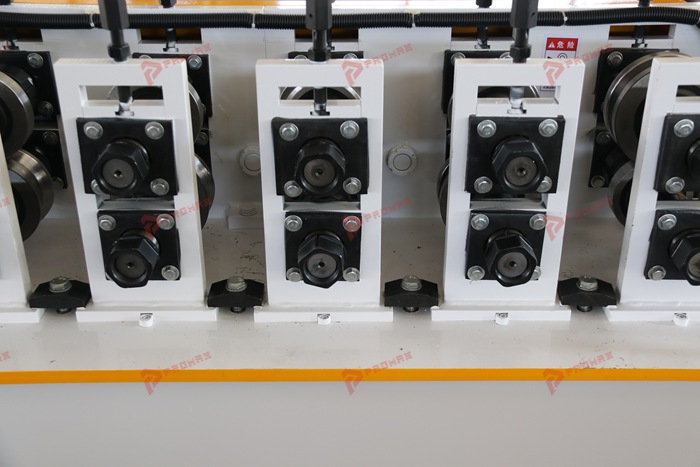

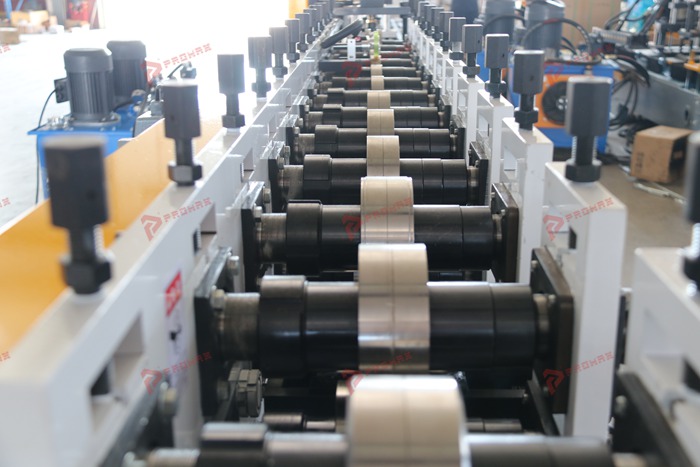

Roller tooling is one of the most important components of a C stud roll forming machine.
The forming rollers are designed according to the required profile geometry, including the web width, flange height, return lip dimensions and bending radii.
Steel thickness and material properties must also be considered during tooling development.
Each forming station gradually changes the steel strip geometry until the specified C-shaped profile is achieved.
Proper roller alignment, material guidance and tooling design help maintain dimensional consistency during production.
PROMAX can develop customized roller tooling according to customer-approved C stud drawings.
Galvanized steel is commonly used in drywall framing because it combines mechanical strength with a protective zinc coating.
Before selecting a galvanized steel stud machine, manufacturers should confirm the steel thickness, strip width, yield strength and coating characteristics.
These parameters influence the forming forces, roller design and machine component selection.
The selected steel material must be compatible with the equipment specifications and the requirements of the finished metal stud.
Different material grades or thickness ranges may require adjustments to the technical design.
The manufacturing process for galvanized drywall C studs generally includes the following stages:
The actual manufacturing sequence may vary according to the selected equipment configuration.

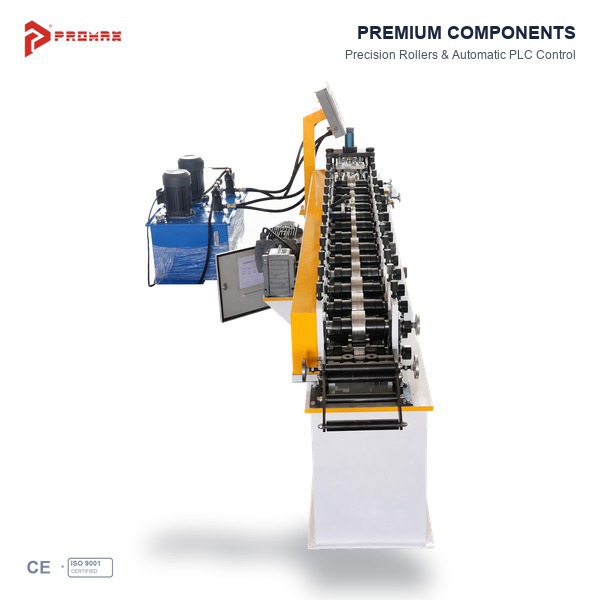

The PROMAX drywall metal stud machine can be configured with a PLC control system to manage selected production functions.
Depending on the configuration, operators may enter cutting lengths, production quantities and other supported parameters through a human-machine interface.
The cutting system is selected according to the profile geometry, steel thickness and required manufacturing process.
Automatic cutting options can support production orders requiring different finished lengths.
Additional automation functions can be evaluated according to customer requirements.
Automatic profile size adjustment is available only when specifically included in the approved equipment configuration.
PROMAX provides customized equipment solutions for manufacturers requiring different drywall metal stud profiles.
The machine can be developed according to customer requirements for web width, flange dimensions, return lips, steel thickness and finished cutting length.
Optional operations, such as punching or specialized cutting, can be evaluated according to production requirements.
The ability to manufacture multiple C stud sizes on one machine depends on the tooling arrangement and adjustment mechanisms.
Automatic size changing should not be assumed unless it is specifically included in the machine configuration.
Customers are encouraged to provide complete profile drawings and material specifications before equipment selection.
Metal studs and U tracks are complementary components of many drywall partition systems.
Metal C Studs: C-shaped profiles commonly used as vertical framing members. They generally include a central web, flanges and return lips.
U Tracks: U-shaped channels commonly installed horizontally to receive and position compatible metal studs.
Because their cross-sectional geometries are different, C studs and U tracks require suitable roller tooling.
This metal stud roll forming machine is intended for C stud manufacturing. Producing U tracks requires compatible tooling or a separate machine configuration.
Manufacturers requiring both profile types can consider a combined stud and track production solution.
Dimensional inspection is an important part of metal stud manufacturing.
Typical inspection points include web width, flange height, return lip dimensions, straightness and cutting length.
The condition of the galvanized coating should also be checked after forming.
Inspection tolerances and acceptance criteria should be defined according to the approved profile drawings and the requirements of the intended drywall framing system.
Consistent raw material specifications and appropriate machine maintenance are important for stable manufacturing.
When establishing a metal stud manufacturing operation, equipment selection should be based on the required profile dimensions, steel material specifications and expected production volume.
Manufacturers should also consider steel coil storage, material handling, machine installation space, finished product collection and quality inspection procedures.
The selected machine configuration should match the intended production workflow and available factory space.
For manufacturers supplying complete drywall framing systems, U track production equipment may also be required.
PROMAX can evaluate customer requirements and recommend suitable equipment arrangements for different manufacturing operations.
Before purchasing a metal stud roll forming machine, manufacturers should confirm the required C stud dimensions, steel material specifications and production needs.
Important information includes profile drawings, steel thickness, material grade, finished cutting lengths and expected production capacity.
Customers should also identify whether punching, automatic size adjustment or other processing functions are required.
These details help determine the appropriate roller tooling, forming stations, cutting system and control configuration.
PROMAX can evaluate customer requirements and prepare a suitable technical proposal.
PROMAX develops cold roll forming equipment for drywall studs, tracks, ceiling channels and lightweight metal framing profiles.
Our services include profile drawing evaluation, machine configuration planning, customized tooling and equipment manufacturing.
Backed by Tianjin Haixing's experience in roll forming technology since 1996, PROMAX supports manufacturers seeking customized equipment solutions for different markets.
Our team can help customers evaluate metal stud dimensions, material specifications and production requirements before preparing a quotation.
Are you looking for a metal stud roll forming machine to manufacture galvanized steel C studs for drywall partition systems?
Send us your C stud drawings, steel thickness, material specifications, required cutting lengths and production capacity expectations.
Our engineering team can review your requirements and recommend a suitable machine configuration.
Contact PROMAX today to request a customized quotation for your drywall metal stud roll forming machine.
