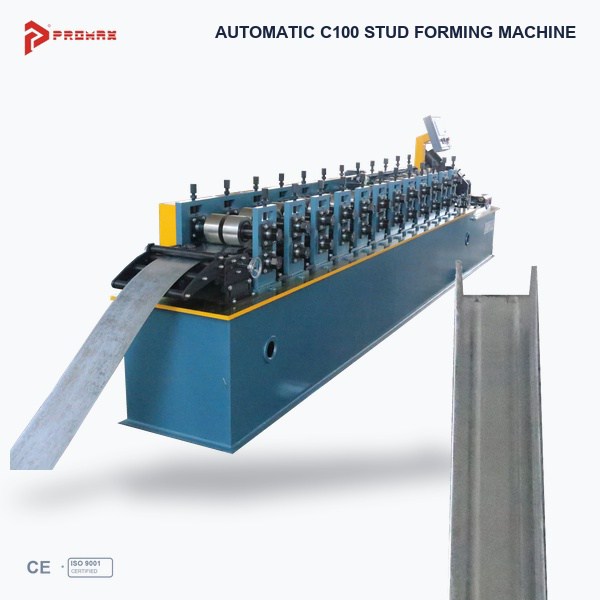

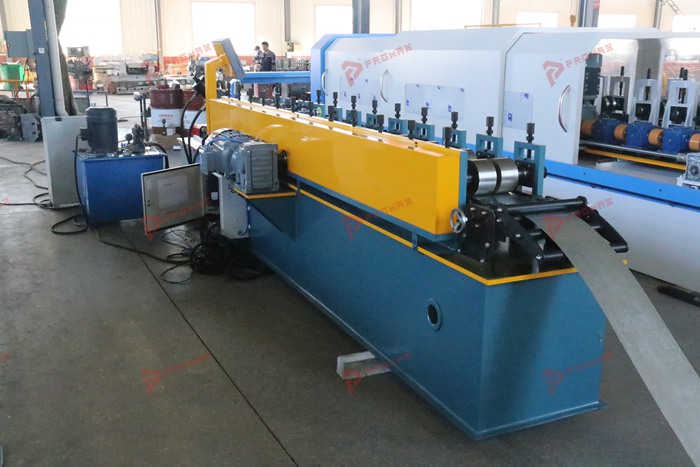

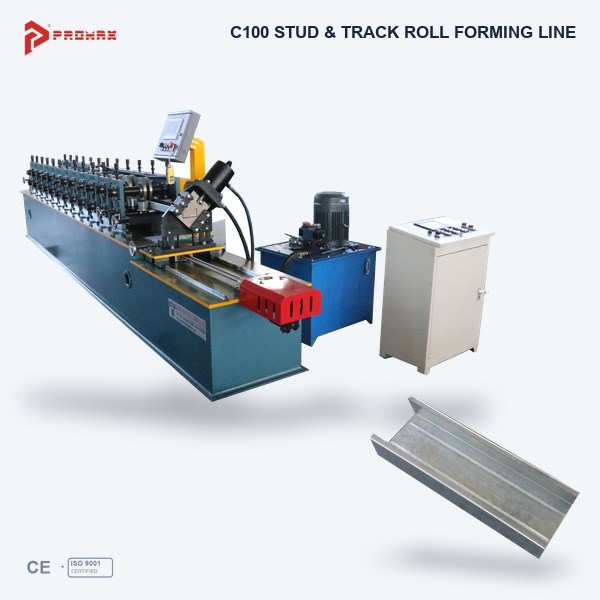

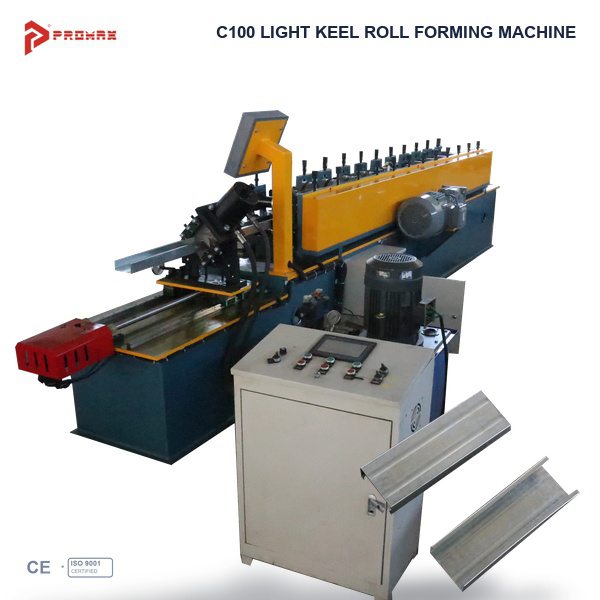

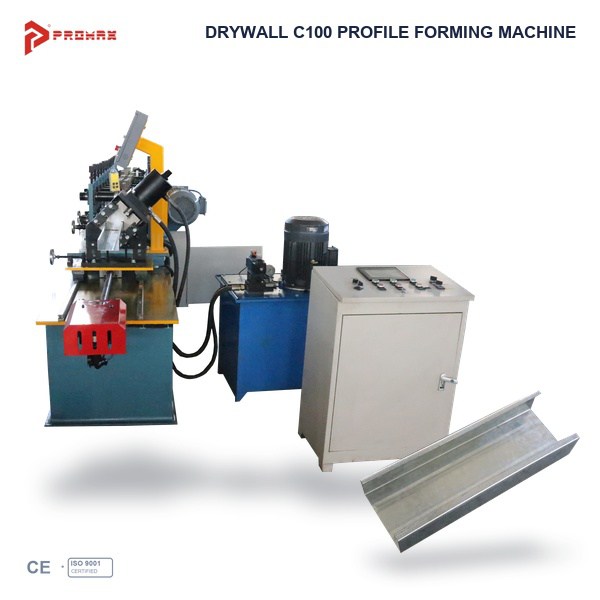

C100 Stud Forming Machine

C100 Stud Forming Machine

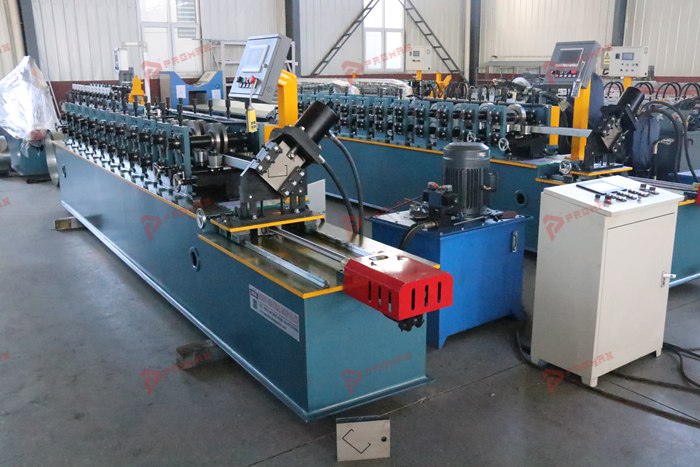

The PROMAX C100 Stud Forming Machine is designed for manufacturing specified C100 metal framing profiles through a continuous roll forming process. The machine configuration can be evaluated according to the required profile drawing, raw material specifications, finished dimensions, and production requirements.

For manufacturers of metal building components, choosing the right stud forming machine is an important step toward achieving consistent profile quality and efficient production. PROMAX provides roll forming equipment solutions based on customers' actual product requirements, helping them evaluate the appropriate forming tooling, material feeding arrangement, cutting system, and optional processing functions.

The designation C100 can refer to different profile specifications in different markets. Before confirming a machine order, buyers should provide a cross-sectional drawing or sample to verify the exact profile geometry and intended application.

Applications of the C100 Stud Forming Machine

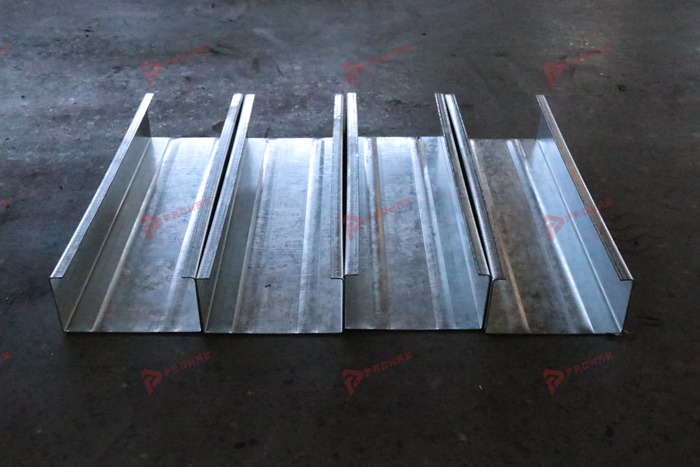

A C100 stud forming machine is intended to produce a specified metal profile used in compatible building or framing systems. The actual application depends on the cross-section, dimensions, connection details, and project requirements of the finished product.

• Metal framing profiles: Manufacturing specified steel profiles for compatible light framing systems.
• Ceiling and partition components: Producing profiles where the C100 design is suitable for the intended ceiling or partition system.
• Construction material manufacturing: Supplying formed metal components to building material manufacturers and distributors.
• Customized profile production: Evaluating roll forming tooling against customer-specific drawings and product dimensions.

Profile names are not always standardized across countries. If your product is a ceiling main channel rather than a vertical C-shaped stud, provide the drawing so the machine configuration and product description can be matched to the correct profile.

How a Stud Forming Machine Works

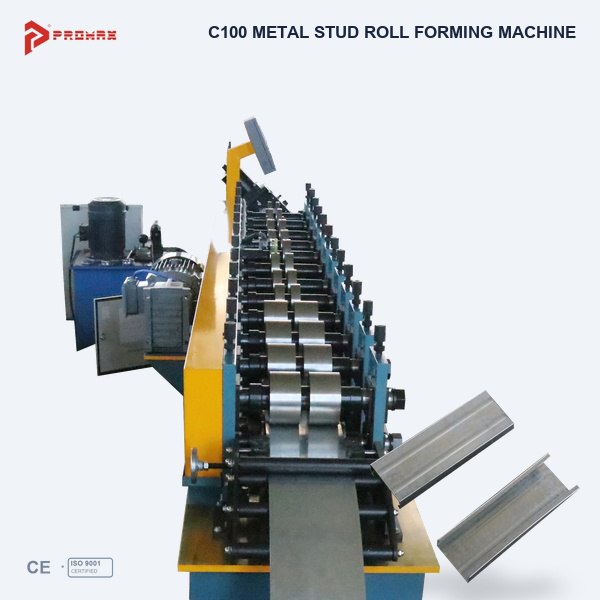

A typical stud forming machine processes metal strip from a coil and progressively shapes it through a series of rollers. After the material reaches the required cross-section, the configured cutting system separates the profile into specified lengths. Additional operations depend on the product drawing and the selected machine configuration.

1. Material preparation: Confirm the metal type, thickness, coil width, and other material requirements.
2. Feeding and guiding: Feed the strip into the machine and guide it into the forming section.

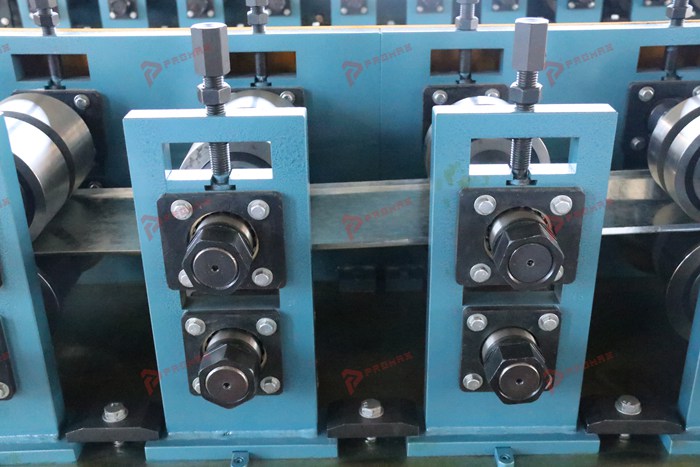

3. Progressive forming: Shape the metal strip through successive roller stations designed for the target C100 profile.

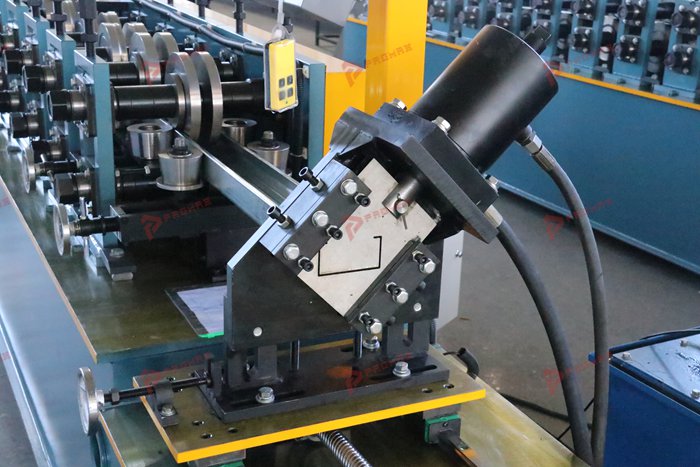

4. Cutting to length: Cut the formed profile according to the specified finished length and configured cutting method.
5. Quality inspection: Check dimensions, cross-sectional shape, edge condition, and cutting quality against the approved drawing.

The forming tooling and production process must be selected for the actual profile geometry and material. Punching holes, notches, automatic size adjustment, and other functions should be confirmed in the technical proposal rather than assumed to be standard features.

Important Factors When Choosing a Stud Forming Machine

1. Profile Drawing and Dimensions

The cross-sectional drawing is one of the most important references for machine selection. It should show the overall profile dimensions, web and flange sizes, bends, lips, and any special design features. A clear drawing helps the manufacturer evaluate the forming tooling and determine the appropriate machine configuration.

2. Raw Material Specifications

Material type, thickness, coil width, and mechanical properties influence the forming process. Galvanized steel strip is used for many building profiles, but compatibility must be confirmed for the particular C100 product. Buyers should provide the intended material specifications before the machine design is finalized.

3. Cutting and Additional Processing

Different products may require different finished lengths, holes, notches, or other features. Buyers should identify these requirements in advance and provide dimensions or drawings where possible. The supplier can then assess which processing functions are required and whether they should be integrated into the proposed production line.

4. Production Targets

Expected output, order volume, product dimensions, factory layout, and operating requirements all affect equipment selection. Production speed should be assessed together with material specifications, profile quality, cutting arrangements, and actual operating conditions. Any quoted output should be linked to a defined product and material specification.

Why Choose PROMAX for Stud Forming Equipment?

PROMAX focuses on roll forming equipment for metal framing and construction profile applications. Backed by Tianjin Haixing's experience in roll forming technology since 1996, the team can evaluate machine requirements based on customer drawings and production objectives.

• Drawing-based evaluation: Review the C100 profile and required dimensions before confirming the machine configuration.
• Application-focused planning: Match the proposed forming process to the intended profile and its use.
• Material compatibility review: Evaluate the specified raw material and its requirements for roll forming.
• Processing requirements: Discuss cutting, punching, and other operations required by the finished product.
• Technical communication: Clarify the agreed equipment scope and product specifications before ordering.

The final technical proposal should clearly identify the supported profile, material range, cutting arrangement, optional functions, and other agreed specifications. This helps ensure that the machine is evaluated against the customer's actual manufacturing requirements.

Information Needed for a Stud Forming Machine Quote

To help evaluate a suitable C100 stud forming machine, please prepare the following information:

• C100 profile drawing or a clear cross-sectional sketch.
• Material type, thickness, and coil width.
• Required finished profile length and dimensional tolerances.
• Punching holes, notches, or other processing requirements.
• Expected production volume and working conditions.
• Destination country and factory power supply information.

If you do not have a complete drawing, you can start with the main dimensions, material details, and clear photographs of the finished profile. The manufacturer can review the information and identify any additional details needed to assess the equipment.

Request a Quote for a C100 Stud Forming Machine

Looking for a stud forming machine for C100 metal profile production? Contact PROMAX with your profile drawing and material specifications. The team can review your requirements and discuss a suitable roll forming solution for your intended application.

Providing accurate technical details at the beginning of the project helps clarify the required machine configuration and makes the quotation process more efficient.
