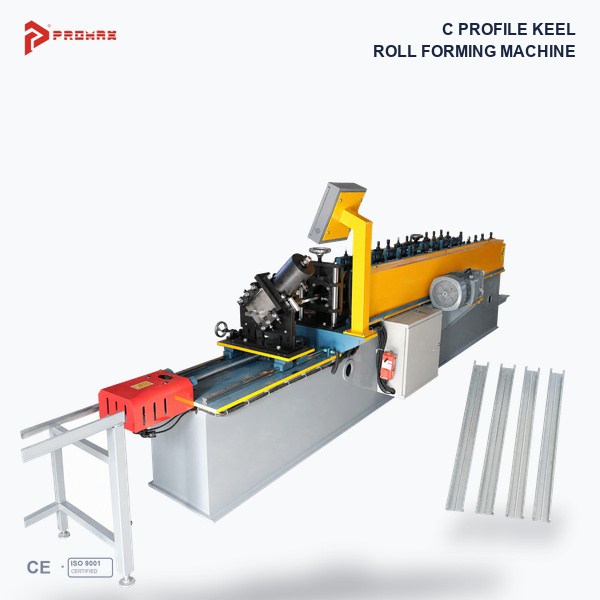

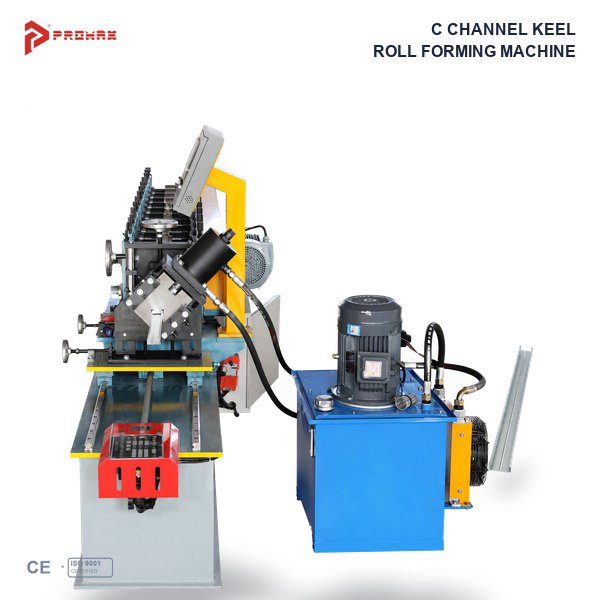

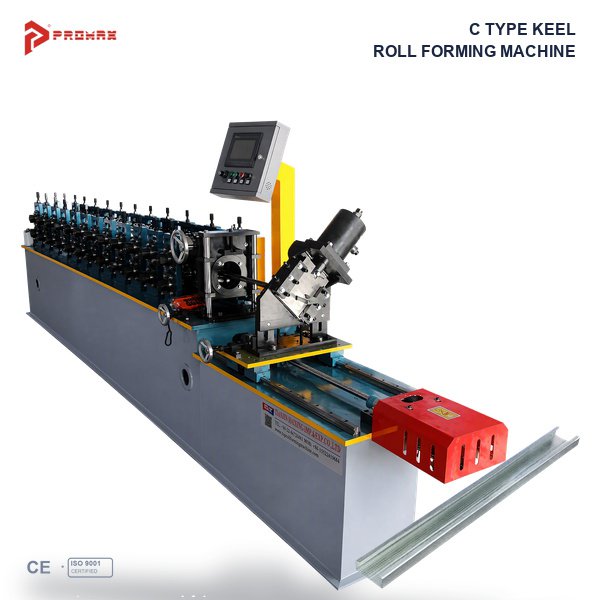

The PROMAX Stud Making Machine is designed for manufacturing galvanized steel C-shaped studs used in drywall partitions and interior metal framing systems.
Machine Type: Cold Roll Forming Machine
Material: Galvanized Steel
Features: Customized roller tooling, continuous C stud forming, cut-to-length production and optional PLC control.
Applications: Drywall C studs, gypsum board partition walls and non-load-bearing metal framing.
Customization: Profile dimensions, steel thickness, cutting lengths and machine configuration.
Send your profile drawings and request a customized quotation.

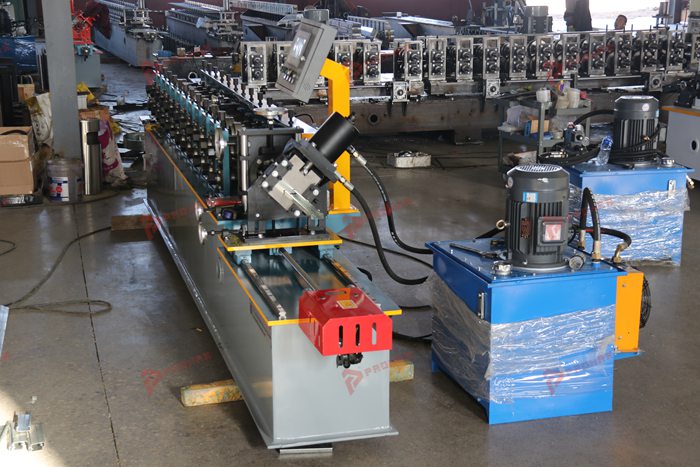

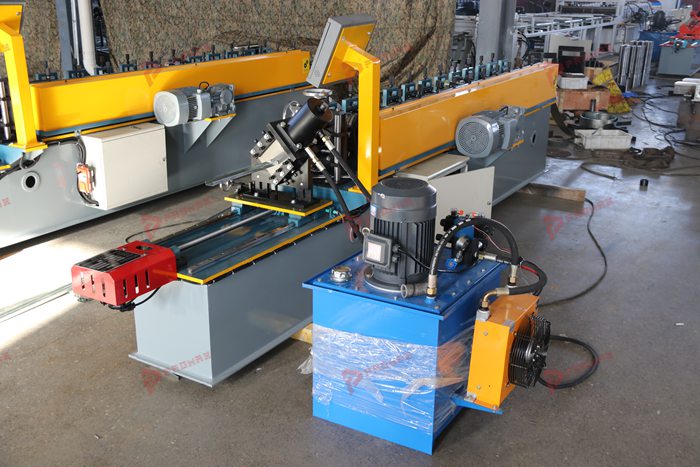

The stud making machine from PROMAX is designed for manufacturing galvanized steel C studs used in drywall partition systems, gypsum board wall framing and interior metal construction. The equipment uses continuous cold roll forming technology to transform flat galvanized steel strips into C-shaped metal profiles.
Metal studs are important components of modern drywall construction. They are commonly installed vertically between compatible U tracks to create the framework for gypsum board partition walls. For manufacturers supplying drywall framing materials, producing consistent stud dimensions and reliable finished lengths is essential for product compatibility and efficient order fulfillment.
PROMAX provides customized metal stud making machine solutions based on customer profile drawings, steel material specifications and production requirements. The machine can be designed with a decoiler, guiding system, roll forming stations, cutting unit, control system and receiving table.
The final equipment configuration, production capacity and optional functions are determined according to the approved technical design.
A stud making machine is industrial equipment used to manufacture metal studs from steel coils through a cold roll forming process.
For drywall applications, the equipment is typically configured to produce C-shaped profiles that serve as vertical framing members in partition wall systems.
The machine gradually bends the steel strip through successive forming rollers until the required C stud geometry is achieved.
After forming, the profile is cut to the specified length and collected for inspection and further handling.
The equipment is developed according to the required profile drawing, steel thickness, material properties and manufacturing requirements.
Drywall framing manufacturers need to supply metal studs that are compatible with the track profiles and construction systems used by their customers.
Profile dimensions, straightness, cutting length and surface condition are important considerations during production.
A dedicated C stud making machine allows manufacturers to organize production around a defined profile geometry and material specification.
Continuous roll forming is suitable for repetitive manufacturing of steel profiles, while customized tooling can support different profile designs.
Manufacturers may use the equipment to produce studs for residential buildings, commercial offices and other interior partition applications.

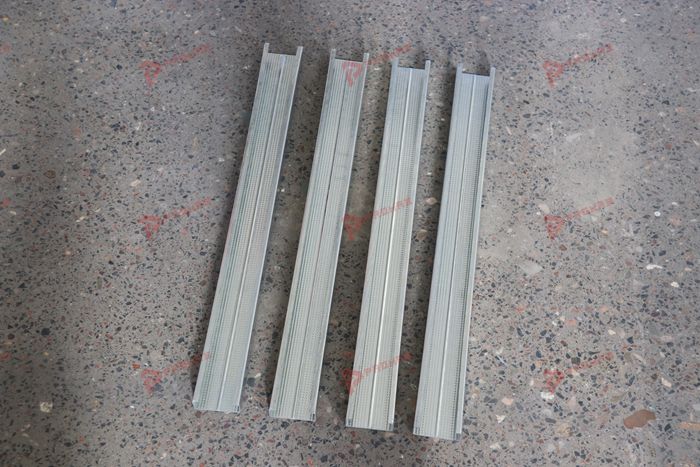

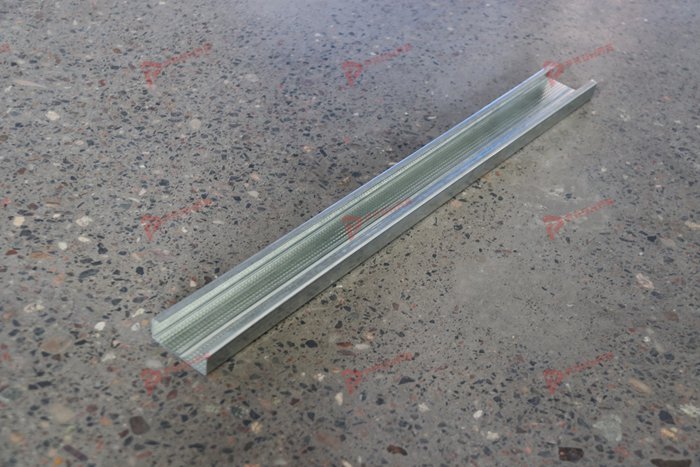

Galvanized C studs are widely used as vertical framing members in non-load-bearing drywall partition systems.
Typical applications include:
The suitability of each finished stud depends on its profile dimensions, steel thickness, mechanical properties and the requirements of the intended construction system.

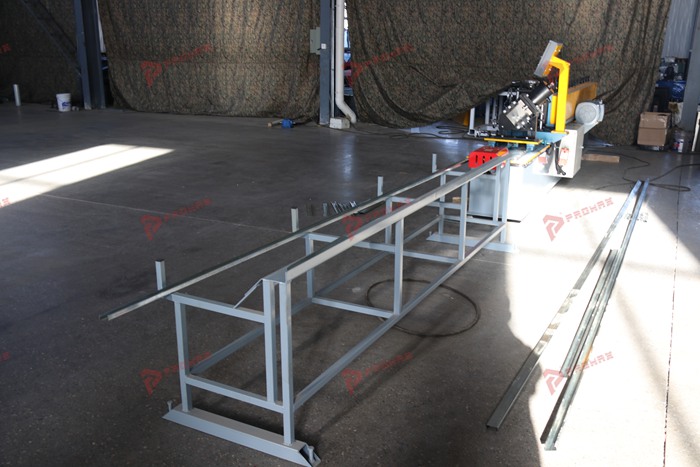

The drywall stud making machine uses a continuous cold forming process to transform galvanized steel strips into finished C-shaped metal studs.
The process begins with a steel coil placed on the decoiler. The material is supplied to the feeding and guiding system, which aligns the strip before it enters the forming section.
Inside the roll forming section, successive roller stations gradually bend the flat steel strip into the required C profile.
Each station performs a controlled forming operation until the final cross-sectional geometry is achieved.
After forming, the cutting system produces the required finished lengths.
Depending on the machine configuration, optional operations such as punching, marking or automated length control may be incorporated.
A typical stud production machine may include several integrated systems. The final configuration is determined during the technical design stage.
The number of forming stations, drive arrangement and component specifications depend on the approved machine design.
Roller tooling is one of the most important parts of a C stud roll forming machine.
The forming rollers are designed according to the profile drawing, including the web width, flange height, return lip dimensions and bending radii.
The steel thickness and mechanical properties must also be considered during tooling development.
Each forming station gradually changes the strip geometry to achieve the final C-shaped section.
Correct roller alignment and material guidance are important for maintaining dimensional consistency during manufacturing.
PROMAX can develop customized roller tooling according to the approved C stud profile drawings.
Galvanized steel is commonly used in drywall framing because it combines mechanical strength with a protective zinc coating.
Before selecting a galvanized steel stud machine, manufacturers should confirm the material thickness, strip width, yield strength and coating characteristics.
These parameters influence the forming forces, roller design and mechanical configuration of the equipment.
The steel material must be compatible with the machine specifications and the requirements of the finished stud.
Different material grades and thickness ranges may require adjustments to the equipment design.
The production of galvanized C studs generally follows a sequence of cold forming operations.
The sequence may vary depending on the machine configuration and optional processing functions.
The PROMAX metal stud manufacturing machine can be configured with a PLC control system for selected production functions.
Depending on the configuration, operators may enter cutting lengths, production quantities and other available parameters through a control interface.
The cutting system is selected according to the profile geometry, steel thickness and required production process.
Automatic cutting options can support manufacturing orders that require different finished lengths.
Specific control functions and cutting capabilities are confirmed during the technical design stage.
PROMAX provides customized roll forming solutions for manufacturers producing different C-shaped drywall stud profiles.
The machine can be designed according to customer requirements for profile width, flange dimensions, return lips, steel thickness and finished length.

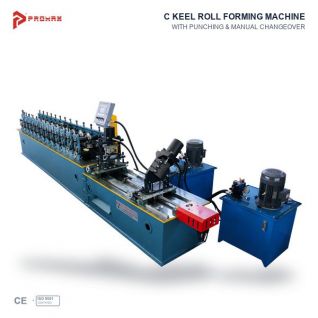

Additional operations, such as punching, can be evaluated when compatible with the equipment design.
The ability to manufacture multiple profile sizes on one machine depends on the tooling arrangement and adjustment mechanisms.
Automatic profile size changing should not be assumed unless it is specifically included in the equipment configuration.
Customers are encouraged to provide complete profile drawings and material specifications before equipment selection.
C studs and U tracks are complementary components of many drywall partition systems, but they have different cross-sectional designs.
C studs typically include a central web, flanges and return lips, and they are commonly installed vertically.
U tracks generally have a channel-shaped section and are installed horizontally to receive and position compatible studs.
Because their geometries are different, the roller tooling required to manufacture each profile is also different.
This stud making machine is intended for C-shaped profiles. Manufacturing U tracks requires suitable tooling or a separate machine configuration.

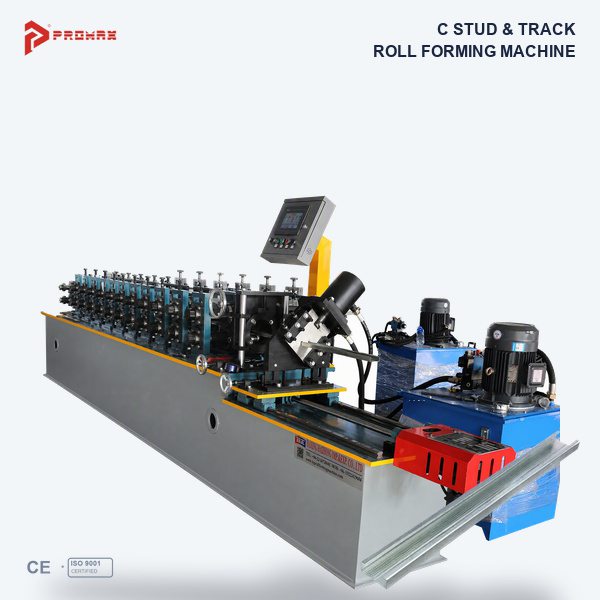

Manufacturers requiring both profile types may consider a double-head stud and track machine or another suitable production solution.
When planning a metal stud manufacturing operation, equipment selection should be based on the required product range and expected production volume.
Manufacturers should determine the profile dimensions, steel material specifications, required finished lengths and production capacity expectations.
Factory planning should also consider steel coil handling, material storage, finished product collection and quality inspection procedures.
The selected machine configuration should match the intended product specifications and production workflow.
PROMAX can review customer requirements and recommend a suitable equipment arrangement.
Dimensional inspection is an important part of metal stud manufacturing.
Typical inspection points include profile width, flange height, return lip geometry, straightness and cutting length.
The condition of the galvanized coating should also be checked after forming.
Inspection tolerances and acceptance criteria should be defined according to the approved profile drawings and the intended drywall system.
Consistent raw material specifications and appropriate machine maintenance are important for stable manufacturing.
Before purchasing a stud making machine, manufacturers should define the required C stud dimensions, steel material specifications and production needs.
Important information includes the profile drawing, steel thickness, material grade, finished cutting lengths and expected production capacity.
Customers should also identify whether punching, special cutting functions or customized automation are required.
These details help determine the appropriate roller tooling, forming stations, cutting system and machine control configuration.
PROMAX can evaluate customer requirements and develop a suitable technical proposal.

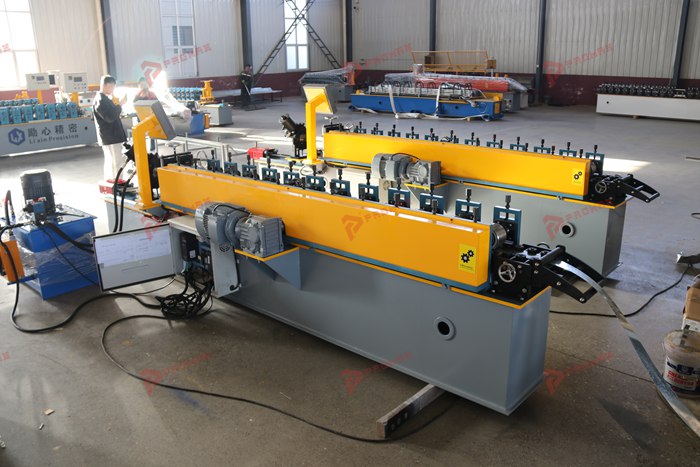

PROMAX develops cold roll forming equipment for drywall studs, tracks, ceiling channels and lightweight steel framing profiles.
Our services include profile drawing evaluation, machine configuration planning, customized tooling and equipment manufacturing.
Backed by Tianjin Haixing's experience in roll forming technology since 1996, PROMAX supports manufacturers seeking customized equipment solutions for different markets.
Our team can help customers evaluate material specifications, profile geometry and production requirements before preparing a quotation.
Are you looking for a stud making machine to manufacture galvanized steel C studs for drywall framing systems?
Send us your C stud drawings, steel thickness, material specifications, required cutting lengths and production capacity expectations.
Our engineering team can review your requirements and recommend a suitable machine configuration.
Contact PROMAX today to request a customized quotation for your C stud making machine.
