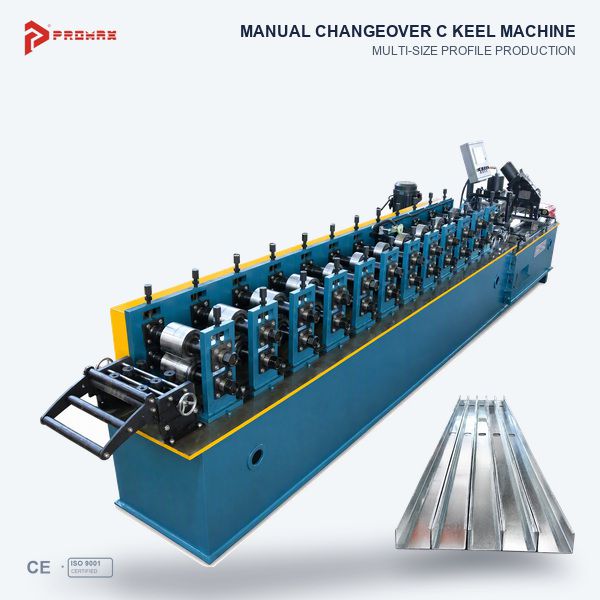

The PROMAX metal stud maker is designed for manufacturing galvanized steel C studs used in drywall partition systems, gypsum board construction and interior metal framing. Using cold roll forming technology, the equipment converts steel coils into finished C-shaped profiles according to customer-approved drawings and production requirements.

Metal studs are widely used as vertical framing components in drywall walls. They are generally installed with compatible U tracks to create a framework for gypsum board installation. Consistent profile dimensions and suitable material specifications are important for assembly and compatibility with the intended framing system.

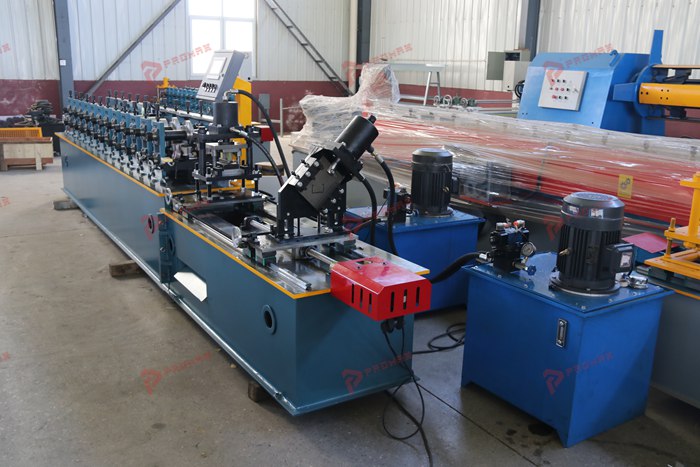

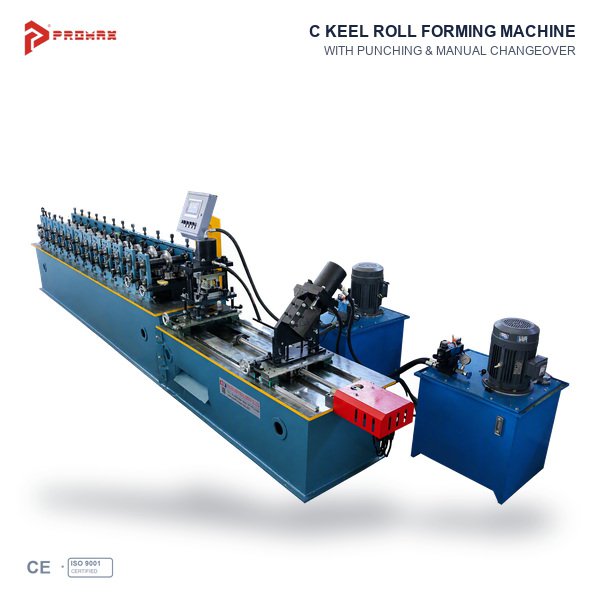

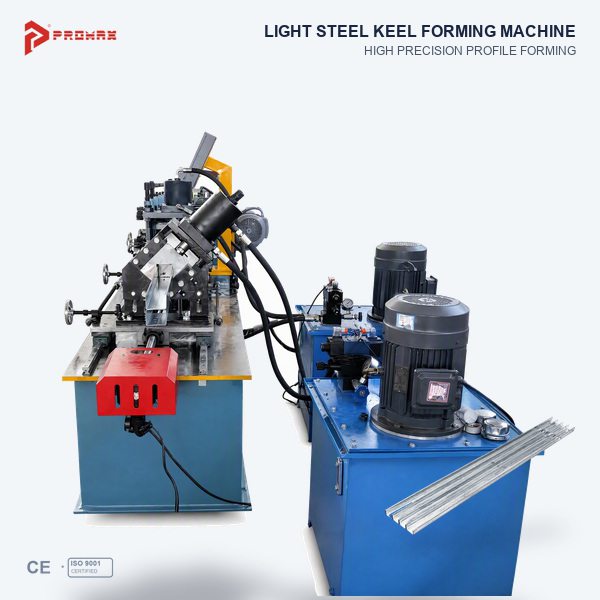

PROMAX provides customized metal stud manufacturing equipment for customers who need to produce specific C stud profiles. Depending on the approved configuration, the production line may include a decoiler, feeding and guiding system, roll forming stations, cutting equipment, PLC control system and finished product receiving table.

Machine speed, steel thickness range, profile dimensions, punching functions and automation options should be confirmed against the final technical proposal.

What Is a Metal Stud Maker?

A metal stud maker is industrial equipment used to manufacture metal framing studs from steel coils. For drywall applications, the machine is configured to form galvanized steel into C-shaped profiles used in interior partition systems.

The steel strip passes through a series of forming rollers. Each station gradually bends the material until it reaches the specified cross-sectional shape. The formed profile is then cut to the required length and collected for inspection or packaging.

The machine's tooling and configuration should match the intended stud profile, material thickness and production requirements. Equipment designed for lightweight drywall studs may differ from machines used to manufacture heavy structural C channels or purlins.

Applications of Drywall Metal Studs

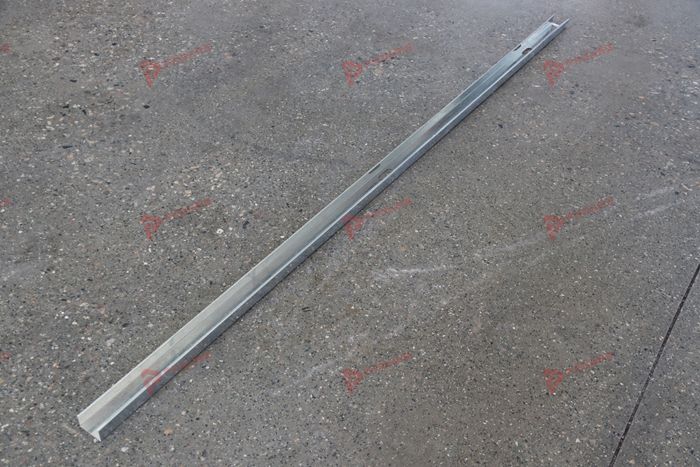

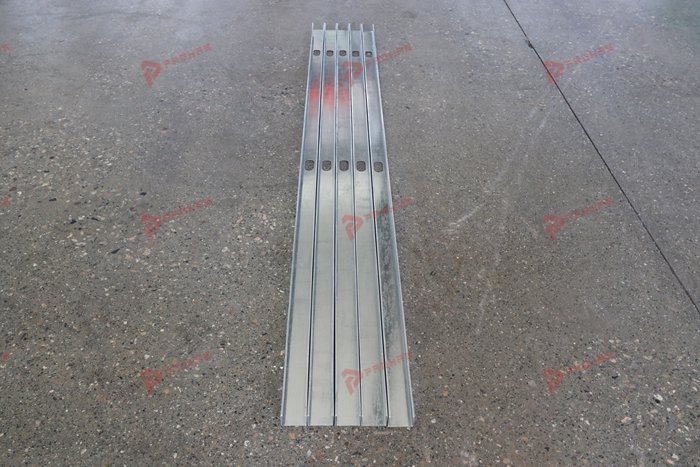

Galvanized steel C studs are commonly used in interior construction and drywall framing applications, including:

• Drywall partition walls.
• Gypsum board framing systems.
• Residential interior partitions.
• Commercial office partitions.
• Non-load-bearing metal framing.
• Customized steel stud manufacturing.

The finished profile must meet the dimensional and material requirements of the intended construction system. Profile selection should be based on the customer's drawings and application requirements.

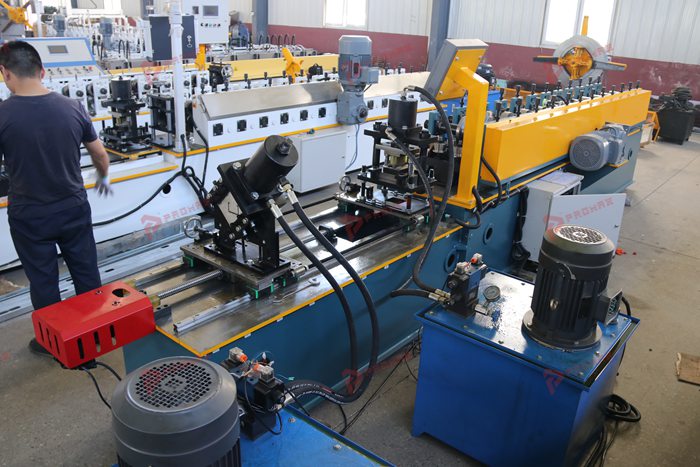

How Does a Metal Stud Making Machine Work?

The metal stud making machine uses progressive cold roll forming to transform flat steel strip into a C-shaped stud profile.

1. Coil loading: The steel coil is installed on the decoiler.
2. Material feeding: The strip is guided toward the forming section.
3. Progressive forming: Roller stations gradually bend the strip into the required C profile.
4. Cutting: The formed profile is cut to the specified finished length.
5. Inspection: Operators check dimensions, straightness and surface condition.
6. Collection: Finished studs are organized for packing or further handling.

The actual production sequence and available functions depend on the selected machine configuration.

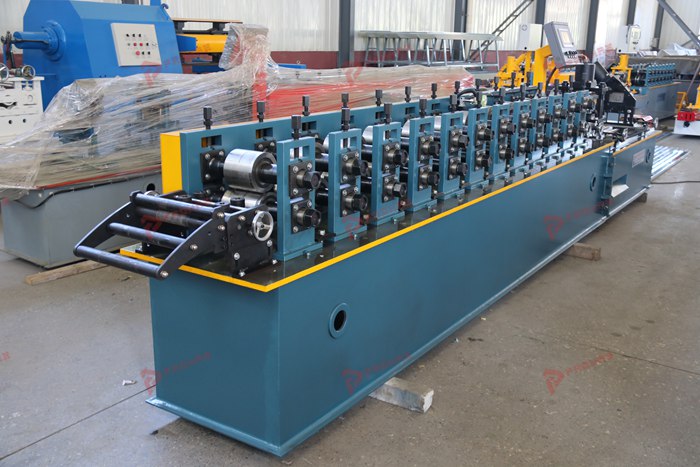

Main Components of a Metal Stud Maker

A typical production line may include the following components:

• Decoiler: Supports and feeds the steel coil into the production line.
• Feeding and guiding system: Helps align the strip before roll forming.
• Roll forming stations: Shape the steel strip into the required C stud profile.
• Drive system: Supplies the power needed for forming.
• Control system: Manages supported machine functions and production settings.
• Cutting unit: Cuts the formed profile to the required length.
• Receiving table: Supports the collection of finished profiles.

The machine structure, number of forming stations and component specifications are determined by the required profile and approved technical design.

Customized C Stud Profiles and Dimensions

Different drywall systems may use different C stud dimensions. Before selecting a C stud maker, manufacturers should prepare the required profile drawings and confirm the dimensions of the web, flanges and return lips.

PROMAX can evaluate customer requirements for customized profile tooling and machine configuration. Important parameters include:

• C stud cross-sectional drawing.
• Web width and flange height.
• Return lip dimensions.
• Steel thickness and material grade.
• Required finished cutting lengths.
• Punching or other additional processing requirements.
• Expected production capacity.

The ability to produce different profile sizes on one machine depends on the tooling arrangement and adjustment mechanisms. Automatic size changing should only be specified when it is included in the approved configuration.

Roller Tooling and Profile Accuracy

Roller tooling plays an important role in the manufacture of consistent C stud profiles. The roller design must correspond to the required cross-sectional geometry, material thickness and steel properties.

During production, each forming station performs part of the bending process. Proper tooling design, roller alignment and material guidance help the steel strip reach the required profile shape.

Profile dimensions should be inspected against the approved drawings. Typical inspection points include web width, flange height, return lip dimensions and straightness.

PROMAX can develop tooling according to customer-approved drawings to support the intended product range.

Galvanized Steel Material Selection

Galvanized steel is commonly used for drywall framing profiles because its zinc coating helps protect the steel surface from corrosion under suitable conditions.

Before ordering a galvanized steel stud machine, customers should confirm the required material thickness, strip width, steel grade and coating specifications.

These factors influence the forming process and should be considered when designing the roller tooling and selecting machine components.

Material specifications should be compatible with both the equipment configuration and the requirements of the finished product.

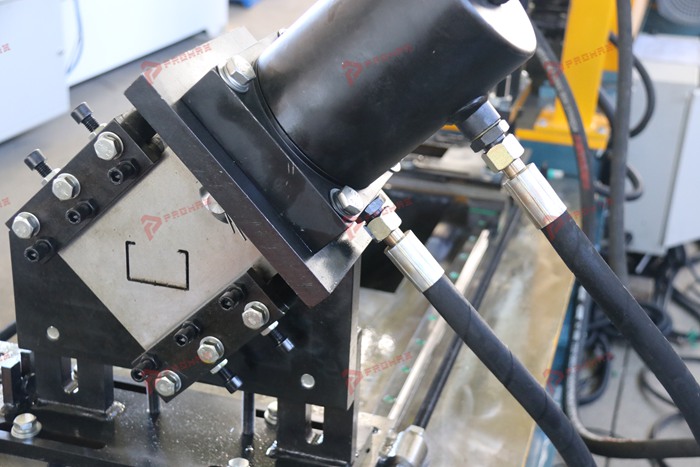

Cutting and Control Options

The PROMAX metal stud maker can be configured with suitable cutting and control systems according to customer requirements.

A PLC control system may be used to manage supported production settings, such as cutting length and production quantity. Available functions depend on the selected electrical and control configuration.

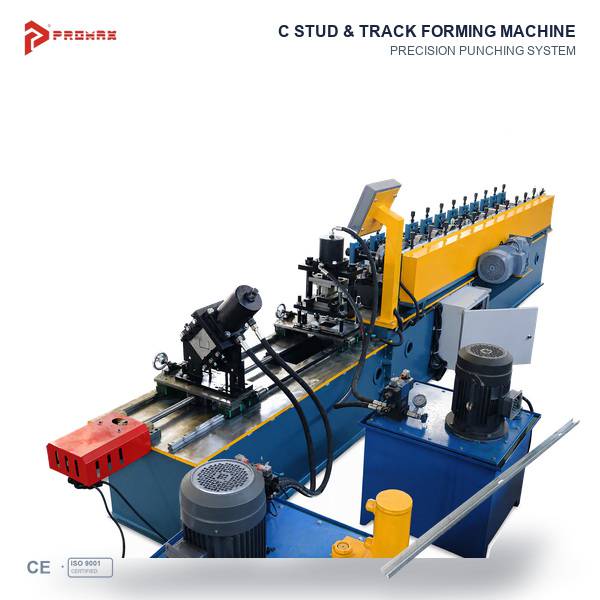

Optional punching, marking or other processing operations can be evaluated when preparing the technical proposal. These functions should be confirmed before ordering to ensure that the machine meets the intended production workflow.

Quality Control for Finished Metal Studs

Quality control helps ensure that finished profiles conform to the agreed product specifications. Manufacturers should establish inspection procedures for raw materials, forming quality and finished dimensions.

Typical inspection items include:

• Web, flange and return lip dimensions.
• Profile straightness and overall shape.
• Cutting length and cut-end condition.
• Surface condition of the galvanized coating.
• Consistency between finished profiles and approved drawings.

Inspection tolerances and acceptance criteria should be agreed according to the product drawings and the intended drywall framing application.

Planning a Metal Stud Production Line

When planning a metal stud manufacturing operation, customers should consider more than the forming machine alone. Coil storage, material handling, available factory space, finished product collection and inspection procedures can all affect the production workflow.

Before confirming an equipment order, manufacturers should prepare profile drawings, raw material specifications, target cutting lengths and production capacity requirements.

These details help the engineering team assess the appropriate machine configuration and identify any additional equipment or optional functions required.

Manufacturers producing complete drywall framing systems may also need a separate U track production solution. C studs and U tracks have different cross-sectional shapes and require compatible tooling.

How to Choose the Right Metal Stud Maker

Choosing a suitable metal stud maker starts with confirming the required finished product. Customers should provide a C stud drawing, material thickness, steel grade, cutting lengths and expected production volume.

It is also important to identify whether the production line requires punching, special cutouts, automatic length control or multiple profile sizes.

Based on these requirements, the manufacturer can evaluate the forming tooling, drive system, cutting unit and control configuration. A clearly defined technical specification helps reduce misunderstandings during equipment production and commissioning.
