Stud Manufacturing Machine for Drywall C Stud Profiles

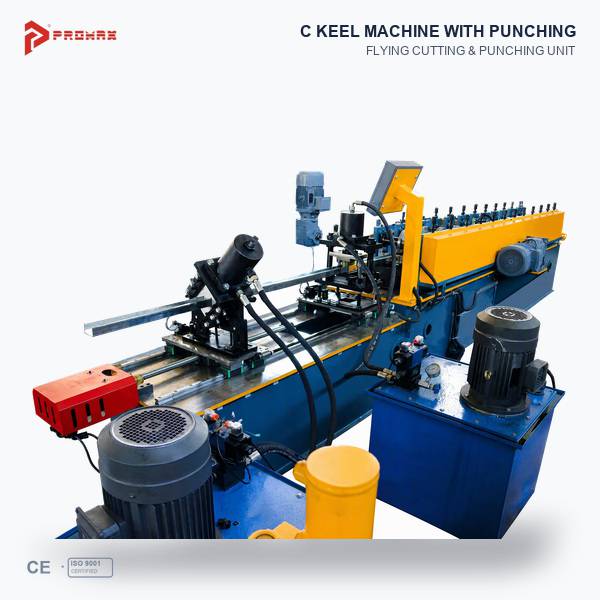

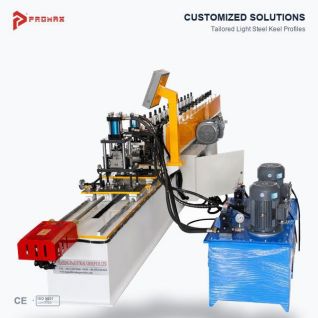

The PROMAX stud manufacturing machine is designed for producing C-shaped galvanized steel studs used in drywall partition systems, interior wall framing, and lightweight steel construction. By combining continuous roll forming with a configured cutting system, the machine helps manufacturers produce consistent metal framing profiles for commercial and residential building projects.

For buyers planning to establish or upgrade a drywall profile production line, the right stud manufacturing machine should match the required C stud cross-section, steel material, production volume, cutting method, and finished profile length. PROMAX supports profile-based equipment customization so that the machine configuration can be planned around the customer's drawings and manufacturing requirements.

Applications of a Steel Stud Manufacturing Machine

A steel stud manufacturing machine produces lightweight metal framing components for drywall and partition construction. C studs are commonly installed vertically as framing members, while compatible track profiles are installed horizontally to form the framework for interior walls. A C stud production machine should be configured for the specific C profile required by the customer.

Main Applications

• Drywall partition systems: Manufacturing C studs for non-load-bearing interior partition walls.
• Commercial buildings: Producing metal framing profiles for offices, retail spaces, hotels, and other commercial interiors.
• Residential construction: Supplying framing components for apartments, houses, and renovation projects.
• Interior fit-out projects: Providing metal studs for contractors, building material distributors, and drywall installation companies.
• Metal framing manufacturing: Supporting manufacturers that supply standardized or drawing-based drywall profiles to local markets.

The final application depends on the profile design, steel specifications, and applicable construction requirements. Heavy structural C channels and roof purlins generally require a different machine configuration from conventional drywall studs.

How the Stud Manufacturing Machine Works

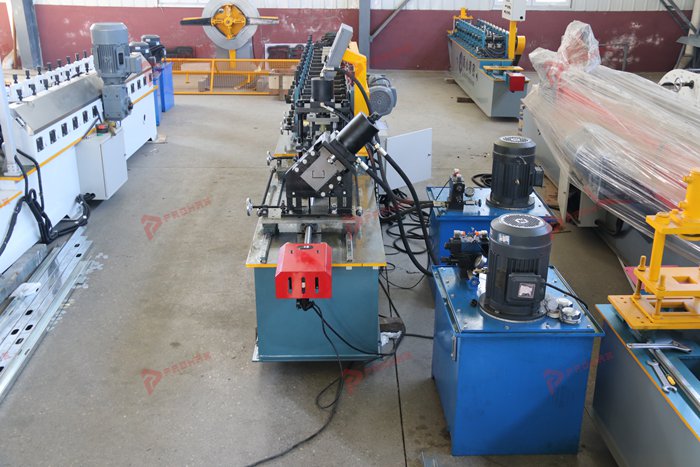

A typical stud manufacturing machine converts a steel coil into a finished C-shaped profile through a continuous forming process. The exact equipment arrangement depends on the selected configuration and the customer's production requirements.

1. Coil loading: The steel coil is loaded onto a compatible decoiler or feeding system.
2. Material feeding: The steel strip is guided into the forming section to maintain stable alignment.

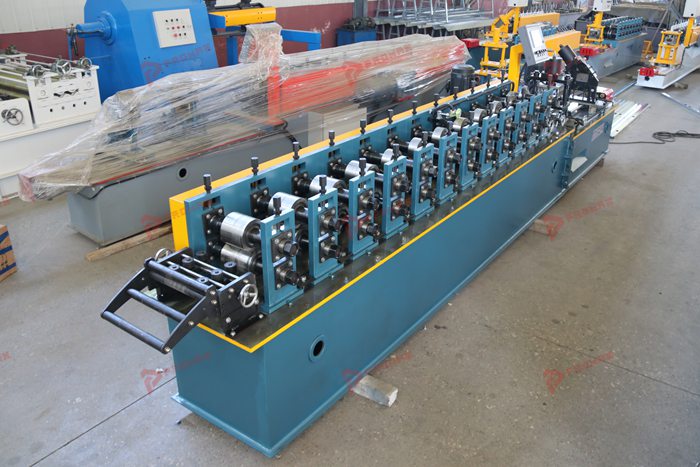

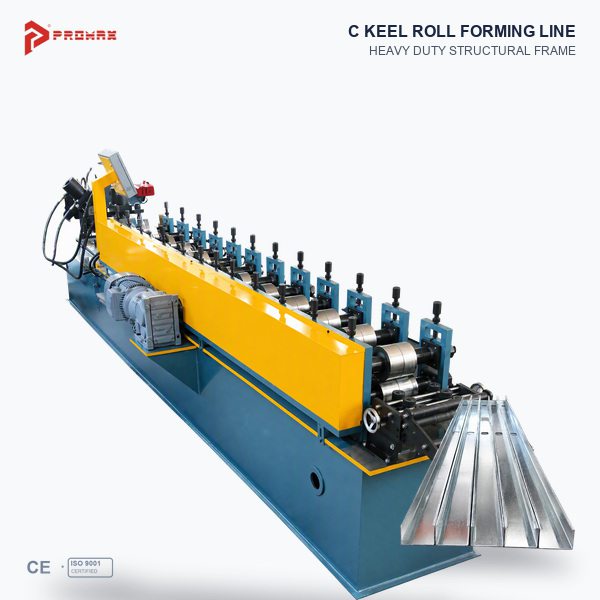

3. Progressive roll forming: A series of forming rollers gradually bends the strip into the specified C stud cross-section.
4. Profile control: The formed section is checked for dimensional consistency and alignment.

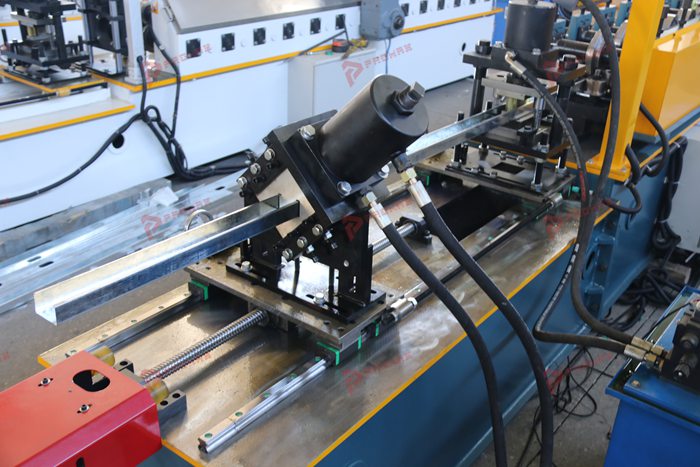

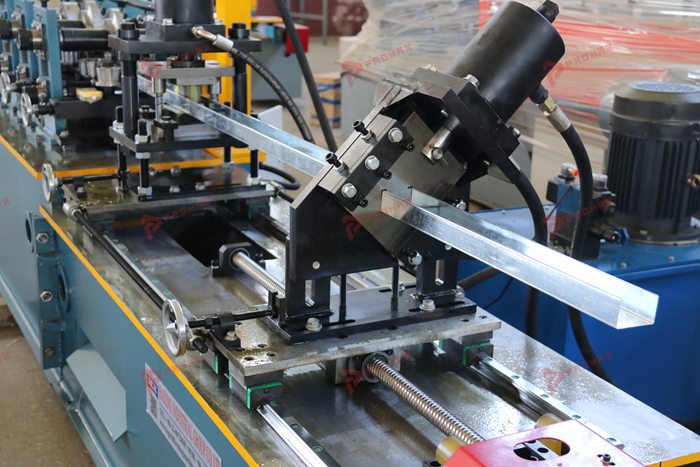

5. Length measurement and cutting: The configured cutting system cuts the profile to the required length.

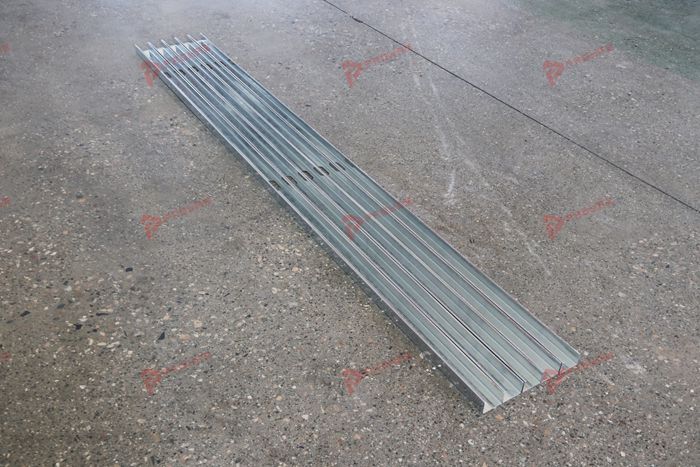

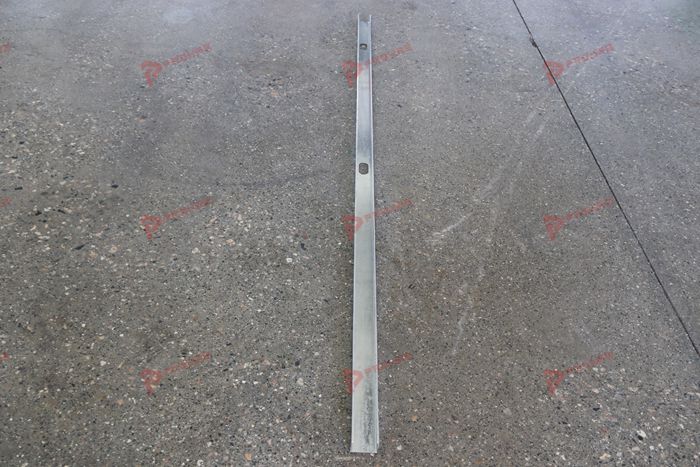

6. Finished-product inspection: Operators check the profile dimensions, shape, cut ends, and surface condition before bundling.

For efficient production, the decoiling, feeding, forming, and cutting sections should be selected to work together. Before ordering, buyers should confirm the desired production process and the degree of automation required for their factory.

Key Features of the PROMAX Stud Manufacturing Machine

1. Profile-Specific Roll Forming

The forming rollers are configured according to the target C stud drawing. This helps the machine produce the required web, flange, and lip geometry when the tooling and machine settings are correctly matched to the material. Customers should provide technical drawings or representative samples when requesting a quotation.

2. Continuous Production Process

Roll forming is suitable for repetitive production of metal framing profiles. Once the line is correctly set up, the process supports consistent production for building material suppliers and drywall framing manufacturers. Actual output depends on the machine configuration, profile dimensions, steel thickness, cutting method, and operating conditions.

3. Configurable Cutting System

The cutting arrangement can be selected according to the production line design and the customer's requirements. Before purchase, confirm the cutting method, required finished lengths, cut-end quality, and whether the production process requires cutting while the line is running.

4. Customizable Equipment Configuration

Different markets use different C stud dimensions and profile standards. PROMAX can evaluate the customer's profile drawing and discuss suitable tooling and equipment configuration. Optional functions should be confirmed against the final technical proposal rather than assumed to be included in every standard machine.

Raw Material and C Stud Profile Requirements

Galvanized steel strip is commonly used to manufacture drywall C studs because it is suitable for lightweight metal framing applications. Material thickness, strip width, coating, yield strength, and dimensional tolerances should be confirmed before machine design and production.

The C stud drawing is equally important. It should identify the web width, flange height, lip dimensions, material thickness, and other required details. If the customer manufactures several profile sizes, each profile should be reviewed to determine whether the proposed tooling and adjustment method can accommodate the full product range.

Providing accurate drawings at the quotation stage helps the manufacturer evaluate forming requirements, cutting arrangements, and any necessary profile-specific components. If drawings are unavailable, sample profiles and measured dimensions may help establish the initial technical requirements.

Quality Control for Drywall Stud Production

Stable production requires more than a suitable roll forming machine. The raw material, roller tooling, line alignment, cutting settings, and operator procedures all influence finished-profile quality.

• Profile dimensions: Check web width, flange dimensions, lip geometry, and overall cross-section against the approved drawing.
• Straightness: Inspect finished studs for unwanted bending, twisting, or deformation.
• Cutting quality: Verify finished length and inspect cut ends for burrs or other defects.
• Surface condition: Check the galvanized coating and formed surface for visible damage.
• Repeatability: Inspect samples at appropriate intervals to identify dimensional variation during production.

Inspection criteria should be agreed upon before production begins. For projects serving regulated construction markets, buyers should also confirm the applicable product standards and testing requirements independently.

How to Choose the Right Stud Manufacturing Machine

When comparing steel stud manufacturing machines, buyers should evaluate the complete production requirement rather than comparing equipment based on the product name alone.

1. Confirm the C stud profile: Provide the profile drawing, dimensions, and required tolerances.
2. Specify the steel material: Confirm the material type, thickness range, coil width, and relevant mechanical properties.
3. Estimate production demand: Identify the expected output and required working hours so that the line configuration can be evaluated appropriately.
4. Define cutting requirements: Confirm finished lengths, cutting method, and the expected production workflow.
5. Review automation needs: Discuss feeding, measurement, cutting, adjustment, and control requirements with the manufacturer.
6. Plan factory installation: Check available floor space, power supply, coil handling, operator access, and maintenance requirements.
7. Confirm after-sales support: Ask about installation guidance, operator training, spare parts, documentation, and technical assistance.

A clearly defined specification helps reduce misunderstandings during machine design and supports a more accurate quotation. Production speed, supported thickness, profile-change capability, and included accessories should all be confirmed in the final technical offer.

PROMAX Stud Manufacturing Machine Manufacturer

PROMAX focuses on roll forming equipment for drywall and lightweight steel framing profiles. Backed by Tianjin Haixing's experience in roll forming technology since 1996, PROMAX works with customers to evaluate profile requirements and select an appropriate machine configuration for their production needs.

Whether you are establishing a new drywall stud production workshop or upgrading an existing manufacturing line, sharing your profile drawings, steel specifications, target output, and destination market will help the technical team understand your project.

Request a Quote for a Stud Manufacturing Machine

Looking for a stud manufacturing machine for C-shaped drywall profiles? Contact PROMAX with your product drawing, material specifications, required profile lengths, and expected production volume. Our team can review your requirements and discuss a suitable roll forming and cutting configuration.

Contact PROMAX today to discuss your C stud manufacturing project and request a machine quotation.
