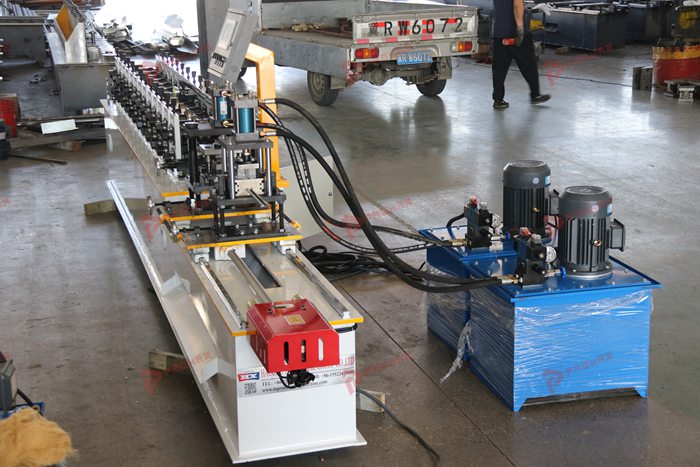

The PROMAX C Channel Forming Machine is designed for manufacturing galvanized steel C studs used in drywall partitions and interior metal framing systems.
Machine Type: Cold Roll Forming Machine
Material: Galvanized Steel
Features: Customized C profile tooling, continuous roll forming, cutting options and optional PLC control.
Applications: Drywall C studs, gypsum board partitions and non-load-bearing metal framing.
Customization: C stud dimensions, steel thickness, cutting lengths and machine configuration.
Send your C stud drawings to request a customized quotation.

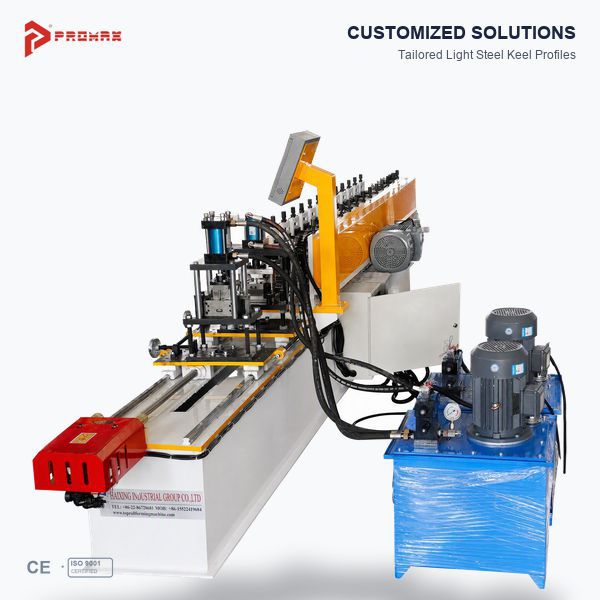

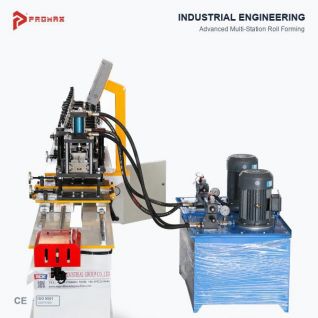

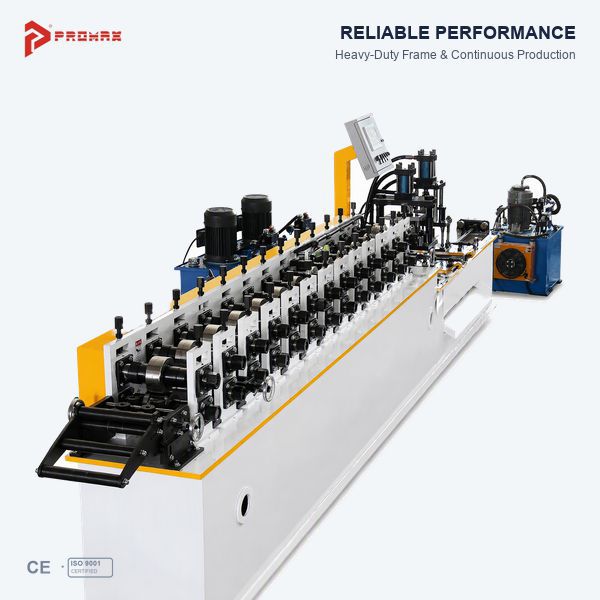

The C channel forming machine from PROMAX is designed for manufacturing galvanized steel C-shaped profiles used in drywall partition walls, gypsum board framing systems and interior metal construction. The equipment uses continuous cold roll forming technology to transform flat steel strips into finished C studs with specified cross-sectional dimensions.
Drywall C studs are important vertical framing components in many interior partition systems. They are typically installed between compatible U tracks to create a framework for gypsum board installation. Their dimensions, straightness and material properties are important for proper assembly and compatibility with the intended framing system.
PROMAX develops customized C channel roll forming machine solutions according to customer profile drawings, galvanized steel specifications and manufacturing requirements. The equipment can be configured with a decoiler, feeding and guiding system, roll forming stations, cutting unit, PLC control system and finished product receiving table.
The final production speed, material thickness range, supported profile dimensions and automation functions are determined according to the approved machine configuration.
A C channel forming machine is industrial equipment used to manufacture C-shaped metal profiles from steel coils through a continuous cold forming process.
For drywall applications, the machine is configured to produce lightweight galvanized C studs according to the required profile drawings.
The steel strip passes through successive roller stations, where the material is gradually bent into the specified C-shaped cross-section.
After forming, the profile is cut to the required length and collected for inspection or packaging.
Unlike equipment designed for structural C purlins or heavy-duty channels, this machine is intended for drywall framing profiles within its approved material and dimensional range.
C-shaped steel studs are commonly used as vertical framing members in drywall partition walls.

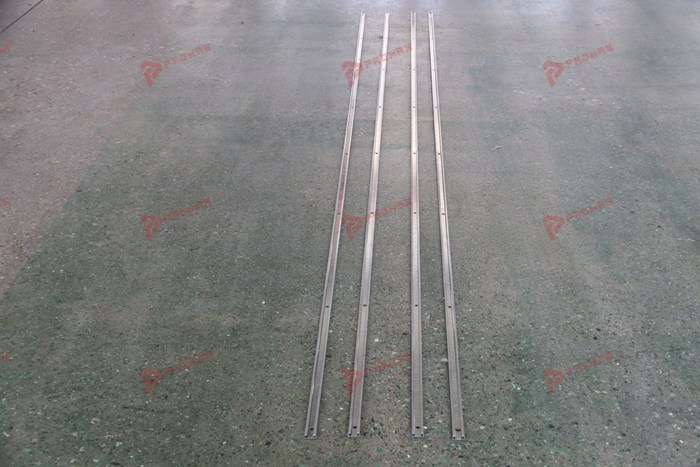

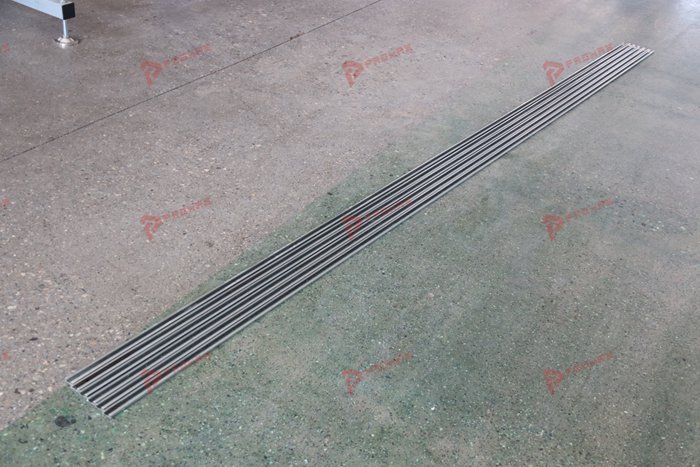

A typical drywall C stud includes a central web, two flanges and return lips. These features help define the profile geometry and its compatibility with the intended framing system.
C studs are generally installed between matching U tracks, which provide horizontal positioning at the top and bottom of the partition wall.
The finished profile dimensions, steel thickness and mechanical properties should match the requirements of the selected drywall construction system.
The PROMAX C stud forming machine can be developed according to customer-approved C stud drawings.
Galvanized C studs are used in a variety of interior metal framing applications.
Typical applications include:
The suitability of each finished profile depends on its dimensions, steel thickness, mechanical properties and the requirements of the intended construction system.
The C channel roll forming machine uses progressive cold forming technology to convert galvanized steel strips into finished C-shaped profiles.

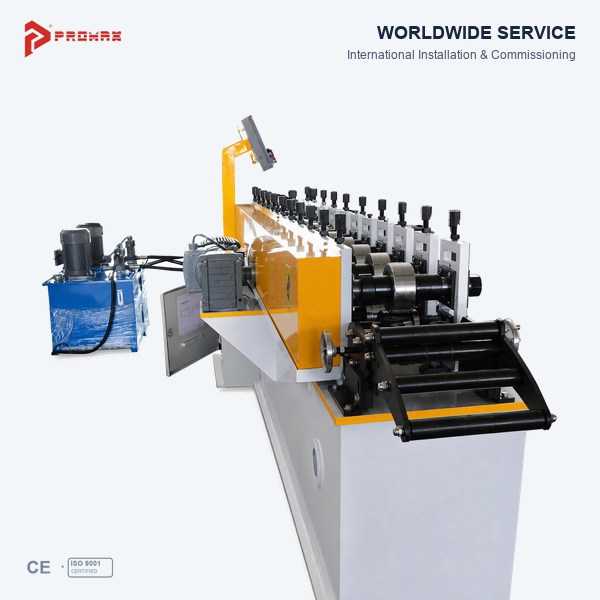

The manufacturing process begins with a steel coil placed on the decoiler. The material passes through the feeding and guiding system before entering the forming section.

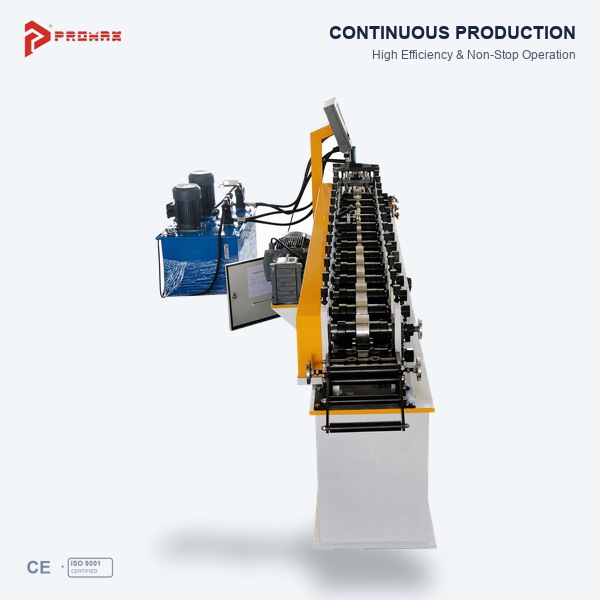

Inside the forming section, successive roller stations gradually bend the flat steel strip into the required C profile.
Each station performs part of the bending operation, allowing the material to reach the specified geometry through a controlled forming sequence.

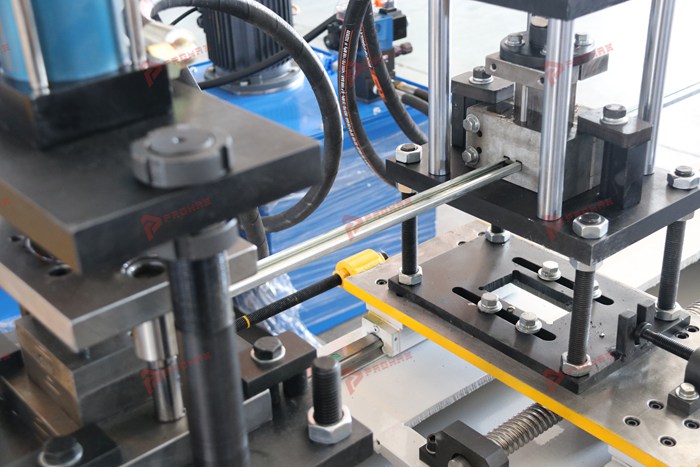

After the forming process, the profile passes through the cutting system to obtain the required finished length.
Depending on the equipment configuration, optional operations such as punching, marking or automated length control may be incorporated.
A typical drywall C channel machine may include several integrated systems:
The number of forming stations, drive arrangement and component specifications depend on the approved machine design.
Roller tooling is an essential component of a C channel forming machine.
The forming rollers are designed according to the required profile geometry, including the web width, flange height, return lip dimensions and bending radii.
Steel thickness and material properties must also be considered during tooling development.
Each forming station gradually changes the steel strip geometry until the final C-shaped profile is achieved.
Proper roller alignment, strip positioning and tooling design help maintain dimensional consistency during production.
PROMAX can develop customized roller tooling according to customer-approved C stud drawings.
Cold roll forming is widely used for manufacturing metal profiles with consistent cross-sectional shapes.
During the process, the steel strip passes through multiple forming stations without being heated for the bending operation.
Progressive forming allows the material to reach the required C profile geometry through a controlled sequence of bending steps.
The forming process must be designed according to the steel properties, profile dimensions and expected manufacturing conditions.
For drywall manufacturers, cold roll forming provides a practical method for producing galvanized C studs in specified shapes and lengths.
Galvanized steel is commonly used in drywall framing because it combines mechanical strength with a protective zinc coating.
Before selecting a galvanized C channel machine, manufacturers should confirm the steel thickness, strip width, yield strength and coating characteristics.
These parameters influence the forming forces, roller design and machine component selection.
The selected material must be compatible with the equipment specifications and the requirements of the finished C stud.
Different material grades or thickness ranges may require adjustments to the technical design.
The manufacturing process for galvanized drywall C studs generally includes the following stages:
The actual manufacturing sequence may vary according to the selected equipment configuration.
The PROMAX C stud forming machine can be configured with a PLC control system to manage selected production functions.
Depending on the configuration, operators may enter cutting lengths, production quantities and other supported parameters through a human-machine interface.
The cutting system is selected according to the profile geometry, steel thickness and required manufacturing process.
Automatic cutting options can support production orders requiring different finished lengths.
Additional automation functions can be evaluated according to customer requirements.
Automatic profile size adjustment is available only when specifically included in the approved equipment configuration.
PROMAX provides customized equipment solutions for manufacturers requiring different drywall C stud profiles.
The machine can be developed according to customer requirements for web width, flange dimensions, return lips, steel thickness and finished cutting length.
Optional operations, such as punching or specialized cutting, can be evaluated according to production requirements.
The ability to manufacture multiple C stud sizes on one machine depends on the tooling arrangement and adjustment mechanisms.
Automatic size changing should not be assumed unless it is specifically included in the machine configuration.
Customers are encouraged to provide complete profile drawings and material specifications before equipment selection.
The term "C channel" can refer to different steel products used in construction and manufacturing.
Drywall C studs are generally lightweight galvanized profiles designed for interior partition framing.
Structural C channels and C purlins may have different dimensions, material thicknesses and mechanical requirements.
These differences affect roller tooling, forming forces, machine structure and equipment selection.
This PROMAX C channel forming machine is intended for drywall C stud manufacturing rather than heavy structural channel production.
Customers requiring structural C channels should provide their drawings and material specifications for a separate technical evaluation.
Dimensional inspection is an important part of C stud manufacturing.
Typical inspection points include web width, flange height, return lip dimensions, straightness and cutting length.
The condition of the galvanized coating should also be checked after forming.
Inspection tolerances and acceptance criteria should be defined according to the approved profile drawings and the requirements of the intended drywall framing system.
Consistent raw material specifications and appropriate machine maintenance are important for stable manufacturing.
Before purchasing a C channel forming machine, manufacturers should confirm the required C stud dimensions, steel material specifications and production needs.
Important information includes profile drawings, steel thickness, material grade, finished cutting lengths and expected production capacity.
Customers should also identify whether punching, automatic size adjustment or other processing functions are required.
These details help determine the appropriate roller tooling, forming stations, cutting system and control configuration.
PROMAX can evaluate customer requirements and prepare a suitable technical proposal.
PROMAX develops cold roll forming equipment for drywall studs, tracks, ceiling channels and lightweight metal framing profiles.
Our services include profile drawing evaluation, machine configuration planning, customized tooling and equipment manufacturing.
Backed by Tianjin Haixing's experience in roll forming technology since 1996, PROMAX supports manufacturers seeking customized equipment solutions for different markets.
Our team can help customers evaluate C stud dimensions, material specifications and production requirements before preparing a quotation.
Are you looking for a C channel forming machine to manufacture galvanized steel C studs for drywall partition systems?
Send us your C stud drawings, steel thickness, material specifications, required cutting lengths and production capacity expectations.
Our engineering team can review your requirements and recommend a suitable machine configuration.
Contact PROMAX today to request a customized quotation for your drywall C channel forming machine.
