Aluminum Profile Roll Forming Machine

Aluminum Profile Roll Forming Machine

The PROMAX Aluminum Profile Roll Forming Machine is intended for manufacturers seeking a roll forming solution for specified metal profile applications. The suitable machine configuration depends on the target cross-section, raw material, profile dimensions, finished length, and production requirements.

For projects involving Omega-shaped profiles, the profile drawing is essential for confirming the required forming process. Different Omega profiles may vary in width, height, flange design, and bending geometry. These differences influence the tooling and machine configuration needed to produce the intended product.

Before selecting equipment for aluminum profile roll forming, buyers should confirm that the machine design is suitable for the intended aluminum alloy, material thickness, coil width, and forming requirements. If the target Omega keel is made from galvanized steel rather than aluminum, the product description and keyword strategy should be adjusted to accurately reflect the application.

What Is an Aluminum Profile Roll Forming Machine?

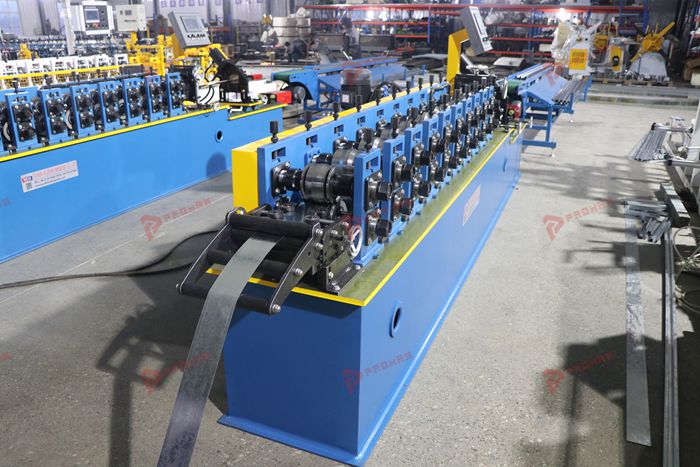

An aluminum profile roll forming machine shapes suitable metal strip into a specified cross-section through a progressive forming process. The material passes through a series of forming rollers, with each stage contributing to the final profile geometry.

Depending on the intended product and equipment design, a roll forming line may include material feeding, guiding, forming, cutting, and other processing functions. The actual configuration should be determined by the profile drawing and material requirements rather than by a generic machine name alone.

Aluminum profile production requires attention to material properties and surface quality. Aluminum alloys can behave differently from steel during forming, so tooling design, forming procedures, and handling arrangements should be evaluated for the selected material.

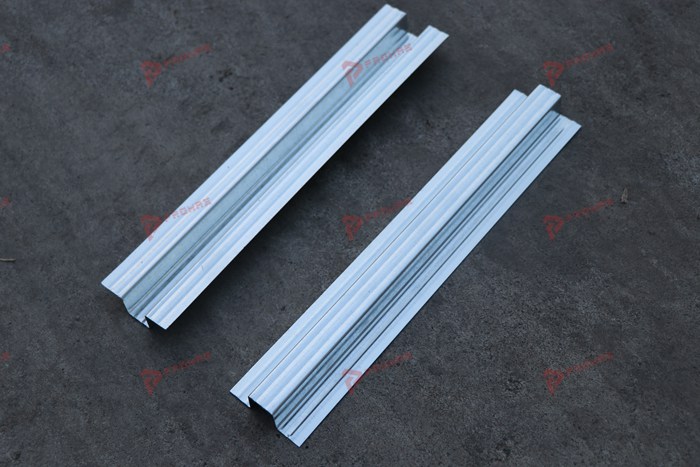

Omega Profile Forming Applications

Omega-shaped metal profiles may be used in compatible ceiling, wall lining, and other construction systems. The intended application depends on the exact cross-section, installation method, material, and requirements of the building system.

• Ceiling profile production: Manufacturing specified profiles for compatible ceiling systems.
• Interior construction: Producing metal profiles for selected wall lining and framing applications.
• Custom metal profiles: Forming material into a defined cross-section based on a customer drawing.
• Building material manufacturing: Supporting manufacturers that supply metal components for construction projects.

Not every Omega profile is interchangeable with a C stud, U track, main channel, or other framing component. Buyers should confirm the intended application and profile dimensions before finalizing the equipment requirements.

How the Roll Forming Process Works

A typical roll forming process gradually bends suitable metal strip into the required shape. The process and equipment layout vary according to the material, profile geometry, dimensional tolerances, and finished-product requirements.

1. Material specification: Confirm the aluminum alloy or other material, thickness, coil width, and relevant material properties.
2. Feeding and guiding: Align and guide the strip into the forming section.

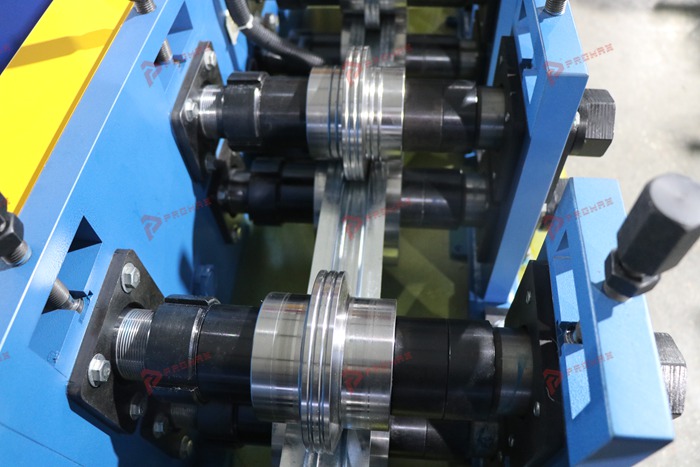

3. Progressive forming: Shape the strip through forming rollers designed for the target cross-section.

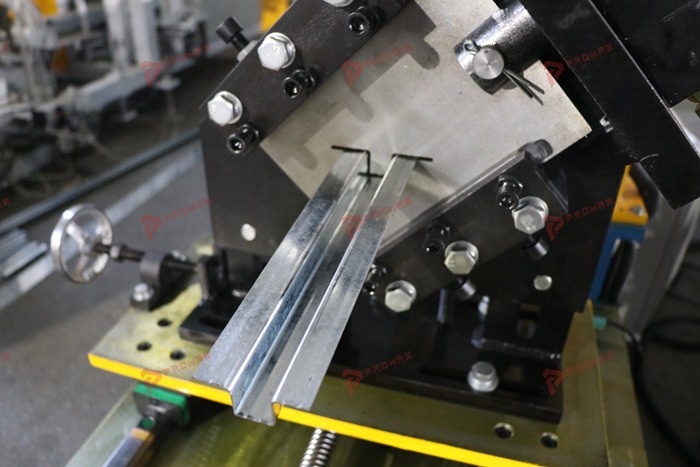

4. Cutting: Cut the formed profile to the required length using the agreed cutting arrangement.
5. Quality inspection: Check the cross-section, dimensions, surface condition, and cut quality against the approved requirements.

Additional functions, such as punching, notching, or specialized handling, should be specified in advance if they are required. Their availability depends on the final machine design.

Important Factors When Choosing an Aluminum Profile Roll Forming Machine

1. Aluminum Alloy and Material Thickness

Different aluminum alloys and thicknesses may require different forming considerations. Provide the material grade where known, nominal thickness, coil width, and available material specifications. These details help the manufacturer evaluate whether the proposed machine and tooling are suitable for the application.

2. Profile Drawing and Cross-Section

A technical drawing is the most useful starting point for machine selection. It should show the overall dimensions, flange sizes, bend locations, and other important features. If several profiles are required, provide drawings for each profile so tooling requirements can be assessed individually.

3. Surface Quality Requirements

For visible construction components, surface appearance may be important. Buyers should explain whether the finished profile has specific requirements for scratches, marks, deformation, or other surface defects. Material handling and forming arrangements should be evaluated against these requirements.

4. Finished Length and Processing Functions

Specify the finished profile length and any required holes, notches, or additional features. These requirements influence the selection of the cutting and processing arrangement. Confirm the required functions and tolerances before accepting the final technical proposal.

5. Production Capacity and Factory Conditions

Expected output, order volume, available floor space, and factory power supply are also relevant to equipment planning. Rather than relying on a generic speed figure, discuss the intended material and profile with the manufacturer so production expectations can be evaluated against the actual configuration.

Why Consider PROMAX Roll Forming Solutions?

PROMAX focuses on roll forming equipment for metal framing and construction profile applications. Backed by Tianjin Haixing's experience in roll forming technology since 1996, the team can review customer requirements and discuss equipment options based on the specified product.

• Drawing-based evaluation: Review the target profile dimensions and cross-sectional geometry.
• Material-focused planning: Evaluate the material type and thickness before confirming the machine configuration.
• Application review: Clarify whether the profile is intended for a ceiling, wall lining, or another compatible system.
• Configuration discussion: Define the required feeding, forming, cutting, and additional processing functions.
• Specification confirmation: Establish the agreed technical scope before the order is finalized.

The final proposal should clearly state the supported material, profile dimensions, included functions, and any applicable operating limitations. This helps buyers assess the solution against their production needs.

Information Needed for a Quotation

To evaluate a suitable aluminum profile roll forming machine or Omega profile forming solution, please prepare the following details:

• Profile drawing or cross-sectional sketch.
• Material type and aluminum alloy, if applicable.
• Material thickness and coil width.
• Required finished profile length and tolerances.
• Required cutting, punching, or notching functions.
• Expected production volume and factory power supply.
• Destination country and delivery requirements.

If you do not have a complete technical drawing, you can begin with the main profile dimensions and clear photographs of the finished product. The manufacturer can review the information and identify any additional details needed to assess the machine.

Contact PROMAX for a Profile Roll Forming Solution

Looking for a profile forming machine for your metal profile production? Contact PROMAX with your profile drawing, material specifications, and production requirements. The team can review your application and discuss an appropriate roll forming solution based on the confirmed technical details.

Accurate information about the material and finished profile helps establish realistic machine requirements and supports a clearer quotation process.
