Omega Channel Making Machine

Omega Channel Making Machine

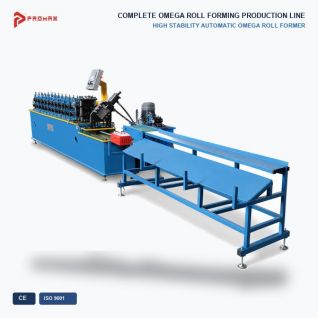

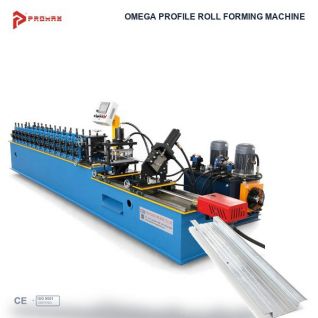

The PROMAX Omega Channel Making Machine is designed for manufacturing Omega-shaped metal profiles through a continuous roll forming process. The machine configuration can be evaluated according to the required profile drawing, material specifications, finished dimensions, and production requirements.

Omega profiles are used in various building and interior construction applications, depending on their cross-sectional design and installation method. For manufacturers supplying metal framing components, ceiling accessories, and construction profiles, selecting suitable forming equipment helps support consistent product dimensions and an organized manufacturing process.

PROMAX develops roll forming equipment solutions based on customers' product requirements. By reviewing the profile drawing and intended application before confirming the machine design, buyers can better evaluate the required forming tooling, feeding arrangement, cutting system, and additional processing functions.

Applications of Omega Channel Profiles

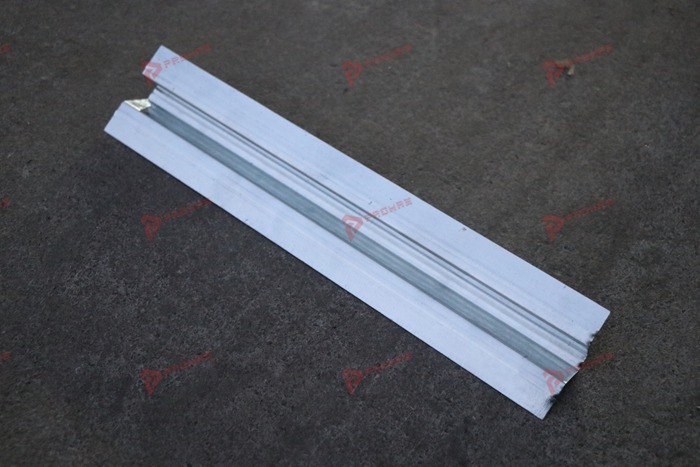

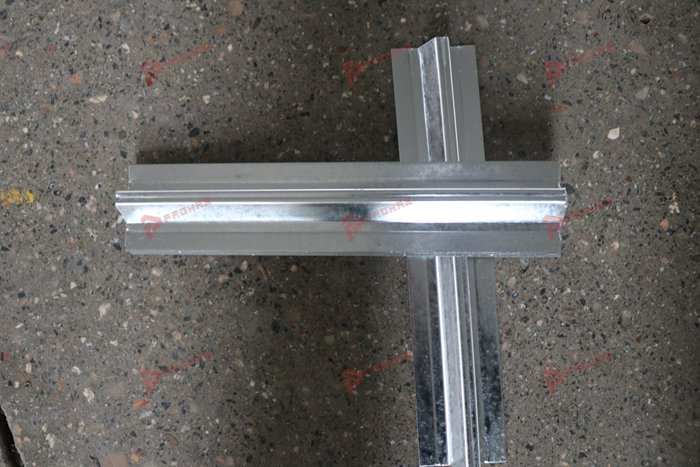

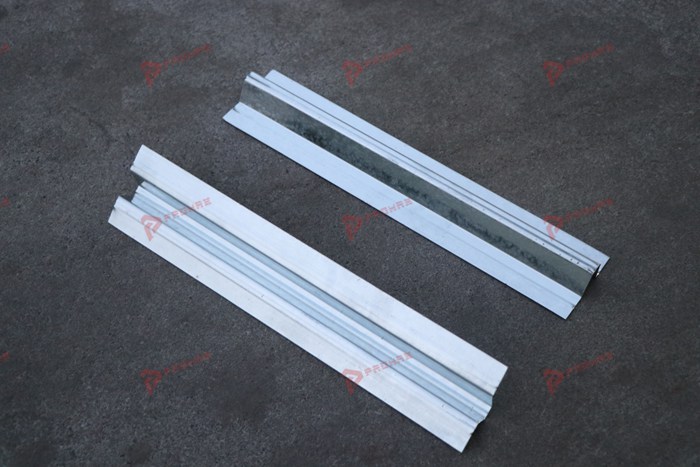

Omega-shaped metal profiles can be used in compatible ceiling, wall lining, and building support systems. Their exact application depends on the profile dimensions, material properties, fastening method, and requirements of the construction system.

• Ceiling systems: Manufacturing Omega-shaped metal profiles used in compatible ceiling installation systems.
• Wall lining systems: Producing metal profiles for suitable interior wall lining and supporting applications.
• Building material manufacturing: Supplying formed metal components to construction material manufacturers, distributors, and contractors.
• Customized metal profiles: Producing specified Omega-shaped sections according to customer drawings and dimensional requirements.

Profile terminology varies by region. Before selecting an Omega channel making machine, buyers should confirm the actual cross-section and intended use. Omega channels should not automatically be treated as interchangeable with C studs, U tracks, or main ceiling channels.

How the Channel Making Machine Works

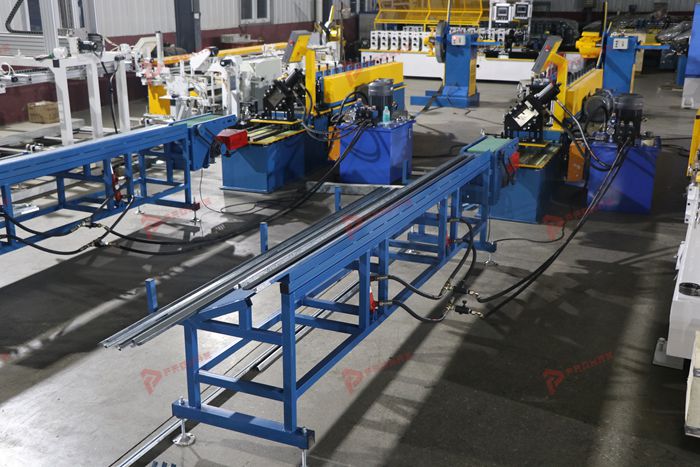

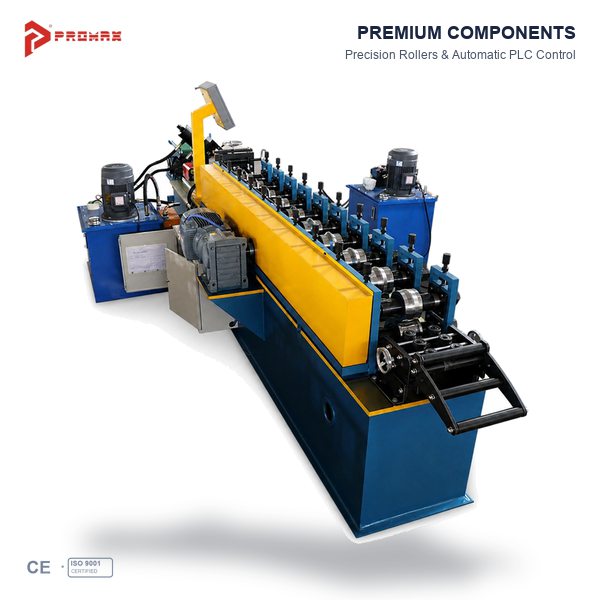

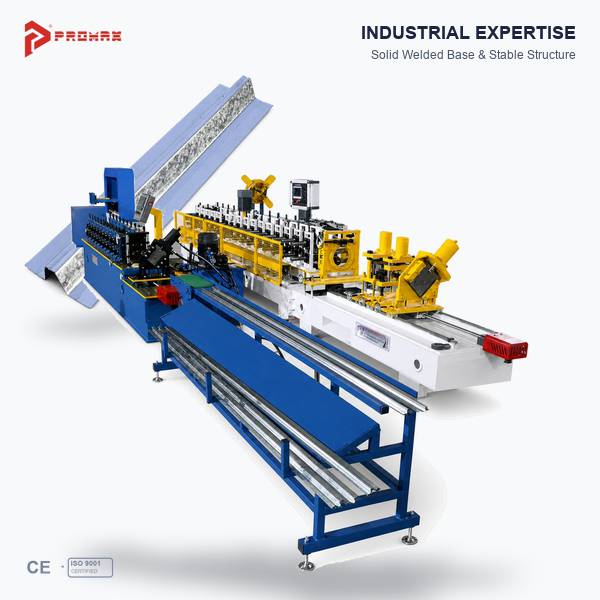

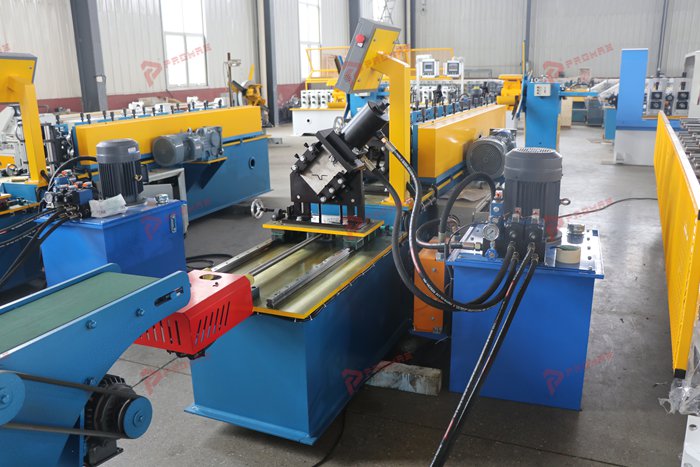

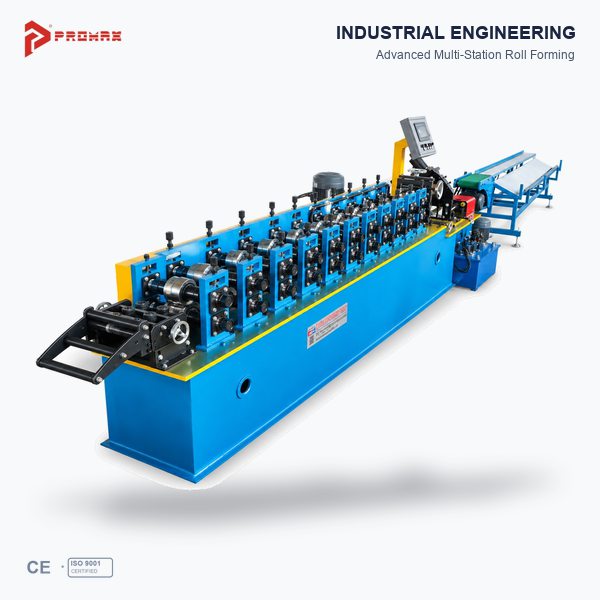

A typical channel making machine uses a series of forming rollers to gradually shape metal strip into the required profile. The material is fed into the forming section, passes through successive roller stations, and is cut to the specified length using the configured cutting system.

1. Material preparation: Confirm the material type, thickness, coil width, and other raw material specifications.

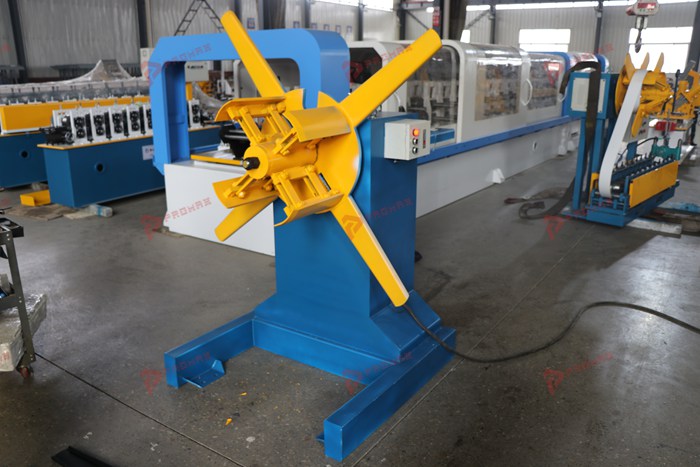

2. Feeding and guiding: Feed the metal strip into the machine and align it for the forming process.
3. Progressive roll forming: Shape the strip through rollers designed for the specified Omega cross-section.

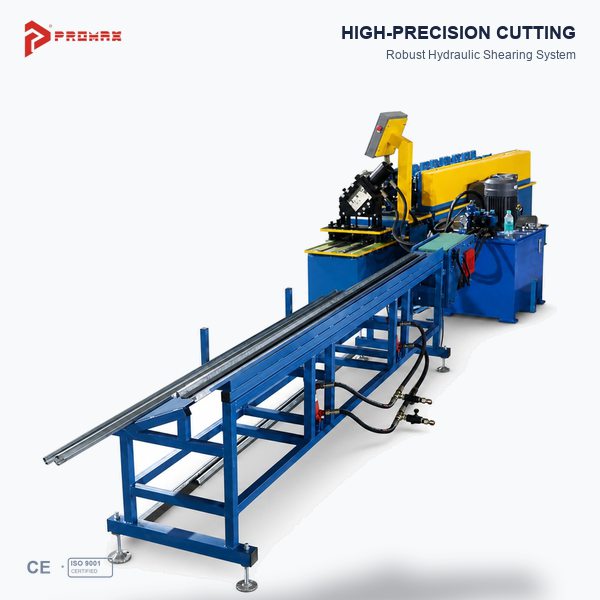

4. Cutting to length: Cut the formed profile according to the required finished length and machine configuration.
5. Product inspection: Check the finished profile's dimensions, shape, edges, and cutting quality against the approved drawing.

The exact machine layout and production sequence depend on the target profile and selected equipment configuration. Punching, notching, automatic adjustment, and other functions should be confirmed according to the customer's actual requirements.

Key Factors When Choosing an Omega Channel Making Machine

1. Profile Drawing and Dimensions

The profile drawing is the starting point for machine selection. It should show the overall width and height, flange dimensions, bends, lips, and other relevant cross-sectional details. These measurements help the manufacturer evaluate the required forming tooling and determine a suitable machine configuration.

If multiple Omega profiles are required, provide a drawing for each profile. The supplier can then evaluate whether the requested profiles can be handled by the proposed configuration or whether different tooling or machine arrangements are needed.

2. Material Specifications

The material specification affects the forming process and tooling design. Buyers should provide the material type, nominal thickness, coil width, and available mechanical property information. Galvanized steel strip is commonly used for many construction profiles, but compatibility must be confirmed for the specific product and machine.

When evaluating a channel making machine, make sure the proposed configuration is matched to the intended material rather than relying on the product name alone.

3. Cutting and Processing Requirements

Finished Omega profiles may require different lengths or additional processing features. Buyers should clarify whether the product needs punching holes, notches, or other operations. If these features are required, include their dimensions and positions in the profile drawing.

Confirming processing requirements before ordering helps the supplier determine the appropriate machine arrangement and clarify which functions are included in the quotation.

4. Production Requirements

Expected output, order volume, product dimensions, factory layout, and operating conditions all influence equipment selection. Buyers should discuss their production objectives with the manufacturer so the proposed machine can be assessed against the intended workflow.

Production speed and output should be evaluated alongside material specifications, profile quality, cutting arrangements, and actual operating conditions. Any quoted performance figures should correspond to a defined product and material specification.

Why Consider PROMAX for Omega Profile Production?

PROMAX focuses on roll forming equipment for metal framing and construction profile applications. Backed by Tianjin Haixing's experience in roll forming technology since 1996, the team can evaluate equipment requirements based on customer drawings and production objectives.

• Drawing-based evaluation: Review the required Omega cross-section and dimensions before confirming the machine configuration.
• Application-focused planning: Evaluate the forming process according to the intended construction profile.
• Material compatibility review: Consider the specified material and its requirements for roll forming.
• Processing requirements: Discuss cutting, punching, and other operations needed for the finished product.
• Technical specification review: Clarify the agreed profile dimensions, machine scope, and configuration before ordering.

The final technical proposal should identify the supported profile, material range, cutting arrangement, optional functions, and other agreed specifications. This helps both parties establish a clear understanding of the required production equipment.

Information Needed for a Channel Making Machine Quotation

To help evaluate a suitable Omega channel making machine, please prepare the following information:

• Omega profile drawing or a clear cross-sectional sketch.
• Material type, thickness, and coil width.
• Required finished profile length and dimensional tolerances.
• Punching, notching, or other processing requirements.
• Expected production volume and operating requirements.
• Destination country and factory power supply information.

If a complete technical drawing is not available, start with the profile's main dimensions, material details, and clear photographs of the finished product. These details can help the manufacturer identify the additional information needed to assess the machine configuration.

Request a Quote for an Omega Channel Making Machine

Looking for a channel making machine for Omega metal profile production? Contact PROMAX with your profile drawing and material specifications. The team can review your requirements and discuss a suitable roll forming solution for your intended application.

Providing accurate product information at the beginning of the project helps clarify the required equipment configuration and supports a more efficient quotation process.
