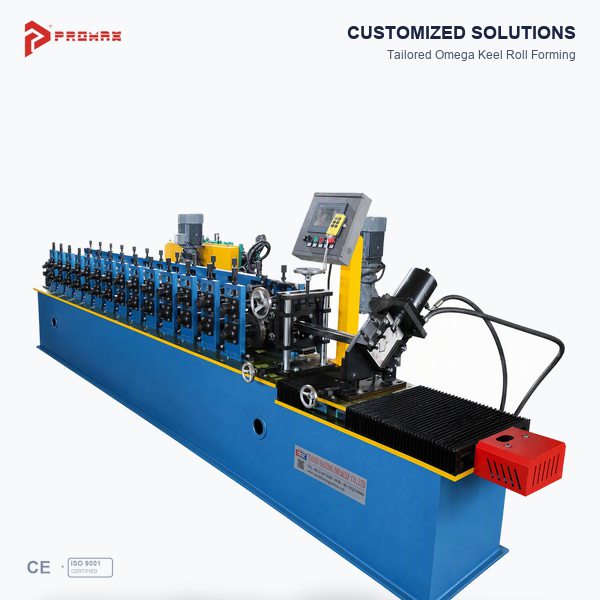

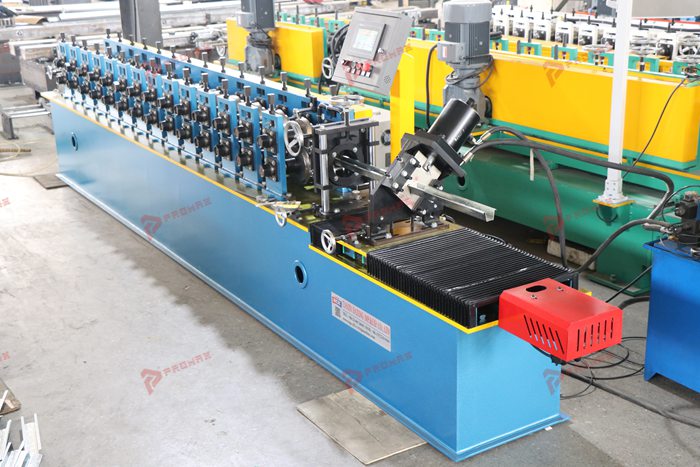

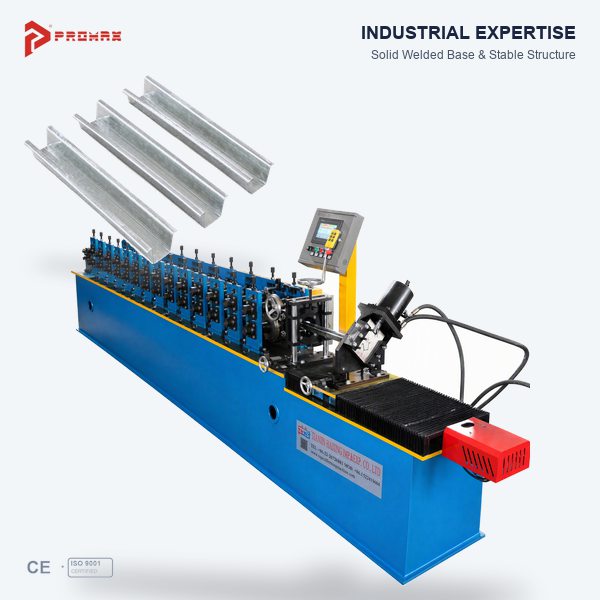

PROMAX Hat Profile Making Machine

The PROMAX hat profile making machine is designed to manufacture hat-shaped metal profiles for compatible ceiling systems, wall furring applications, and interior construction projects. Using a continuous cold roll forming process, the machine gradually forms metal coil into the required cross-section according to the customer's profile drawing and technical specifications.

Hat profiles are commonly used as lightweight furring or supporting components in selected building assemblies. For manufacturers of construction materials, a dedicated hat profile roll forming machine provides a production solution for supplying metal channels to distributors, contractors, and building material suppliers.

The machine configuration can be evaluated according to the required profile dimensions, material specifications, thickness range, cutting length, and production targets. A detailed profile drawing helps determine the suitable roll tooling and forming arrangement.

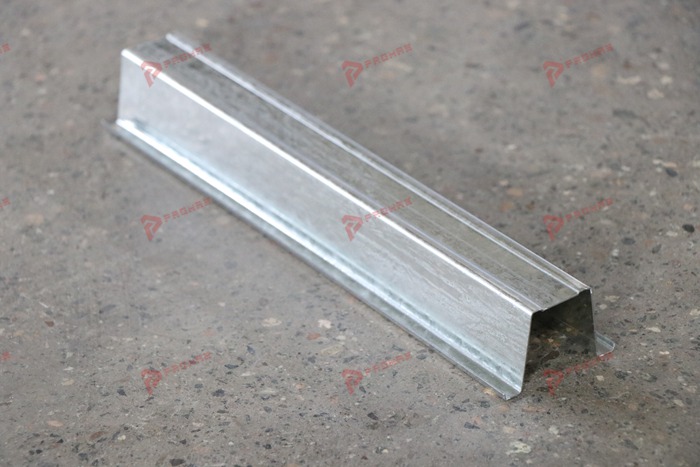

Applications of Hat-Shaped Metal Profiles

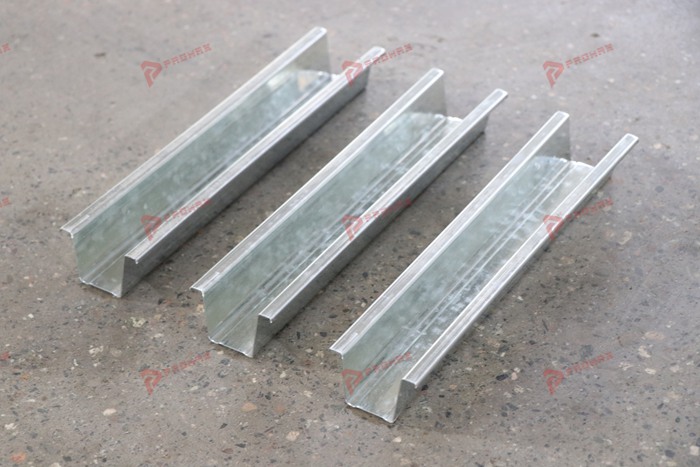

Hat-shaped metal profiles are used in a range of light-gauge metal framing applications. Depending on their dimensions and the intended installation system, typical applications may include:

• Ceiling framing: Hat-shaped channels for compatible ceiling support and furring systems.
• Wall furring: Metal profiles used as supporting components in suitable wall lining assemblies.
• Interior construction: Lightweight framing components for selected residential and commercial projects.
• Building material manufacturing: Production of metal hat profiles for wholesalers, contractors, and construction material distributors.

The correct profile depends on the installation method, material properties, load requirements, and specifications of the complete building system. The finished profile should be confirmed against the intended application and applicable standards.

How a Hat Profile Making Machine Works

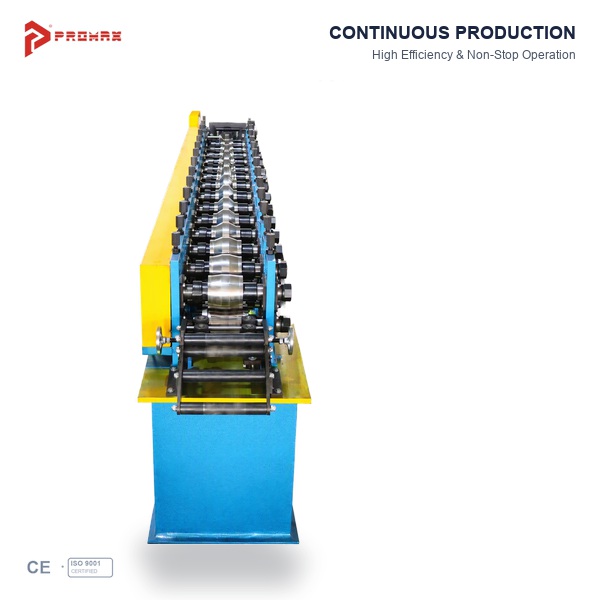

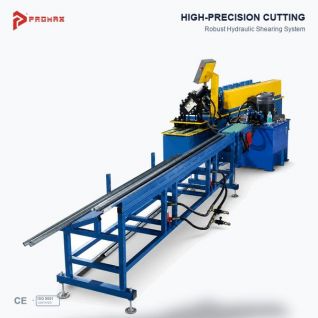

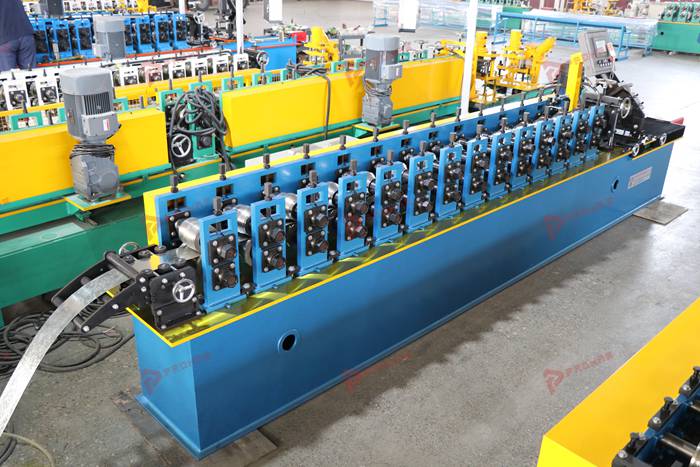

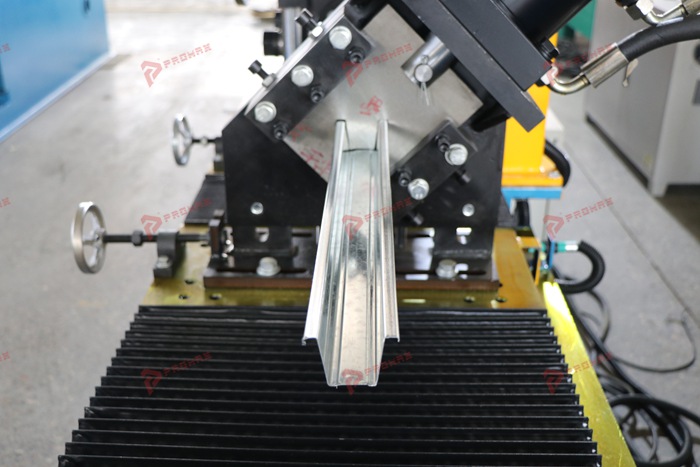

A typical hat profile production line guides metal strip through a series of forming stations. Each station progressively bends the material until the specified hat-shaped cross-section is achieved. A cutting system then separates the finished profiles at the required length, depending on the machine configuration.

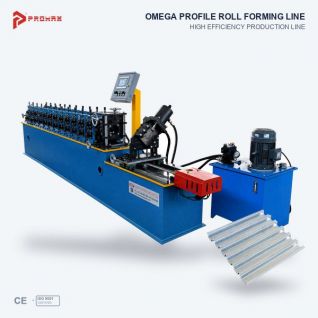

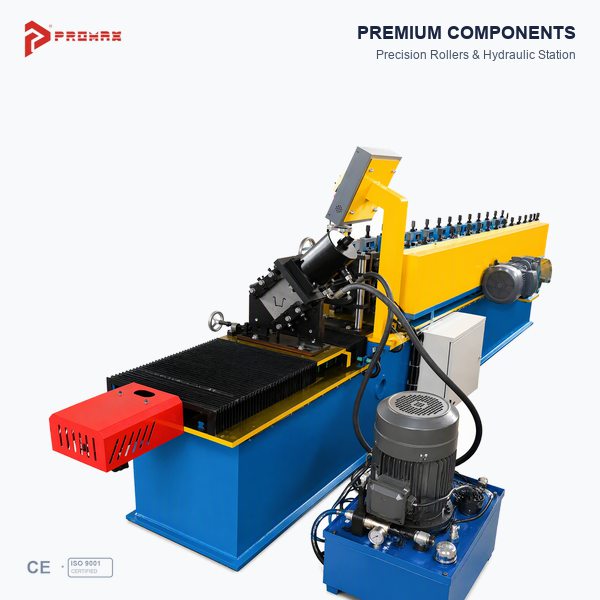

The production line may include material feeding and guiding equipment, forming rollers, a cutting unit, and an electrical control system. Additional punching functions or other processing equipment can be considered when required by the finished profile design.

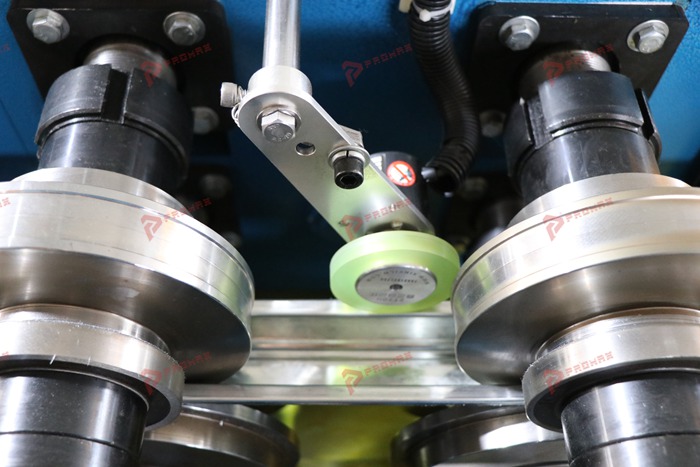

Progressive roll forming allows the metal strip to be shaped in stages. Proper tooling design and machine adjustment are important for achieving the required profile geometry and maintaining consistent production quality.

How to Choose a Hat Profile Roll Forming Machine

Before selecting a hat profile making machine, manufacturers should confirm the exact cross-section and production requirements. Hat profiles can vary in web width, sidewall height, flange dimensions, and return-edge design. These differences affect the roll tooling and machine configuration.

• Profile drawing: Provide the cross-sectional drawing with dimensions and tolerances.
• Material specifications: Confirm the steel type, grade, coil width, and thickness range.
• Cutting requirements: Specify the required finished profile length and cutting method.
• Punching requirements: Identify any holes, slots, or notches required in the finished profile.
• Production targets: Explain the expected output and preferred operating method.
• Future product range: Indicate whether additional hat profile sizes may be required.

These details help determine the appropriate forming stations, tooling design, cutting arrangement, and any optional processing equipment before a technical proposal is prepared.

PROMAX Hat Profile Manufacturing Solutions

PROMAX provides roll forming equipment solutions for manufacturers of lightweight metal framing and construction profiles. Each project can be evaluated according to the customer's profile drawing, raw material specifications, finished product dimensions, and production requirements.

For a new hat profile production line, customers can submit their profile drawing and material details for technical review. The proposed machine configuration can then be discussed in relation to forming requirements, cutting arrangements, punching options, and the intended production range.

Machine speed, material thickness range, automation level, and compatibility with multiple profile sizes depend on the final design. These specifications should be confirmed in the technical proposal to ensure that the equipment meets the customer's actual manufacturing needs.

Request a Quote for a Hat Profile Making Machine

Looking for a hat profile making machine for your ceiling channel or metal framing business? Contact PROMAX to discuss your profile specifications and production plans.

To help us evaluate your project, please provide the hat profile drawing, material type, thickness range, required cutting length, punching details, and expected production output. Photos or samples of the finished profile can also help clarify the required cross-section.

Contact PROMAX today to discuss a hat profile roll forming solution for your production line.
