Omega Roll Forming Machine for Metal Profiles

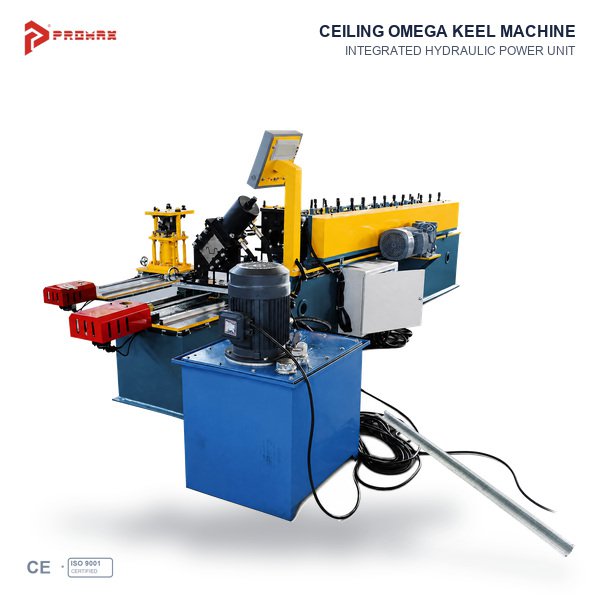

Omega Roll Forming Machine for Metal Profile Production

The PROMAX omega roll forming machine is designed for manufacturing Omega-shaped metal profiles used in compatible building, ceiling, wall cladding, and lightweight framing systems. Through progressive roll forming, steel strip passes through a series of roller stations to achieve the required cross-sectional geometry.

Omega profiles are available in different dimensions and designs according to the intended application. When selecting an omega profile machine, manufacturers should consider the profile drawing, steel material, thickness, strip width, required finished length, production volume, and cutting method. These specifications help determine the suitable tooling and machine configuration.

PROMAX works with customers to evaluate their profile requirements and discuss suitable roll forming equipment solutions. Providing a profile drawing or sample at the quotation stage helps clarify the forming process and the equipment required for production.

What Is an Omega Roll Forming Machine?

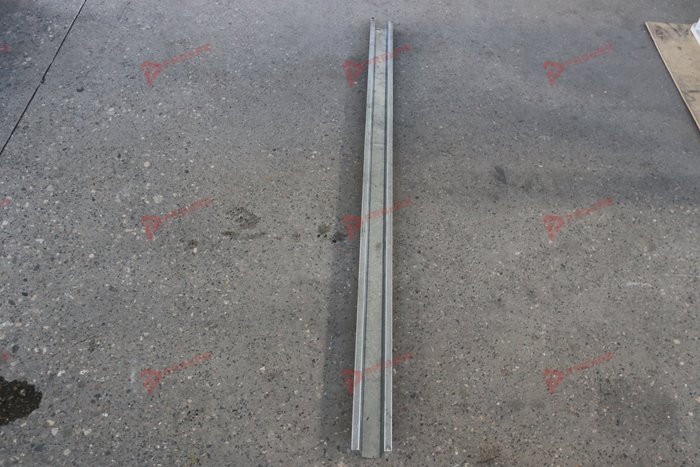

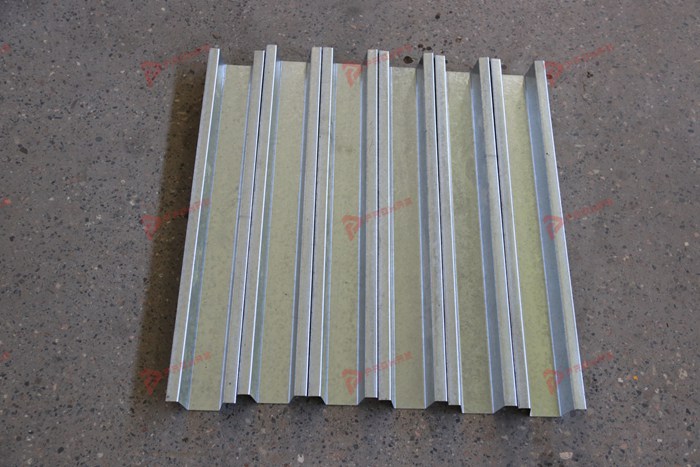

An omega roll forming machine produces metal profiles with an Omega-shaped cross-section. The exact shape may include a raised central section, side walls, and outward-facing flanges, depending on the product drawing.

Omega profiles are used in selected construction and interior finishing systems, including compatible wall cladding support structures, ceiling assemblies, and lightweight metal framing applications. The intended use depends on the profile dimensions, material properties, installation method, and engineering requirements of the project.

Because Omega profiles can differ between manufacturers and markets, buyers should not select equipment based on the product name alone. The machine tooling must be matched to the required profile geometry, and any special features must be confirmed in the technical proposal.

Applications of an Omega Profile Machine

An Omega profile roll former can support production for building material manufacturers, metal profile suppliers, and construction component factories. Typical applications may include the following, subject to the actual profile design.

1. Wall Cladding Support Profiles

Compatible Omega-shaped profiles can be used in selected wall lining and cladding assemblies. The profile dimensions and material specifications should meet the requirements of the intended installation system.

2. Ceiling and Interior Finishing Systems

Some Omega profiles are used as metal support or furring components in ceiling and interior finishing applications. Buyers should confirm the exact profile standard before choosing a machine.

3. Lightweight Metal Framing

Omega-shaped sections may be manufactured for specific lightweight framing and finishing applications where their geometry is suitable for the design.

4. Building Material Manufacturing

Metal profile factories can use roll forming equipment to supply customized or standardized sections to contractors, distributors, and construction material wholesalers.

Omega profiles are not interchangeable with every hat channel, C stud, or ceiling channel. Confirm the cross-section and application with the equipment manufacturer before ordering.

How the Omega Roll Forming Process Works

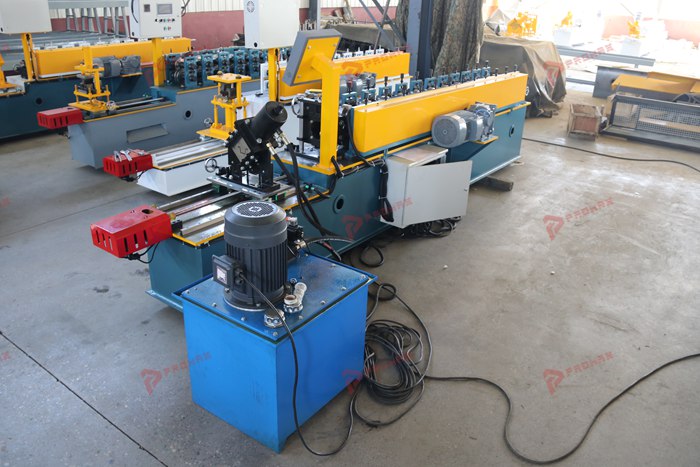

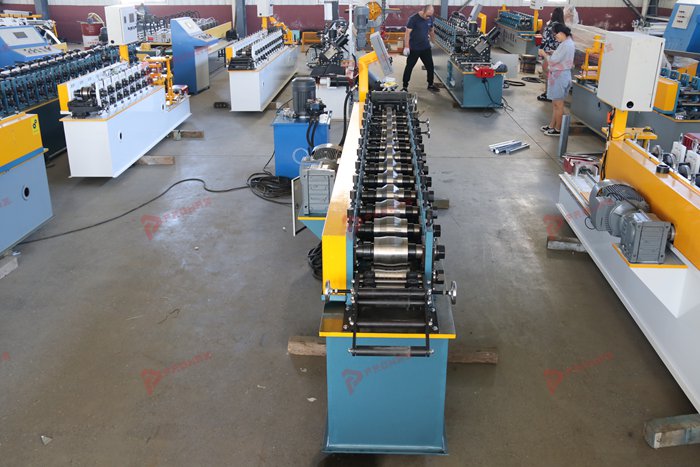

A typical Omega roll forming line transforms flat steel strip into a finished profile through a series of progressive forming stages. The actual line layout depends on the machine design, profile specifications, and selected accessories.

1. Coil preparation: The steel coil is prepared for loading onto a compatible decoiler.
2. Material feeding: The strip is guided into the forming section to maintain alignment.

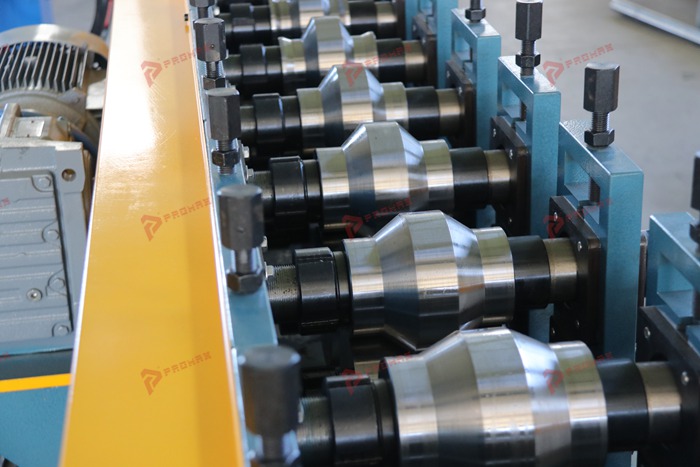

3. Progressive roll forming: Forming rollers gradually bend the steel strip into the specified Omega cross-section.
4. Profile checking: Operators inspect the formed profile against the approved drawing.

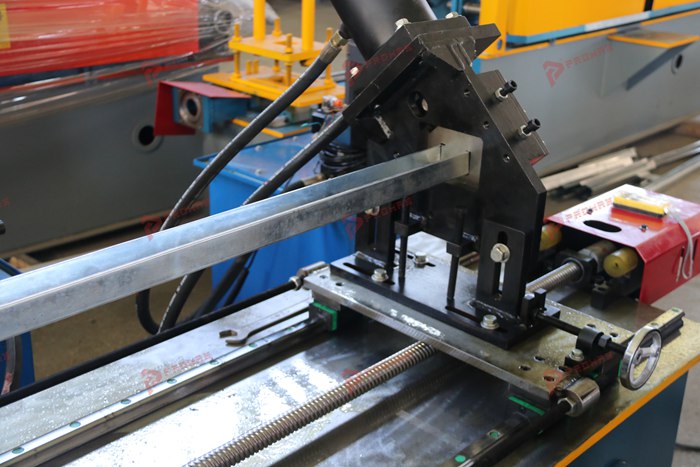

5. Length measurement and cutting: A suitable cutting arrangement produces the required finished lengths.
6. Collection and inspection: Finished profiles are collected and checked before bundling or shipment.

Consistent feeding, appropriate roller tooling, stable machine settings, and suitable raw material all contribute to repeatable production. The feeding, forming, and cutting configuration should be confirmed according to the customer's production requirements.

Key Factors When Choosing an Omega Channel Forming Machine

Profile Drawing and Dimensions

The profile drawing is the starting point for machine selection. It should identify the overall width, central section, side walls, flanges, return lips where applicable, and other dimensions needed to define the Omega cross-section.

If you plan to produce several Omega profile sizes, provide drawings for each model. The manufacturer can then assess the tooling requirements and determine whether the proposed machine configuration can accommodate the requested product range.

Steel Material and Thickness

Steel strip and galvanized steel strip may be suitable for different Omega profile applications. Material grade, thickness, strip width, coating, and mechanical properties should be confirmed before the machine is configured.

The supported material range depends on the machine design and tooling. Do not assume that one machine can process every thickness or material type without reviewing the technical specifications.

Cutting Method and Finished Length

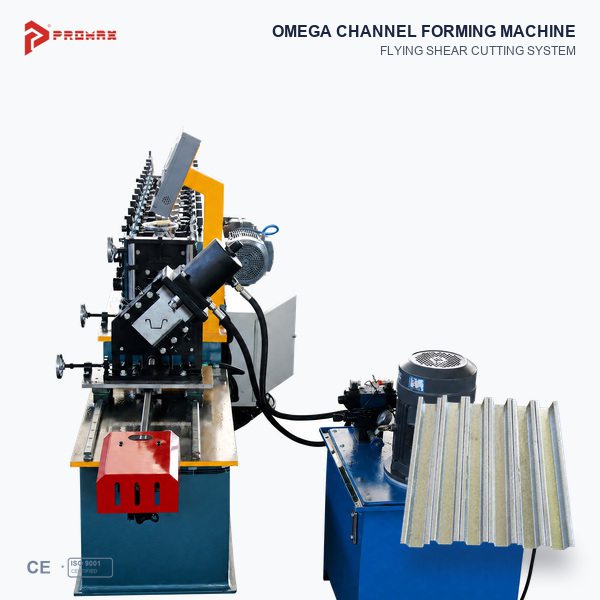

Finished profile lengths and cutting requirements affect the production process. Buyers should specify the required length range, cutting accuracy, cut-end quality, and whether cutting during continuous operation is required.

Production Capacity

Expected production volume, operating hours, and product mix help determine the appropriate line configuration. When comparing quotations, request production information under clearly defined profile and material conditions.

Automation and Factory Requirements

Discuss the required control system, feeding arrangement, cutting method, and any special production functions. Also consider floor space, electrical supply, coil handling, finished-product collection, maintenance access, and operator safety.

Custom Omega Profile Tooling

Different markets and construction systems may require different Omega profile dimensions. Customized tooling helps match the roll forming process to the customer's approved profile design.

When requesting a quotation, prepare the following information:

• Omega profile drawing or representative sample.
• Overall profile dimensions and required tolerances.
• Steel material type, thickness, and strip width.
• Required finished lengths and cutting specifications.
• Expected output and production schedule.
• Number of profile sizes to be manufactured.
• Required accessories and preferred automation level.
• Destination country and factory installation conditions.

With this information, the manufacturer can review the forming requirements and discuss the machine scope, tooling, and cutting arrangement. Special functions such as punching, automatic profile adjustment, or rapid profile changeover should be confirmed individually rather than assumed to be standard features.

Quality Control for Omega Profile Production

Finished-profile quality depends on the incoming material, roller tooling, machine alignment, forming settings, and inspection procedures. A consistent quality-control process helps identify dimensional deviations and maintain repeatability during production.

• Dimensional checks: Measure the profile width, central section, flanges, and other drawing-defined dimensions.
• Cross-section inspection: Verify the Omega shape against the approved profile drawing.
• Straightness: Check for unwanted bending, twisting, or deformation.
• Cutting quality: Inspect finished length and cut ends.
• Surface condition: Check for visible scratches, forming marks, or coating damage where applicable.
• Production consistency: Inspect samples throughout the production run.

Inspection criteria should be established according to the product drawing, customer requirements, and intended application. Where the finished profile is part of a structural or regulated construction system, confirm the relevant engineering and compliance requirements separately.

Why Choose PROMAX Roll Forming Equipment?

PROMAX focuses on roll forming equipment for lightweight steel framing and construction profiles. Backed by Tianjin Haixing's experience in roll forming technology since 1996, PROMAX works with customers to review profile drawings, raw material requirements, and production goals when evaluating equipment solutions.

For manufacturers planning to produce Omega profiles, clear technical specifications are essential for selecting suitable tooling and equipment. Providing profile dimensions, material information, target output, and application details helps the technical team assess the project and prepare a more relevant quotation.

Before confirming an order, buyers should review the machine configuration, included tooling, cutting arrangement, supported material specifications, delivery schedule, installation guidance, warranty conditions, and after-sales support in the final technical and commercial documents.

Request a Quote for an Omega Roll Forming Machine

Are you looking for an Omega roll forming machine for your metal profile manufacturing business? Contact PROMAX with your profile drawing, steel specifications, required finished lengths, and expected production volume.

Our team can review your application and discuss a suitable equipment configuration based on your requirements. Send your profile information today to request a quotation for your Omega profile production project.
