Automatic Stud and Track Roll Forming Machine

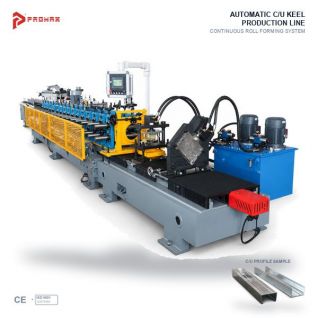

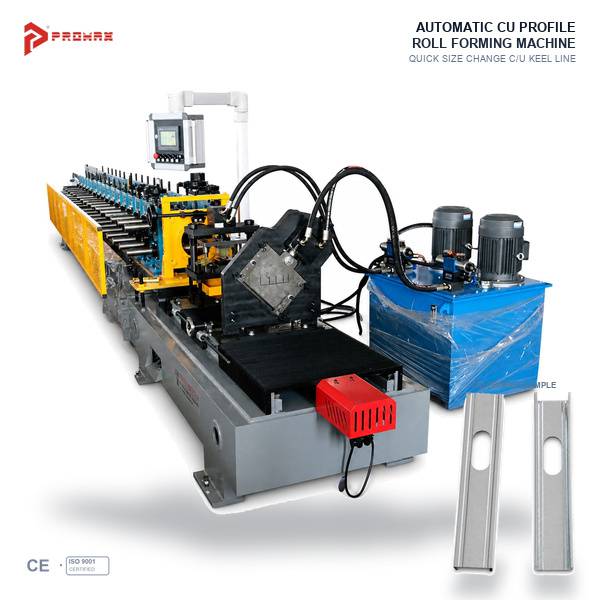

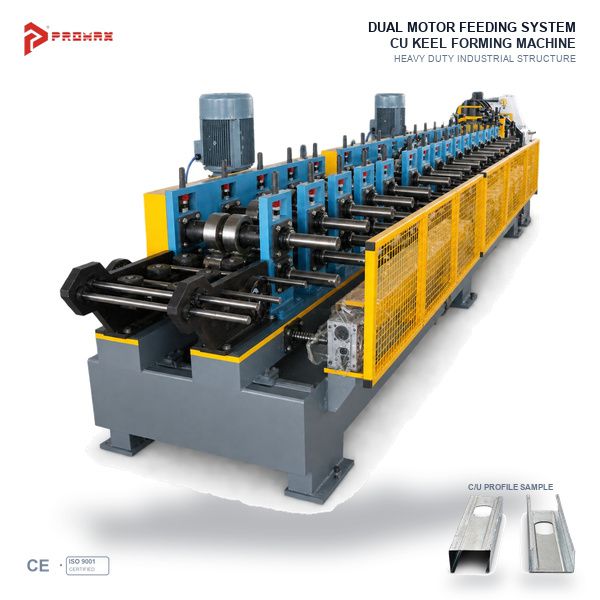

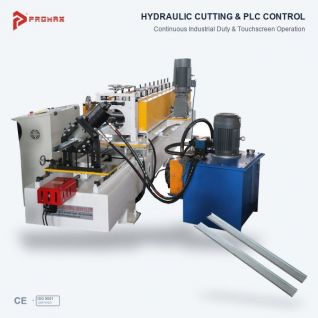

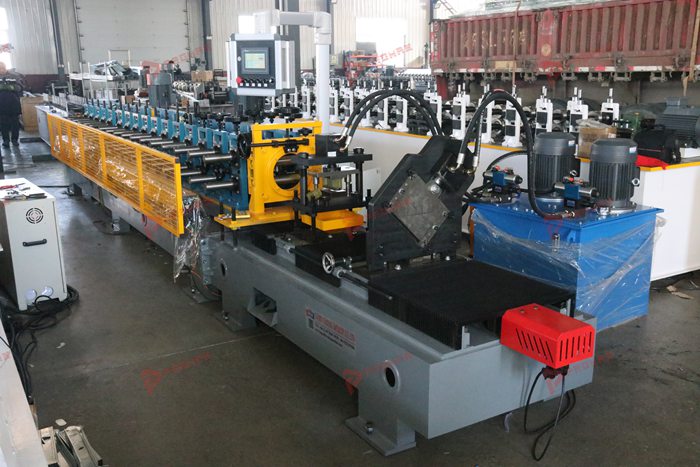

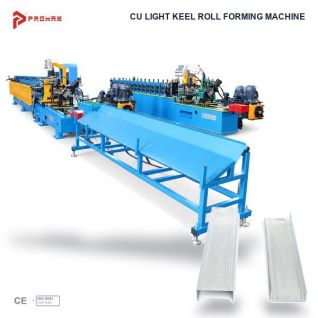

PROMAX Fully Automatic C & U Stud and Track Roll Forming Machine

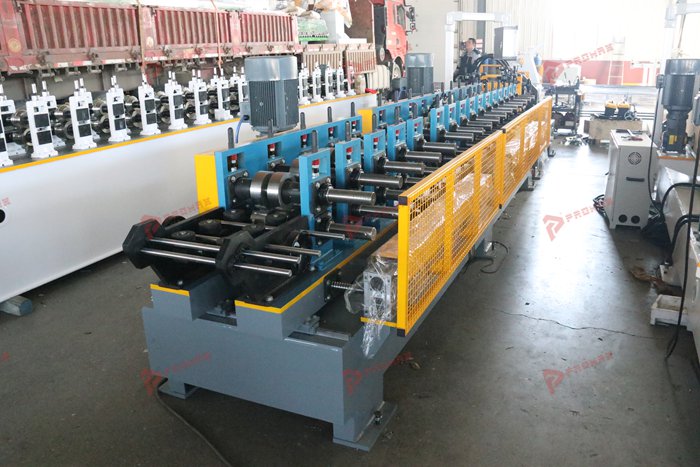

The PROMAX automatic stud and track roll forming machine is designed for manufacturing C-shaped metal studs and U-shaped tracks used in drywall partition systems and lightweight interior framing. The production solution can be configured according to the required profile dimensions, material specifications, cutting lengths, and manufacturing requirements.

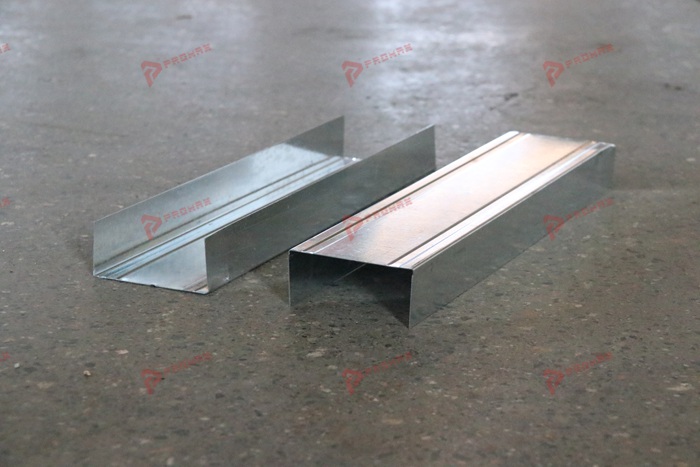

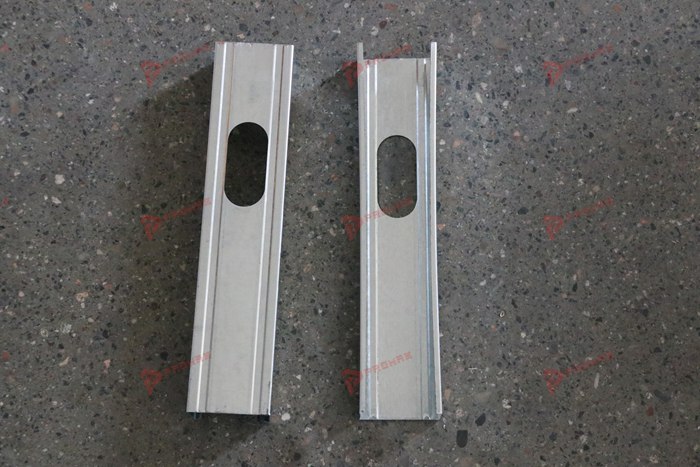

C studs and U tracks are complementary components in metal framing systems. C-shaped studs provide vertical framing members, while U-shaped tracks serve as horizontal guide channels in compatible partition assemblies. For manufacturers supplying drywall and construction materials, a suitable C and U profile production solution can help organize the manufacturing process for these related products.

The machine configuration should be confirmed according to the profile drawings and required production process. Depending on the selected design, automation functions and auxiliary equipment can be evaluated to match the customer's manufacturing requirements.

Applications of C Stud and U Track Profiles

C-shaped studs and U-shaped tracks are widely used in lightweight metal framing and interior construction. Depending on the profile design and the intended building system, the finished profiles may be used for:

• Drywall partition systems: C studs and U tracks for compatible metal-framed interior walls.
• Commercial interiors: Metal framing components for offices, retail spaces, and other interior projects.
• Residential construction: Lightweight framing profiles for suitable non-load-bearing partition systems.
• Building material manufacturing: Production of metal studs and tracks for construction distributors and contractors.

The C stud and U track dimensions must be compatible with each other and with the intended installation system. Profile dimensions, material thickness, and applicable building requirements should be confirmed before production.

Automatic Stud and Track Production Process

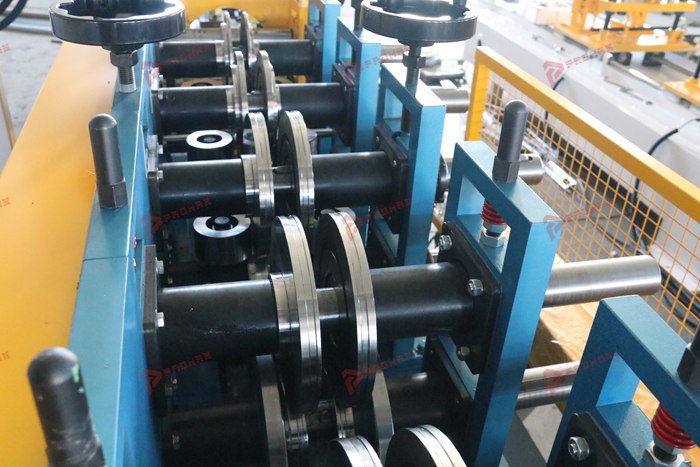

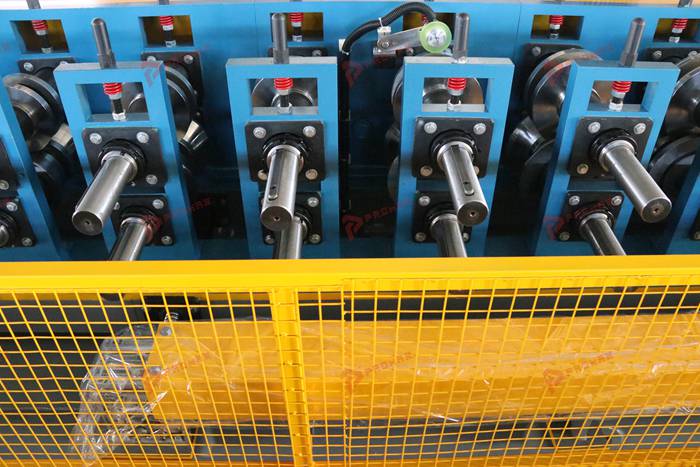

A typical stud and track roll forming process includes material feeding, strip guiding, progressive roll forming, and cutting to the required length. Additional punching functions may be incorporated when required by the finished profile design and the selected machine configuration.

For an automatic production solution, the control system and auxiliary equipment should be selected according to the required operating process. Where both C studs and U tracks are needed, the manufacturer should clarify whether the machine is intended to produce the profiles through separate production arrangements, interchangeable tooling, or another configuration.

Automatic operation can help coordinate production steps and reduce repetitive manual handling where the equipment is designed to support these functions. Actual automation capabilities and operating requirements should be verified in the technical proposal.

Key Features to Consider

When evaluating an automatic C and U keel machine, manufacturers should focus on profile compatibility, material specifications, production requirements, and the level of automation required for their factory.

• Profile compatibility: Confirm the required C stud and U track cross-sections using technical drawings.
• Material processing: Specify the steel grade, coil width, and material thickness range.
• Cutting system: Define the required profile lengths and cutting method.

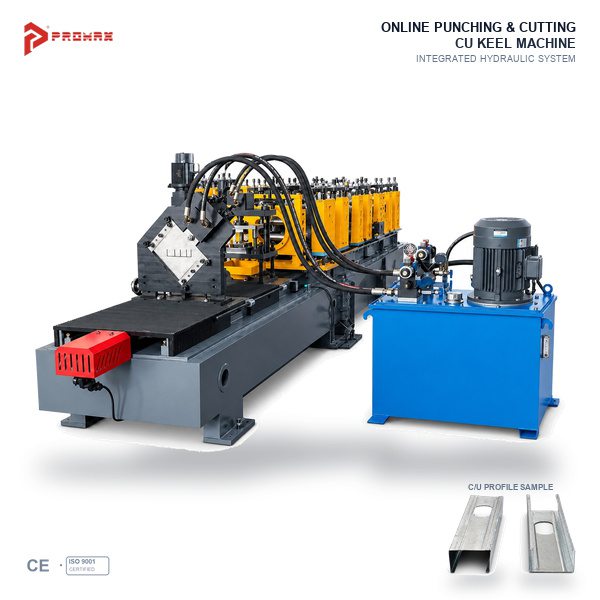

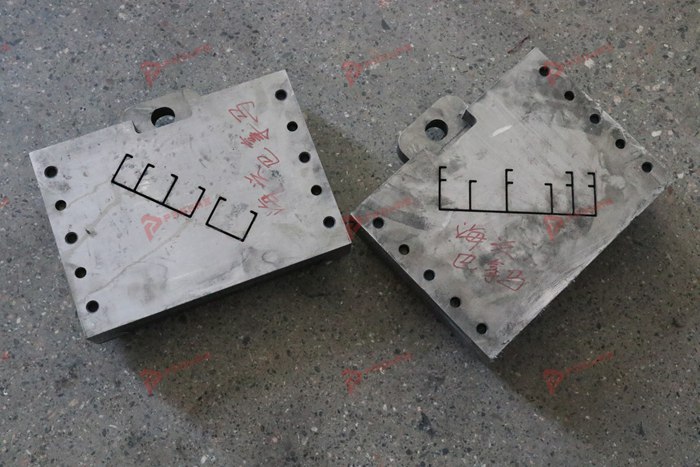

• Punching functions: Provide hole positions, dimensions, and other processing details if needed.

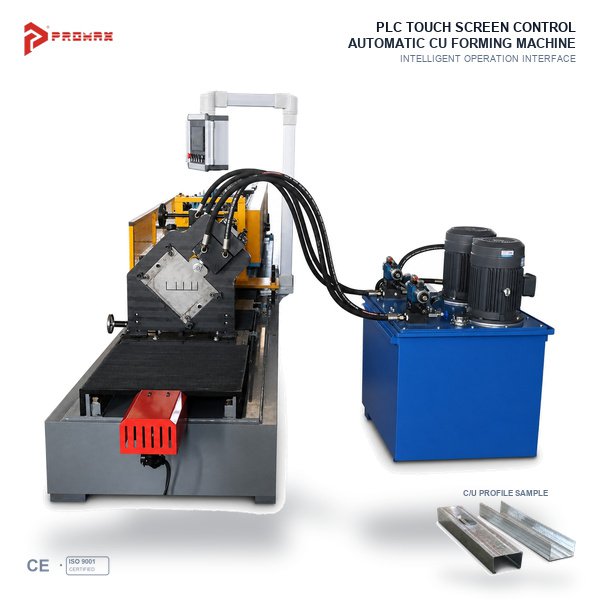

• Automation requirements: Identify the required feeding, control, and production coordination functions.
• Product changeover: Confirm whether different profile sizes require separate tooling or can be accommodated by the proposed configuration.

These details help establish a suitable machine configuration and avoid assuming that every automatic stud and track machine supports the same profile range or changeover functions.

How to Select a C U Keel Roll Forming Machine

Before purchasing a C U keel roll forming machine, prepare the profile drawings for both products and identify the required production output. The C stud drawing should include the web, flange, and lip dimensions where applicable. The U track drawing should specify the channel width, sidewall height, and other important measurements.

Material thickness, steel properties, cutting lengths, and punching requirements also affect the equipment design. If different profile sizes are required, discuss the expected product range and changeover process before confirming the machine specification.

For manufacturers planning a new production line, these preparations make it easier to compare machine configurations, clarify optional equipment, and evaluate how the proposed solution fits the factory's production workflow.

PROMAX Automatic Metal Framing Solutions

PROMAX provides roll forming equipment solutions for manufacturers of drywall profiles and lightweight metal framing components. Each project can be evaluated according to the customer's product drawings, raw material specifications, finished profile dimensions, and production goals.

For a C stud and U track production project, customers can provide drawings for both profiles, the material thickness range, cutting requirements, punching details, and expected output. This information helps the technical team assess the appropriate forming arrangement, control system, and auxiliary equipment.

Production speed, automation level, supported profile sizes, and changeover capabilities depend on the final machine design. These details should be confirmed in the technical quotation to ensure that the selected equipment meets the intended manufacturing requirements.

Request a Quote for an Automatic Stud and Track Machine

Looking for an automatic stud and track roll forming machine for your drywall profile manufacturing business? Contact PROMAX to discuss your C stud and U track production requirements.

To help evaluate your project, please provide both profile drawings, the material type and thickness, required cutting lengths, punching details, expected production output, and preferred automation functions. The technical team can then review the requirements and discuss a suitable machine configuration.

Contact PROMAX today to discuss an automatic C stud and U track production solution for your factory.
