Dual-Head Light Gauge Steel Framing Machine

Dual-Head Light Gauge Steel Framing Machine

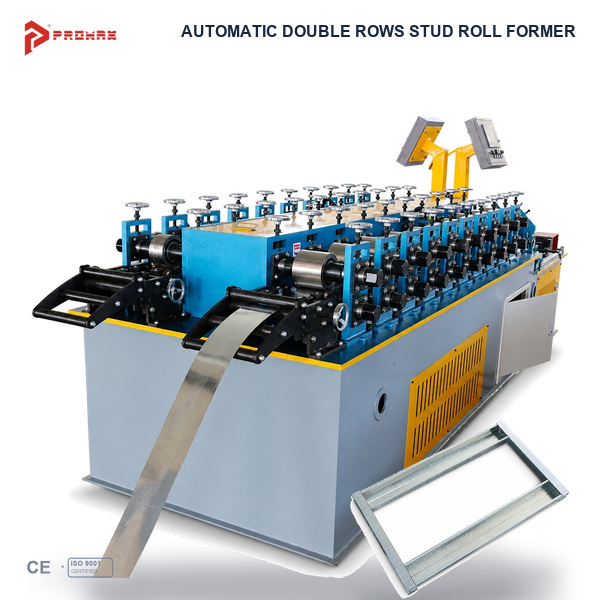

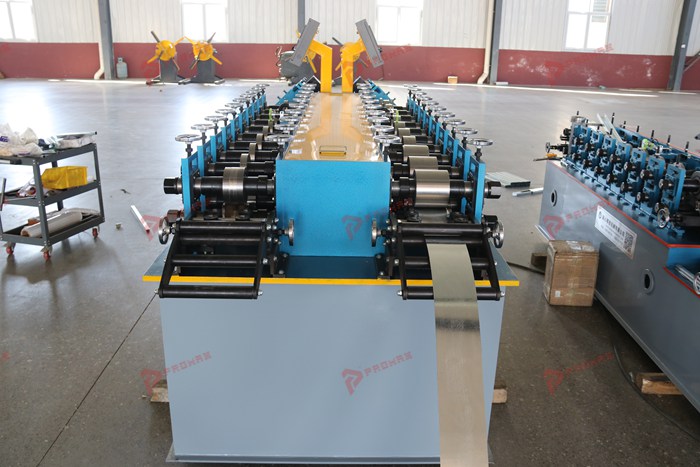

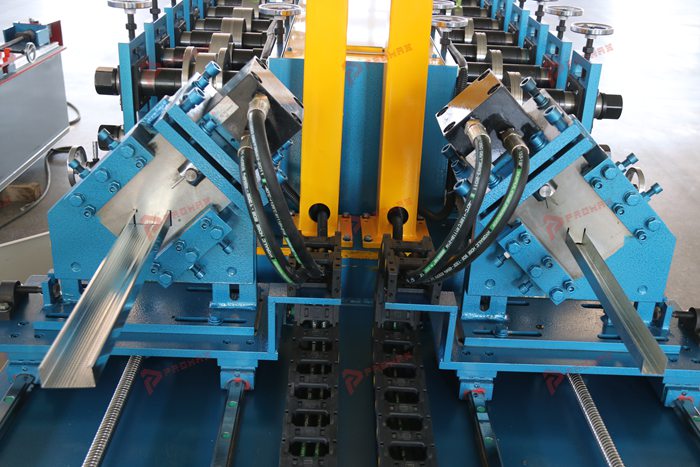

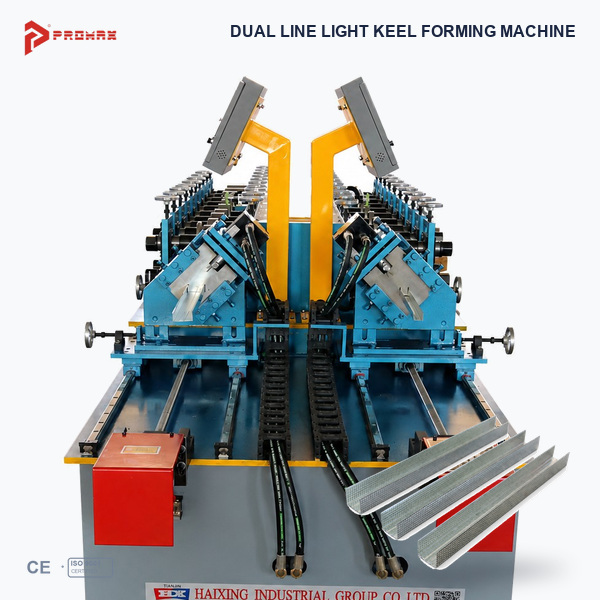

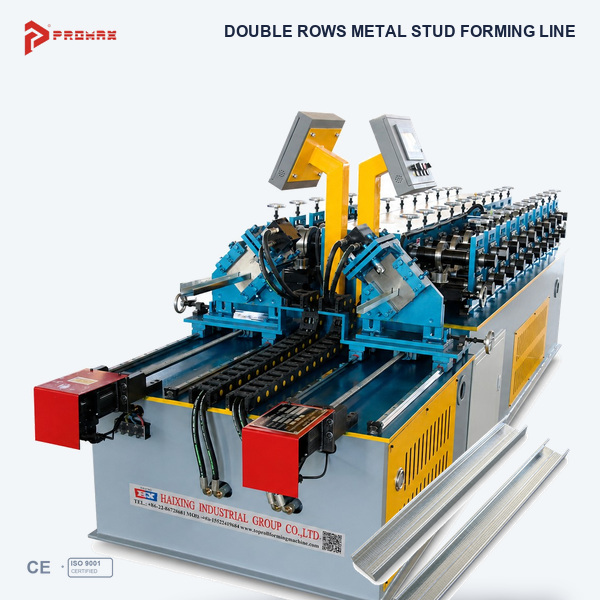

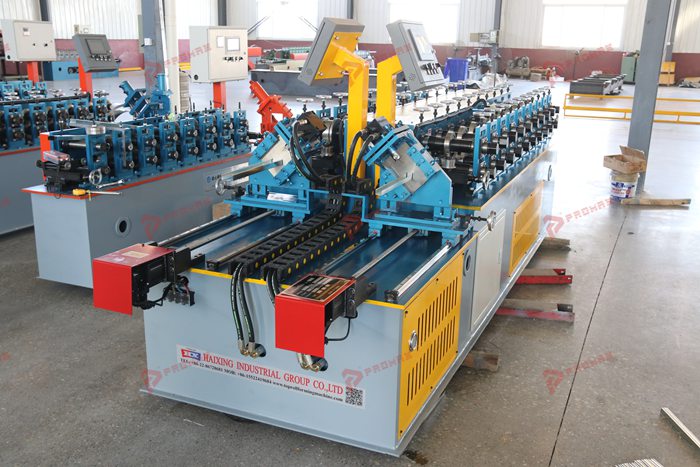

The dual-head light gauge steel framing machine from PROMAX is designed for manufacturers producing light gauge steel profiles for drywall partitions, interior framing, ceiling systems, and related construction applications. Its dual-head configuration is intended for specialized profile production requirements, with the machine arrangement determined by the actual product design and manufacturing process.

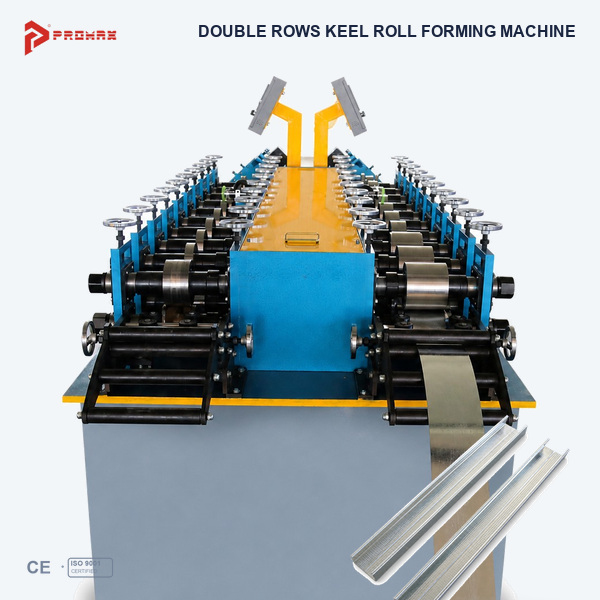

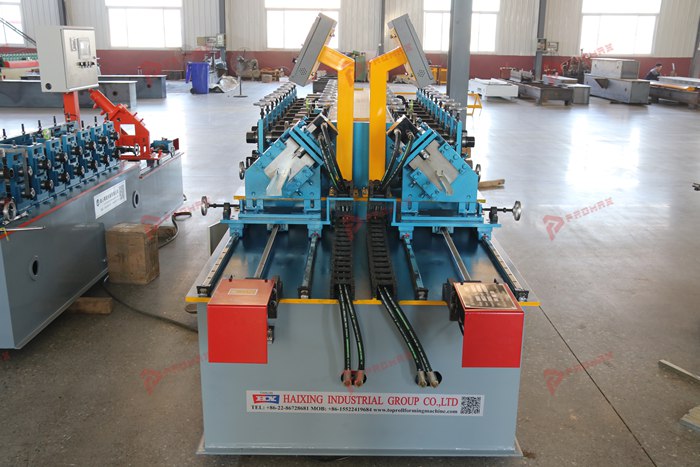

When selecting a dual-head keel roll forming machine, buyers should consider the required profile cross-sections, material specifications, tooling arrangement, and production objectives. PROMAX can discuss suitable equipment configurations based on technical drawings and project requirements.

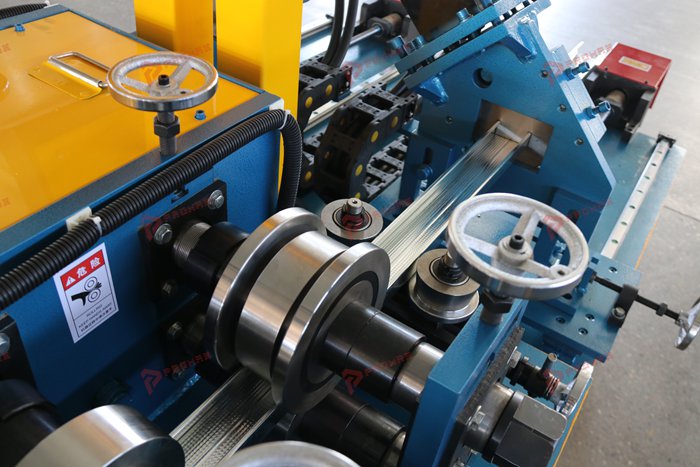

Dual-Head Roll Forming for Steel Framing Profiles

Light gauge steel framing profiles are widely used in non-load-bearing partitions, interior wall systems, suspended ceilings, and other lightweight construction applications. Depending on the machine design, a dual-head arrangement may be developed to accommodate specified profile production requirements within one equipment layout.

The exact capabilities of a dual-head machine depend on its tooling, forming structure, and control configuration. Before ordering, manufacturers should confirm whether the equipment is designed for simultaneous production, selection between forming heads, or another operating arrangement. These functions should be verified against the specific machine model.

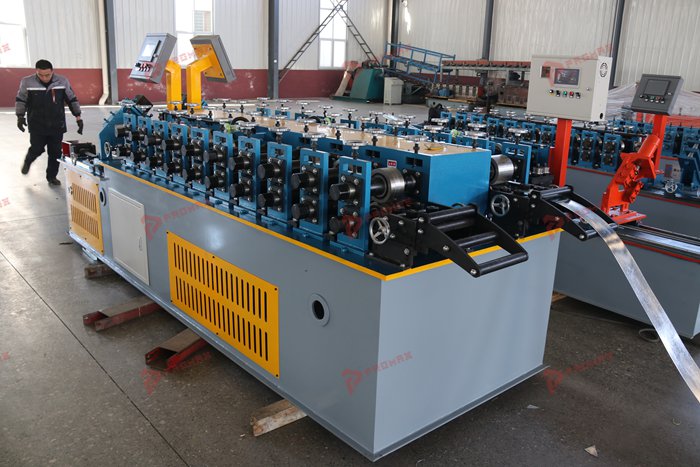

Customized Profile Forming Solutions

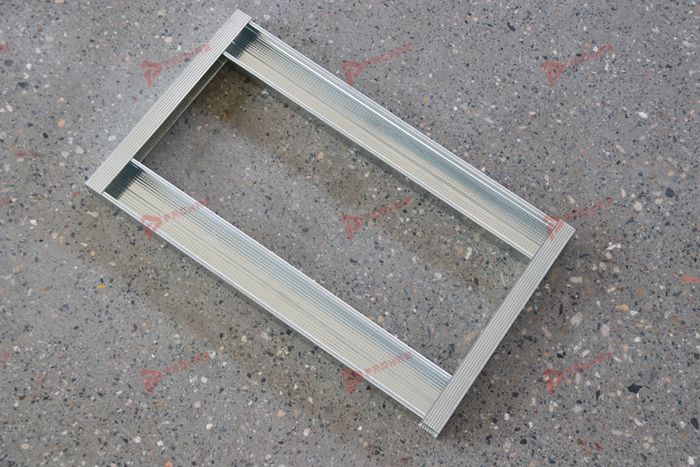

Different steel framing systems require different profile dimensions and cross-sectional designs. A suitable machine configuration should be developed according to the intended C-shaped studs, U-shaped tracks, or other specified light gauge steel profiles, where supported by the selected equipment.

Important design considerations include the profile drawing, steel grade, material thickness, coil width, finished length, and any required punching or cutting operations. Providing this information helps the equipment supplier assess the required tooling and production sequence.

Key Specifications to Confirm

Before selecting a dual-head steel framing machine, manufacturers should review the following details:

• Profile design: Cross-sectional dimensions, web height, flange width, and lip geometry.
• Raw material: Steel grade, material thickness, coil width, and surface finish.
• Dual-head arrangement: The intended function of each head and the compatible profile configurations.
• Punching requirements: Hole positions, slot dimensions, and other processing details, if required.
• Cutting requirements: Finished profile lengths and the required cutting method.
• Control system: Operating method and control functions agreed for the machine configuration.

These specifications help establish whether the proposed equipment is suitable for the target product range and production workflow.

Applications in Lightweight Construction

Light gauge steel profiles are commonly used in drywall partition systems, interior wall framing, ceiling structures, and other building applications requiring formed metal sections. The appropriate profile depends on the structural design, installation method, and local building requirements.

Manufacturers should confirm that the finished profiles meet their intended application requirements and are compatible with the corresponding framing components. Profile drawings and material specifications provide a useful basis for selecting the forming equipment.

Discuss Your Dual-Head Machine Requirements

PROMAX works with customers to evaluate roll forming equipment according to their profile designs and manufacturing objectives. To help assess your project, please provide the profile drawings, material specifications, required finished lengths, processing requirements, and expected production needs.

For dual-head equipment, please also indicate the intended role of each forming head and whether the production process requires separate or simultaneous operation. This information helps clarify the machine configuration before a quotation is prepared.

Contact PROMAX to discuss a dual-head light gauge steel framing machine solution for your metal profile manufacturing business.
