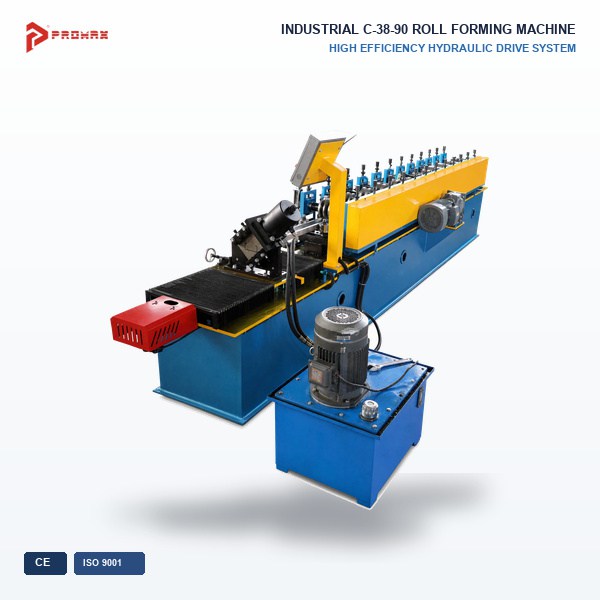

C-38-90 C Steel Stud Machine

C Steel Stud Machine for C-38-90 Profiles

The C steel stud machine is designed for manufacturers producing specified C-shaped steel keel profiles for compatible light-gauge steel framing and interior construction systems. This C-38-90 machine configuration should be matched to the customer's approved profile drawing, material specifications, and production requirements.

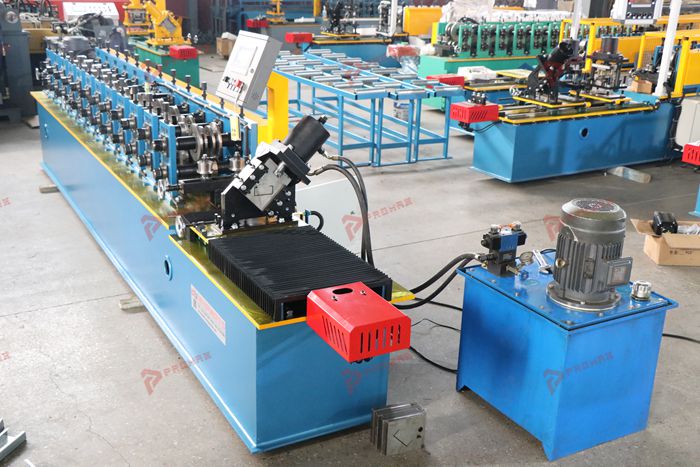

Steel stud roll forming equipment transforms flat metal coil into a finished profile through a sequence of forming rollers. Each station gradually shapes the material to achieve the required cross-section. Depending on the confirmed configuration, the production line may include material feeding, guiding, roll forming, length measurement, cutting, and finished-profile collection.

For manufacturers planning a new production line or expanding an existing facility, selecting equipment according to the actual profile drawing helps establish a clear basis for machine design, tooling selection, and quality control.

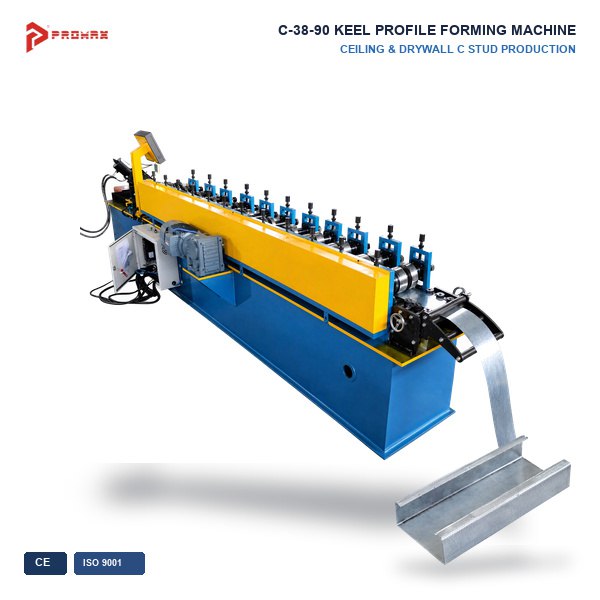

1. C-38-90 C Steel Stud Machine Overview

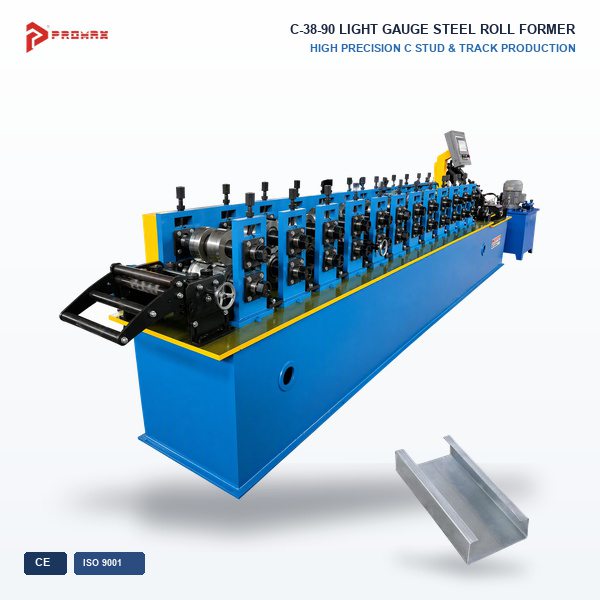

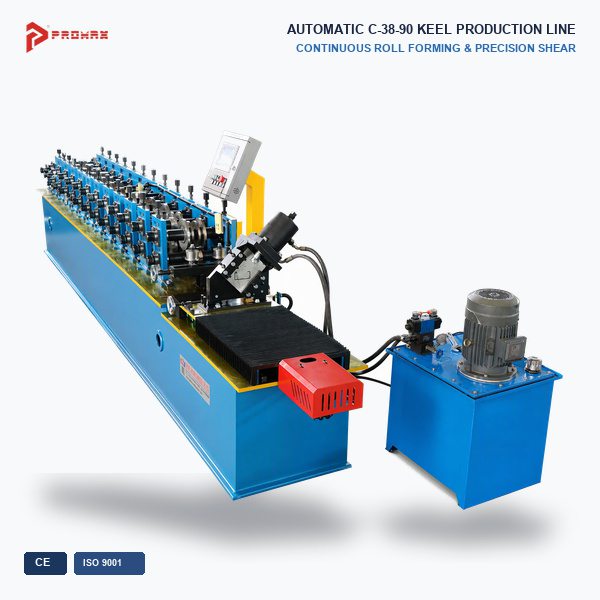

This C steel stud machine is intended for manufacturing a specified C-38-90 profile. The exact profile dimensions and geometry must be confirmed against the technical drawing because product designations can vary among manufacturers and regional building systems.

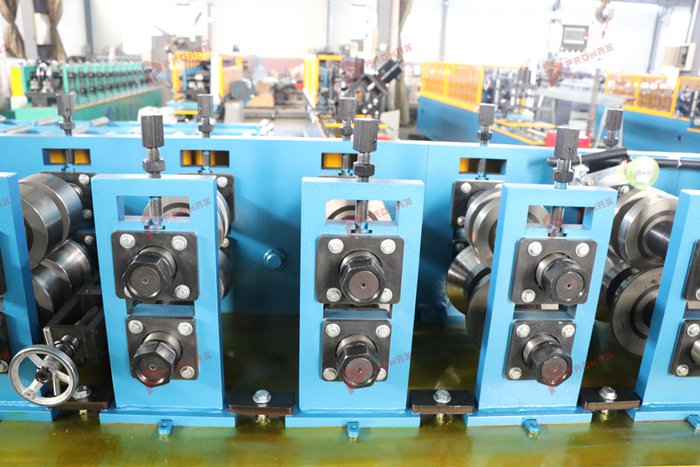

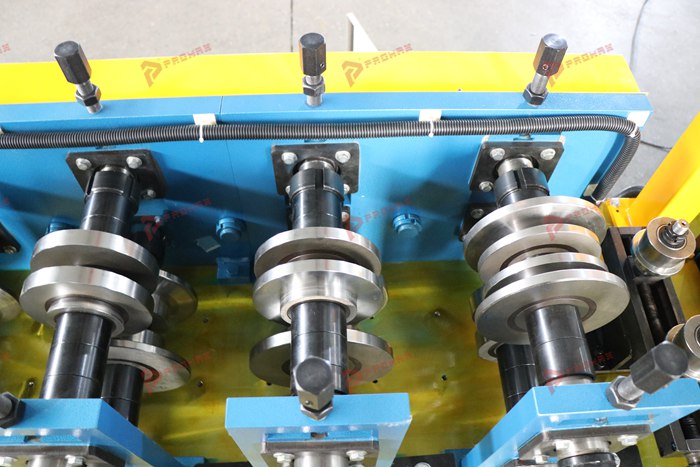

During production, the metal strip is fed into the machine and progressively shaped by forming rollers. The forming stations work together to create the required C-shaped cross-section while maintaining the specified profile geometry. A cutting system can be included according to the agreed machine configuration and finished-length requirements.

Before finalizing the equipment design, the buyer and supplier should confirm the web dimension, flange dimensions, return-lip geometry where applicable, material thickness, and dimensional tolerances. These details help determine whether the proposed forming tooling is suitable for the intended product.

2. C Steel Stud Profile Specifications

The C-38-90 designation identifies the target profile for this product page. The exact interpretation of the dimensions should be verified using the approved profile drawing rather than relying on the model name alone.

Correct profile definition is essential when selecting a C steel stud machine. Differences in flange shape, lip dimensions, steel thickness, or tolerance requirements may affect the tooling design and the finished product's compatibility with the intended framing system.

Before requesting a quotation, prepare the following information:

• Profile drawing: Provide the complete cross-section with all critical dimensions.
• Material specifications: Confirm the steel grade, coil width, thickness, and coating.
• Profile geometry: Identify the web, flanges, return lips, and other relevant features.
• Finished length: Specify required product lengths and cutting tolerances.
• Production target: State the expected output and operating requirements.
• Quality standards: Define the dimensional tolerances and inspection criteria.

Providing these details early helps the supplier evaluate the required machine configuration and reduces uncertainty during equipment selection.

3. How a C Steel Stud Roll Forming Machine Works

A typical C steel stud production line converts metal coil into a finished C-shaped profile through a series of coordinated operations. The exact equipment layout depends on the machine configuration and the customer's manufacturing requirements.

1. Coil preparation: Prepare the specified steel coil for production.

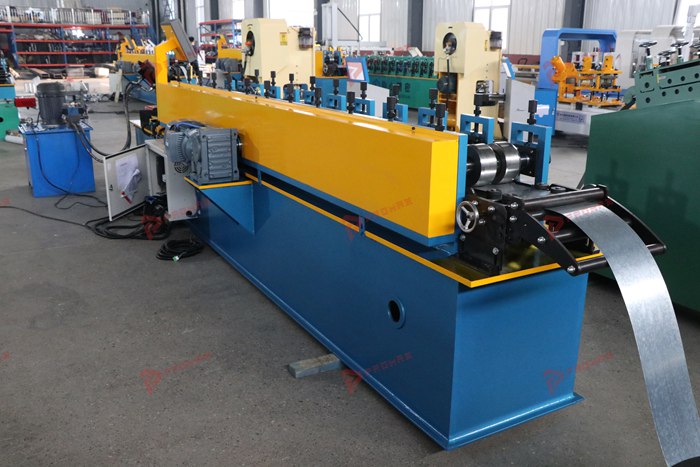

2. Material feeding: Feed the strip into the machine and guide it toward the forming section.
3. Progressive roll forming: Pass the strip through successive forming stations to create the required C-38-90 cross-section.
4. Length measurement: Set the target product length using the configured measuring and control arrangement.

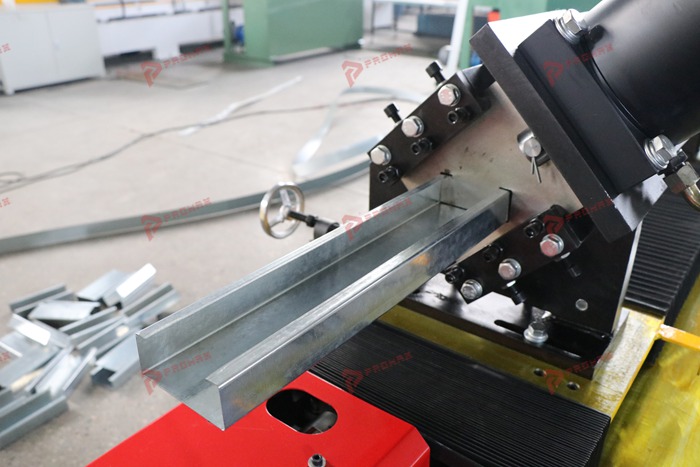

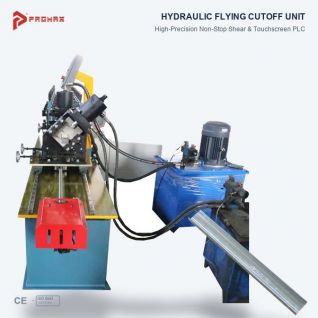

5. Cutting: Cut the formed profile according to the agreed production requirements.
6. Quality inspection: Check the cross-section, critical dimensions, straightness, surface condition, and cut quality.
7. Finished-product handling: Collect and organize the completed profiles for packaging or further processing.

Stable feeding, correctly matched roller tooling, and appropriate machine adjustment are important for repeatable production. Operating procedures and inspection methods should follow the confirmed machine specification and supplier documentation.

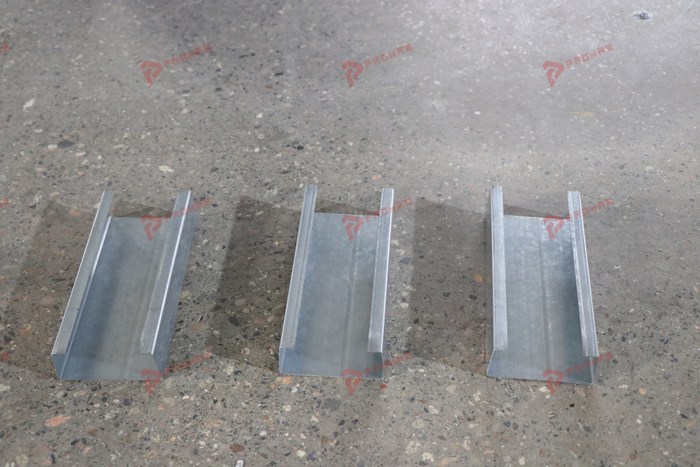

4. Applications of C-Shaped Steel Stud Profiles

C-shaped steel profiles are used in light-gauge steel framing and building interior systems. Depending on their actual cross-section, structural requirements, and applicable construction standards, compatible profiles may be used for drywall framing, interior partitions, ceiling-related frameworks, and other metal framing applications.

The suitability of a C-38-90 profile depends on its verified dimensions and the requirements of the intended building system. Buyers should confirm profile compatibility with their construction application before placing an order or beginning commercial production.

For manufacturers supplying construction-material distributors, contractors, and building-product companies, a clearly defined profile specification helps maintain consistent product quality. The forming machine should therefore be selected according to the required finished profile rather than a general product category alone.

5. Machine Configuration and Customization

Different customers may require different profile dimensions, steel specifications, finished lengths, and production arrangements. A C steel stud machine should be configured according to these practical requirements.

When evaluating a C-38-90 roll forming solution, discuss the following points with the equipment supplier:

• Forming tooling: Tooling designed for the approved C-38-90 profile drawing.
• Material compatibility: Compatibility with the specified steel grade, thickness, and coil dimensions.
• Cutting arrangement: A cutting solution that meets the required product length and tolerance.
• Control functions: Operating and production-control features defined in the final specification.
• Production layout: Material feeding, finished-profile discharge, and handling arrangements.
• Technical documentation: Confirmed machine specifications, operating instructions, and agreed support scope.

Optional automation functions, quick-change tooling, production speeds, and other technical features should be verified with the supplier. Their availability should be documented in the final machine specification rather than assumed from the product name.

6. How to Choose a Suitable C Steel Stud Machine

When comparing steel stud manufacturing equipment, buyers should evaluate the complete production solution, including profile compatibility, forming tooling, cutting requirements, operating conditions, and technical support.

Before making a purchasing decision, consider confirming:

• Whether the machine configuration matches the required C-38-90 profile
• Whether the forming system is suitable for the specified steel material
• Whether the cutting arrangement meets the finished-length requirements
• What production capacity and quality criteria are included in the quotation
• What installation, commissioning, and operator training services are provided
• What spare parts and after-sales support arrangements are available
• What delivery, payment, and scope-of-supply terms are included

With roll forming technology experience dating back to 1996, Tianjin Haixing can discuss equipment requirements based on the customer's profile drawing and manufacturing objectives. The actual machine configuration, technical performance, and commercial terms should be confirmed in the formal quotation.

7. Request a Quote for a C-38-90 C Steel Stud Machine

If you are looking for a C steel stud machine for your manufacturing operation, send us your C-38-90 profile drawing and production requirements. This information helps clarify the required tooling, material compatibility, cutting arrangement, and overall machine configuration.

For a more accurate proposal, please provide:

• The C-38-90 profile drawing or a sample of the finished product
• Steel grade, coil width, and material thickness
• Required finished profile lengths
• Expected production output
• Destination country and factory electrical requirements

Whether you are establishing a new steel stud production line or upgrading an existing facility, choosing equipment according to the actual product specification is an important first step.

Contact us today to discuss your C-38-90 C steel stud production project and request a tailored roll forming solution.
