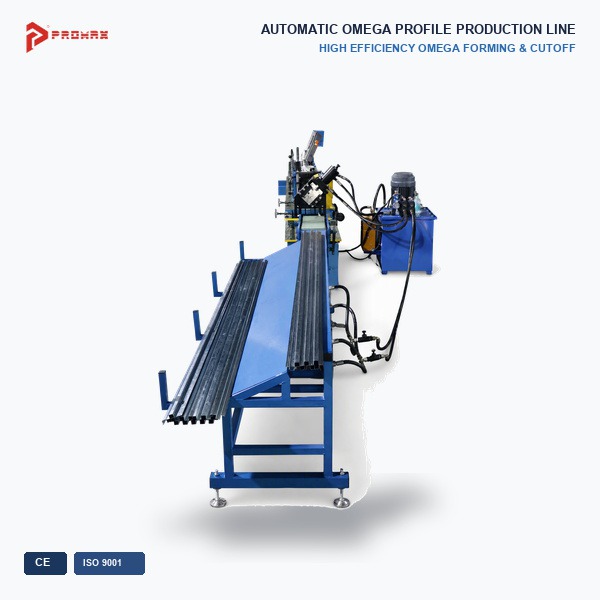

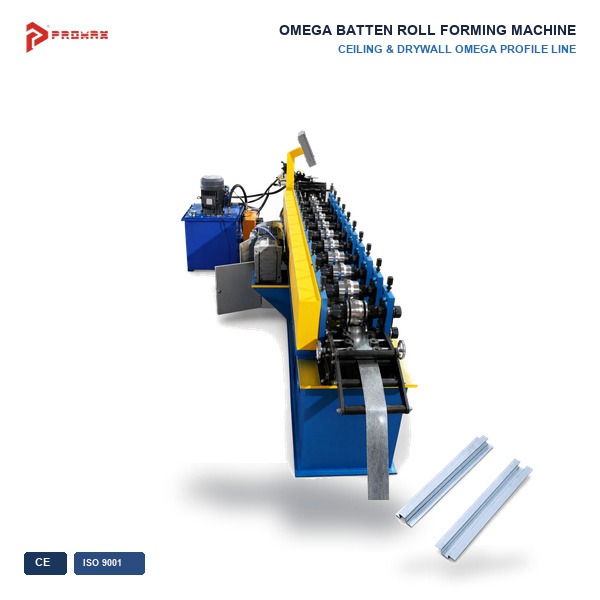

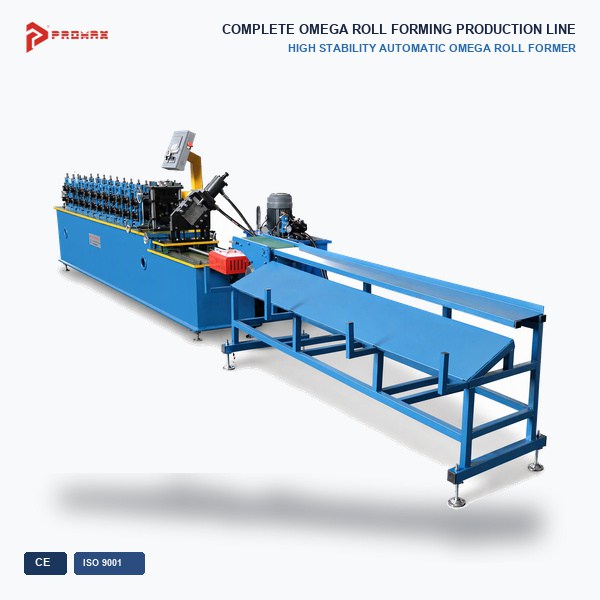

Gypsum Channel Making Machine for Omega Keel

Gypsum Channel Making Machine for Omega Keel

The PROMAX Gypsum Channel Making Machine is designed for manufacturers seeking a roll forming solution for specified metal channels and construction profiles. For Omega keel production, the machine configuration depends on the required profile drawing, raw material specifications, finished dimensions, cutting requirements, and production objectives.

Metal channels used in gypsum board and drywall systems come in different cross-sectional designs. Omega-shaped profiles may be used in compatible ceiling or wall lining systems, but their dimensions and applications can vary by market and installation method. Confirming the actual profile drawing is therefore an essential step before selecting the machine.

PROMAX provides roll forming equipment solutions for metal framing and construction profile applications. Backed by Tianjin Haixing's experience in roll forming technology since 1996, the team can review your product requirements and discuss a suitable machine configuration based on the specified profile.

What Is a Gypsum Channel Making Machine?

A gypsum channel making machine is generally used to produce metal profiles for compatible gypsum board, drywall, ceiling, or interior framing systems. A typical roll forming process gradually shapes metal strip through a series of forming rollers until it reaches the required cross-section.

Depending on the intended profile and machine configuration, the production line may include material feeding, guiding, progressive forming, and cutting. Additional functions such as punching or notching should be specified separately and confirmed as part of the proposed machine scope.

For Omega keel production, the equipment must be matched to the required cross-sectional geometry. A machine designed for one profile should not automatically be assumed to produce C studs, U tracks, main channels, or other profiles without a technical assessment of the required tooling and configuration.

Applications of Gypsum Channel and Omega Profiles

Metal channels are used in various interior construction systems. The actual use of a particular profile depends on its cross-section, dimensions, installation method, and compatibility with the overall framing system.

• Ceiling systems: Producing specified metal channels for compatible suspended ceiling or ceiling lining applications.
• Gypsum board construction: Manufacturing framing profiles used in compatible gypsum board systems.
• Interior wall lining: Producing selected metal profiles for interior lining applications.
• Construction profile manufacturing: Supplying defined metal profiles to building material manufacturers and distributors.
• Customized profile production: Forming metal strip into a required cross-section based on customer drawings.

If your target product is an Omega keel, provide its profile drawing and intended application. This helps establish whether the proposed machine is suitable for that particular construction profile.

How the Gypsum Channel Roll Forming Process Works

A typical channel roll forming process transforms suitable metal strip into a defined profile through progressive forming. Each forming stage contributes to the required cross-section, and the cutting arrangement produces finished lengths according to the agreed product specification.

1. Material preparation: Confirm the material type, thickness, coil width, and other relevant material specifications.
2. Feeding and guiding: Feed and align the strip before it enters the forming section.

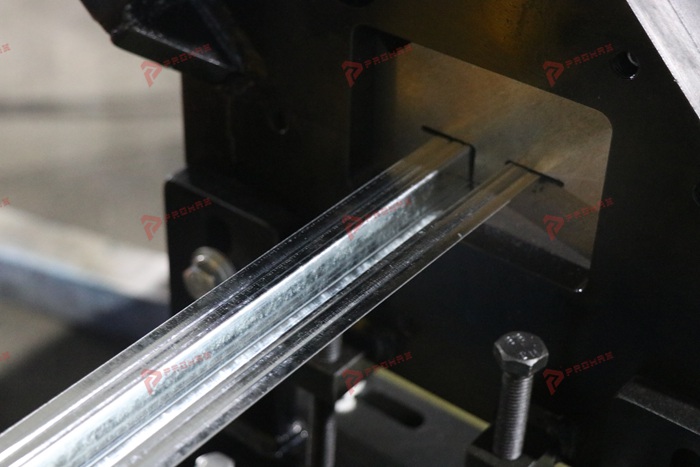

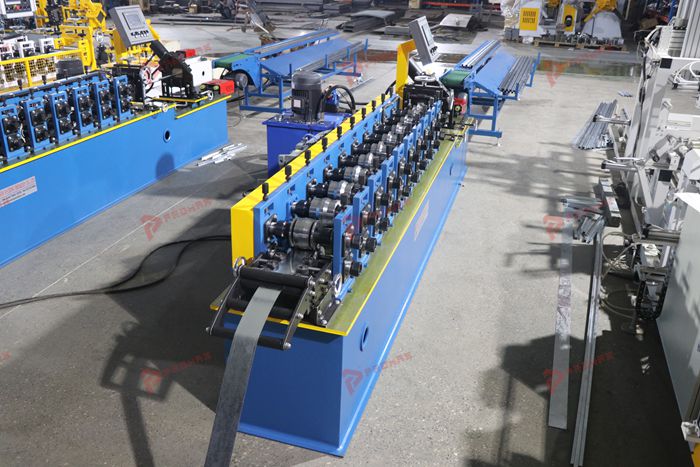

3. Progressive roll forming: Shape the material through rollers configured for the required Omega or channel profile.

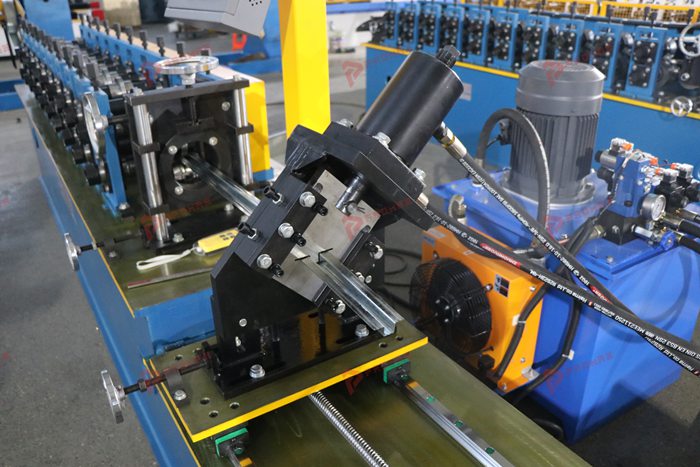

4. Cutting to length: Cut the formed profile according to the specified finished length and cutting requirements.
5. Product inspection: Check profile dimensions, cross-sectional shape, straightness, edges, and cutting quality against the approved requirements.

The actual process, tooling, and machine functions depend on the product drawing and material. If holes, notches, or other features are required, their locations and dimensions should be provided before the machine configuration is finalized.

Key Factors When Choosing a Gypsum Channel Making Machine

1. Profile Drawing and Cross-Section

The profile drawing is the foundation of machine selection. It should identify the overall width and height, flange dimensions, bend locations, and other relevant features. If you need to produce multiple channel profiles, provide a separate drawing for each profile so the tooling and configuration requirements can be reviewed.

2. Material Type and Thickness

Many drywall and ceiling profiles are made from galvanized steel strip, but the correct material depends on the intended product and market. Buyers should specify the material type, nominal thickness, coil width, and available material information. These details help the manufacturer evaluate the forming requirements and machine compatibility.

3. Finished Length and Cutting Requirements

Specify the required finished profile lengths and dimensional tolerances. If the product requires punching, notching, or other processing, include the relevant drawings and measurements. These requirements affect the proposed machine scope and should be agreed upon before ordering.

4. Production Volume

Expected output and order volume help determine the production requirements. Discuss your target output with the manufacturer alongside the material, profile dimensions, and processing functions. Any production speed or output commitment should be confirmed for the actual material and profile rather than assumed from a general machine category.

5. Finished Product Quality

Define the important acceptance criteria for the finished channel, including cross-sectional dimensions, straightness, cut length, edge condition, and surface appearance where applicable. Clear criteria help align the proposed equipment with the quality requirements of your customers.

Why Consider PROMAX for Gypsum Channel Production?

PROMAX focuses on roll forming equipment for metal framing and construction profile applications. Its equipment evaluation process starts with understanding the customer's required profile, material specifications, production objectives, and processing requirements.

• Profile-based evaluation: Review the actual Omega or gypsum channel drawing before confirming the proposed configuration.
• Material requirement review: Consider the specified material and thickness when assessing the forming solution.
• Application-focused planning: Align the machine scope with the intended construction profile and production process.
• Processing clarification: Identify the required cutting, punching, notching, or other functions.
• Technical scope confirmation: Establish the agreed profile, machine functions, and relevant specifications before ordering.

The final technical proposal should clearly identify the intended profile, supported material specifications, included functions, and any applicable limitations. This allows buyers to assess the solution against their manufacturing requirements.

Information Needed for a Gypsum Channel Machine Quotation

To evaluate a suitable machine for Omega keel or other gypsum channel production, please prepare the following information:

• Profile drawing or clear cross-sectional sketch.
• Material type, thickness, and coil width.
• Required finished profile length and dimensional tolerances.
• Any punching, notching, or additional processing requirements.
• Expected production volume and operating requirements.
• Destination country and factory power supply information.

If a complete drawing is not available, you can begin with the main profile dimensions and clear photographs of the finished product. The manufacturer can review the information and identify any additional details needed to evaluate the machine configuration.

Request a Quote for a Gypsum Channel Making Machine

Looking for a gypsum channel making machine for Omega keel or another specified construction profile? Contact PROMAX with your profile drawing, material specifications, and production requirements.

Providing accurate technical information helps clarify the forming process and the required machine scope. PROMAX can then review your application and discuss a suitable roll forming solution based on the confirmed requirements.
