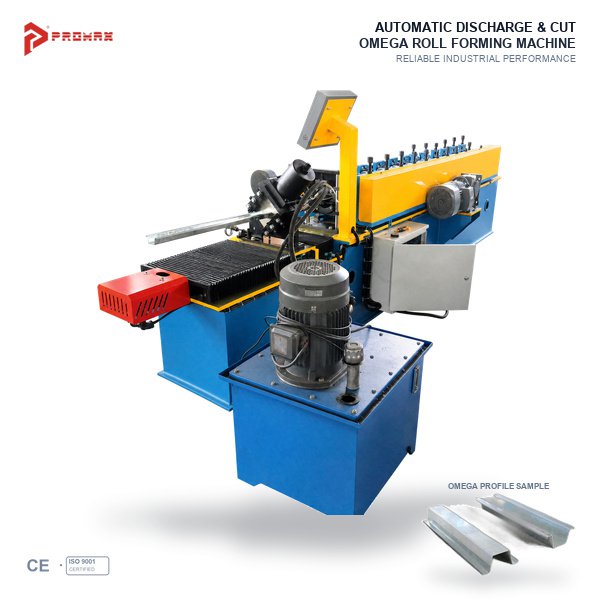

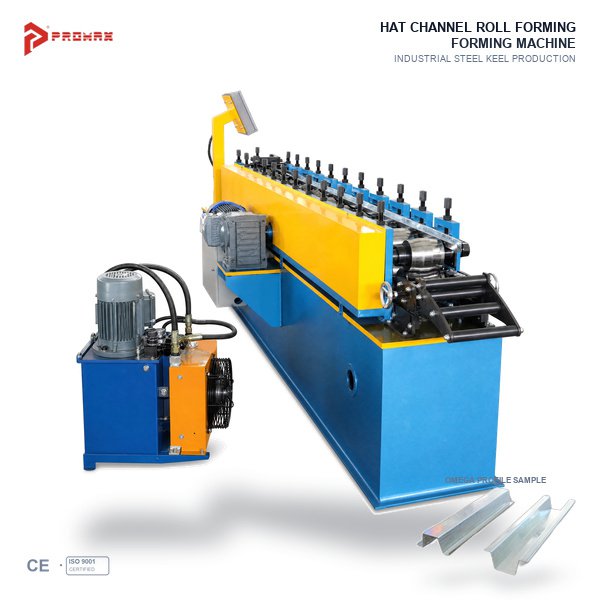

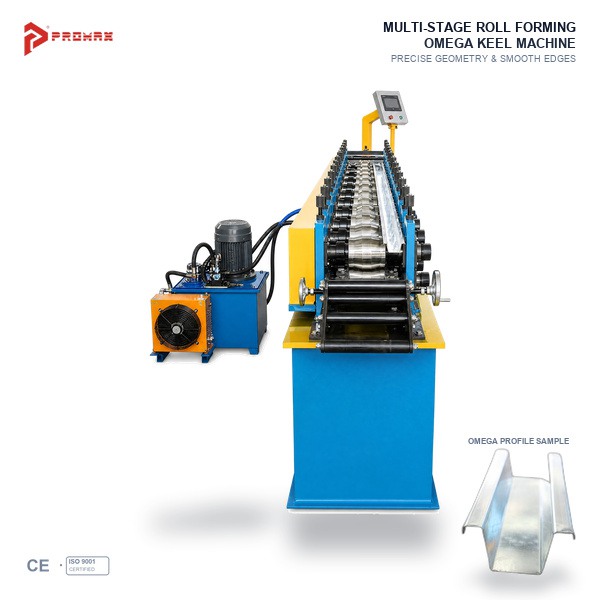

PROMAX Hat Channel Roll Forming Machine

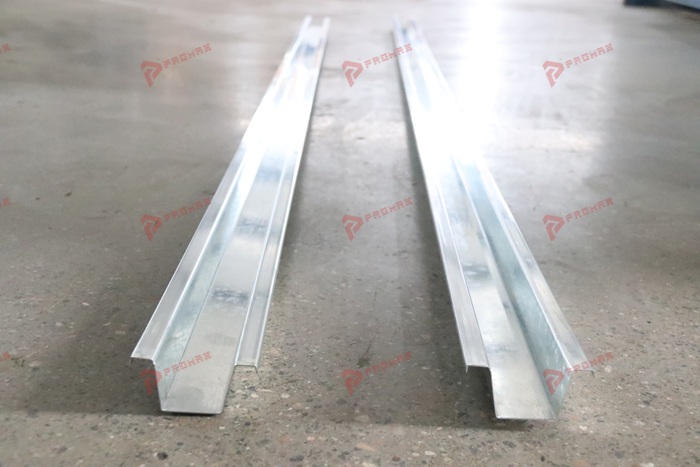

The PROMAX hat channel roll forming machine is designed to manufacture hat-shaped metal profiles for ceiling framing, interior construction, and other building applications. Using a continuous cold roll forming process, the machine gradually forms metal coil into the required hat profile according to the customer's cross-sectional drawing and technical specifications.

Hat channels are commonly used as furring channels or supporting components in selected ceiling and wall systems. For manufacturers of metal building materials, a dedicated hat profile forming machine can support consistent profile production for construction distributors, contractors, and project suppliers.

The machine configuration should be selected according to the required profile dimensions, material thickness, steel specifications, cutting length, and production requirements. Customers are encouraged to provide a profile drawing before confirming the final machine design.

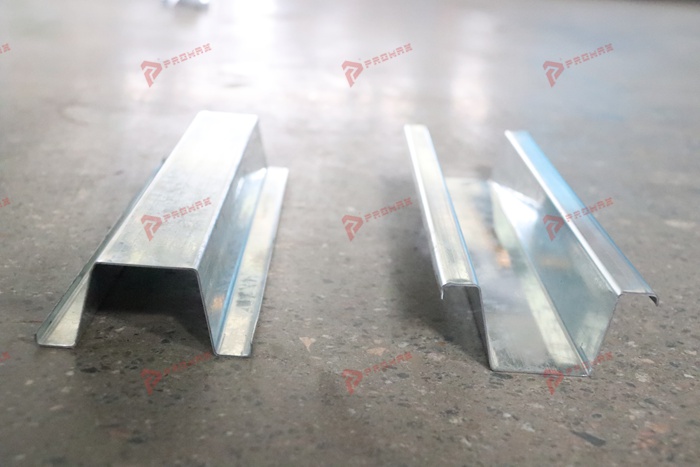

Applications of Hat Channel Profiles

Hat-shaped metal profiles are used in a range of light-gauge metal framing applications. Depending on the profile dimensions and the requirements of the building system, typical applications may include:

• Ceiling framing: Hat channels used as supporting or furring components in compatible ceiling assemblies.
• Interior construction: Metal profile systems for selected interior finishing applications.
• Wall lining systems: Furring components used to create a supporting framework for suitable wall finishes.
• Building material manufacturing: Production of hat-shaped profiles for wholesalers, distributors, and construction material suppliers.

The appropriate profile depends on the installation method, load requirements, material specifications, and local building standards. The finished product should be matched to its intended application.

How the Hat Channel Roll Forming Machine Works

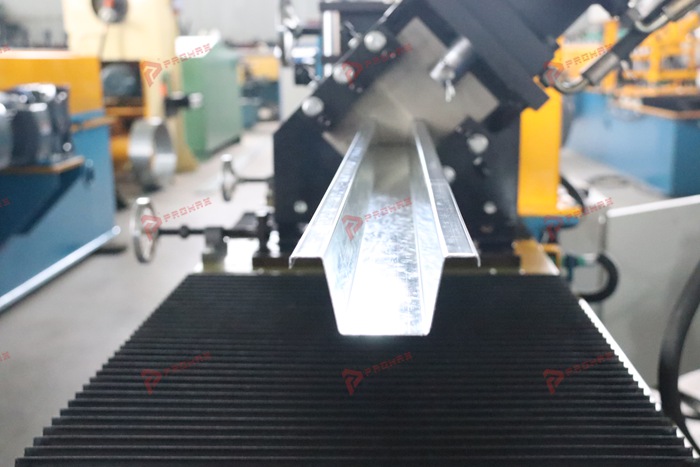

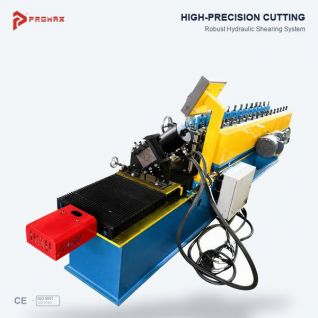

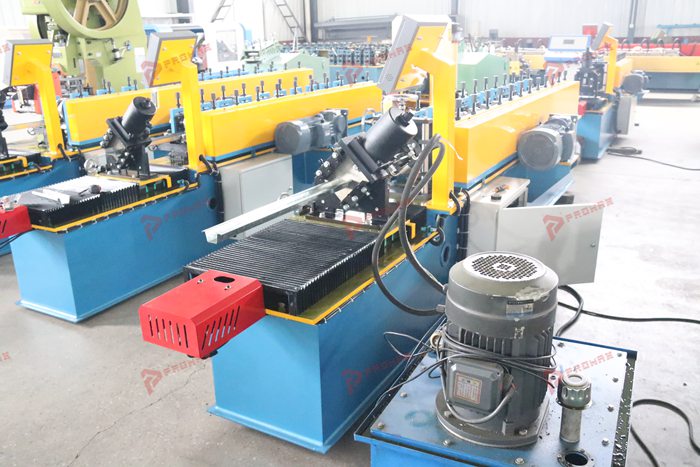

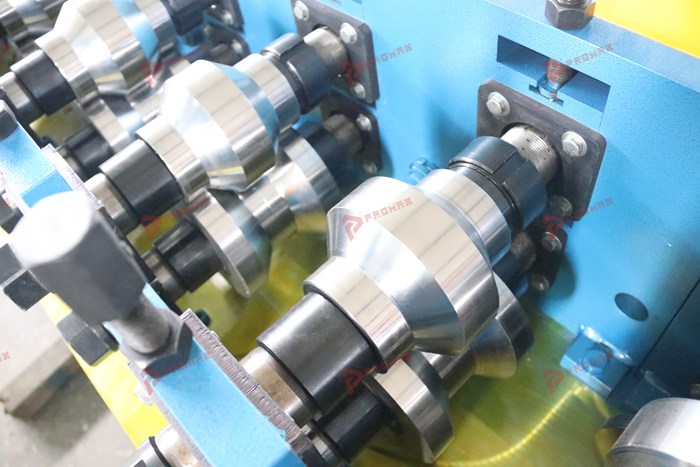

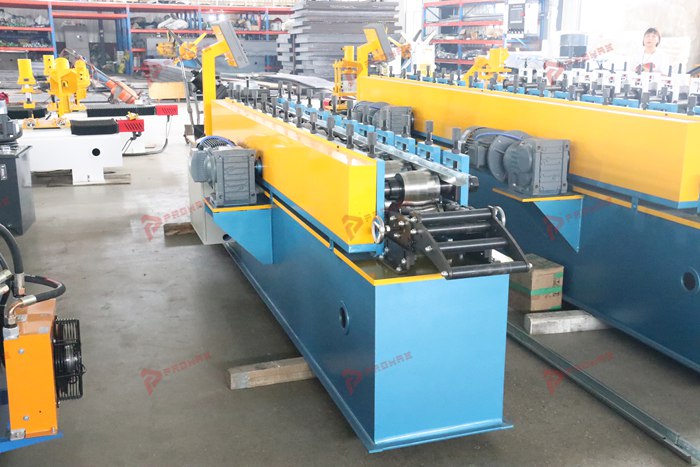

A typical hat channel roll forming line feeds metal strip through a series of forming stations. Each station gradually bends the material until it reaches the specified cross-sectional shape. The finished profile is then cut to the required length according to the selected machine configuration.

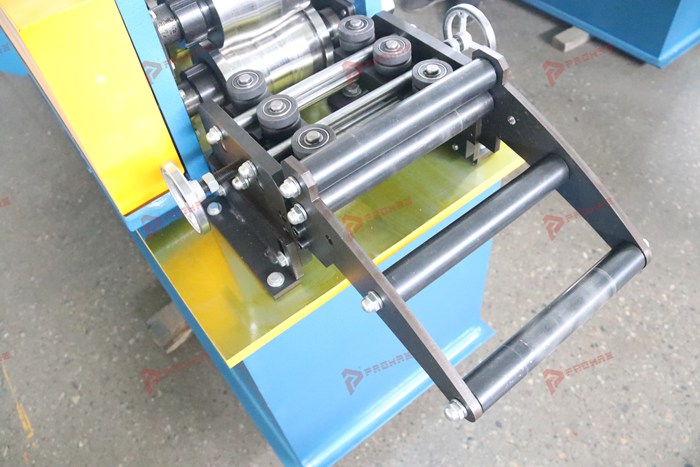

Depending on the production requirements, the line design may include material feeding and guiding equipment, roll forming stations, a cutting system, and an electrical control system. Optional punching or other processing functions should be confirmed according to the required finished profile.

Progressive roll forming is suitable for continuous manufacturing because the material is shaped in stages rather than formed in a single operation. Correct tooling design and appropriate machine adjustment are important for achieving the required profile geometry.

How to Choose a Hat Channel Making Machine

Before selecting a hat channel making machine, manufacturers should confirm the finished profile and production requirements. Hat channels can vary in web width, flange dimensions, sidewall height, and other cross-sectional details. These differences affect the roll tooling and overall machine configuration.

• Profile drawing: Provide the complete cross-section with dimensions and tolerances.
• Material specifications: Confirm the steel type, grade, coil width, and material thickness.
• Cutting length: Specify the required finished profile length and cutting method.
• Processing requirements: Identify any holes, slots, notches, or other features that need to be produced.
• Production targets: Explain the expected output and planned operating conditions.
• Future product range: Indicate whether additional hat channel sizes may be required in the future.

Providing these details helps the manufacturer evaluate the required forming stations, tooling, cutting arrangement, and optional equipment before preparing a technical proposal.

PROMAX Hat Profile Roll Forming Solutions

PROMAX provides roll forming equipment solutions for manufacturers of lightweight metal framing and construction profiles. Each project can be evaluated according to the required cross-section, raw material, finished product dimensions, and production process.

For a new hat channel production line, customers can submit a profile drawing and material specifications for technical review. The proposed configuration can then be discussed in relation to forming requirements, cutting needs, automation preferences, and the intended production range.

Machine speed, material thickness range, automation level, and compatibility with multiple profiles depend on the final design and should be confirmed in the technical quotation. This approach helps ensure that the selected equipment matches the customer's actual manufacturing requirements.

Request a Quote for a Hat Channel Roll Forming Machine

Looking for a hat channel roll forming machine for your ceiling profile or metal framing business? Contact PROMAX to discuss your production requirements and obtain a machine proposal tailored to your intended profile.

To help us evaluate your project, please provide the hat channel drawing, material thickness, steel specifications, required cutting length, punching details, and expected production output. Photos or samples of the finished profile can also help clarify the product requirements.

Contact PROMAX today to discuss a hat channel forming solution for your production line.
