L Keel Machine for Metal Ceiling Profile Production

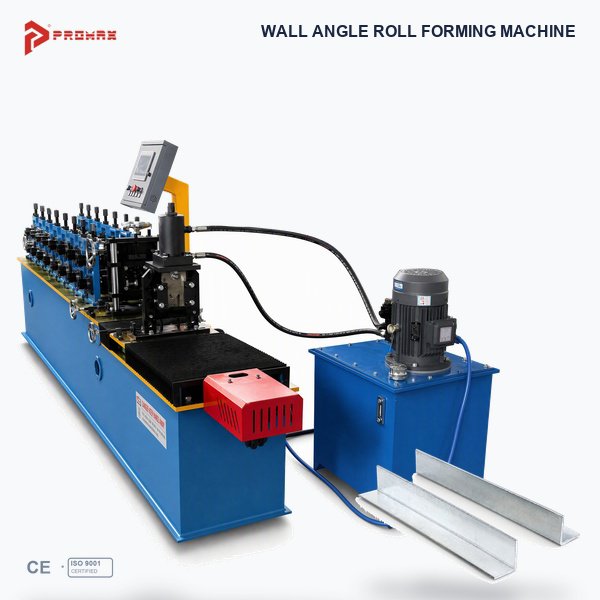

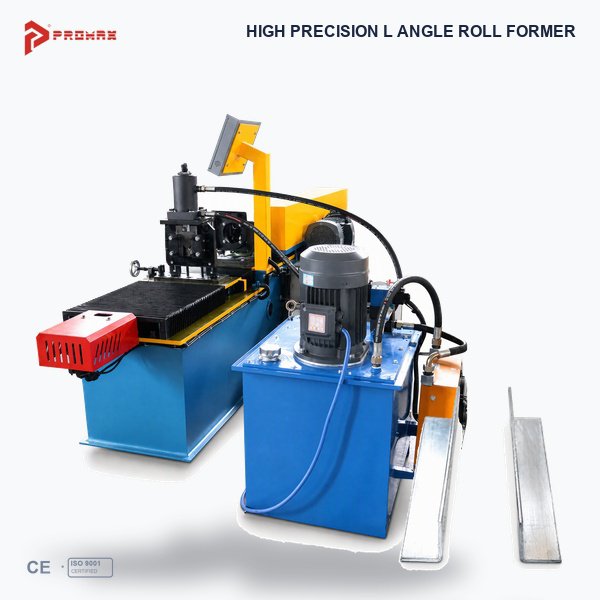

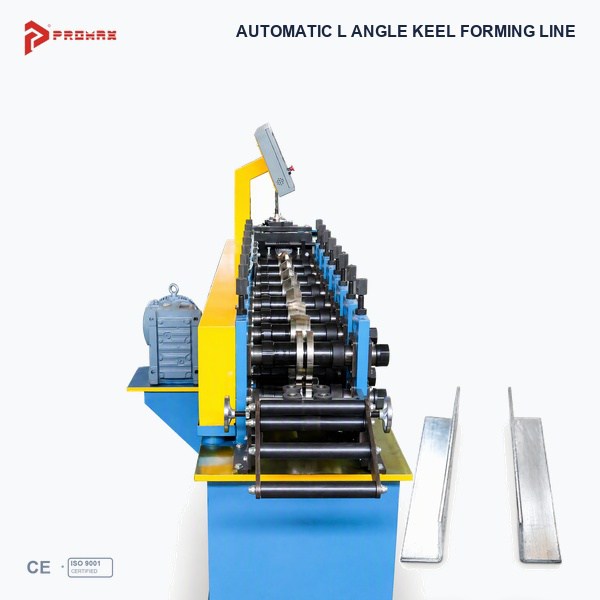

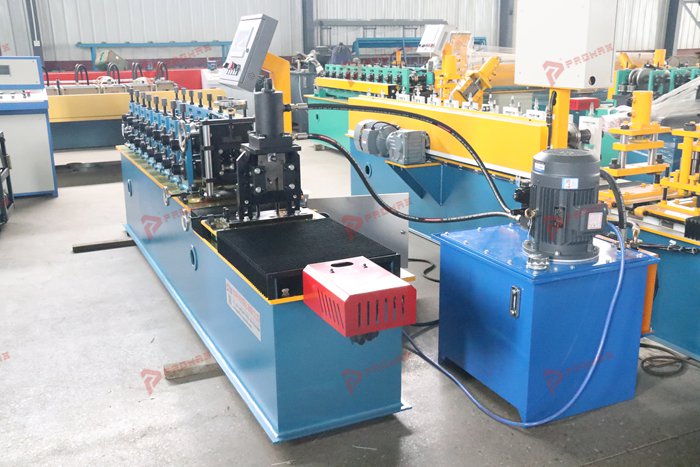

PROMAX L Keel Machine for Metal Profile Production

The PROMAX L keel machine is designed for manufacturing L-shaped metal profiles used in ceiling systems, interior finishing, and selected lightweight construction applications. Using a continuous cold roll forming process, the machine progressively shapes metal strip into the required L-shaped cross-section.

For manufacturers supplying ceiling materials, drywall accessories, and construction profiles, a dedicated L keel roll forming machine provides a production solution based on the required profile dimensions and material specifications. The machine configuration can be evaluated according to the profile drawing, steel thickness, coil width, finished length, and production requirements.

Whether you are establishing a new metal profile production line or expanding an existing factory, confirming the profile dimensions and intended application helps ensure that the selected machine matches your manufacturing needs.

What Is an L Keel Roll Forming Machine?

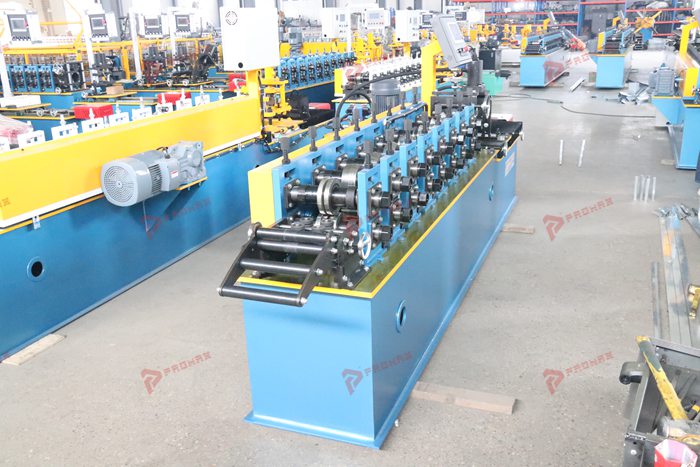

An L keel roll forming machine is a type of metal forming equipment used to manufacture L-shaped profiles from steel coil. The material passes through a series of forming rollers that progressively bend it into the specified cross-sectional shape.

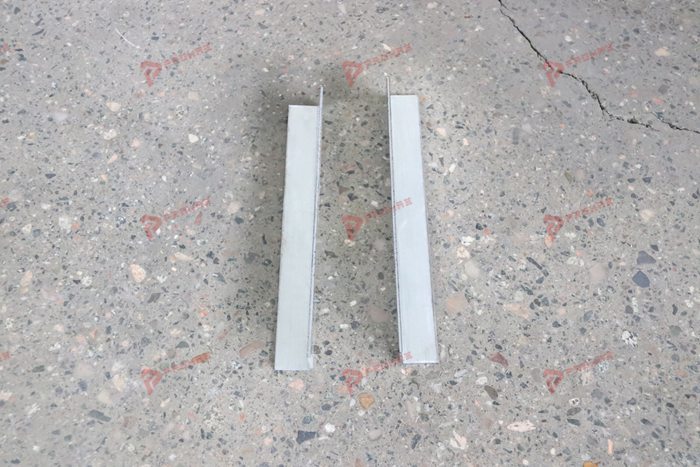

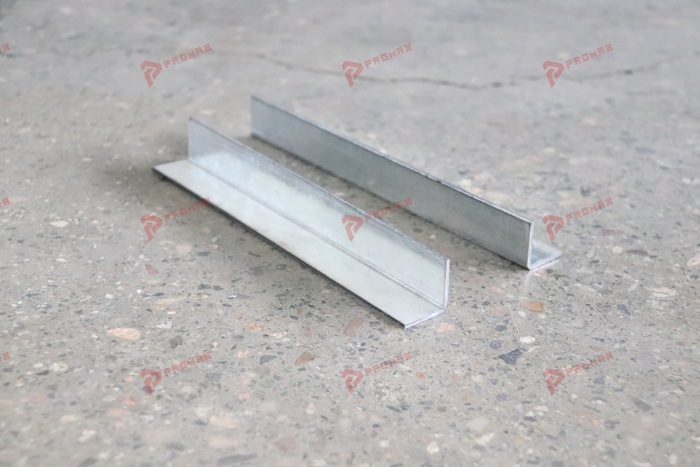

L-shaped metal profiles may be used as perimeter angles, edge profiles, or finishing components in compatible ceiling and interior construction systems. The exact application depends on the profile dimensions, material specifications, and requirements of the building system.

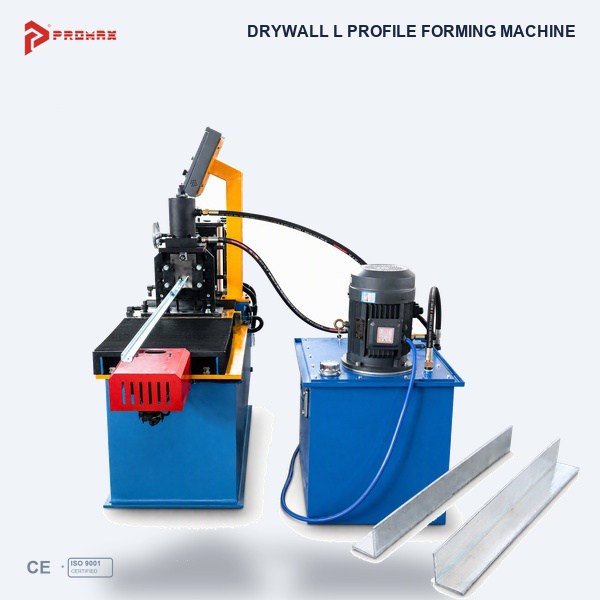

Depending on the selected configuration, a production line may include a decoiler, feeding and guiding equipment, a roll forming section, a cutting system, and an electrical control system. Additional functions can be considered according to the customer's product design and production workflow.

Key Features of the PROMAX L Keel Machine

1. Profile-Specific Forming Design

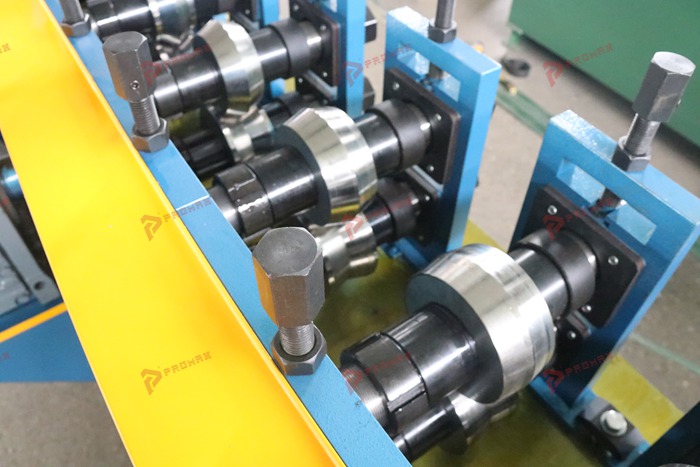

The forming system is designed around the required L-shaped profile. The roller arrangement and forming process are evaluated according to the profile dimensions, material thickness, and required cross-sectional geometry. Providing a technical drawing or sample profile helps the engineering team assess the appropriate configuration.

2. Continuous Metal Profile Production

The L angle roll forming machine uses a progressive forming process to produce metal profiles from coil material. The machine setup can be selected according to the required output, product specifications, and factory production plan.

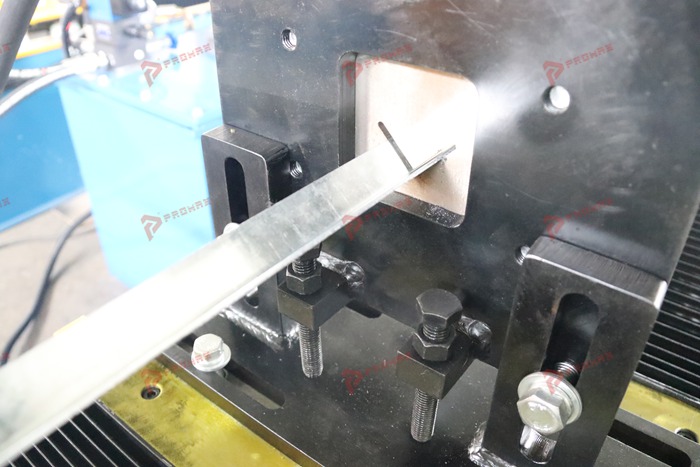

3. Cutting Based on Finished Product Requirements

The cutting system can be configured according to the profile design, material characteristics, and required finished length. The cutting method and length tolerance should be confirmed during the technical evaluation and included in the final machine specification.

4. Production Control and Operation

The control system coordinates the forming and cutting process according to the selected machine configuration. Automation level, operating interface, electrical components, and additional functions can be discussed based on the customer's production requirements.

Applications of an L Keel Making Machine

The PROMAX L keel machine is intended for manufacturing L-shaped metal profiles for compatible construction and interior finishing applications. Depending on the confirmed profile design, finished products may be used in:

• Suspended ceiling systems: Perimeter angles and edge profiles for compatible ceiling assemblies.
• Interior finishing: L-shaped metal trims and edge profiles used in selected interior projects.
• Drywall construction: Metal edge components for applications where the profile design is suitable.
• Building material manufacturing: Production of metal angle profiles for construction suppliers and distributors.

The suitability of a particular profile depends on its dimensions and the requirements of the intended construction system. Buyers should confirm the profile drawing and application before finalizing the machine design.

How to Choose the Right L Keel Roll Forming Machine

When selecting an L keel roll forming machine, manufacturers should evaluate the product requirements and planned production process before confirming the equipment configuration.

1. Profile drawing: Provide the cross-sectional drawing with both leg dimensions, material thickness, and other critical details.
2. Material specifications: Confirm the steel grade, coil width, thickness range, and surface coating.
3. Finished product length: Specify the required cutting lengths and dimensional tolerances.
4. Production capacity: Explain the expected output and planned working schedule.
5. Machine configuration: Confirm the decoiler, forming section, cutting method, and control requirements.
6. Factory conditions: Share the available installation space and electrical supply requirements.

These details help the manufacturer evaluate the forming process and recommend an appropriate machine configuration. Production speed, roller stations, cutting method, and other technical parameters should be confirmed in the final quotation and approved specification.

Why Choose PROMAX?

PROMAX focuses on roll forming equipment for metal framing and construction profile manufacturing. We evaluate each project according to the customer's profile design, material specifications, production targets, and factory conditions.

For manufacturers producing L-shaped ceiling angles or other metal edge profiles, sharing the technical drawing before ordering helps clarify the required machine configuration and production process. It also makes quotation comparisons more meaningful by aligning the proposed equipment with the actual product requirements.

Whether you are expanding an existing ceiling accessory factory or planning a new metal profile production line, PROMAX can discuss a suitable roll forming solution based on your manufacturing objectives.

Request a Quote for an L Keel Machine

Looking for an L keel machine for your metal profile manufacturing business? Contact PROMAX with your profile drawing, material thickness, coil width, required cutting length, and target production capacity.

Our team can review your requirements and discuss a suitable machine configuration for your factory. Providing detailed technical information at the beginning of the project helps improve the accuracy of equipment selection and quotation.

Contact PROMAX today to discuss your L keel roll forming project.
