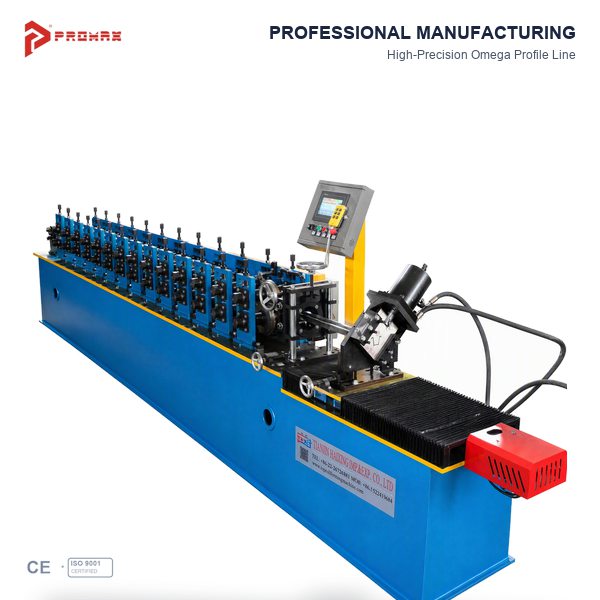

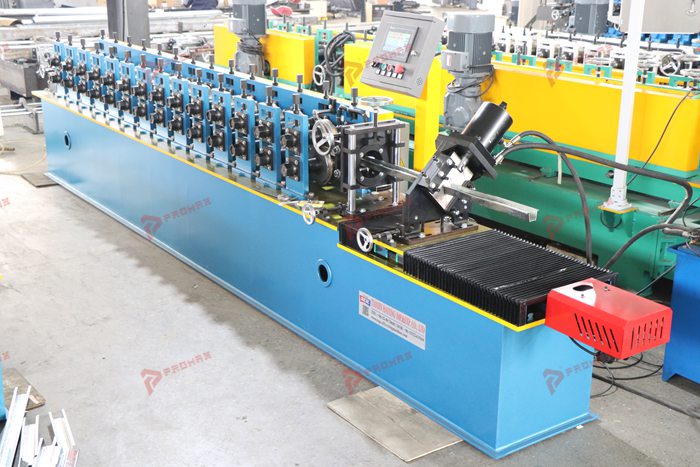

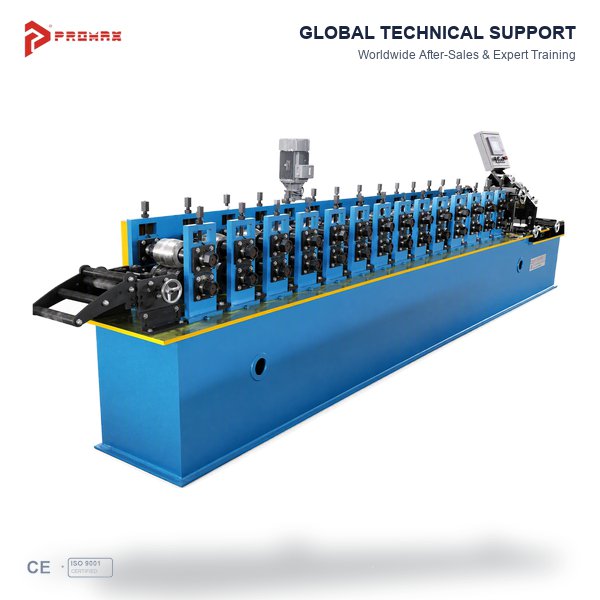

PROMAX Omega Profile Forming Line

The PROMAX Omega profile forming line is designed to manufacture Omega-shaped metal profiles for compatible ceiling systems, wall furring applications, and interior construction projects. Using a continuous cold roll forming process, the production line progressively shapes metal coil into the required profile according to the customer's drawing and technical specifications.

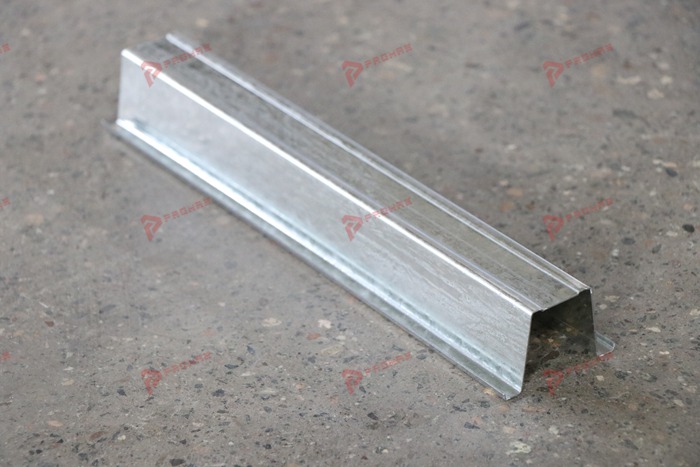

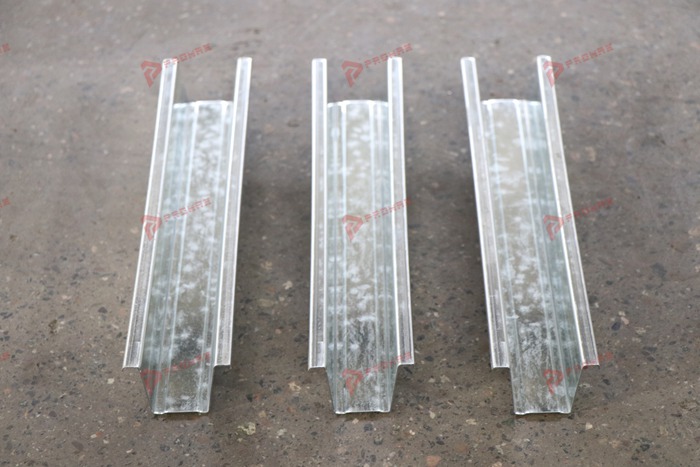

Omega profiles are commonly used as lightweight metal framing or furring components in selected building assemblies. For manufacturers of construction materials, a dedicated Omega channel forming line provides an equipment solution for producing metal channels for distributors, contractors, and building material suppliers.

The complete line configuration should be determined by the profile dimensions, raw material specifications, thickness range, cutting length, and production requirements. Providing a detailed profile drawing allows the manufacturer to evaluate the forming tooling and required equipment arrangement.

Applications of Omega Profile Production Lines

Omega-shaped metal channels are used in a range of light-gauge framing applications. Depending on the profile design and the requirements of the building system, typical uses may include:

• Ceiling systems: Omega channels for compatible ceiling framing and furring assemblies.
• Wall furring: Metal profiles used to support selected wall lining systems.
• Interior construction: Lightweight framing components for suitable residential and commercial projects.
• Building material manufacturing: Production of Omega profiles for construction material distributors and contractors.

The correct profile depends on its dimensions, material properties, installation method, and intended application. Customers should confirm the required cross-section and compatibility with the building system before ordering equipment.

How an Omega Channel Forming Line Works

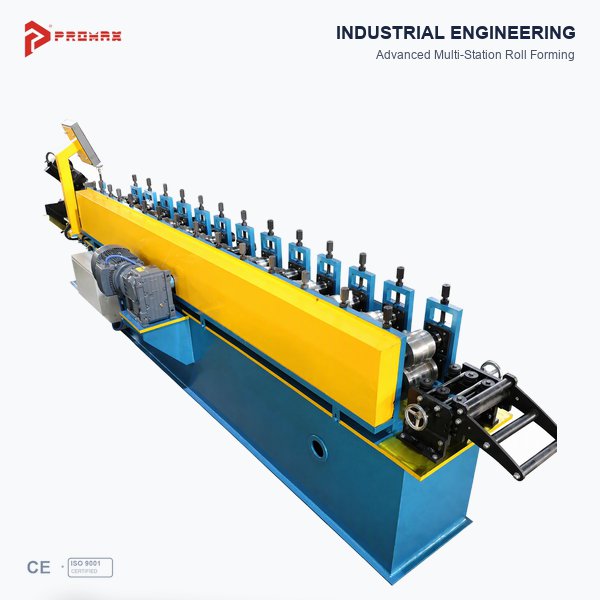

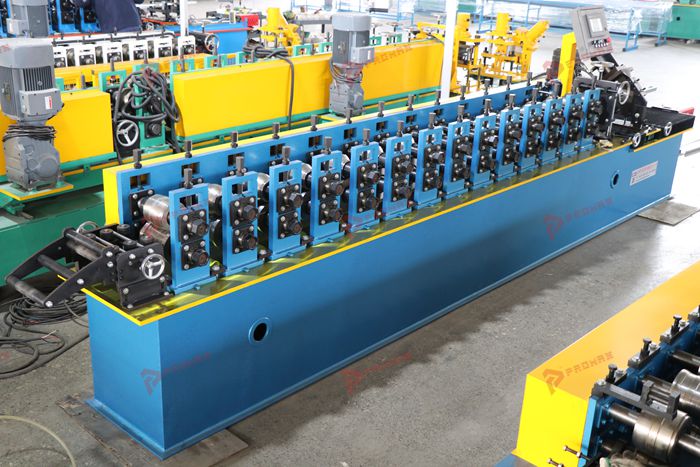

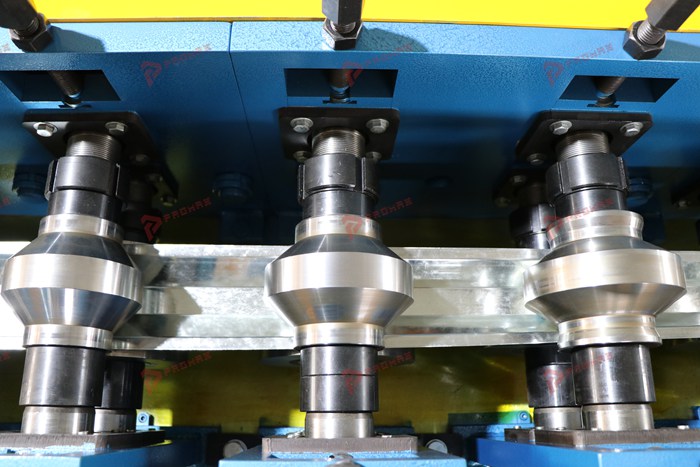

A typical Omega profile production line feeds metal strip through a series of forming stations. Each station gradually bends the material until it reaches the specified Omega-shaped cross-section. The formed profile is then cut to the required length according to the selected machine configuration.

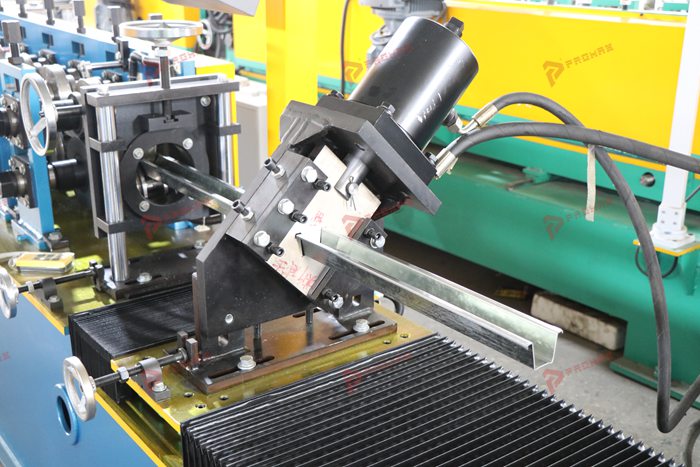

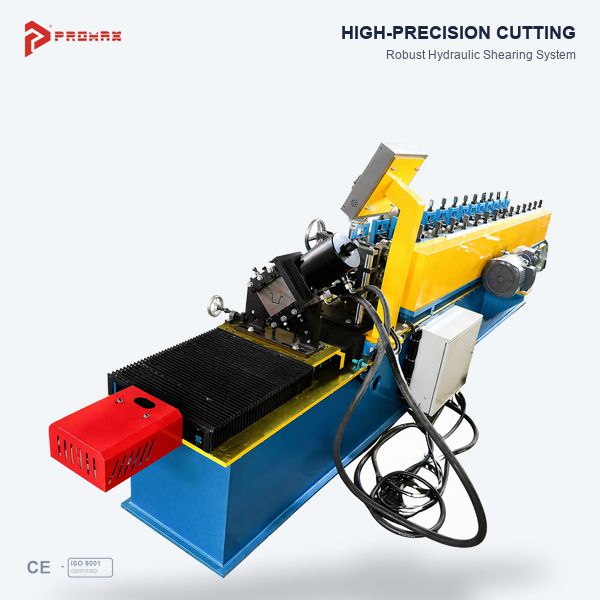

Depending on the production requirements, a line may include material feeding and guiding equipment, roll forming stations, a cutting unit, and an electrical control system. Punching or other processing functions can be considered when required by the finished profile drawing.

The roll tooling and forming arrangement must be matched to the material specifications and profile geometry. The final equipment configuration should be confirmed through technical review before production begins.

How to Specify an Omega Profile Forming Line

Before selecting an Omega channel forming line, manufacturers should define the finished profile and expected production requirements. Differences in web width, sidewall height, flange dimensions, and return edges may require different tooling and equipment configurations.

• Profile drawing: Provide the cross-sectional drawing with dimensions and tolerances.
• Raw material: Confirm the steel type, grade, coil width, and material thickness.
• Cutting requirements: Specify the finished profile length and cutting method.
• Punching requirements: Identify any holes, slots, or notches required in the profile.
• Production targets: Explain the expected output and preferred operating method.
• Automation requirements: Describe any specific feeding, control, or processing functions required.

These details help determine a suitable forming arrangement, tooling design, cutting system, and any additional processing equipment needed for the project.

PROMAX Omega Profile Manufacturing Solutions

PROMAX provides roll forming equipment solutions for manufacturers of lightweight metal framing and construction profiles. Each project can be evaluated according to the customer's profile drawing, material specifications, finished product dimensions, and production process.

For a new Omega profile production line, customers can submit their profile drawing and material details for technical review. The proposed configuration can then be discussed in relation to forming requirements, cutting arrangements, punching options, and the intended production range.

Machine speed, material thickness range, automation level, and compatibility with multiple profile sizes depend on the final design. These specifications should be confirmed in the technical proposal to ensure that the proposed equipment meets the customer's manufacturing needs.

Request a Quote for an Omega Profile Forming Line

Looking for an Omega profile forming line for your ceiling channel or metal framing business? Contact PROMAX to discuss your profile specifications and production requirements.

To help us evaluate your project, please provide the Omega profile drawing, material type, thickness range, required cutting length, punching details, and expected production output. Photos or samples of the finished profile can also help clarify the required cross-section.

Contact PROMAX today to discuss an Omega profile forming solution tailored to your production requirements.
