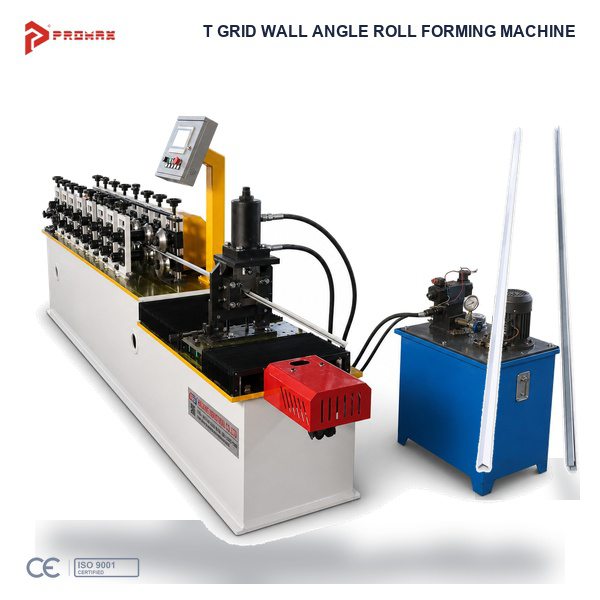

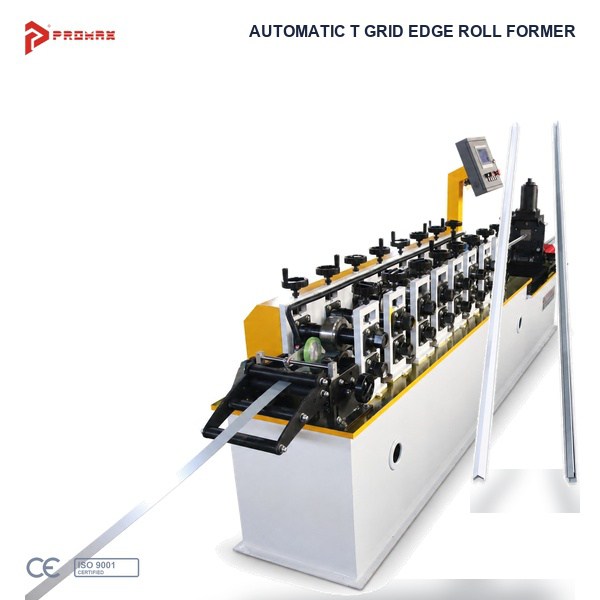

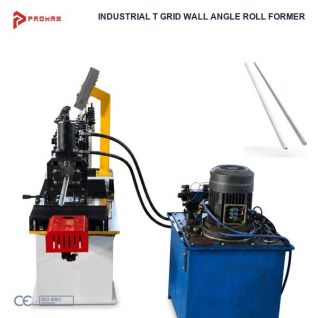

Ceiling Wall Angle Roll Forming Machine

Ceiling Wall Angle Roll Forming Machine for Metal Edge Profiles

The ceiling wall angle roll forming machine from PROMAX is designed for manufacturing metal wall angle profiles used around the perimeter of compatible suspended ceiling systems. These profiles provide an edge detail along walls and help form the boundary of a ceiling grid installation.

For manufacturers of ceiling components and metal building profiles, selecting the right roll forming equipment starts with the required cross-section, material specifications, and finished product dimensions. PROMAX can discuss suitable machine configurations based on your profile drawings and production requirements.

Wall Angle Profile Manufacturing

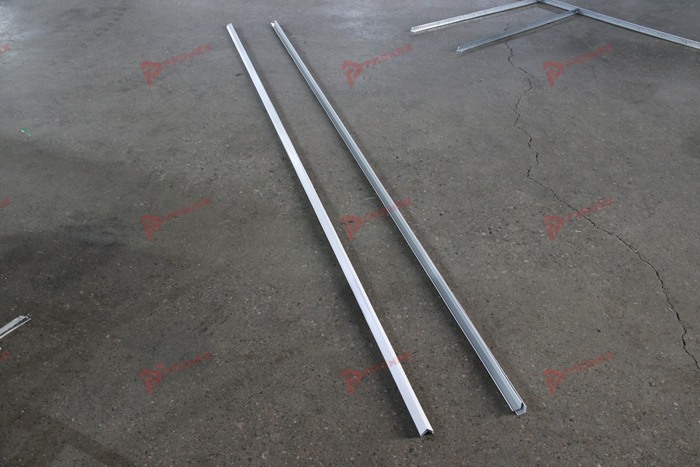

Metal wall angles, also called perimeter angles or ceiling edge angles, are commonly used along the boundaries of suspended ceiling installations. They work with compatible ceiling grid components to provide an edge support and a defined perimeter. The exact profile design depends on the ceiling system, installation method, and local market requirements.

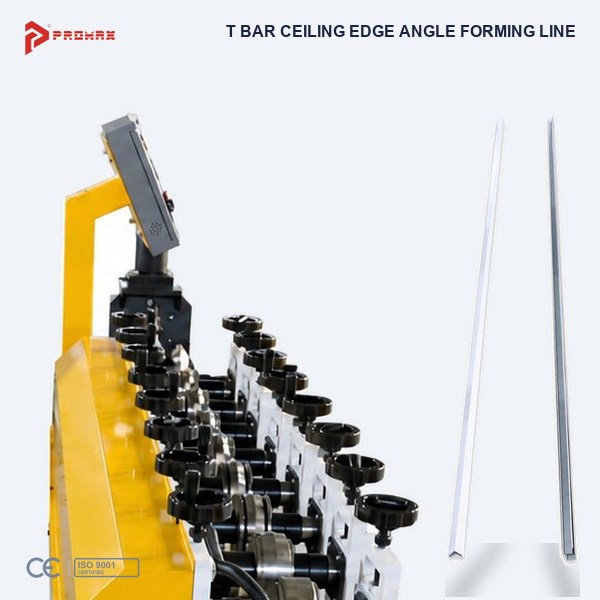

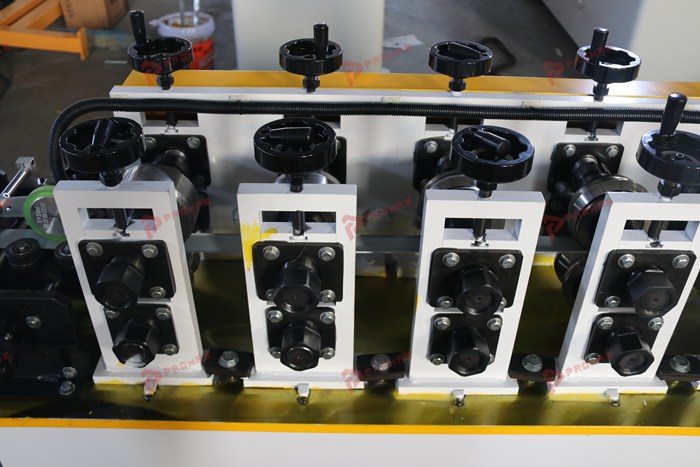

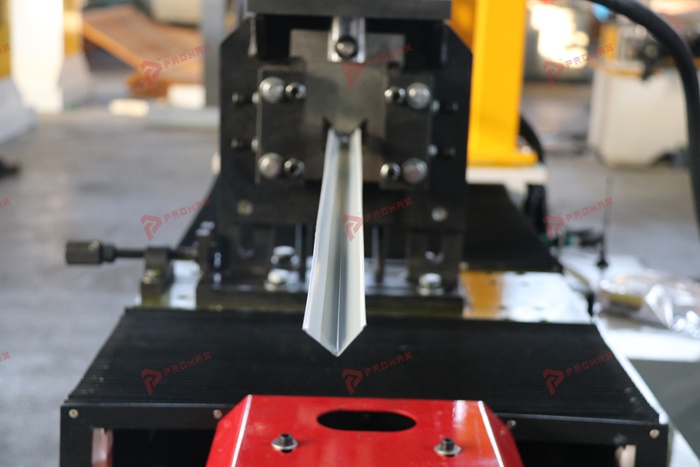

A wall angle roll forming machine shapes metal coil through a sequence of forming stations to produce the specified cross-section. Tooling design and machine configuration should be determined by the profile drawing, steel grade, material thickness, coil width, and required finished dimensions.

Before ordering equipment, buyers should confirm the profile geometry and material specifications. Providing a technical drawing or sample profile helps the manufacturer evaluate the forming process and the tooling required for the target product.

Machine Configuration Based on Your Profile

Wall angle profiles can vary in flange width, profile height, edge shape, and material thickness. A ceiling wall angle forming machine should therefore be configured according to the actual product specification rather than a generic description.

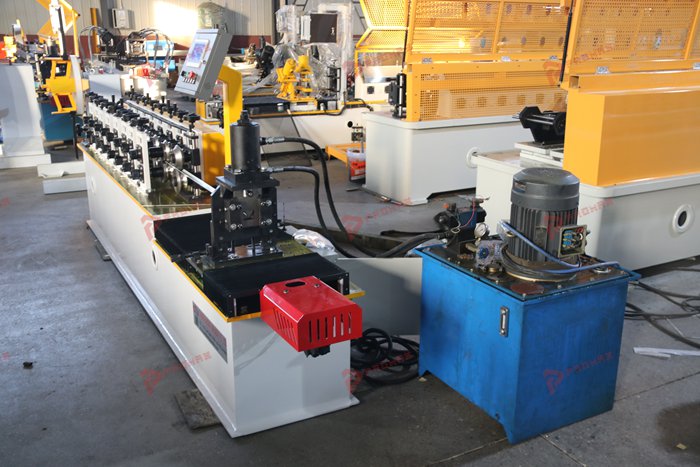

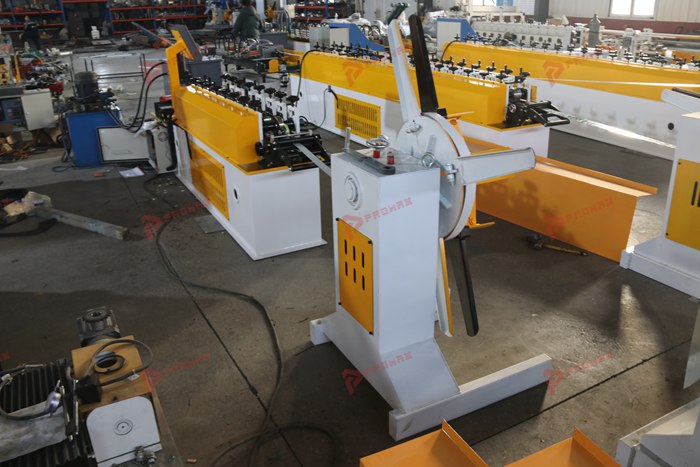

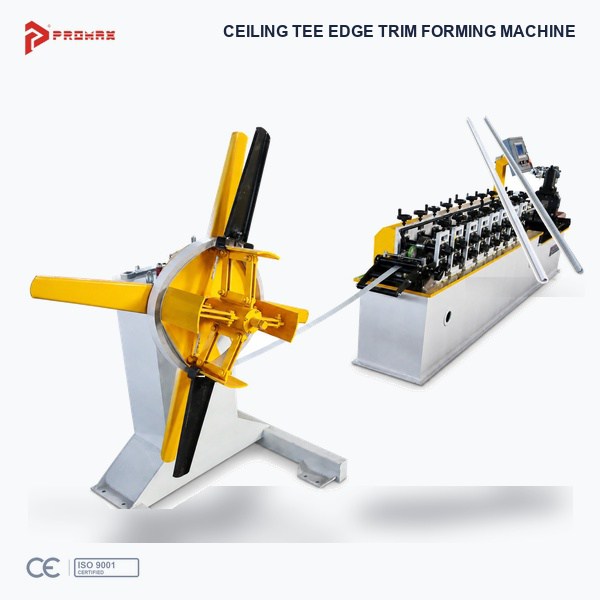

Depending on the confirmed requirements, a production line may include coil feeding, roll forming, length measurement, cutting, and finished-profile collection. Punching or other additional operations should be specified separately and verified against the proposed machine configuration.

Important Details to Confirm

To evaluate a suitable wall angle making machine, manufacturers should prepare the following information:

• Profile drawing: Cross-sectional shape, flange dimensions, profile height, and overall geometry.
• Material specifications: Steel grade, coil width, material thickness, and surface finish.
• Finished length: Required product lengths and cutting requirements.
• Processing requirements: Whether punching or other additional operations are needed.
• Production objectives: Intended output, operator workflow, and finished-product collection method.
• Machine configuration: Forming tooling, cutting system, and control requirements agreed for the project.

These details help the equipment supplier assess tooling requirements and recommend a machine arrangement suited to the intended manufacturing process.

Applications in Suspended Ceiling Systems

Metal wall angle profiles are commonly used around the perimeter of suspended ceiling installations in offices, retail spaces, commercial buildings, educational facilities, and other interior construction projects. They are used alongside compatible main runners, cross tees, and ceiling installation components.

Because ceiling grid systems differ in profile dimensions and installation details, buyers should confirm that the finished wall angle is compatible with their intended ceiling system. Profile drawings and connection details are useful references when planning a new production line.

Request a Ceiling Wall Angle Machine Quote

PROMAX works with manufacturers to discuss roll forming equipment according to their product drawings and production objectives. When requesting a quotation, please provide the wall angle profile drawing, raw material specifications, required finished lengths, and estimated production requirements.

Based on this information, the forming tooling, cutting arrangement, and other project-specific requirements can be evaluated. Contact PROMAX to discuss a ceiling wall angle roll forming machine tailored to your metal ceiling profile manufacturing needs.
