T-Bar Cross Tee Roll Forming Machine

T-Bar Cross Tee Roll Forming Machine for Suspended Ceiling Systems

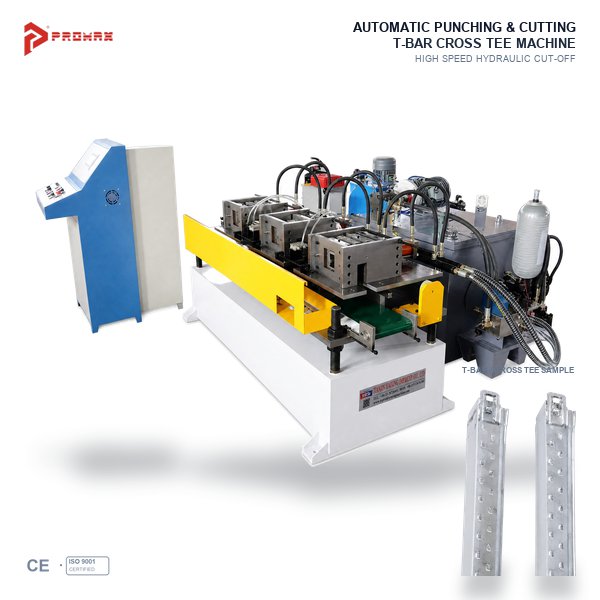

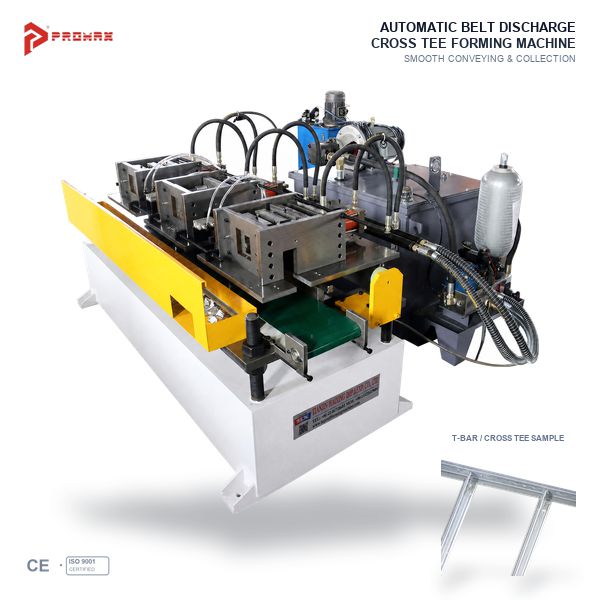

The PROMAX T-bar cross tee roll forming machine is designed for manufacturing metal cross tee profiles used in compatible suspended ceiling grid systems. These profiles connect with main runner components to create a supporting grid for ceiling panels in commercial buildings, offices, retail spaces, and other interior construction projects.

For ceiling grid manufacturers, selecting the right forming equipment starts with confirming the required profile dimensions, connection details, raw material specifications, and finished product lengths. PROMAX can discuss a suitable machine configuration based on your technical drawings and production requirements.

Designed for T-Bar Cross Tee Production

T-bar ceiling grids typically consist of main runners and cross tees that connect to form a framework for ceiling panels. Cross tees are manufactured to specific lengths and connection designs so that they can fit the corresponding main runner system.

A dedicated cross tee making machine progressively forms metal strip into the required T-shaped profile. The roller tooling and production configuration must match the intended cross-section, dimensions, and end-connection requirements.

Because ceiling grid systems can vary between manufacturers and markets, buyers should provide profile drawings and connection details before confirming the machine specification.

Cold Roll Forming Process

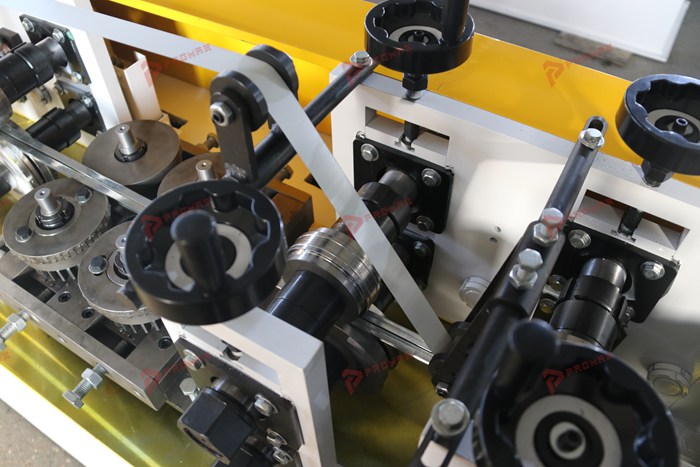

The production process generally begins with steel coil loading, material feeding, and strip guiding. The material then passes through successive forming stations, where rollers gradually shape it into the required cross-section.

Depending on the selected machine configuration, the production line may incorporate punching, cutting, and other profile-specific operations. The actual process arrangement depends on the product design, end-connection requirements, and manufacturing objectives.

Finished cross tees should be checked against the approved drawings. Important inspection points may include profile dimensions, straightness, cutting length, surface condition, and the fit of the connection ends with compatible ceiling grid components.

Customized Machine Configuration

Different ceiling grid systems may require different profile dimensions, connector designs, and finished lengths. Before selecting a ceiling T grid machine, manufacturers should confirm the following details:

• Profile drawing: Cross-sectional dimensions, flange geometry, and other profile features.
• Connection design: End connector shape, dimensions, and compatibility with the main runner.
• Raw material: Steel grade, coil width, material thickness, and material properties.
• Finished length: Required cross tee lengths and product tolerances.
• Punching requirements: Hole positions and other required openings, if applicable.
• Production objectives: Intended product range, expected output, and operating schedule.

Providing complete technical drawings helps the equipment supplier evaluate the forming tooling and discuss a configuration suitable for your ceiling grid products.

Applications of T-Bar Ceiling Grid Profiles

T-bar cross tees are used in compatible suspended ceiling systems to connect main runners and divide the ceiling framework into sections for ceiling panels. These systems are commonly found in offices, commercial interiors, educational facilities, retail premises, and other buildings requiring modular ceiling construction.

For manufacturers supplying ceiling contractors, building-material distributors, or ceiling system brands, consistent profile dimensions and reliable connector compatibility are important. The finished components should match the specified grid system and the relevant installation requirements.

Why Consider PROMAX T-Bar Roll Forming Equipment?

PROMAX provides roll forming equipment solutions for manufacturers of metal ceiling profiles and lightweight construction components. We work with customers to review product drawings, material specifications, connection details, and production objectives before discussing a suitable machine configuration.

When evaluating a T-bar ceiling machine, consider profile compatibility, connector forming requirements, punching and cutting arrangements, tooling design, operating procedures, and technical support. Confirming these details before ordering helps ensure that the equipment is aligned with the intended production process.

Request a Quote for a T-Bar Cross Tee Machine

Are you planning to manufacture T-bar cross tees for suspended ceiling systems? Contact PROMAX with your profile drawings, connector specifications, material thickness, required lengths, punching details, and expected production output.

Our team can review your requirements and discuss a suitable T-bar cross tee roll forming machine configuration for your factory. Contact us to request a quotation and further technical information.
