T-Bar Main Tee Roll Forming Machine

T-Bar Main Tee Roll Forming Machine for Suspended Ceiling Systems

The T-bar main tee roll forming machine from PROMAX is designed for manufacturing metal main runner profiles used in suspended ceiling grid systems. Main tees form the primary supporting members of a ceiling grid and work with compatible cross tees to create a framework for ceiling panels.

For ceiling grid manufacturers, selecting suitable roll forming equipment is important for producing profiles that match the required dimensions, connection design, and installation system. PROMAX can discuss machine configurations according to the customer's profile drawings, raw material specifications, and production requirements.

Manufacturing Main Tee Ceiling Profiles

Main tees, also known as main runners, are the primary longitudinal components in many suspended ceiling grid systems. They are designed to work with compatible cross tees and other ceiling suspension components. The exact profile geometry and connection structure depend on the ceiling system and the target market.

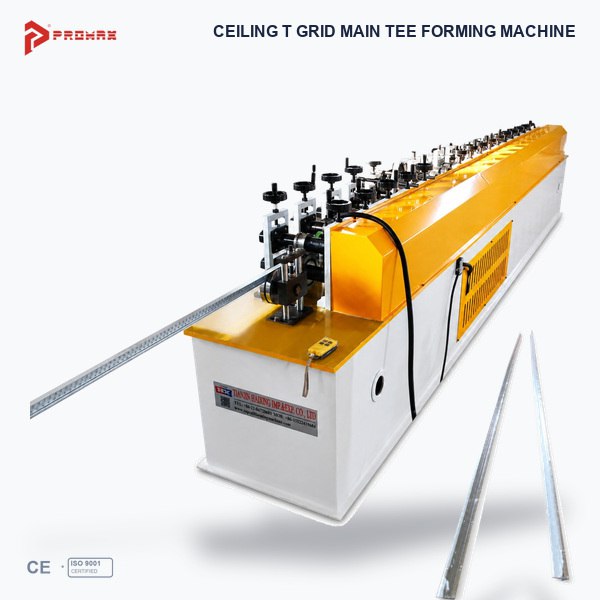

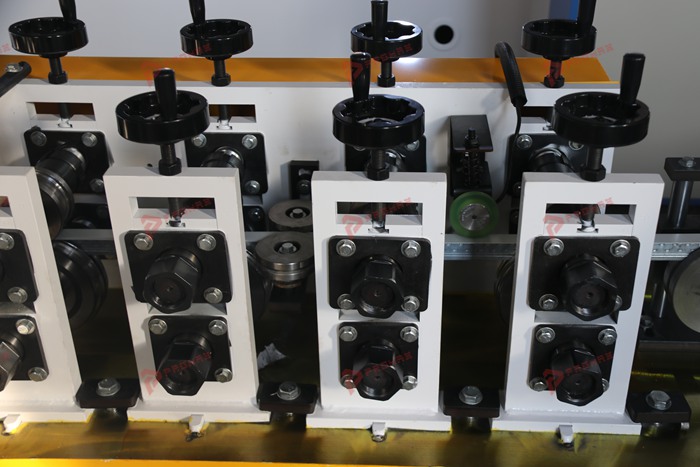

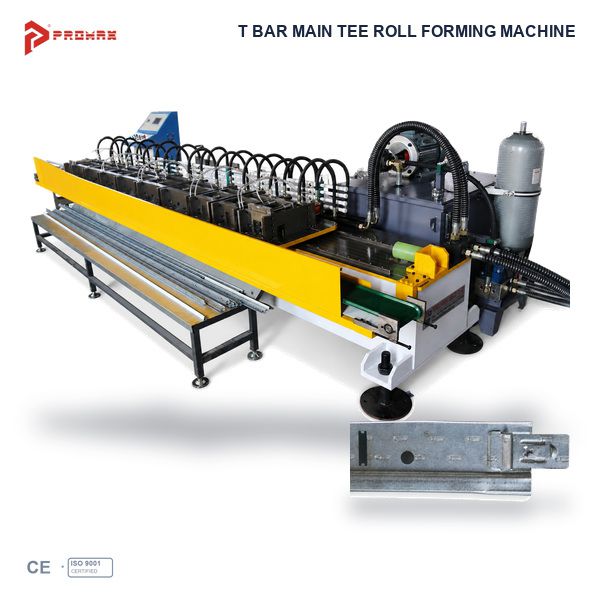

A main tee roll forming machine shapes metal coil into a specified profile through a series of forming stations. The tooling and machine arrangement should be selected according to the required cross-section, material thickness, steel specifications, and finished profile dimensions.

Before confirming a machine configuration, buyers should provide the main tee profile drawing and, where possible, the corresponding cross tee connection details. This helps ensure that the proposed equipment is designed for the intended ceiling grid system.

Customized Roll Forming Solutions

Different ceiling grid systems may require different main tee dimensions, flange shapes, connection slots, and end details. For this reason, a T-bar main tee forming machine should be evaluated against the actual product specification rather than a general profile description.

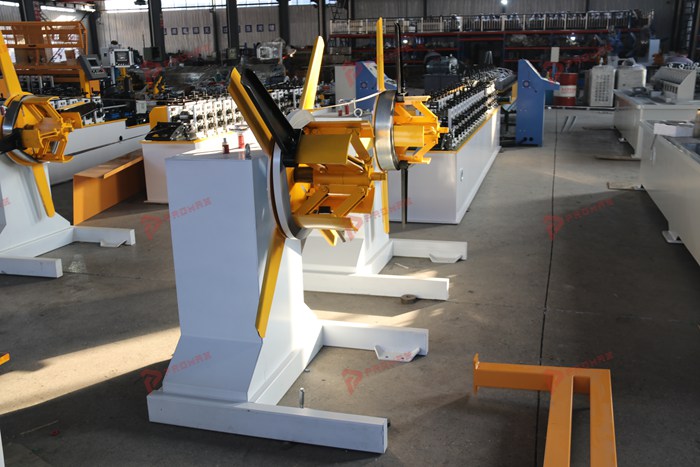

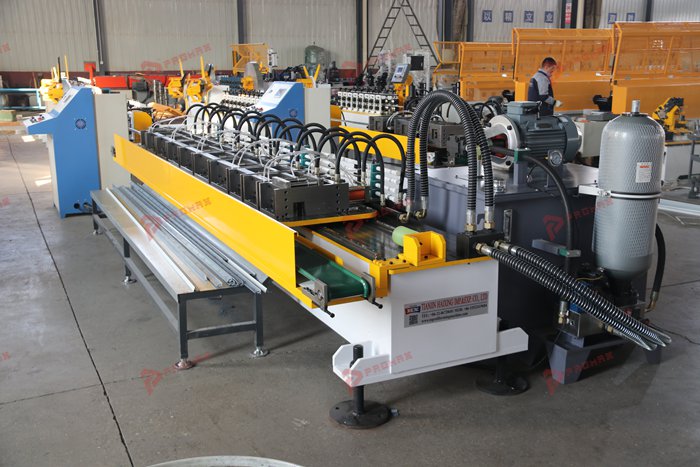

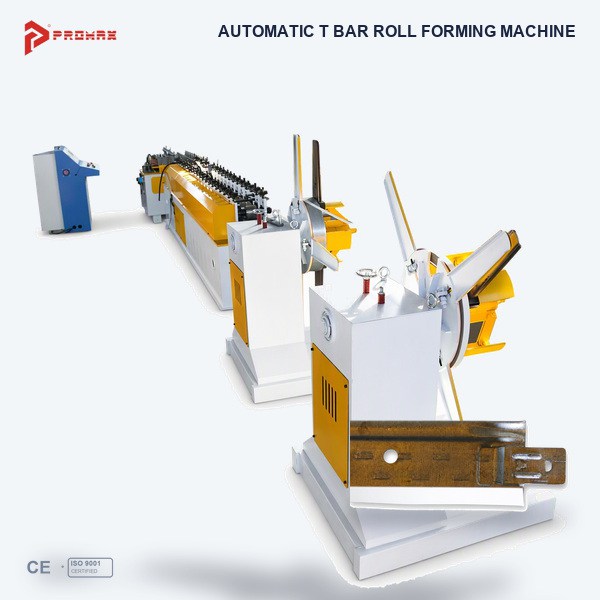

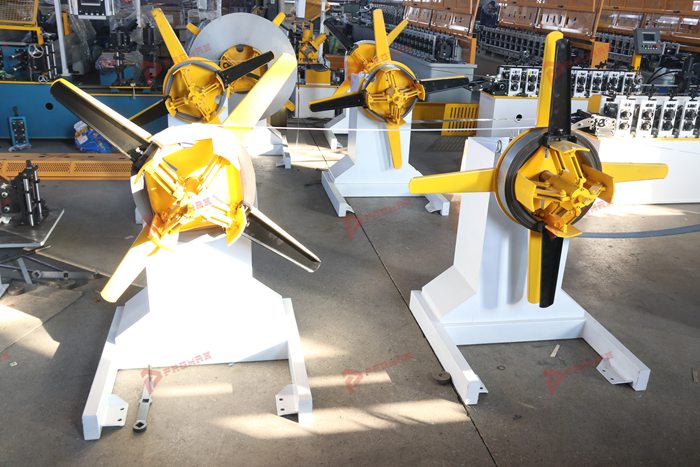

Depending on the confirmed design, the production line may include coil feeding, roll forming, punching, length measurement, cutting, and finished-profile collection. The availability and arrangement of these functions must be confirmed for the selected machine configuration.

Key Specifications to Confirm

When planning a main tee ceiling grid production project, manufacturers should review the following information with the equipment supplier:

• Profile drawing: Main tee cross-section, overall dimensions, flange shape, and web height.
• Material specifications: Steel grade, coil width, material thickness, and surface finish.

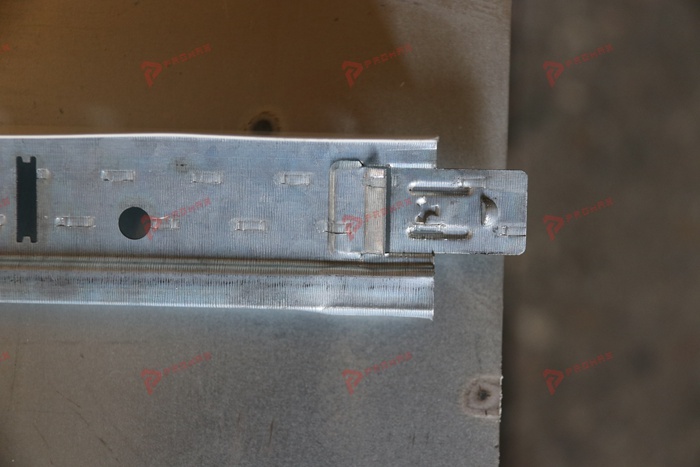

• Connection design: Slot positions, connector geometry, and compatibility with the intended cross tee system.
• Finished length: Required product lengths and cutting requirements.
• Production process: Required forming, punching, cutting, and collection operations.
• Control requirements: Operating method and control configuration agreed for the machine.

Providing accurate specifications at the inquiry stage helps the supplier evaluate tooling requirements and recommend a practical machine configuration for the intended products.

Applications in Suspended Ceiling Manufacturing

T-bar main tee profiles are commonly used in modular suspended ceiling frameworks for commercial buildings, offices, retail spaces, educational facilities, and other interior construction projects. The main runners form the primary grid structure and connect with compatible cross tees according to the ceiling system design.

Because profile dimensions and connection methods can vary between manufacturers and markets, buyers should verify compatibility with their target ceiling panels, cross tees, and installation accessories before production begins.

Request a Main Tee Roll Forming Machine Quote

PROMAX works with customers to evaluate roll forming equipment requirements for metal ceiling grid production. To help us assess your project, please provide the main tee profile drawing, material specifications, required finished lengths, connection details, and expected production requirements.

Based on your information, we can discuss the appropriate forming tooling, punching and cutting arrangements, machine configuration, and other project-specific requirements. Contact PROMAX to request a quotation for a T-bar main tee roll forming machine tailored to your ceiling profile manufacturing needs.
