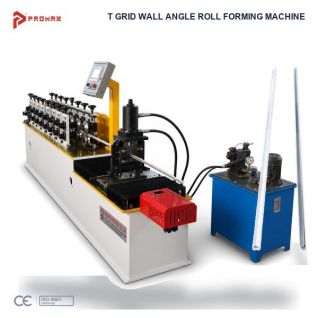

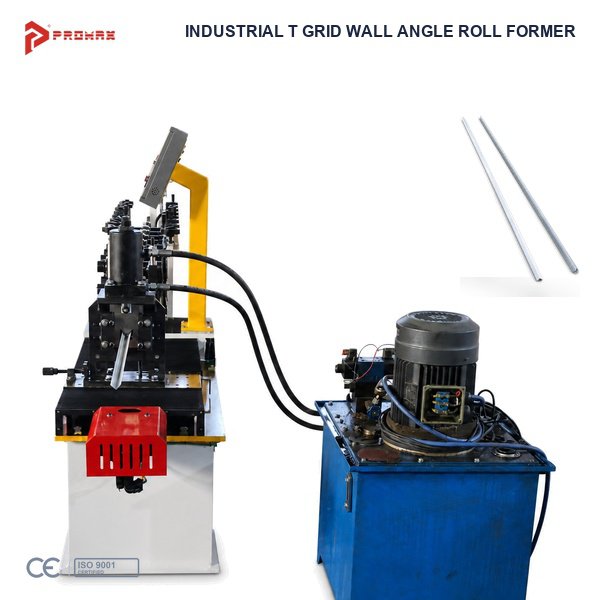

T-Bar Wall Angle Roll Forming Machine

Wall Angle Roll Forming Machine for Suspended Ceiling Systems

The wall angle roll forming machine from PROMAX is designed for manufacturing metal wall angle profiles used around the perimeter of compatible suspended ceiling systems. These profiles are commonly installed along walls to provide an edge support and help define the boundary of a ceiling grid.

For ceiling component manufacturers, choosing suitable roll forming equipment starts with the required profile dimensions, material specifications, and finished product requirements. PROMAX can discuss customized machine solutions based on the customer's profile drawings and intended manufacturing process.

Manufacturing Metal Wall Angle Profiles

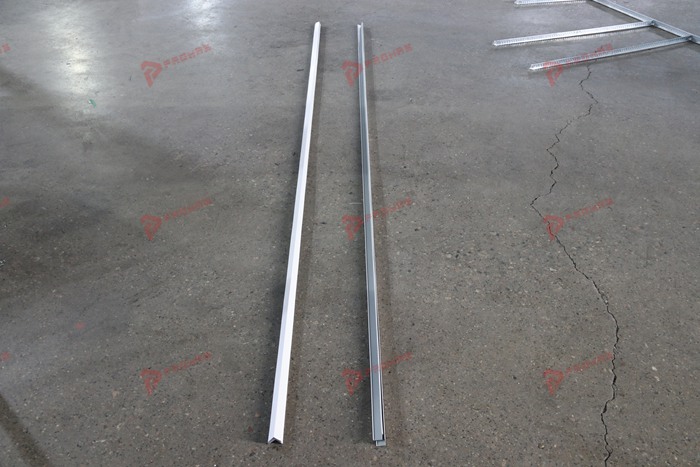

Wall angles, also known as perimeter angles or ceiling edge angles, are used along the boundaries of many suspended ceiling installations. They provide an edge profile that works with the compatible ceiling grid and installation design. Profile shape, flange dimensions, and material requirements can vary according to the application and local market.

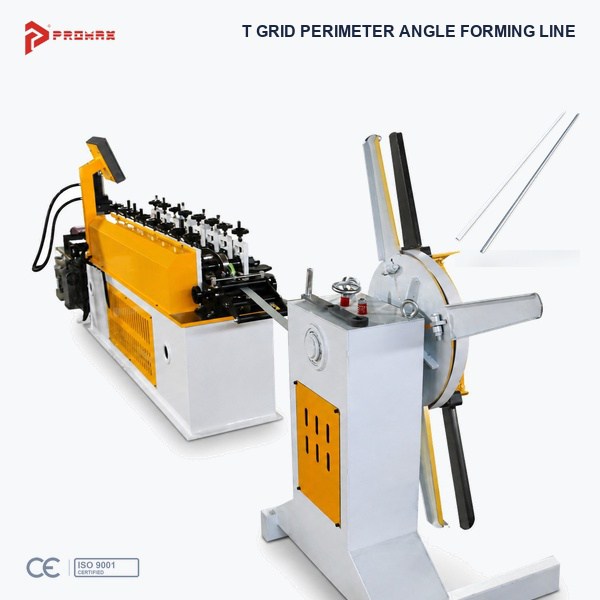

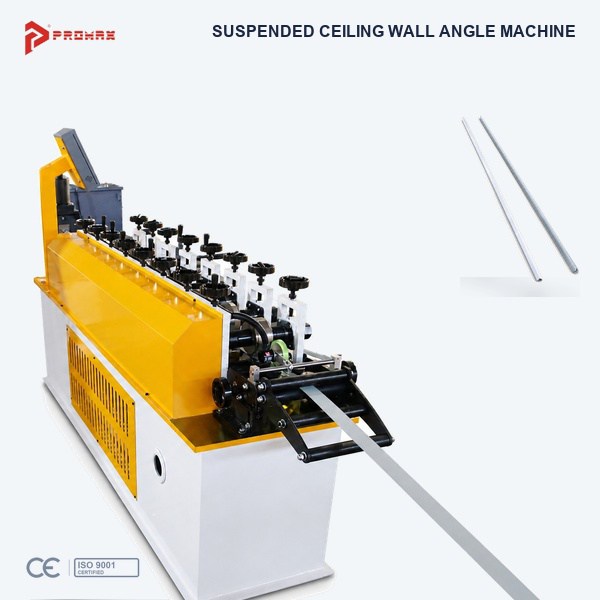

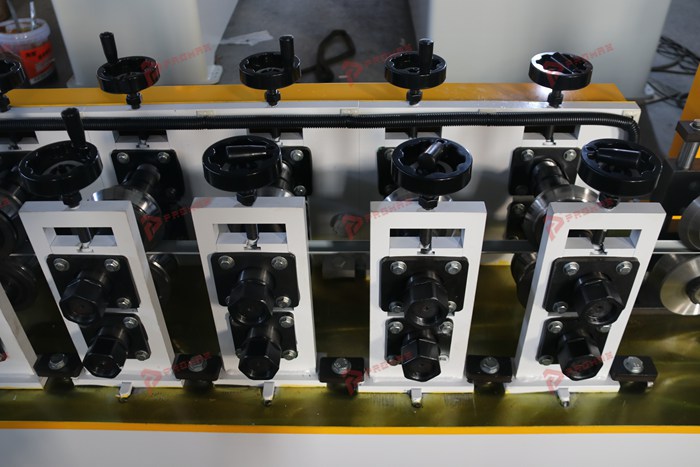

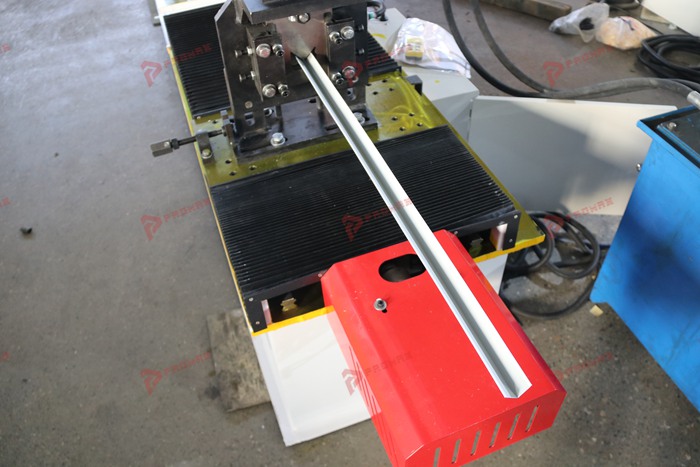

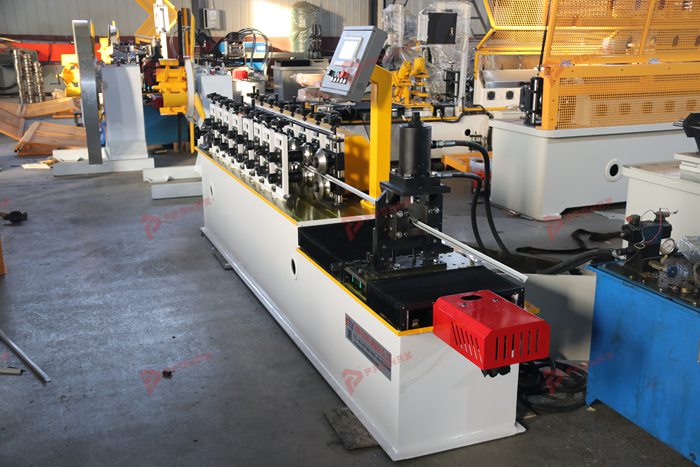

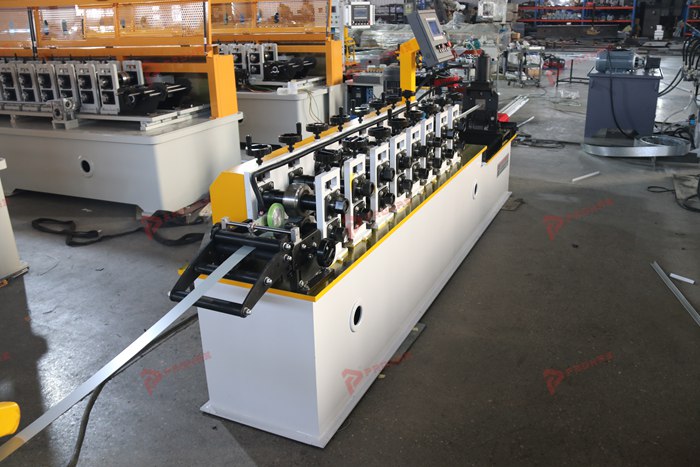

A wall angle making machine forms metal coil into a specified cross-section through a series of roll forming stations. The tooling and forming arrangement should be selected according to the target profile drawing, steel thickness, material grade, and finished dimensions.

Before equipment configuration is finalized, buyers should confirm the profile cross-section, material specifications, coil width, and required finished lengths. Providing these details helps the supplier assess the tooling and manufacturing process for the intended product.

Customized Roll Forming Equipment

Different ceiling systems may use wall angles with different flange widths, profile heights, edge shapes, and material specifications. A wall angle roll forming machine should therefore be configured around the actual product design rather than a generic profile description.

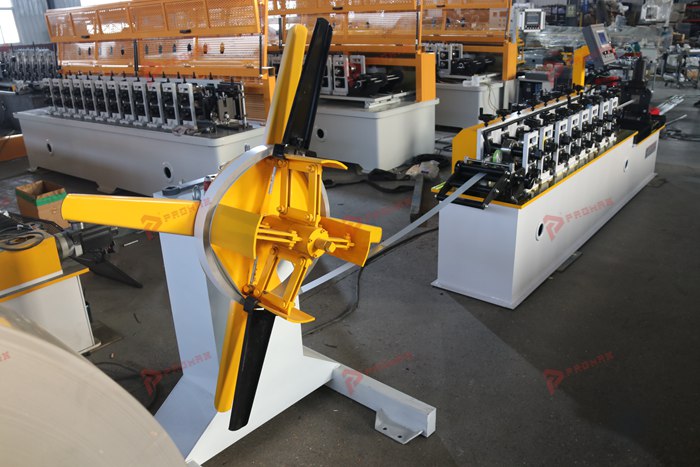

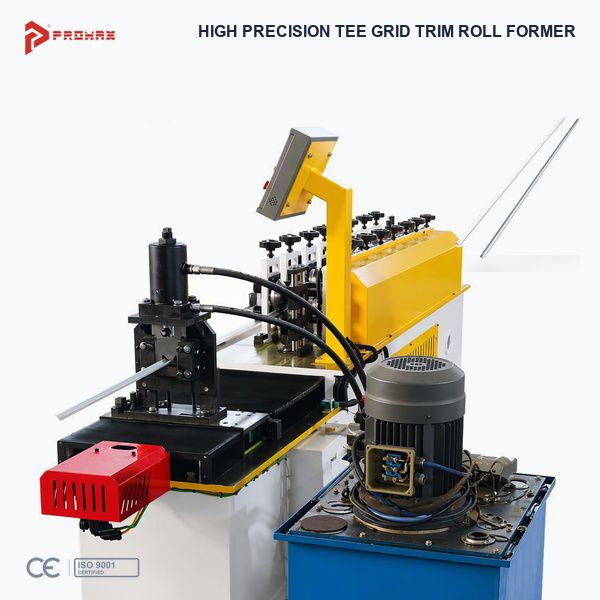

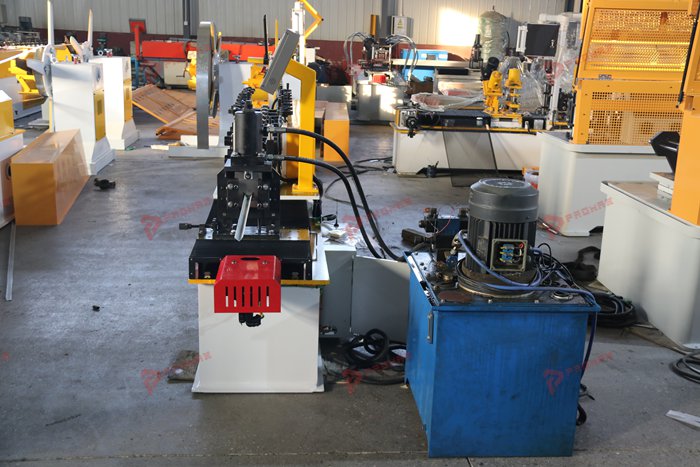

Depending on the confirmed production requirements, a line may incorporate coil feeding, roll forming, length measurement, cutting, and finished-profile collection. Punching or other additional operations should be specified according to the product drawing and verified machine configuration.

Key Specifications to Confirm

When selecting a ceiling wall angle forming machine, manufacturers should prepare the following technical information:

• Profile drawing: Cross-sectional shape, flange dimensions, profile height, and overall geometry.
• Raw material: Steel grade, coil width, material thickness, and surface finish.
• Finished length: Required profile lengths and cutting requirements.
• Processing operations: Whether punching or other additional processing is required.
• Production requirements: Intended output, operating workflow, and finished-product collection method.
• Machine configuration: Tooling, forming stations, cutting system, and control requirements agreed for the project.

Accurate specifications help the equipment supplier evaluate the appropriate machine arrangement and identify any additional tooling or processing functions required for the target profile.

Applications in Suspended Ceiling Installation

Metal wall angle profiles are commonly used around the perimeter of suspended ceiling systems in offices, commercial buildings, retail spaces, educational facilities, and other interior construction projects. They help provide an edge support for compatible ceiling grid arrangements.

Wall angles are generally used alongside other ceiling components, including main runners and cross tees. Manufacturers should confirm that the finished wall angle dimensions and design are suitable for the intended ceiling system and installation method.

Discuss Your Wall Angle Production Requirements

PROMAX works with manufacturers to evaluate roll forming equipment based on their product drawings and production objectives. When requesting a quotation, please provide the wall angle profile drawing, material specifications, finished lengths, and expected production requirements.

Based on these details, the required forming tooling, cutting arrangement, machine configuration, and any additional processing functions can be discussed. Contact PROMAX to request a customized solution for your metal wall angle manufacturing project.
