Main Tee T Grid Roll Forming Machine

Main Tee T Grid Roll Forming Machine for Ceiling Systems

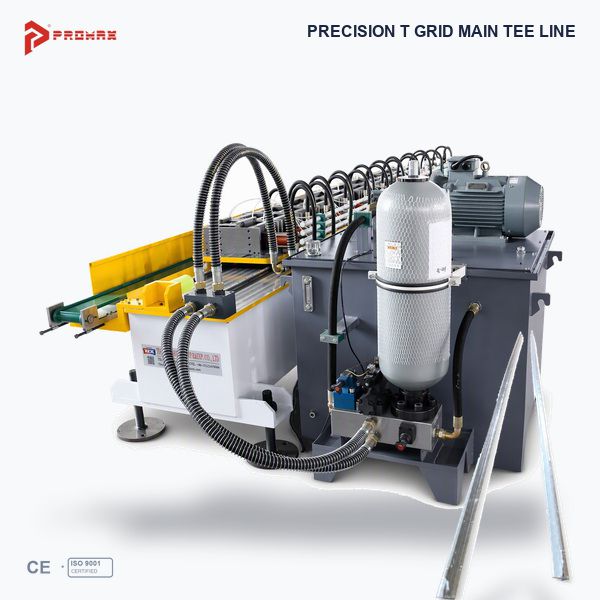

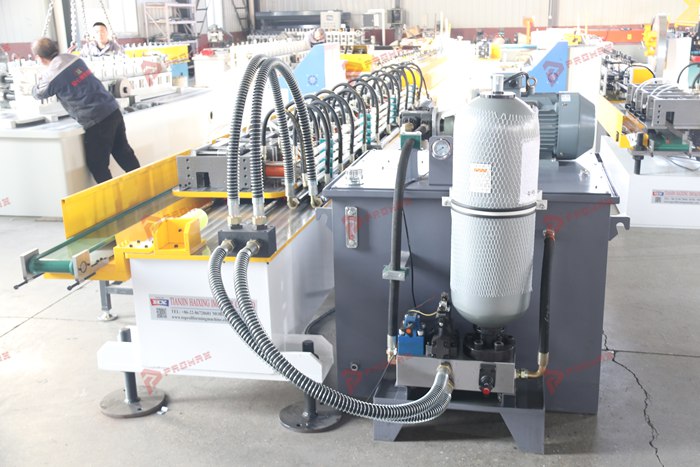

The main tee T grid roll forming machine from PROMAX is designed for manufacturing metal main runner profiles used in suspended ceiling grid systems. Main tees form the primary members of a ceiling framework and work with compatible cross tees to create a supporting grid for ceiling panels.

For manufacturers of metal ceiling components, the right roll forming equipment should match the required profile geometry, raw material specifications, connection design, and production workflow. PROMAX can discuss machine configurations according to the customer's technical drawings and manufacturing requirements.

Production of Main Tee Ceiling Grid Profiles

Main tee profiles, also known as main runners, are used as the primary structural members in many modular suspended ceiling systems. They are designed to connect with compatible cross tees and other suspension components. The profile dimensions and connection details vary depending on the ceiling grid design and the requirements of the target market.

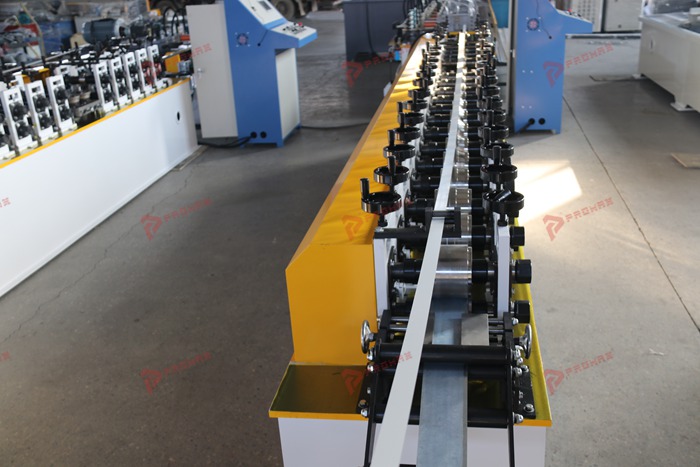

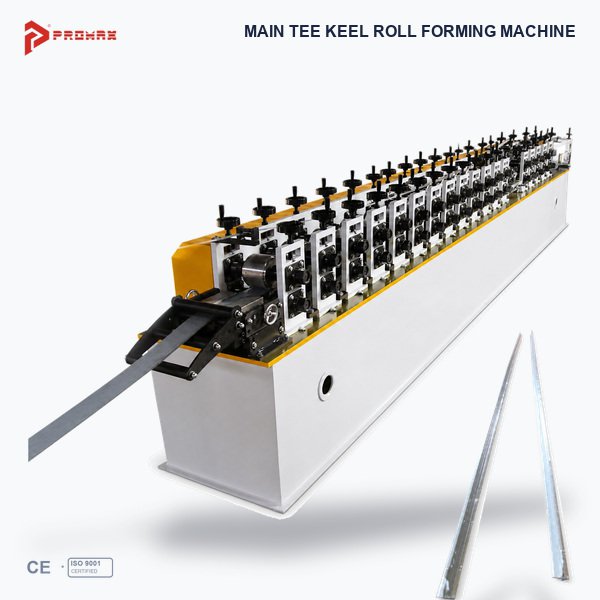

A main tee roll forming machine forms metal coil into the specified cross-section through a sequence of forming stations. The tooling design and machine configuration should be selected according to the profile drawing, material thickness, steel grade, and finished product dimensions.

Before confirming the machine design, buyers should provide a clear main tee profile drawing and relevant connection details. This information helps the equipment supplier evaluate the forming process and determine the required tooling and auxiliary functions.

Customized Machine Configuration

Different ceiling grid systems may require different web heights, flange dimensions, connection slots, and end structures. A main tee T grid forming machine should therefore be configured around the actual product specification rather than a general description of T-shaped profiles.

Depending on the confirmed design, a production line may incorporate material feeding, roll forming, punching, length measurement, cutting, and finished-profile collection. The required operations and their arrangement should be verified against the intended production process before an order is finalized.

Technical Details to Confirm Before Ordering

To help select suitable equipment for main tee production, manufacturers should prepare the following information:

• Profile drawing: Cross-sectional dimensions, web height, flange shape, and overall profile geometry.
• Raw material: Steel grade, coil width, material thickness, and surface finish.

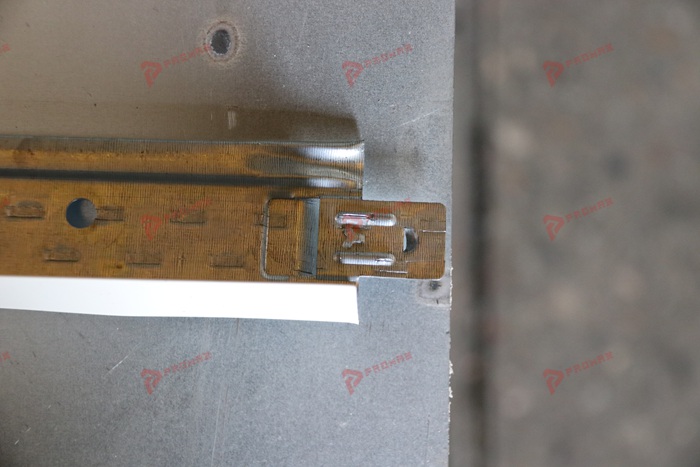

• Connection design: Slot locations, end connection details, and compatibility with the intended cross tee system.
• Finished dimensions: Required profile lengths and cutting specifications.
• Processing requirements: Forming, punching, cutting, and collection operations needed for the finished product.
• Control requirements: Operating method and electrical control configuration agreed for the machine.

Accurate specifications make it easier to evaluate the required tooling, production sequence, and machine layout. They also help reduce misunderstandings when the equipment is designed for a particular ceiling grid profile.

Applications in Suspended Ceiling Systems

Metal main tee profiles are commonly used in suspended ceiling frameworks for offices, commercial buildings, retail spaces, educational facilities, and other interior construction projects. When combined with compatible cross tees and ceiling accessories, they form a grid structure designed for the relevant ceiling panel system.

Since profile dimensions and connector designs can vary among ceiling systems, buyers should confirm compatibility between the main runner, cross tees, ceiling panels, and installation accessories before starting mass production.

Request a Main Tee Roll Forming Machine Quote

PROMAX works with manufacturers to discuss roll forming solutions based on their profile drawings and production objectives. When requesting a quotation, please provide the main tee drawing, material specifications, finished profile length, connection details, and estimated production requirements.

Based on these details, the machine configuration, forming tooling, punching and cutting arrangements, and other project-specific requirements can be evaluated. Contact PROMAX to discuss a main tee T grid roll forming machine suited to your metal ceiling profile manufacturing project.
